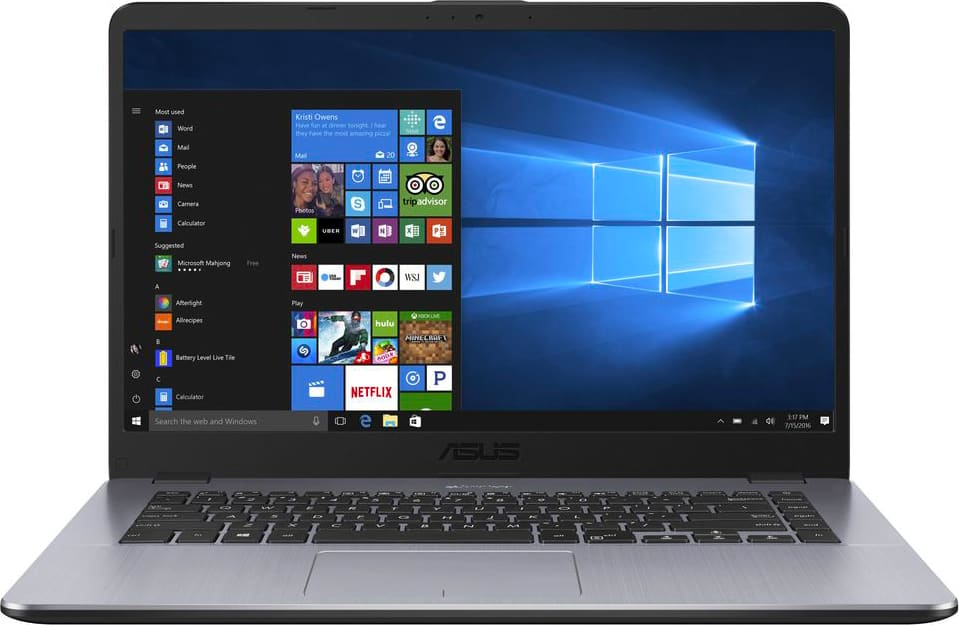

Vivobook S505BA-BR073T laptop AMD A9 A9-9420
39.6 cm (15.6") HD 8 GB DDR4-SDRAM 256 GB SSD AMD Radeon R5 M420 Wi-Fi 4 (802.11n) Windows 10 Home Grey
Model S505BA-BR073TEAN 4712900973488
77 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorAMD A9
- Memory8 GB
- Storage256 GB
- GraphicsAMD Radeon R5 M420
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- AMD A9
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- AMD Radeon R5 M420
- Brand
- ASUS
- Category
- Laptop
- Model
- S505BA-BR073T
- Part number
- S505BA-BR073T
- EAN / UPC
- 4712900973488
- Also known as
- ASUS Vivobook S505BA-BR073T laptop AMD A9 A9-9420 39.6 cm (15.6") HD 8 GB DDR4-SDRAM 256 GB SSD AMD Radeon R5 M420 Wi-Fi 4 (802.11n) Windows 10 Home Grey
Specifications
77 specifications in 16 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Grey |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Dual-screen | No |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD A9 |
| Processor generation | 7th Generation AMD A9-Series APUs |
| Processor model | A9-9420 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Maximum internal memory (64-bit) | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon R5 M420 |
| On-board graphics card family | AMD Radeon R5 |
| On-board graphics card model | AMD Radeon R5 |
Audio
| Specification | Value |
|---|---|
| Audio system | SonicMaster |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 0.5 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 3 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.68 kg |
| Width | 361 mm |
| Depth | 244 mm |
| Height | 20.4 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
