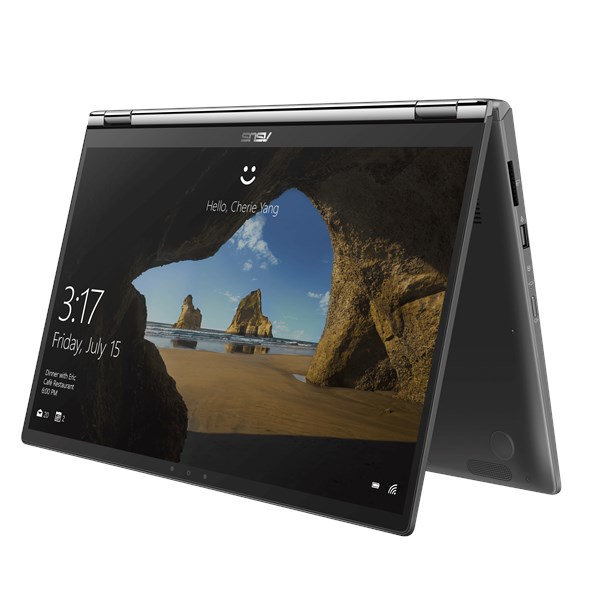

Q536FD-BI7T15 laptop Intel® Core™ i7 i7-8565U Hybrid (2-in-1)
39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB DDR4-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX
Model Q536FD-BI7T15EAN 192876093887
153 specifications Checked today
- Display39.6 cm (15.6")
- Resolution3840 x 2160 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage2.25 TB
- GraphicsNVIDIA® GeForce® GTX 1050 Max-Q
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 3840 x 2160 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 2.25 TB
- Graphics
- NVIDIA® GeForce® GTX 1050 Max-Q
- Brand
- ASUS
- Category
- Laptop
- Model
- Q536FD-BI7T15
- Part number
- Q536FD-BI7T15
- EAN / UPC
- 192876093887, 724893622131
- Also known as
- ASUS Q536FD-BI7T15 laptop Intel® Core™ i7 i7-8565U Hybrid (2-in-1) 39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB DDR4-SDRAM 2.25 TB HDD+SSD NVIDIA® GeForce® GTX
Specifications
153 specifications in 17 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Grey |
| Form factor | Convertible (Folder) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | 4K Ultra HD |
| Touch technology | Multi-touch |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Dual-screen | No |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor model | i7-8565U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 1.8 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x4, 2x2 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.25 TB |
| Storage media | HDD+SSD |
| Total HDDs capacity | 2 TB |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1050 Max-Q |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Micro-USB 2.0 ports quantity | 0 |
| Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Alienware graphics amplifier port | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| TV-out | No |
| Serial ports quantity | 0 |
| Number of Thunderbolt 3 ports with PowerShare support | 0 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 149091 |
| Processor package size | 46x24 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 4 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 120 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 6.32 A |
| AC adapter output voltage | 19 V |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, FCC Compliance |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.91 kg |
| Width | 355.6 mm |
| Depth | 226 mm |
| Height | 20.3 mm |
