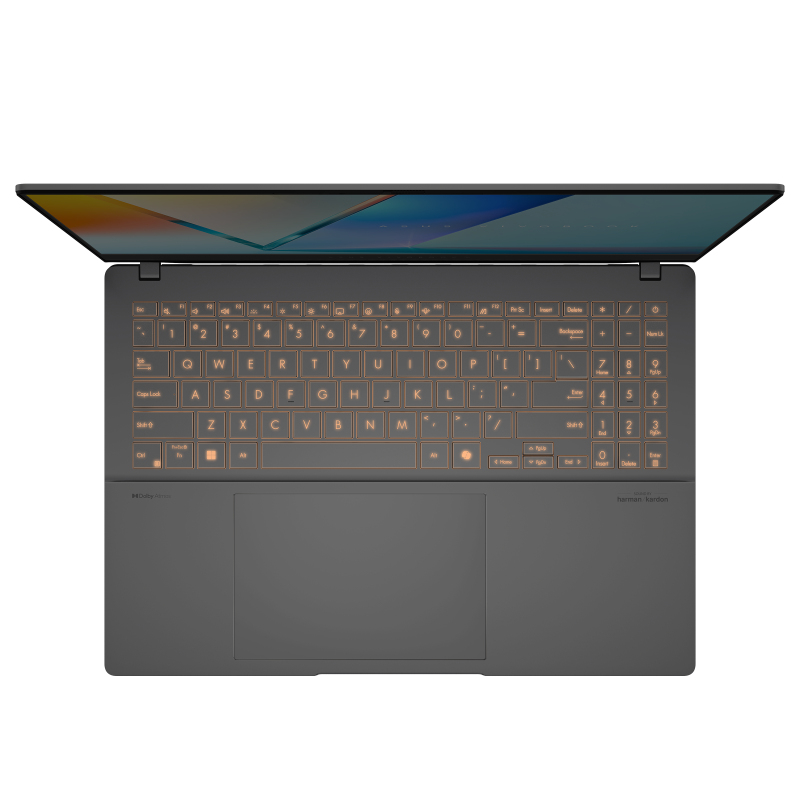

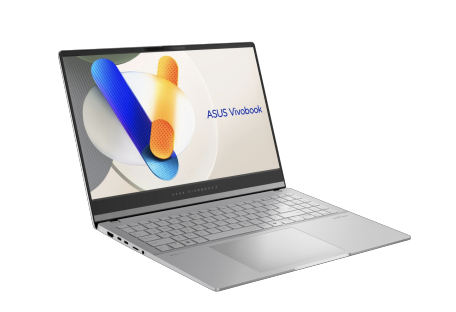

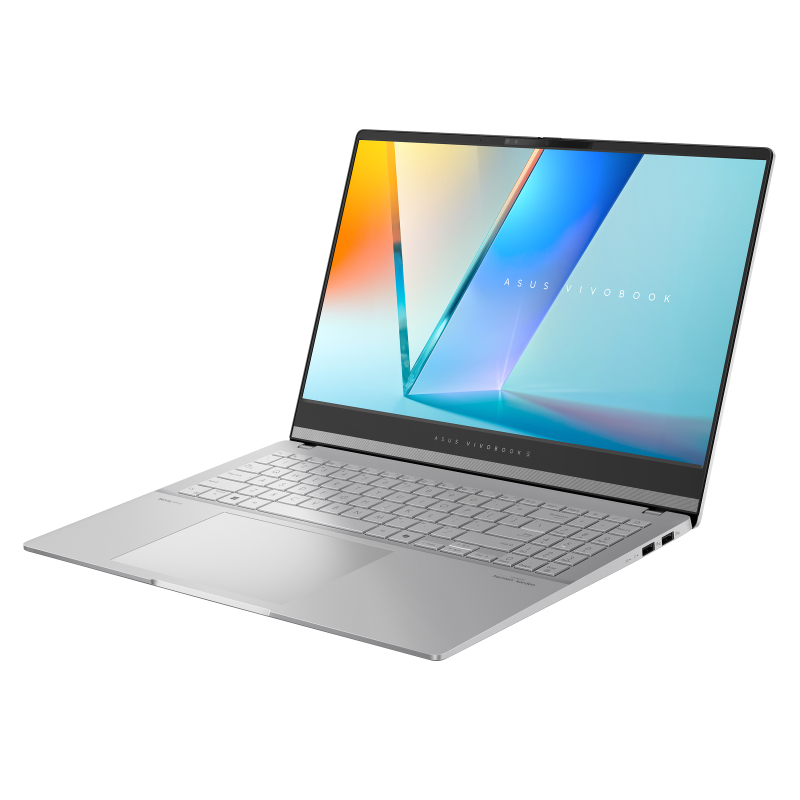

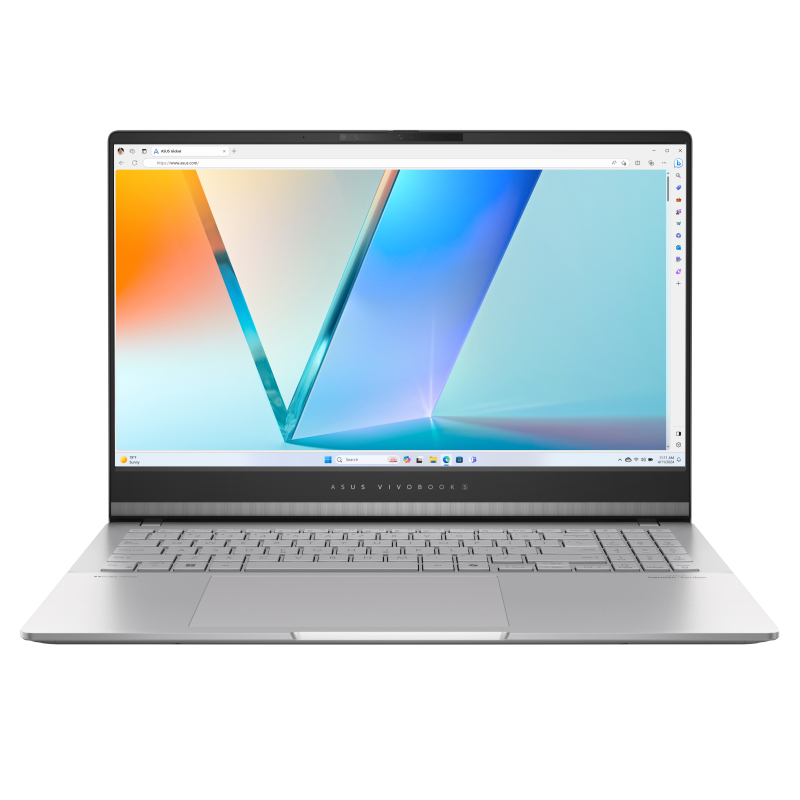

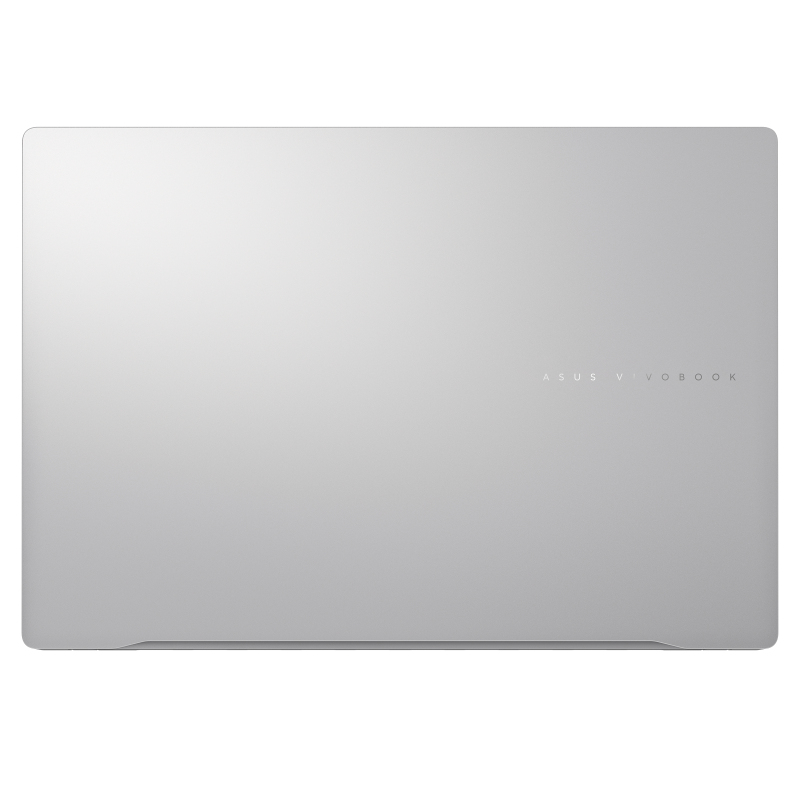

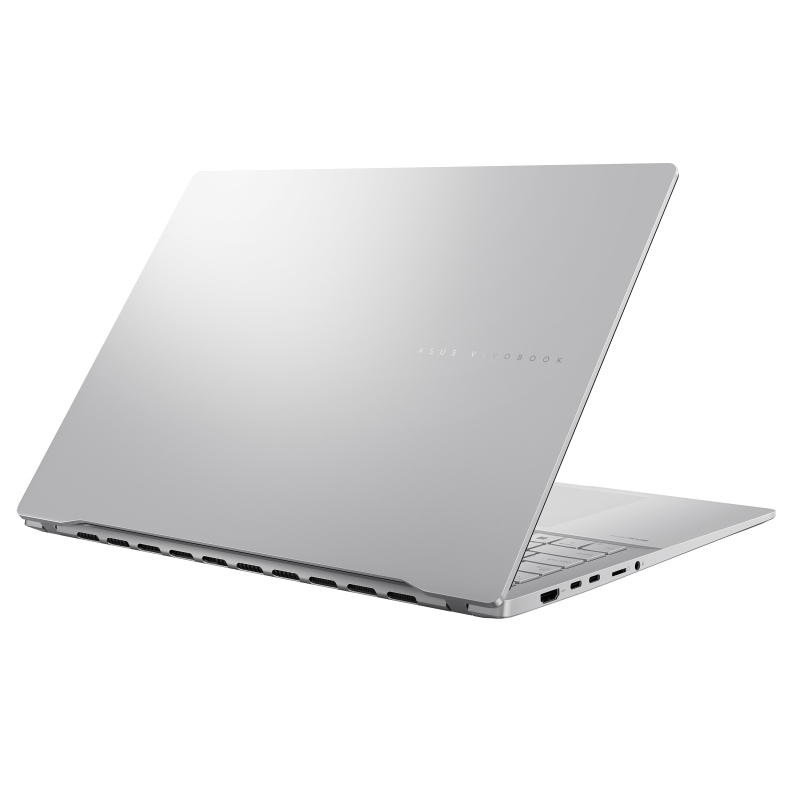

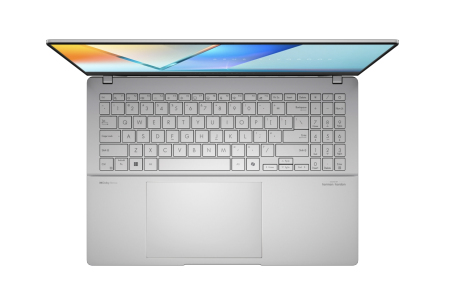

ASUS Vivobook S15 OLED M5506UA-MA044X AMD Ryzen™ 7 8845HS Laptop

Vivobook S15 OLED M5506UA-MA044X AMD Ryzen™ 7 8845HS Laptop

39.6 cm (15.6") Wide Quad HD+ 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro S

Model M5506UA-MA044XPart no. 90NB1473-M001S0EAN 4711387602744

104 specifications Checked today

Display39.6 cm (15.6")
Resolution2880 x 1620 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 2880 x 1620 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: M5506UA-MA044X
Part number: 90NB1473-M001S0
EAN / UPC: 4711387602744
Also known as: ASUS Vivobook S15 OLED M5506UA-MA044X AMD Ryzen™ 7 8845HS Laptop 39.6 cm (15.6") Wide Quad HD+ 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro S

Specifications

104 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell
Market positioning	Home
Introduction year	2024

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	2880 x 1620 pixels
Touchscreen	No
HD type	Wide Quad HD+
Panel type	OLED
Native aspect ratio	16:9
Display brightness	400 cd/m²
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
Display diagonal (metric)	39.6 cm
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 8000 Series
Processor model	8845HS
Processor cores	8
Processor threads	16
Processor boost frequency	5.1 GHz
Processor frequency	3.8 GHz
Processor cache	24 MB
Processor cache type	L2 & L3
Maximum turbo power	54 W
Processor base power	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete GPU manufacturer	AMD
Discrete graphics card model	Not available
Discrete graphics card memory	16 GB
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 780M
On-board graphics card cores	12

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

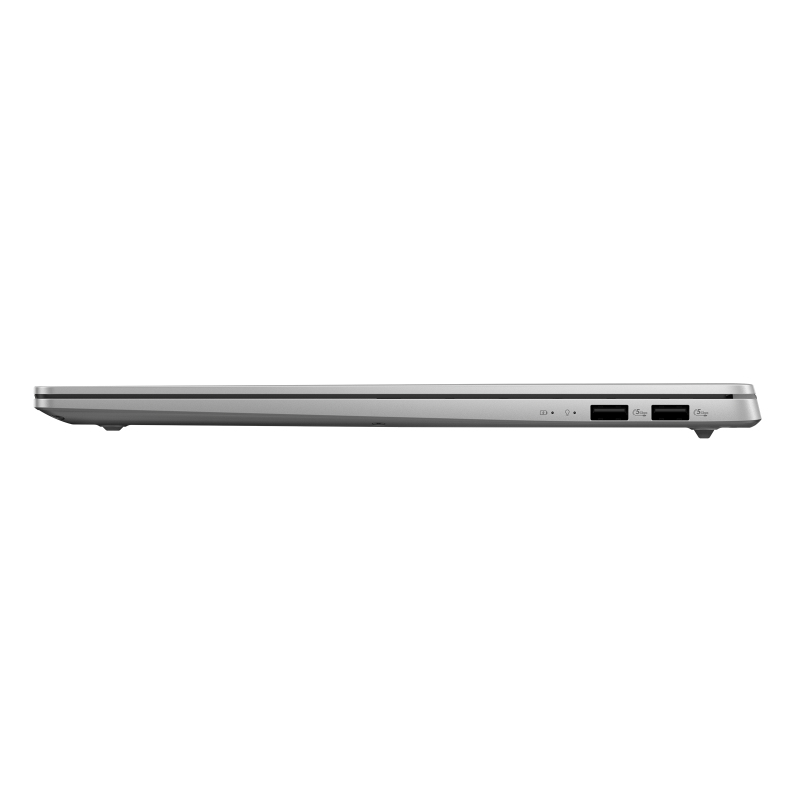

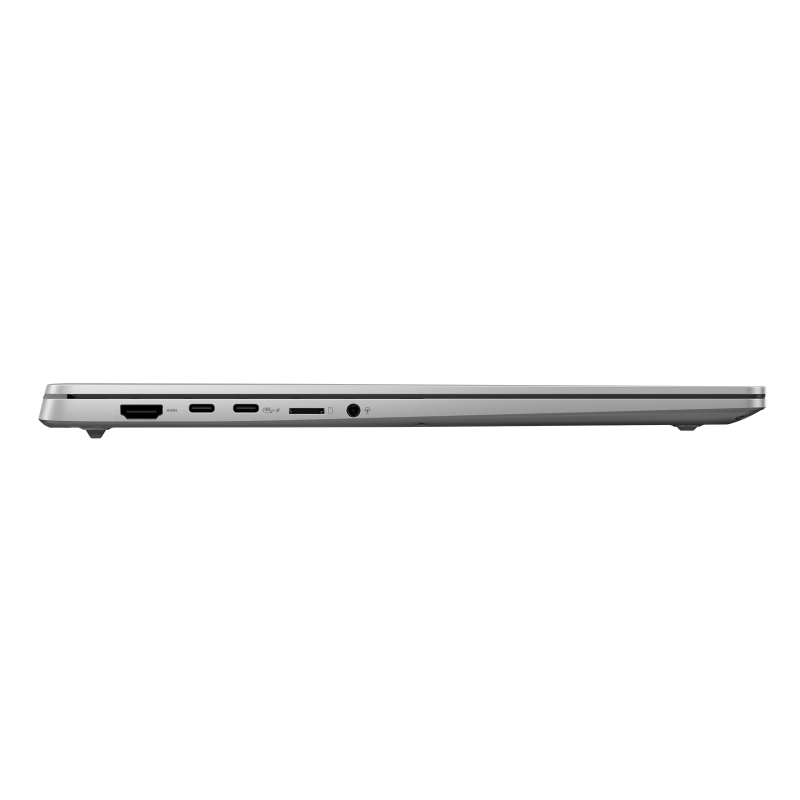

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Pro
Bundled software	Microsoft 365 (30-day trial)

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh
Battery life (max)	10 h
Fast charging	Yes
Fast charging time (50%)	49 min

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	353.6 mm
Depth	246.9 mm
Height (front)	1.39 cm
Height (rear)	1.59 cm

Packaging data

Specification	Value
Package width	488 mm
Package depth	65 mm
Package height	310 mm
Package weight	1.75 kg

Other features

Specification	Value
Warranty period	2 year(s)
