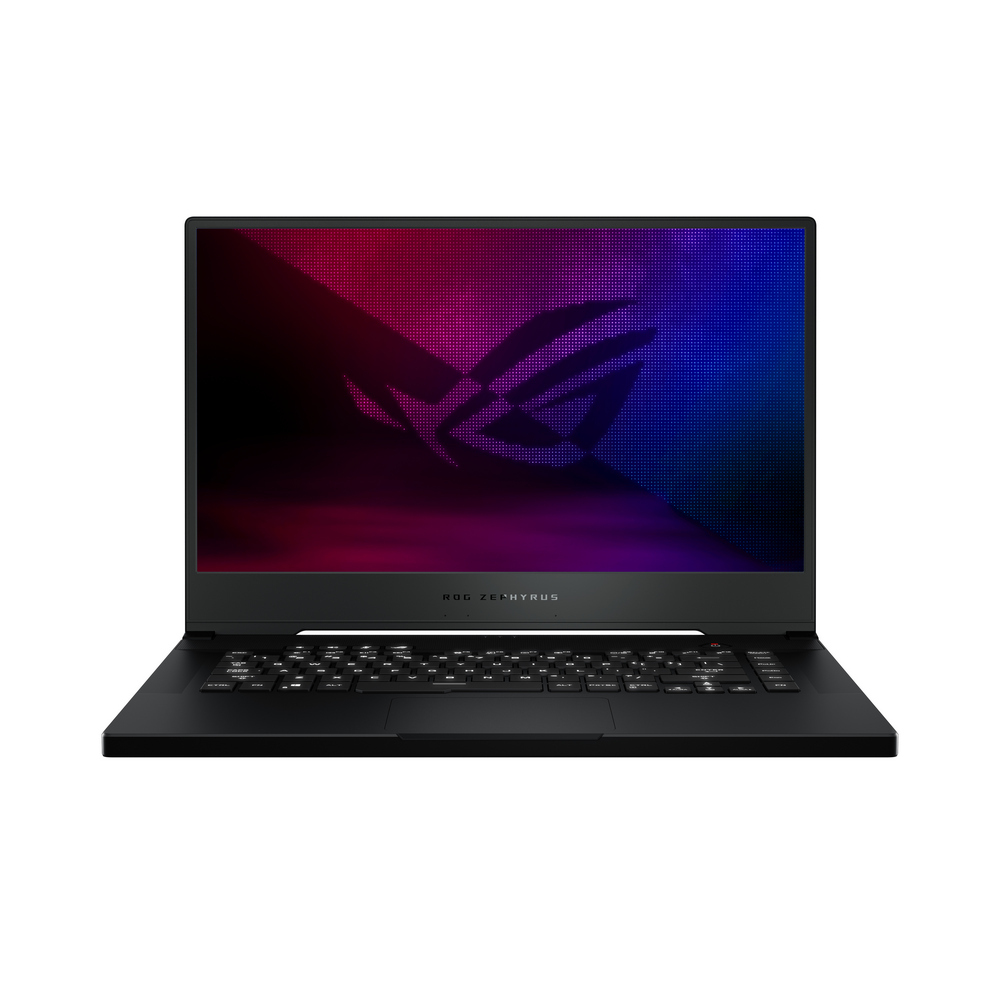

M15 GU502
Model M15 GU502Part no. GU502LV-HC039REAN 4718017804721
113 specifications Checked today
- Display39.6 cm (15.6")
- Resolution3840 x 2160 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce RTX™ 2060
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 3840 x 2160 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce RTX™ 2060
- Brand
- ASUS
- Category
- Laptop
- Model
- M15 GU502
- Part numbers
- GU502LV-HC039R, GU502LV-HC061R, GU502LW-HC062T
- EAN / UPC
- 4718017804721, 4718017804707
- Also known as
- ASUS ROG Zephyrus M15 GU502 Intel® Core™ i7 i7-10750H Laptop 39.6 cm (15.6") 4K Ultra HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11ax)
Specifications
113 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Grey |
| Form factor | Clamshell |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| RGB colour space | Adobe RGB |
| Maximum refresh rate | 60 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 5 GHz |
| Processor frequency | 2.6 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9BC4 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Thunderbolt 3 ports quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
Performance
| Specification | Value |
|---|---|
| Repairability index | 6.7 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 201837 |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 76 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 230 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 11.8 A |
| AC adapter output voltage | 19.5 V |
