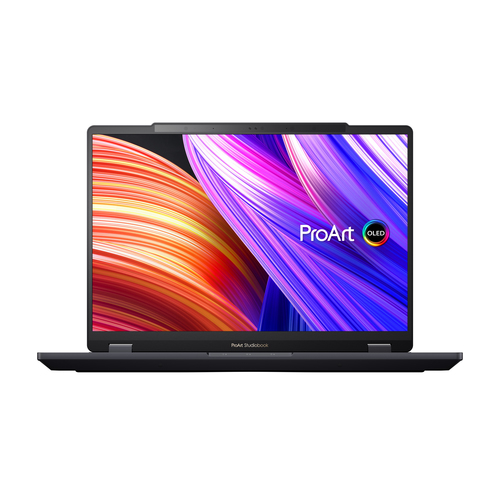

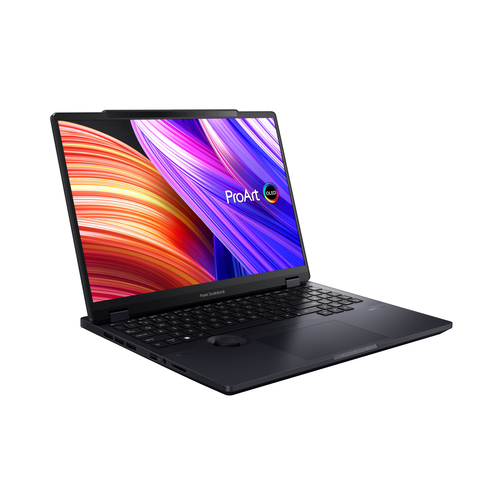

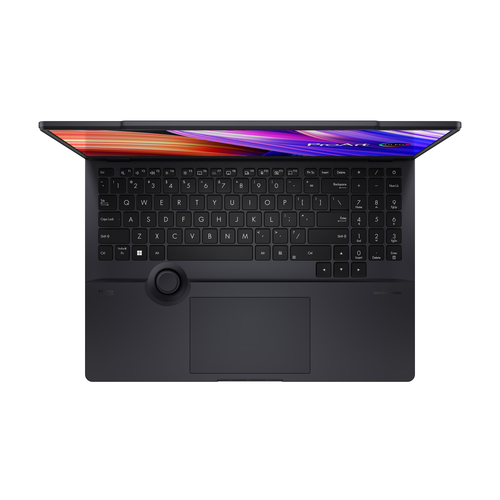

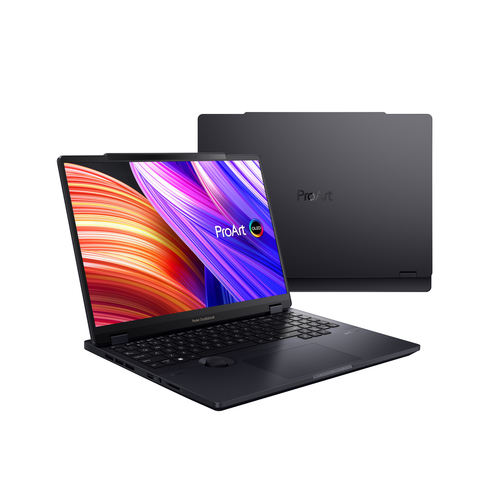

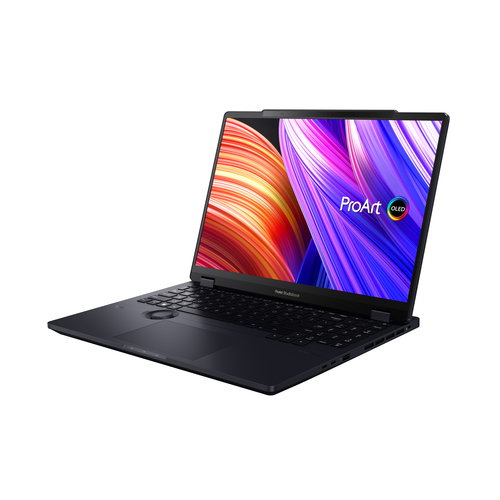

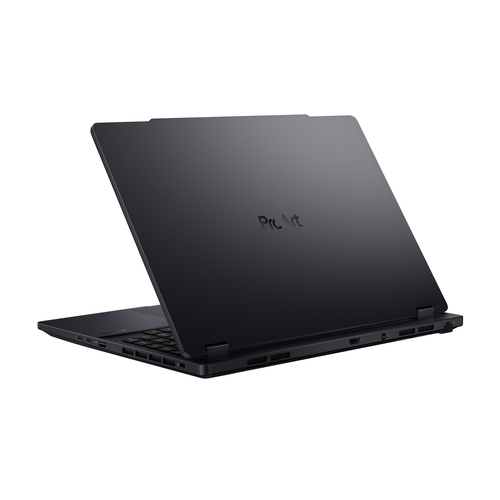

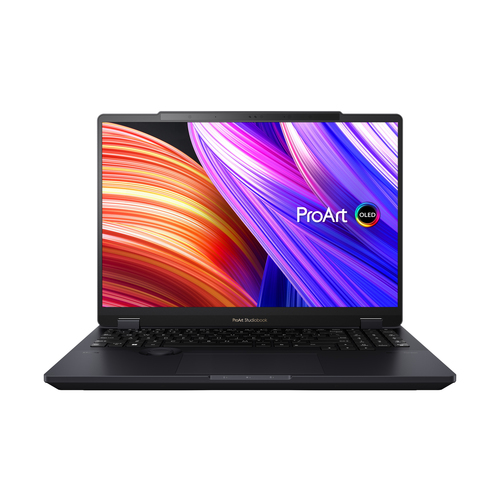

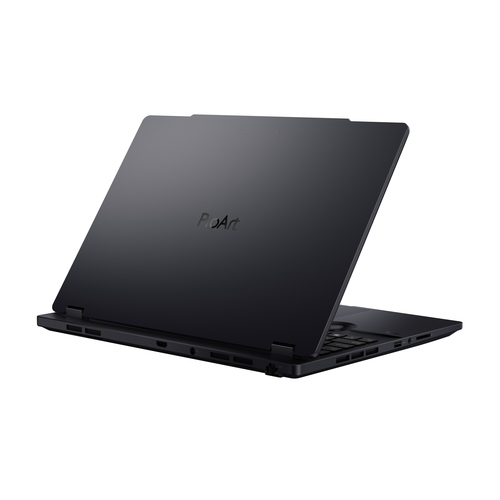

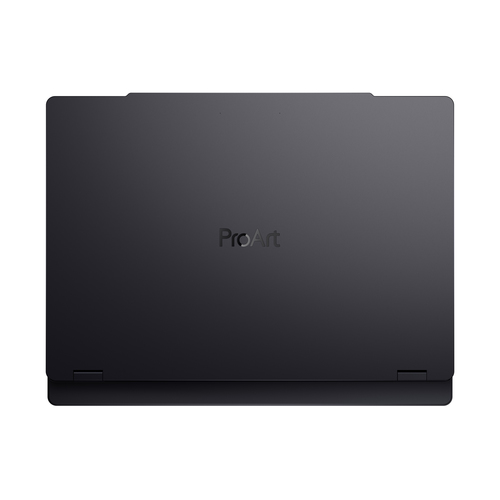

ASUS ProArt StudioBook 16 OLED H7604JI-MY043X Intel® Core™ i9 i9-13980HX Laptop

ProArt StudioBook 16 OLED H7604JI-MY043X Intel® Core™ i9 i9-13980HX Laptop

40.6 cm (16") Touchscreen 3.2K 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070

Model H7604JI-MY043XPart no. 90NB0ZD2-M00200EAN 197105020788

115 specifications Checked today

Display40.6 cm (16")
Resolution3200 x 2000 pixels
ProcessorIntel® Core™ i9
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 3200 x 2000 pixels
Processor: Intel® Core™ i9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4070

Brand: ASUS
Category: Laptop
Model: H7604JI-MY043X
Part numbers: 90NB0ZD2-M00200, 90NB0ZD2-M004A0
EAN / UPC: 197105020788, 4711387020784, 4711387124130
Also known as: ASUS ProArt StudioBook 16 OLED H7604JI-MY043X Intel® Core™ i9 i9-13980HX Laptop 40.6 cm (16") Touchscreen 3.2K 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070

Specifications

115 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Mineral Black
Form factor	Clamshell
Housing material	Aluminium, Magnesium
Market positioning	Performance
Introduction year	2023

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	3200 x 2000 pixels
Touchscreen	Yes
HD type	3.2K
Panel type	OLED
Display number of colours	1.073 billion colours
Native aspect ratio	16:10
Display brightness	550 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	0.2 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 500

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	13th gen Intel® Core™ i9
Processor model	i9-13980HX
Processor cores	24
Processor boost frequency	5.6 GHz
Processor frequency	2.2 GHz
Processor cache	36 MB

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio system	Smart Amp
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Headphone outputs	1
Combo headphone/mic port	Yes
Power adapter barrel connector	6.0 mm
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	6.3

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12 A
AC adapter output voltage	20 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD, User

Weight & dimensions

Specification	Value
Weight	2.4 kg
Width	356 mm
Depth	271 mm
Height (front)	2.09 cm
Height (rear)	2.39 cm
