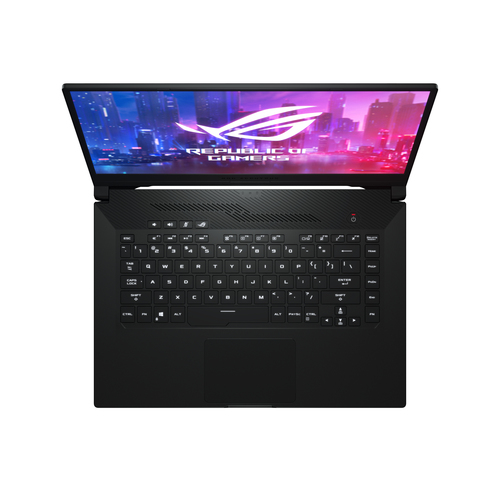

ASUS ROG Zephyrus G GA502DU-BQ030 AMD Ryzen™ 7 3750H Laptop

ROG Zephyrus G GA502DU-BQ030 AMD Ryzen™ 7 3750H Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce GTX 1660 Ti Max-Q Wi-Fi 5 (802.11

Model GA502DU-BQ030Part no. 90NR0213-M02020EAN 192876478592

93 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce GTX 1660 Ti Max-Q

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce GTX 1660 Ti Max-Q

Brand: ASUS
Category: Laptop
Model: GA502DU-BQ030
Part number: 90NR0213-M02020
EAN / UPC: 192876478592, 4718017478595
Also known as: ASUS ROG Zephyrus G GA502DU-BQ030 AMD Ryzen™ 7 3750H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce GTX 1660 Ti Max-Q Wi-Fi 5 (802.11

Specifications

93 specifications in 16 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Brushed Black
Form factor	Clamshell
Market positioning	Gaming
Introduction year	2019

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	200 cd/m²
Colour gamut	45%
RGB colour space	NTSC

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 3000 Series
Processor model	3750H
Processor cores	4
Processor boost frequency	4 GHz
Processor frequency	2.3 GHz
Processor cache	4 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce GTX 1660 Ti Max-Q
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon RX Vega 10

Audio

Specification	Value
Audio system	Smart Amp
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Power adapter barrel connector	6.0 mm

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	76 Wh

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	9 A
AC adapter output voltage	20 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	2.2 kg
Width	360 mm
Depth	252 mm
Height (front)	1.99 cm
Height (rear)	2.04 cm

Packaging data

Specification	Value
Package width	428 mm
Package depth	90 mm
Package height	308 mm
Package weight	3.87 kg
