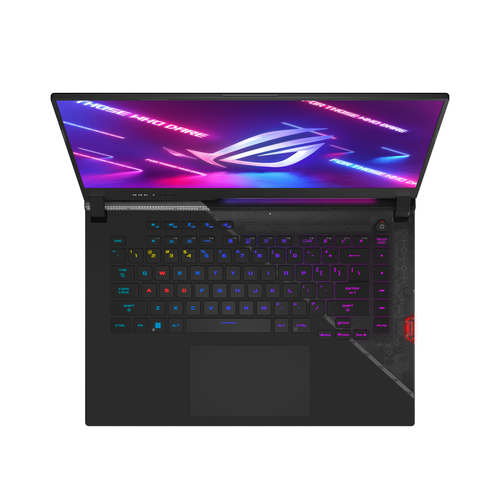

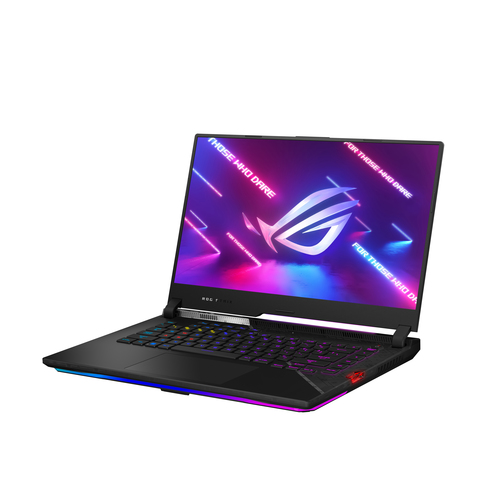

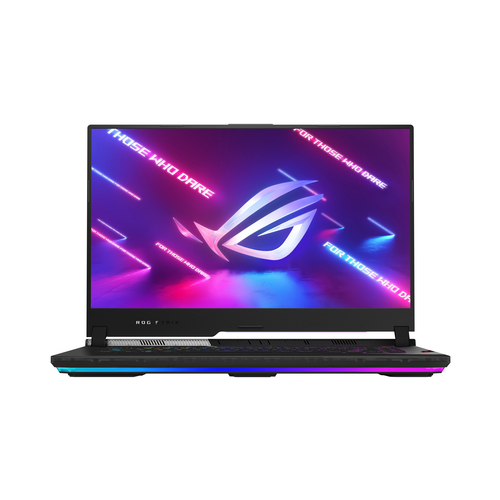

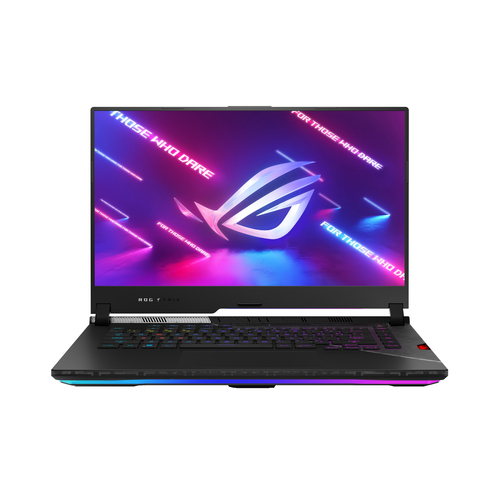

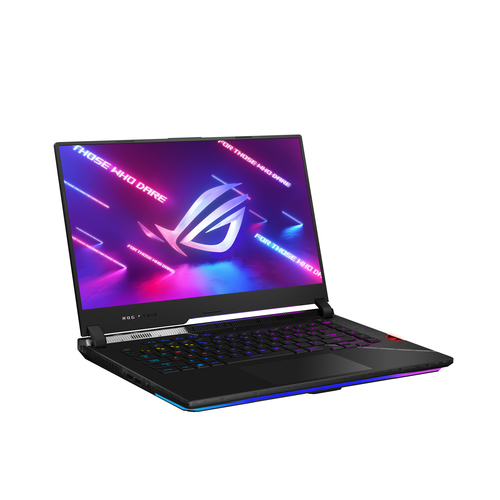

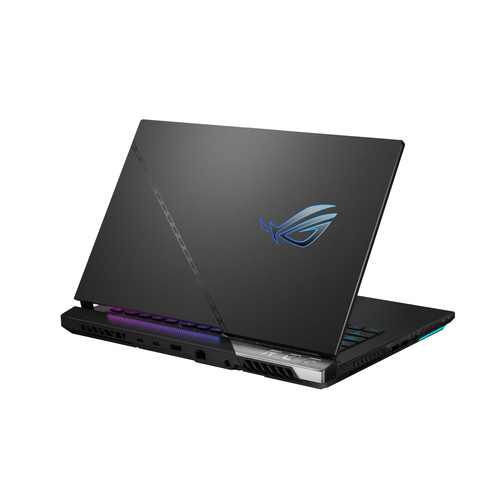

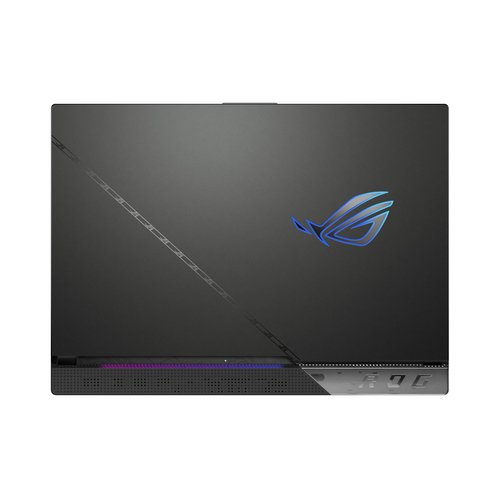

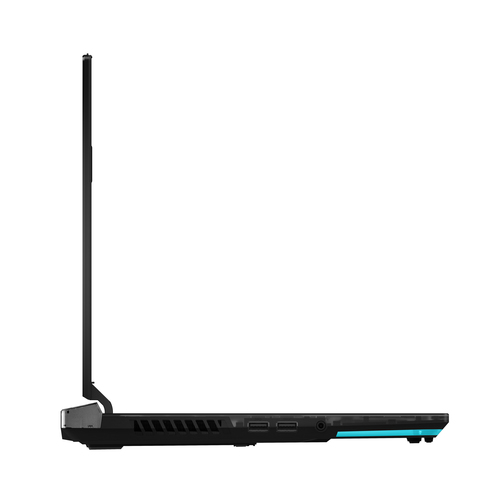

ASUS ROG Strix SCAR 15 G533ZM-I736D7T-O laptop Intel® Core™ i7 i7-12700H

ROG Strix SCAR 15 G533ZM-I736D7T-O laptop Intel® Core™ i7 i7-12700H

39.6 cm (15.6") Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6E (8

Model G533ZM-I736D7T-O

96 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3060

Brand: ASUS
Category: Laptop
Model: G533ZM-I736D7T-O
Part number: G533ZM-I736D7T-O
Also known as: ASUS ROG Strix SCAR 15 G533ZM-I736D7T-O laptop Intel® Core™ i7 i7-12700H 39.6 cm (15.6") Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6E (8

Specifications

96 specifications in 16 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Native aspect ratio	16:9
Anti-glare screen	Yes
Colour gamut	100%
RGB colour space	sRGB
Display response rise/fall	3 ms
Maximum refresh rate	300 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12700H
Processor cores	14
Processor boost frequency	4.7 GHz
Processor cache	24 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Number of built-in speakers	4
Built-in microphone	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12 A
AC adapter output voltage	20 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	354 mm
Depth	259 mm
Height (front)	2.26 cm
Height (rear)	2.72 cm
