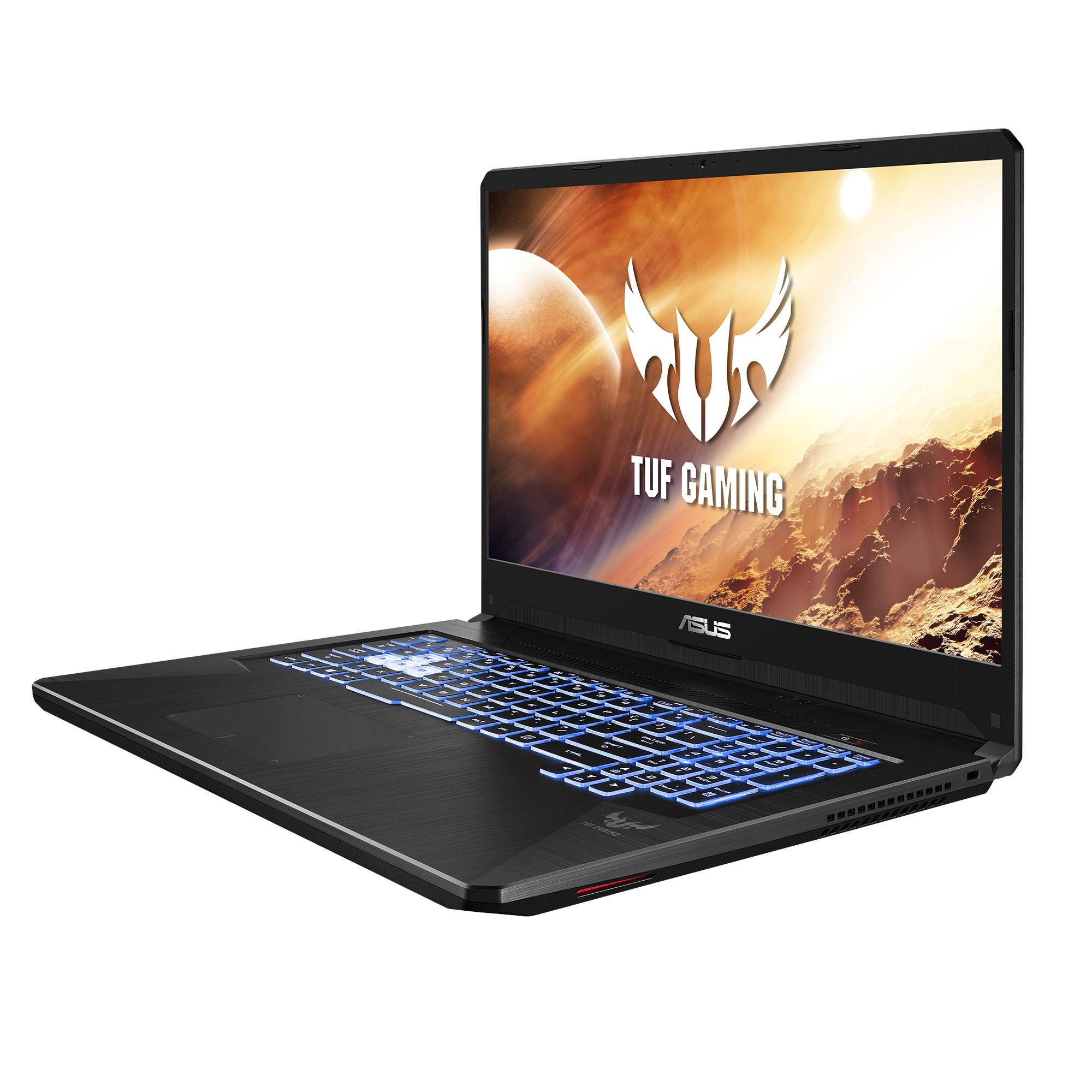

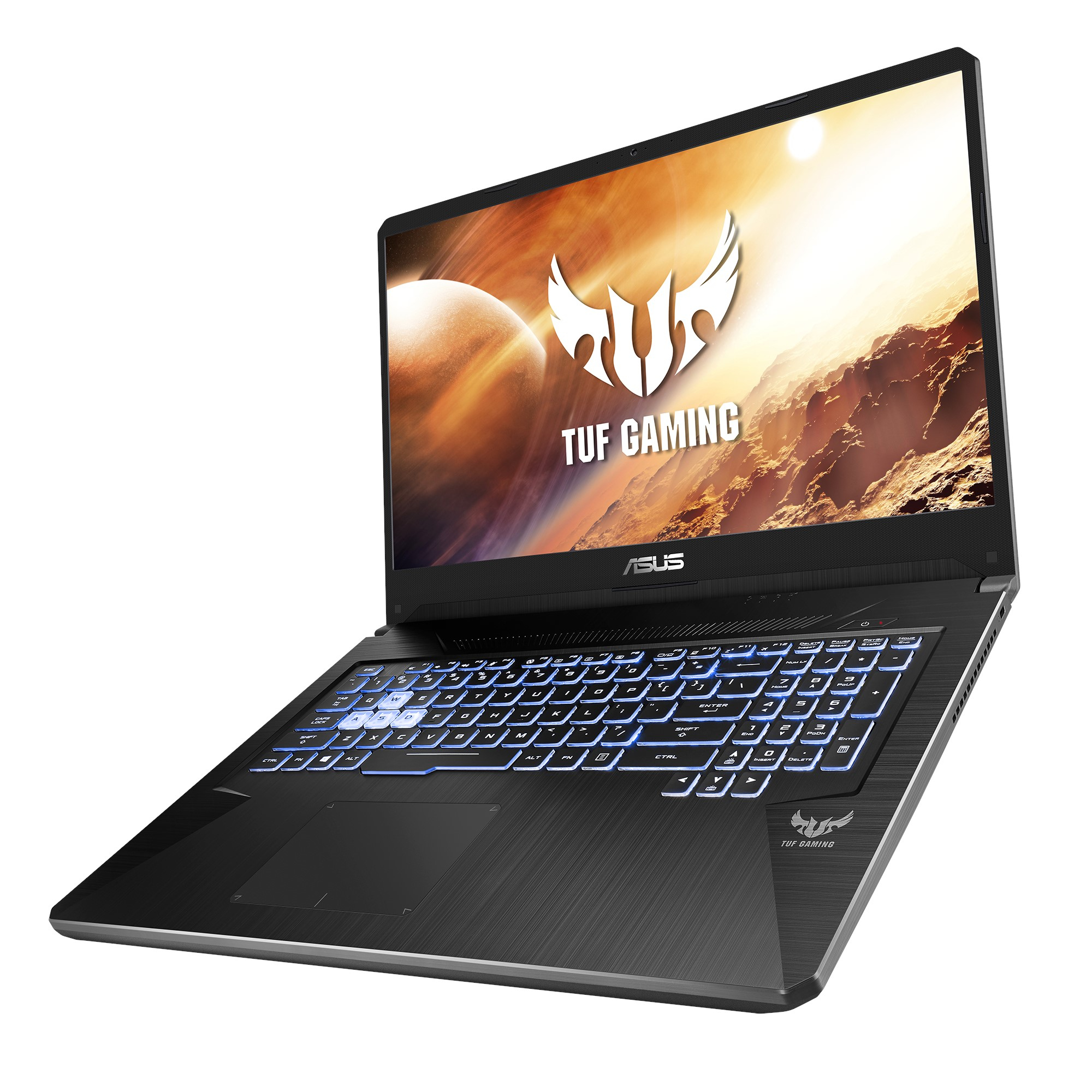

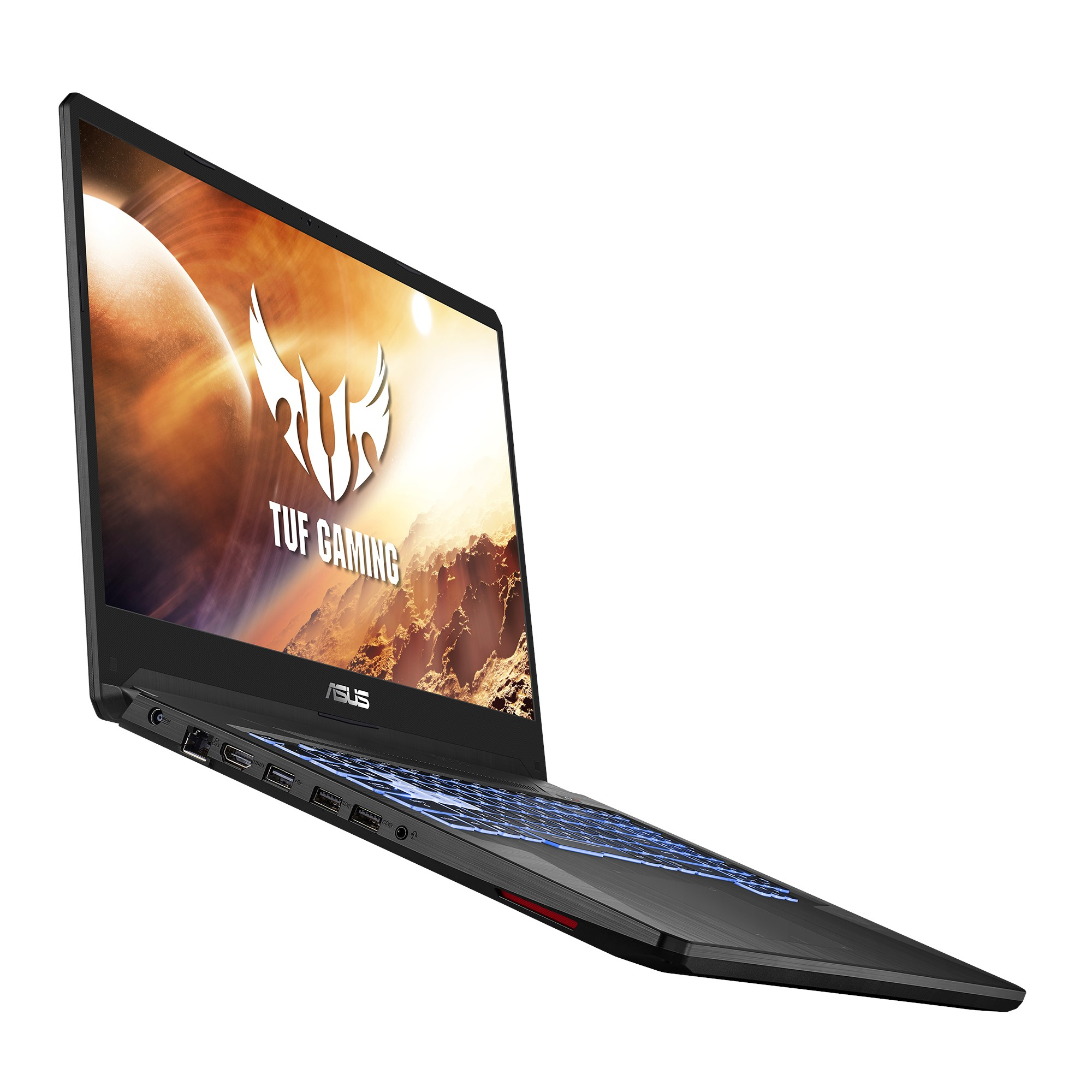

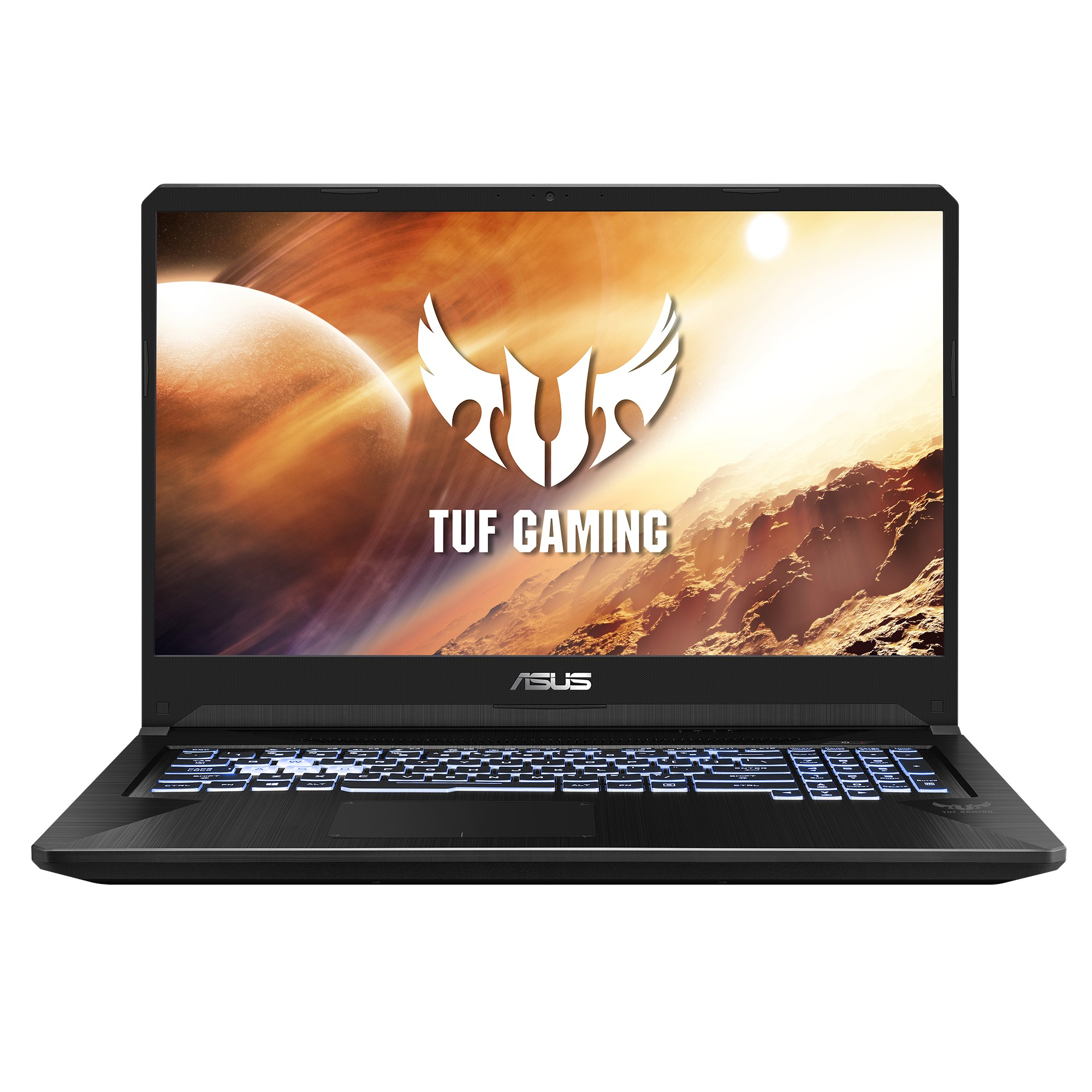

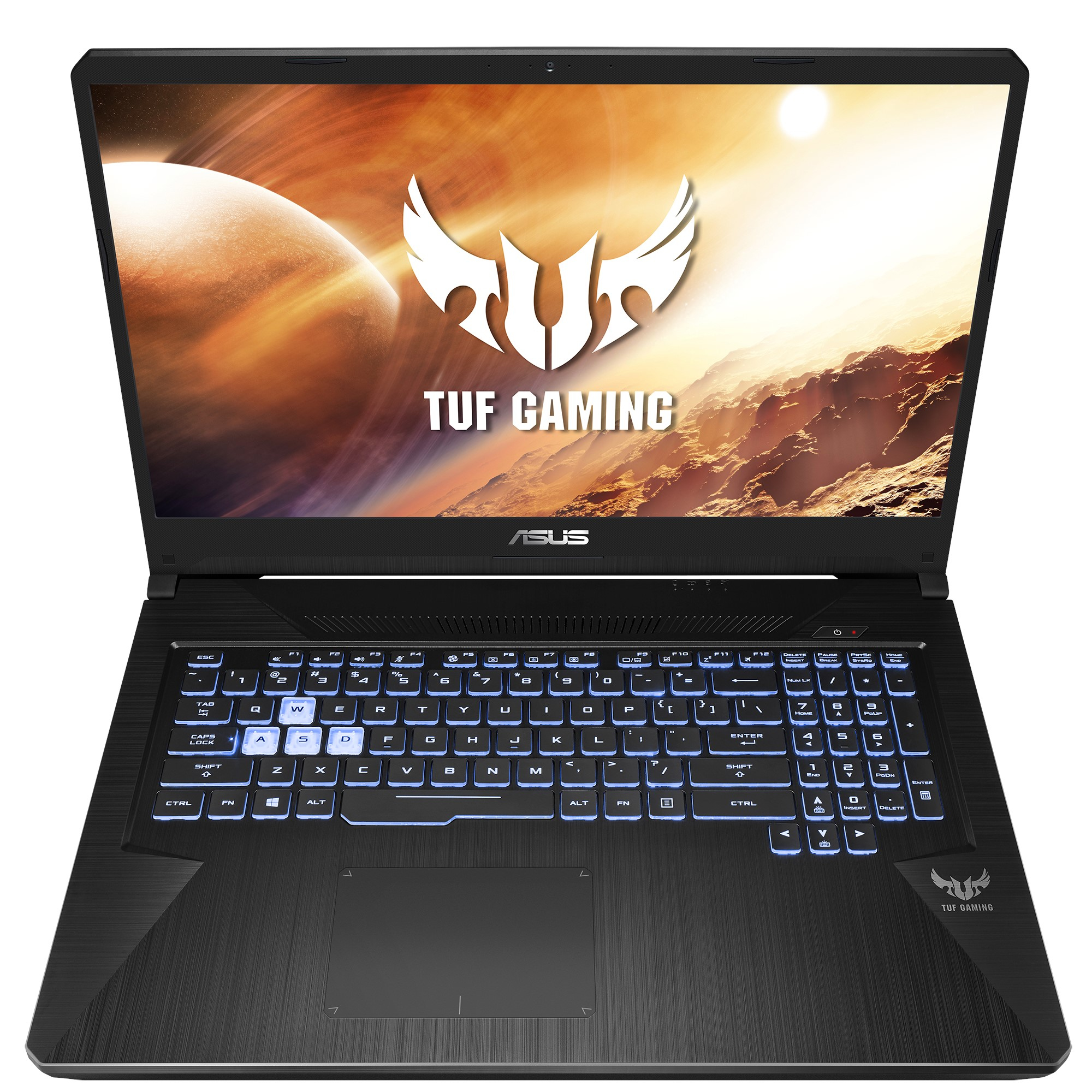

ASUS TUF Gaming FX705DT-H7126T AMD Ryzen™ 5 3550H Laptop

TUF Gaming FX705DT-H7126T AMD Ryzen™ 5 3550H Laptop

43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 5 (802.11ac) Window

Model FX705DT-H7126TPart no. 90NR02B2-M04890EAN 192876615386

92 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 5
Memory16 GB
Storage512 GB
GraphicsNVIDIA® GeForce® GTX 1650

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 5
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce® GTX 1650

Brand: ASUS
Category: Laptop
Model: FX705DT-H7126T
Part number: 90NR02B2-M04890
EAN / UPC: 192876615386, 4718017615389
Also known as: ASUS TUF Gaming FX705DT-H7126T AMD Ryzen™ 5 3550H Laptop 43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 5 (802.11ac) Window

Specifications

92 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	250 cd/m²
Dual-screen	No
Maximum refresh rate	120 Hz
NTSC coverage (typical)	45%
sRGB coverage (typical)	62.5%
Adobe RGB coverage	50%

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 3000 Series
Processor model	3550H
Processor cores	4
Processor threads	8
Processor boost frequency	3.7 GHz
Processor frequency	2.1 GHz
Processor cache	2 MB
Processor lithography	12 nm
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	M.2, NVMe
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1650
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	AMD Radeon Vega Graphics
On-board graphics card model	AMD Radeon Vega 8
On-board graphics card base frequency	1200 MHz
On-board graphics card DirectX version	12.0

Audio

Specification	Value
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera signal format	720p

Network

Specification	Value
Mobile network connection	No
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Combo headphone/mic port	Yes

Performance

Specification	Value
Repairability index	5.7

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	64 Wh

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Width	399.8 mm
Depth	279.4 mm
Height	26.6 mm
