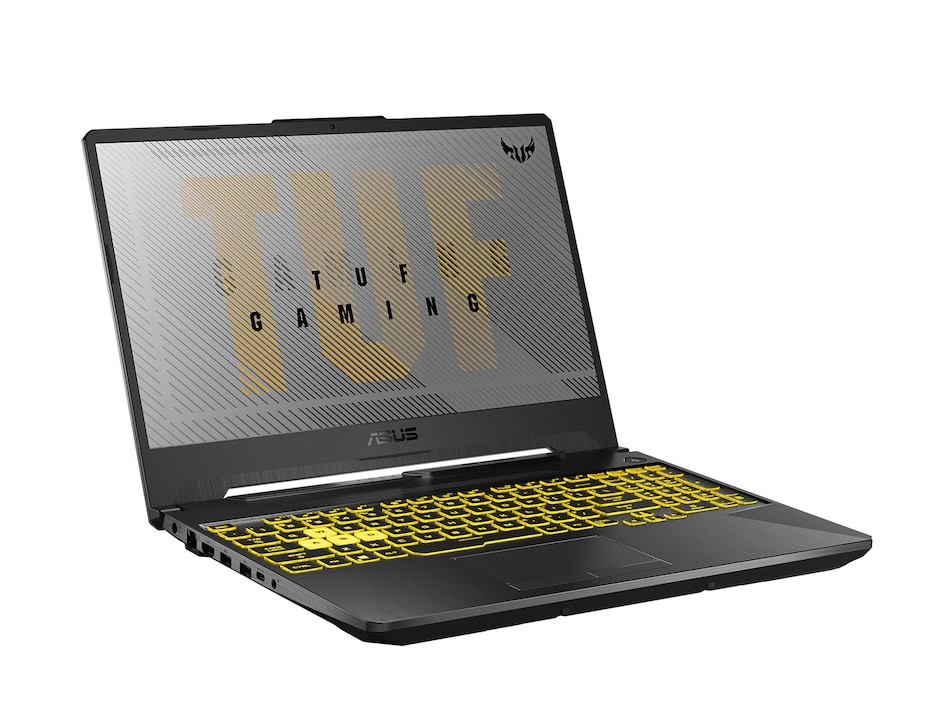

ASUS TUF Gaming A15 FA506IV-HN194T AMD Ryzen™ 7 4800H Laptop

TUF Gaming A15 FA506IV-HN194T AMD Ryzen™ 7 4800H Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1.5 TB HDD+SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 5 (802.11ac

Model FA506IV-HN194TPart no. 90NR03L1-M08900EAN 4711081064558

110 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1.5 TB
GraphicsNVIDIA® GeForce RTX™ 2060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1.5 TB
Graphics: NVIDIA® GeForce RTX™ 2060

Brand: ASUS
Category: Laptop
Model: FA506IV-HN194T
Part number: 90NR03L1-M08900
EAN / UPC: 4711081064558
Also known as: ASUS TUF Gaming A15 FA506IV-HN194T AMD Ryzen™ 7 4800H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1.5 TB HDD+SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 5 (802.11ac

Specifications

110 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Anti-glare screen	Yes
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 4000 Series
Processor model	4800H
Processor cores	8
Processor boost frequency	4.2 GHz
Processor frequency	2.9 GHz
Processor cache	8 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1.5 TB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	5400 RPM
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA® GeForce RTX™ 2060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon Graphics
On-board graphics card 4K support	Yes
Graphics card Open GL support	Yes
AMD FreeSync	Yes

Audio

Specification	Value
Number of built-in speakers	4
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	6.5

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Island-style keyboard	Yes
Spill-resistant keyboard	Yes
Keyboard layout	QWERTY
Keyboard language	Italian

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	48 Wh

Power

Specification	Value
AC adapter power	230 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	11.8 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Certificates

Specification	Value
MIL-STD-810G compliant	Yes

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	359.8 mm
Depth	256 mm
Height (front)	2.47 cm
Height (rear)	2.49 cm
