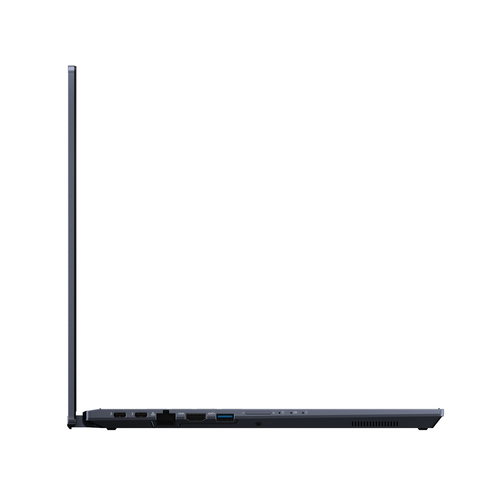

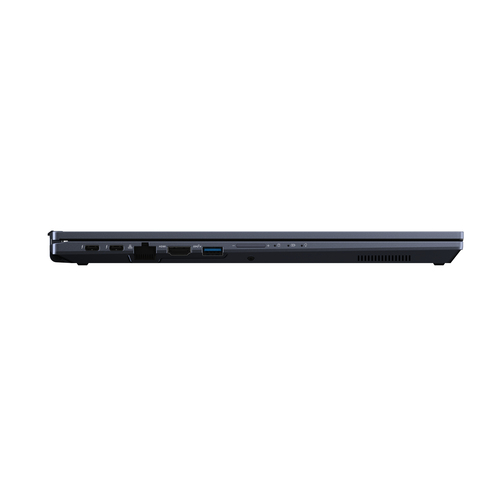

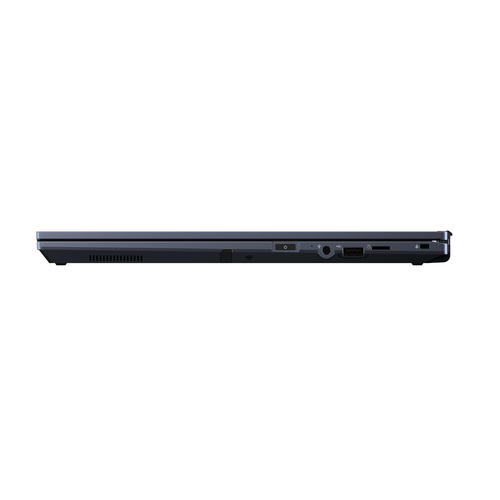

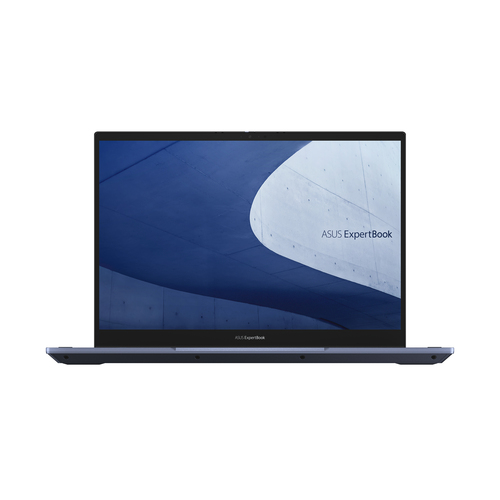

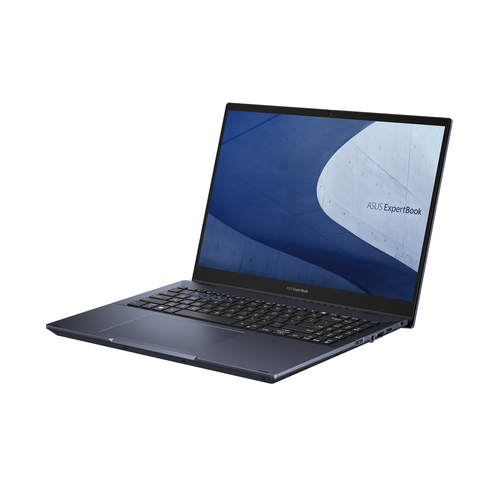

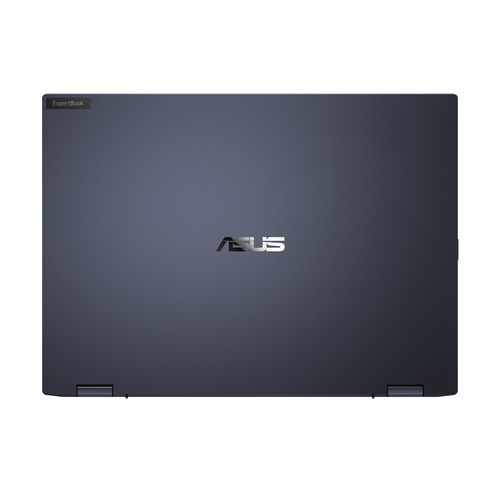

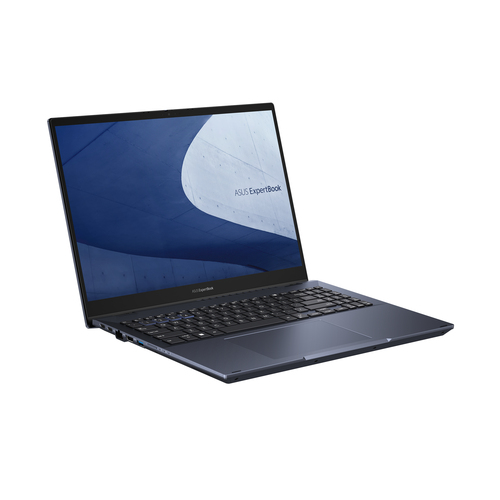

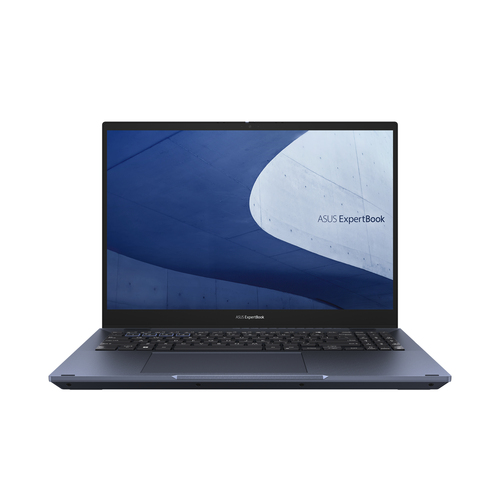

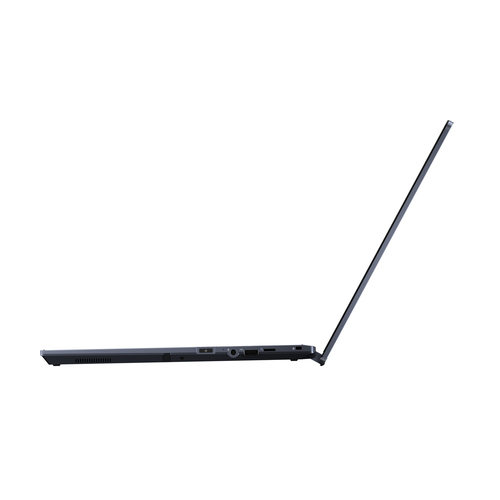

ASUS ExpertBook B5 Flip OLED B5602FBN-MI0027X Intel® Core™ i7 i7-1260P Hybrid (2-in-1)

ExpertBook B5 Flip OLED B5602FBN-MI0027X Intel® Core™ i7 i7-1260P Hybrid (2-in-1)

40.6 cm (16") Touchscreen WQUXGA 16 GB DDR5-SDRAM 1 TB SSD Intel Arc A350

Model B5602FBN-MI0027XPart no. 90NX05I1-M000V0EAN 4711081927105

106 specifications Checked today

Display40.6 cm (16")
Resolution3840 x 2400 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsIntel Arc A350M

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 3840 x 2400 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: Intel Arc A350M

Brand: ASUS
Category: Laptop
Model: B5602FBN-MI0027X
Part number: 90NX05I1-M000V0
EAN / UPC: 4711081927105
Also known as: ASUS ExpertBook B5 Flip OLED B5602FBN-MI0027X Intel® Core™ i7 i7-1260P Hybrid (2-in-1) 40.6 cm (16") Touchscreen WQUXGA 16 GB DDR5-SDRAM 1 TB SSD Intel Arc A350

Specifications

106 specifications in 16 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Colour name	Star Black
Form factor	Convertible (Folder)
Market positioning	Work

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	3840 x 2400 pixels
Touchscreen	Yes
HD type	WQUXGA
Panel type	OLED
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Maximum display brightness (HDR)	550 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-1260P
Processor cores	12
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Maximum turbo power	64 W
Processor base power	28 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	40 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	Intel
Discrete graphics card model	Intel Arc A350M
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Microsoft 365 (30-day trial)

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	84 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, User, HDD

Weight & dimensions

Specification	Value
Weight	1.52 kg
Width	358.2 mm
Depth	261.2 mm
Height	19.9 mm
