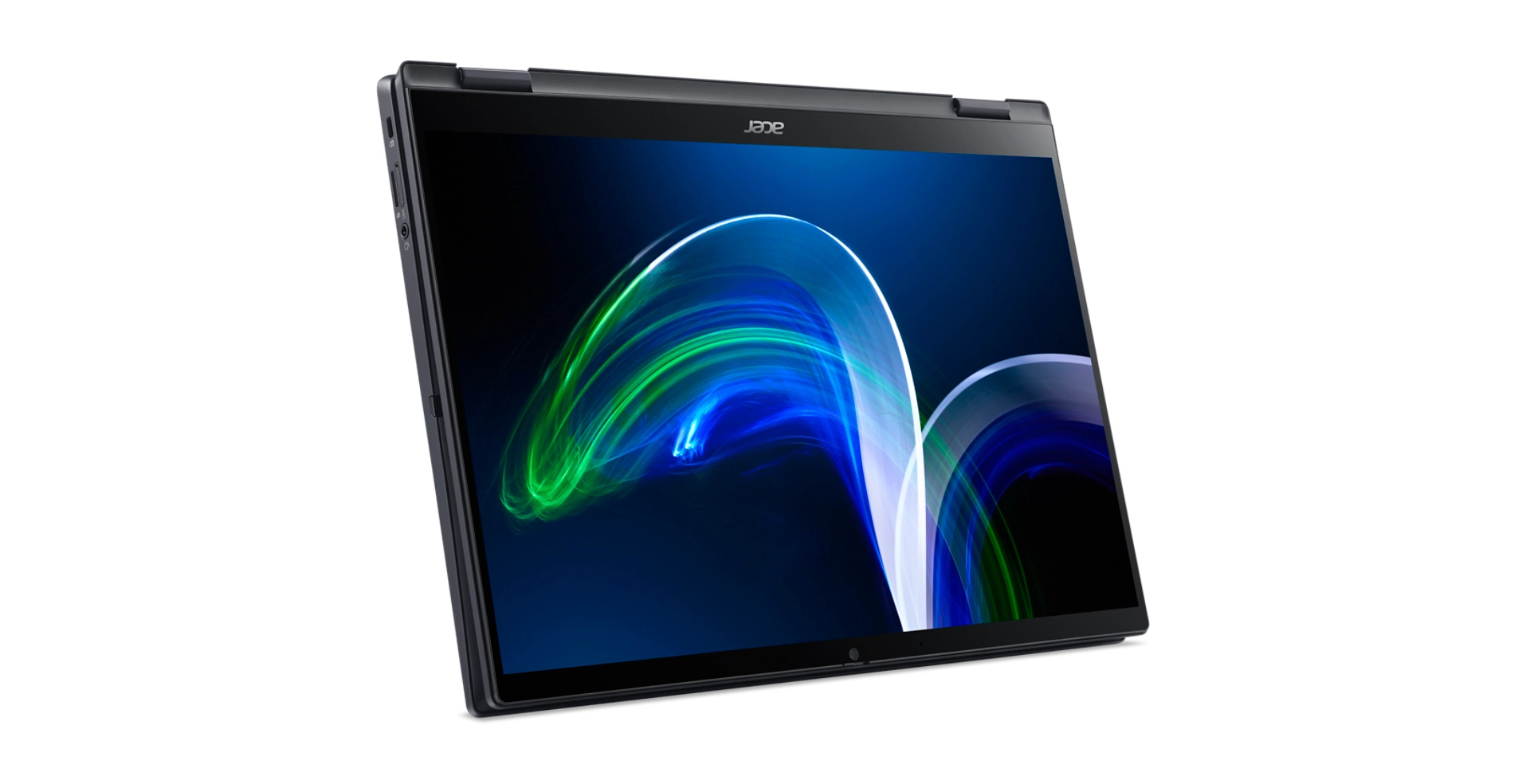

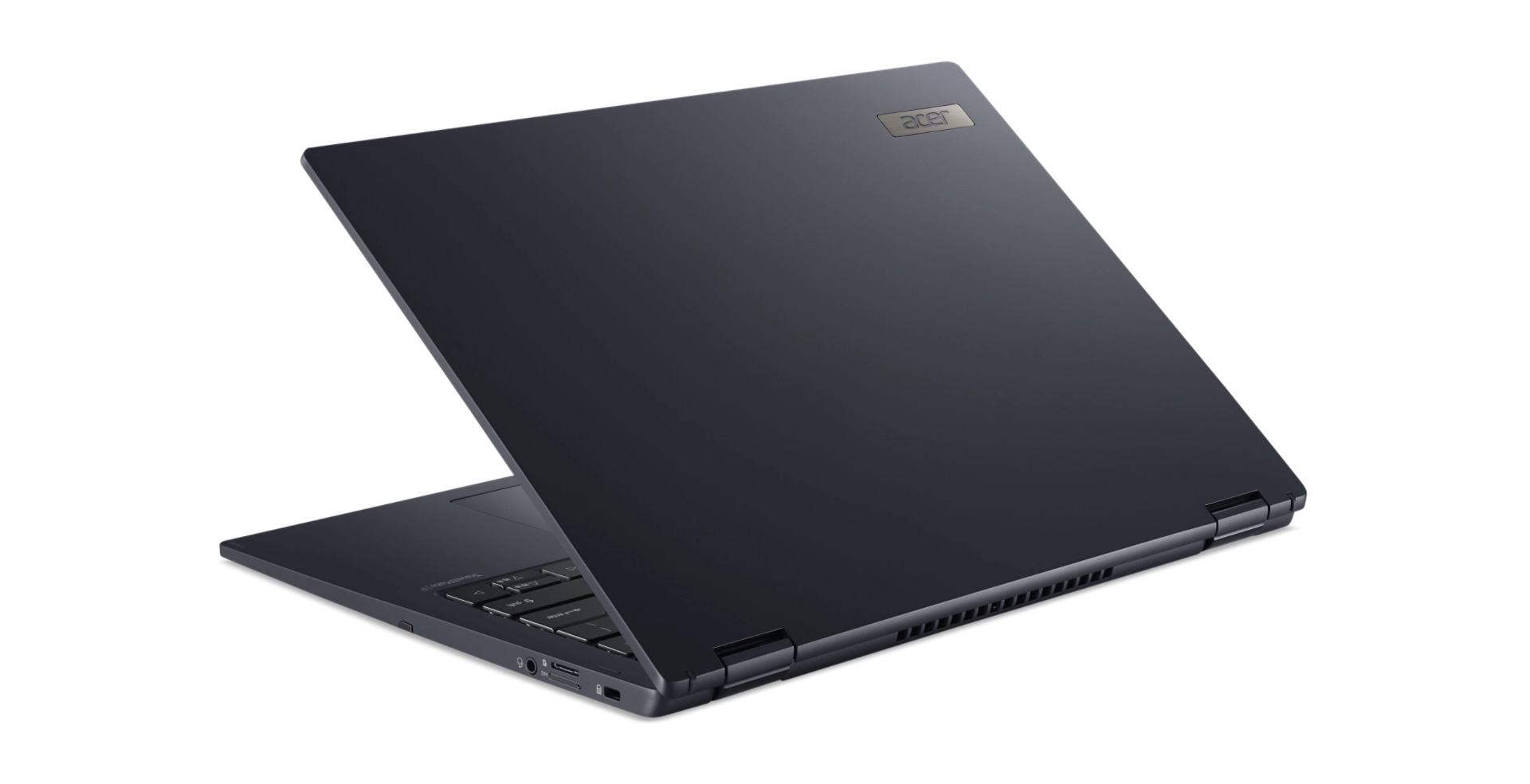

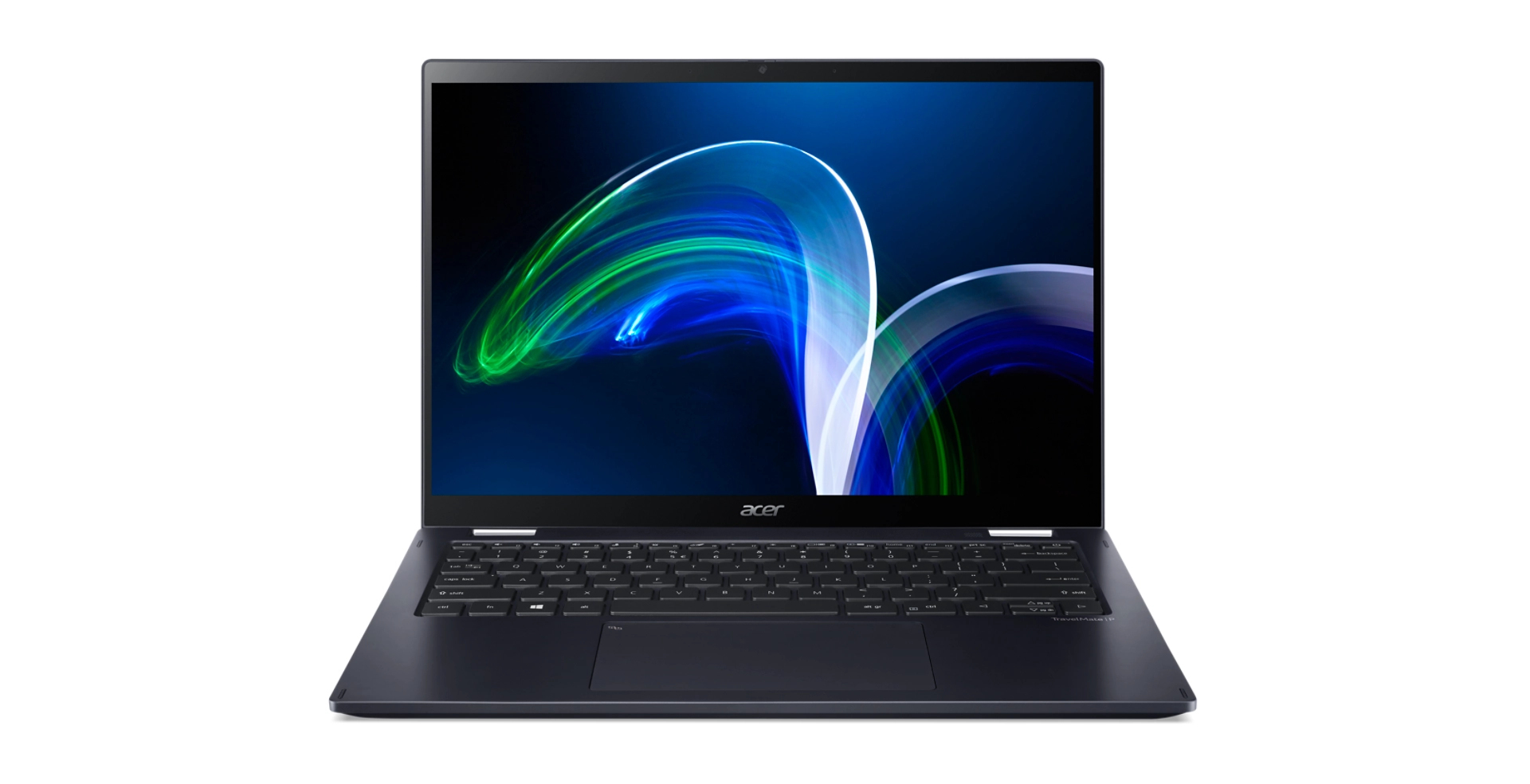

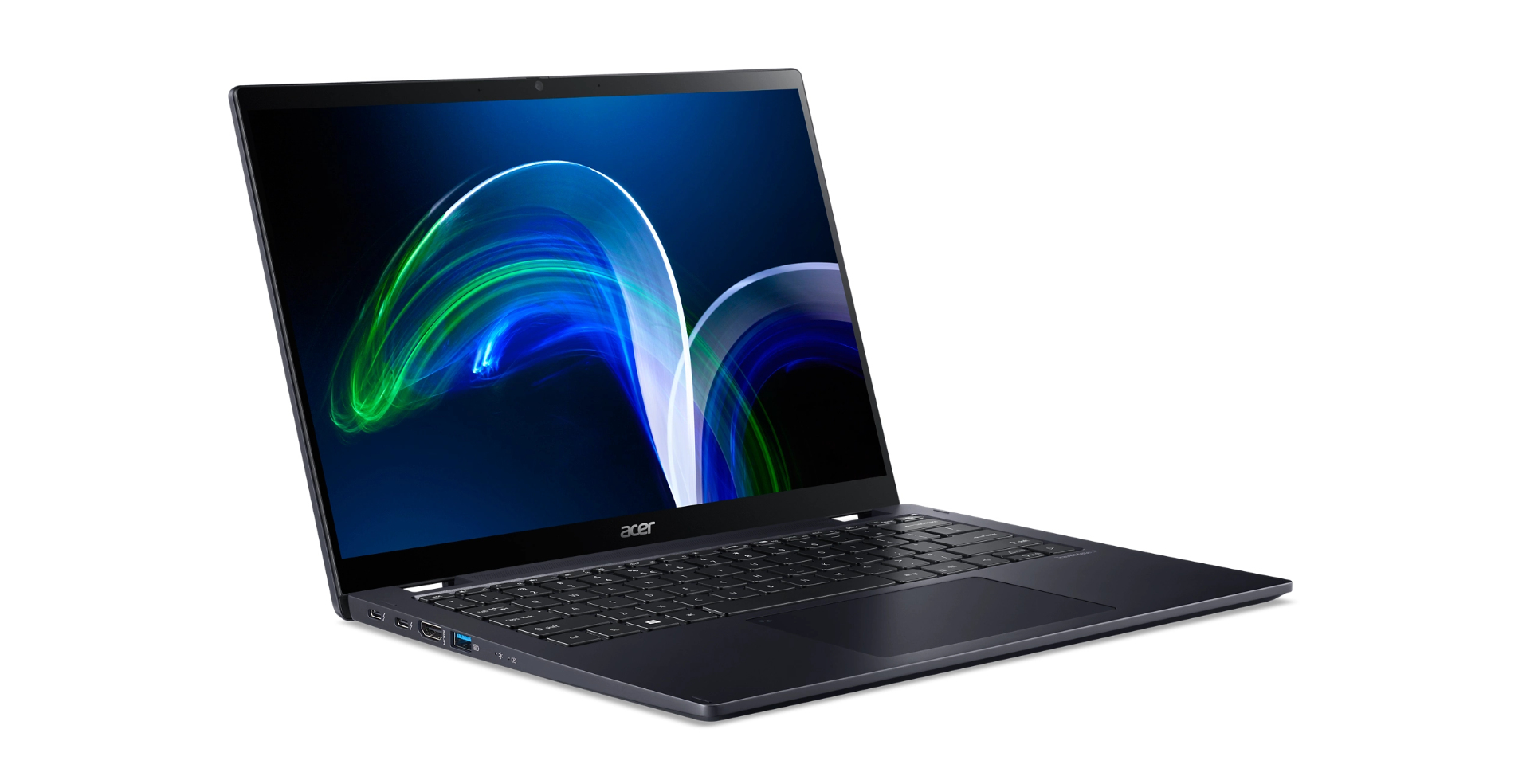

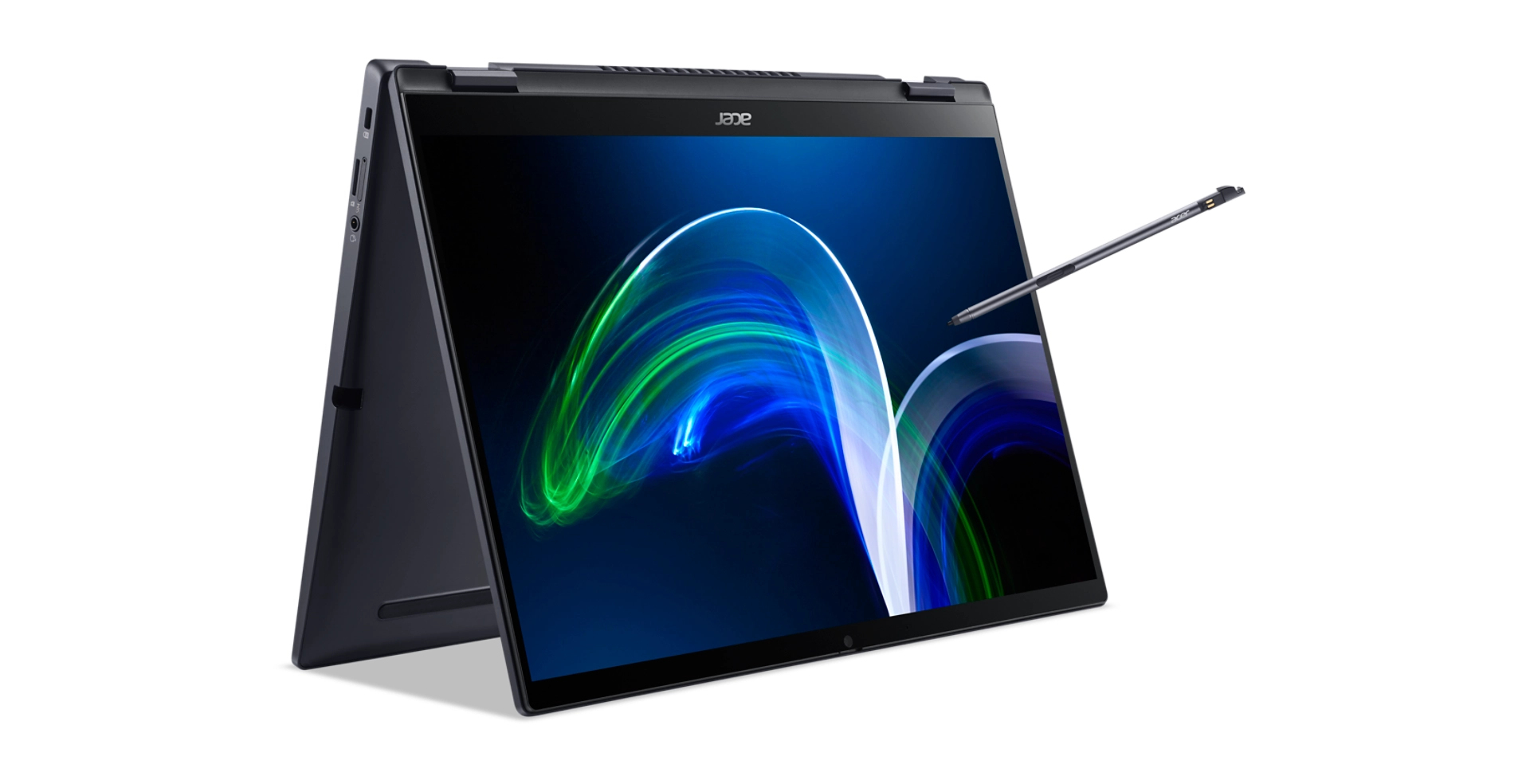

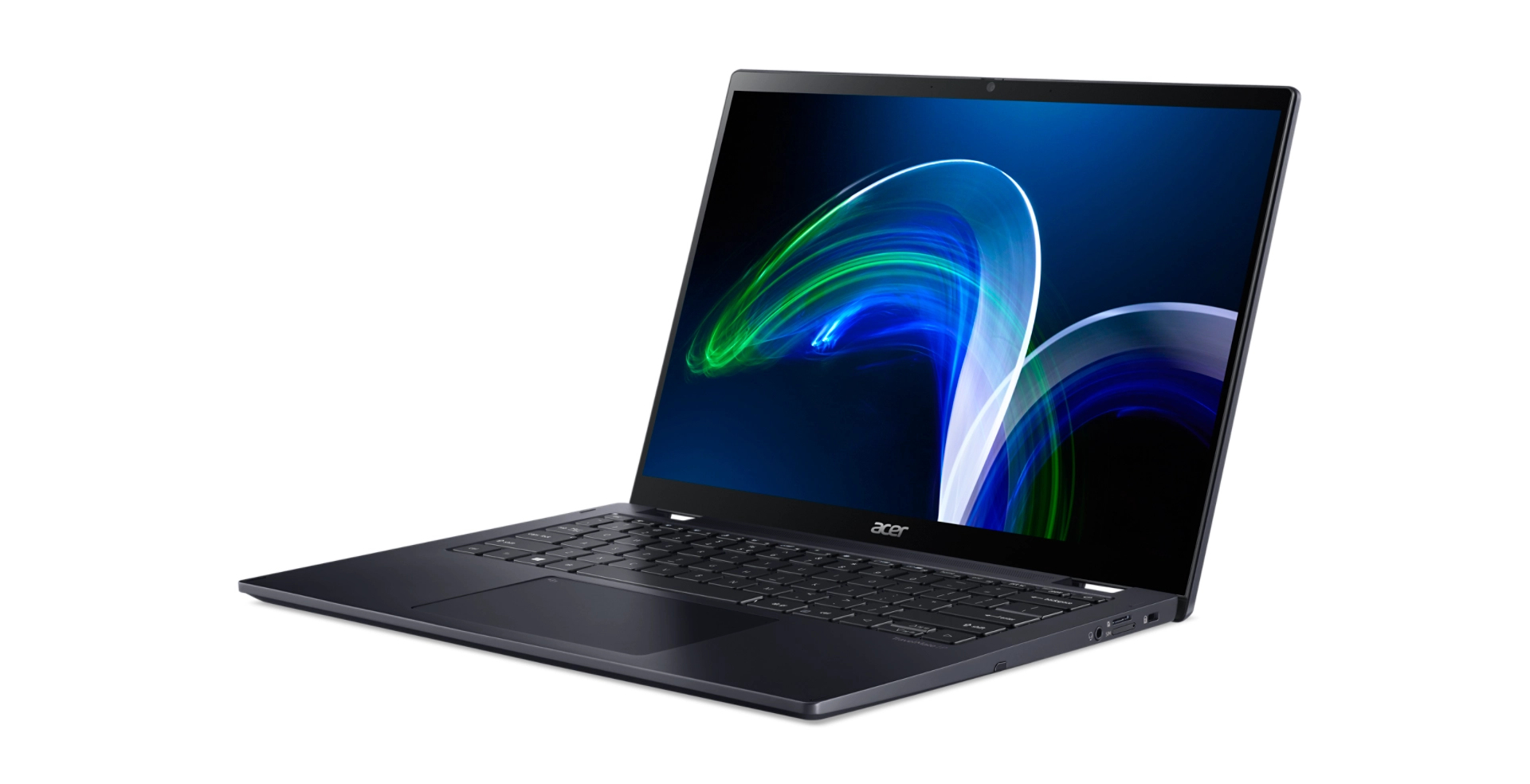

TMP614RN-52-53XV (EVO)
Model TMP614RN-52-53XV (EVO)Part no. NX.VTPEH.007
72 specifications Checked today
- Display35.6 cm (14")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Core™ i5
- Memory32 GB
- Storage512 GB
- GraphicsNot available
Overview
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Core™ i5
- Memory
- 32 GB
- Storage
- 512 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- TMP614RN-52-53XV (EVO)
- Part number
- NX.VTPEH.007
- Also known as
- Acer TravelMate TMP614RN-52-53XV (EVO) Intel® Core™ i5 i5-1135G7 Hybrid (2-in-1) 35.6 cm (14") Touchscreen WUXGA 32 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6 (802.11a
Specifications
72 specifications in 16 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Black |
| Colour name | Galaxy Black |
| Form factor | Convertible (Folder) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | WUXGA |
| Panel type | IPS |
| Native aspect ratio | 16:10 |
| Display diagonal (metric) | 35.6 cm |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 2.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |

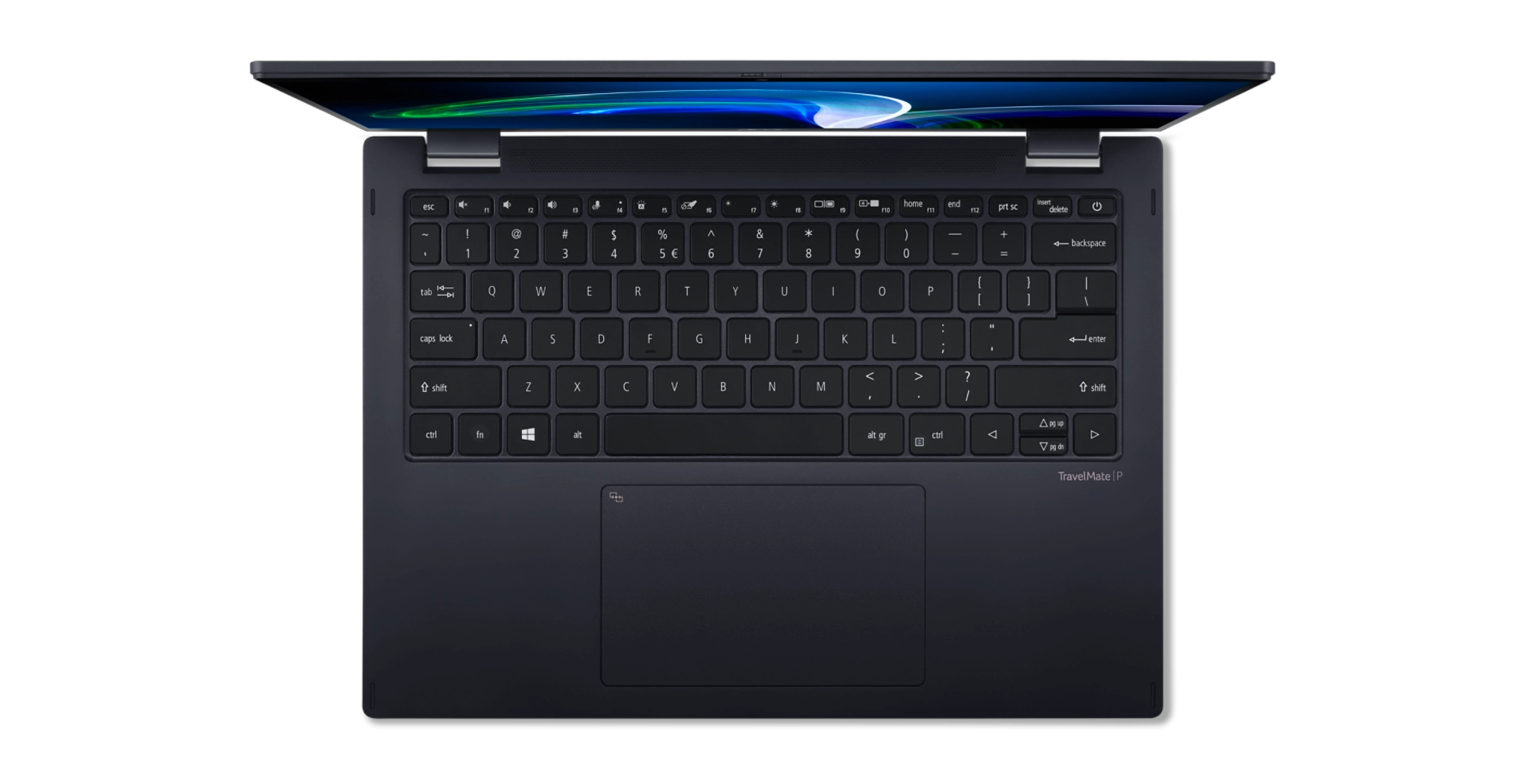

Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard layout | QWERTY |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 56 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.15 kg |
| Width | 312 mm |
| Depth | 226 mm |
| Height | 16.8 mm |
