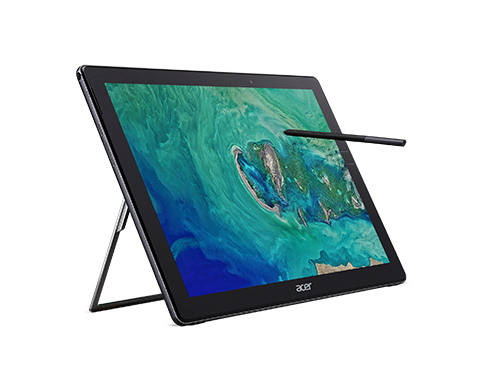

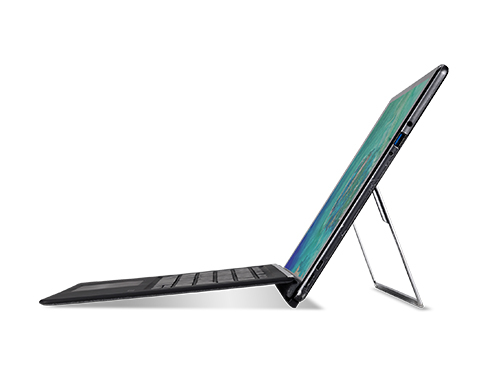

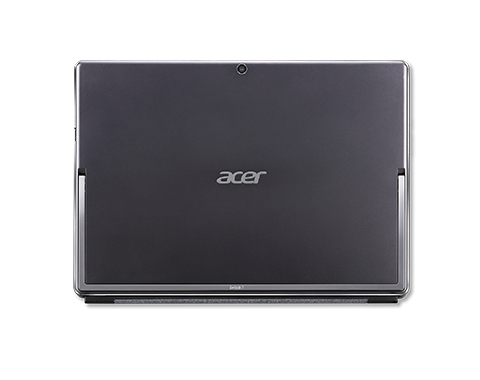

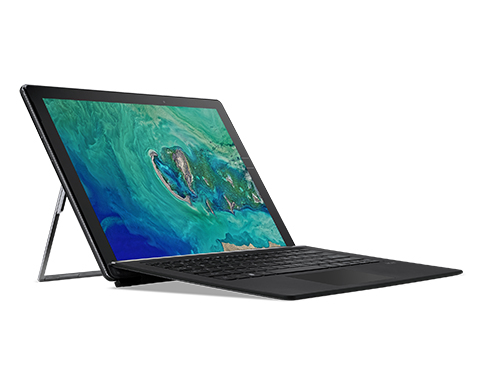

Switch 7 Black Edition SW713-51GNP-80Y3 Intel® Core™ i7 i7-8550U Hybrid (2-in-1)
34.3 cm (13.5") Touchscreen Quad HD 16 GB LPDDR3-SDRAM 512 GB SSD NVIDIA®
Model SW713-51GNP-80Y3Part no. NT.LEPEM.004
172 specifications Checked today
- Display34.3 cm (13.5")
- Resolution2256 x 1504 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA® GeForce® MX150
Overview
- Display
- 34.3 cm (13.5")
- Resolution
- 2256 x 1504 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® GeForce® MX150
- Brand
- Acer
- Category
- Laptop
- Model
- SW713-51GNP-80Y3
- Part number
- NT.LEPEM.004
- Also known as
- Acer Switch 7 Black Edition SW713-51GNP-80Y3 Intel® Core™ i7 i7-8550U Hybrid (2-in-1) 34.3 cm (13.5") Touchscreen Quad HD 16 GB LPDDR3-SDRAM 512 GB SSD NVIDIA®
Specifications
172 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Grey |
| Form factor | Convertible (Detachable) |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 34.3 cm (13.5") |
| Display resolution | 2256 x 1504 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | Quad HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 3:2 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor model | i7-8550U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 1.8 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake R |
| Bus type | OPI |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | SATA III |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® MX150 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
| Number of discrete graphics cards installed | 1 |
| Graphics card Open GL support | Yes |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 4 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Swivel webcam | No |
| Rear camera | Yes |
| Rear camera resolution (numeric) | 5 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 7265 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 2.0 Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| TV-out | No |
| Number of Thunderbolt 3 ports with PowerShare support | 0 |
Performance
| Specification | Value |
|---|---|
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Electronic compass | Yes |
| GPS (satellite) | No |
| Gyroscope | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 122589 |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 2 |
| Battery capacity | 37 Wh |
| Battery capacity | 4870 mAh |
| Battery life (max) | 10 h |
| Continuous video playback time (max) | 10 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
Security
| Specification | Value |
|---|---|
| Fingerprint reader | Yes |
| Password protection | Yes |
| Password protection type | HDD, Supervisor, User |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.6 kg |
| Width | 329.4 mm |
| Depth | 236.1 mm |
| Height | 15.3 mm |
| Weight (tablet mode) | 1.18 kg |
| Width (tablet mode) | 32.9 cm |
| Depth (tablet mode) | 23 cm |
| Height (tablet mode) | 1 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Docking station included | Yes |
| Stylus pen | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| TV tuner integrated | No |
