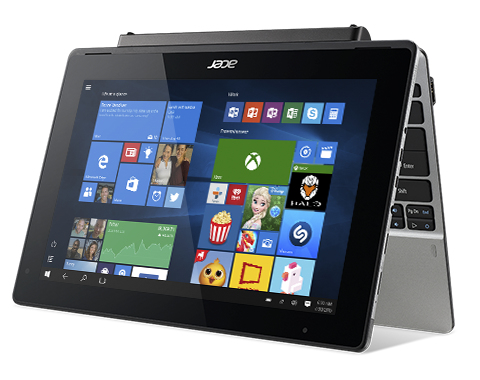

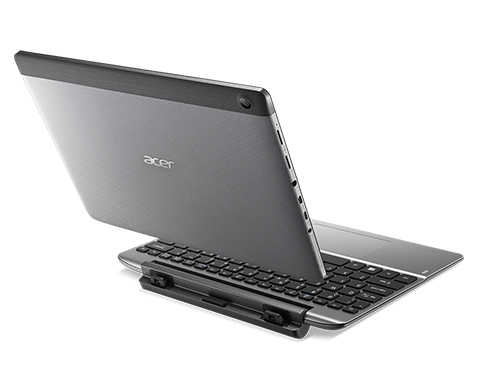

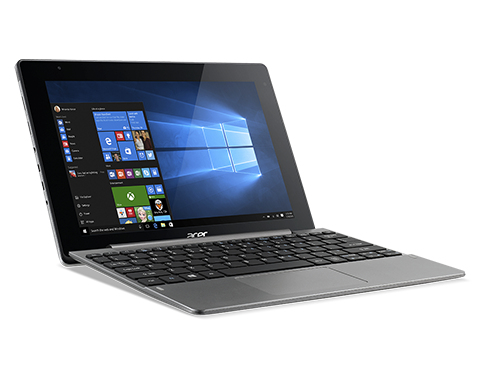

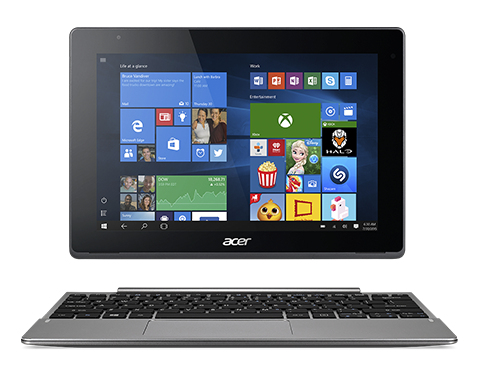

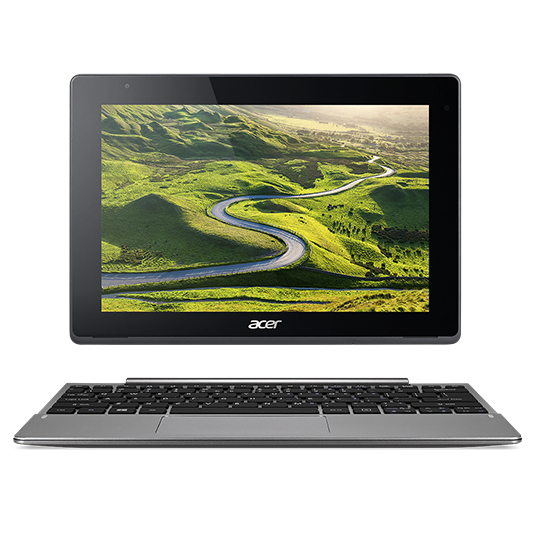

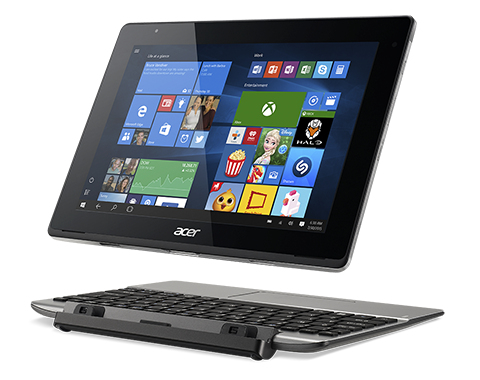

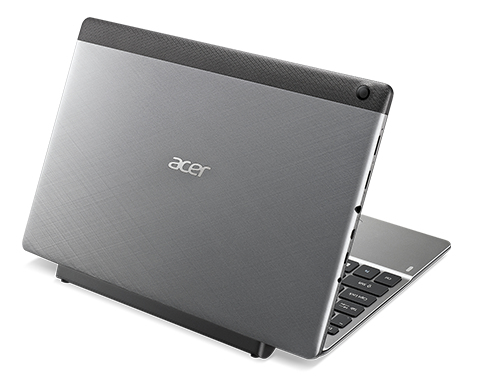

Aspire Switch
10 V SW5-014P-197D Intel Atom® x5-Z8300 Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen WXGA 2 GB LPDDR3-SDRAM 64 GB Flash Wi-Fi 4 (802.11n) Wind
Model SW5-014P-197DPart no. NT.LAXAA.001
111 specifications Checked today
- Display25.6 cm (10.1")
- Resolution1280 x 800 pixels
- ProcessorIntel Atom®
- Memory2 GB
- Storage64 GB
- GraphicsNot available
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 64 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- SW5-014P-197D
- Part number
- NT.LAXAA.001
- Also known as
- Acer Aspire Switch 10 V SW5-014P-197D Intel Atom® x5-Z8300 Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen WXGA 2 GB LPDDR3-SDRAM 64 GB Flash Wi-Fi 4 (802.11n) Wind
Specifications
111 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Grey |
| Form factor | Convertible (Detachable) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| HD type | WXGA |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Dual-screen | No |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | x5-Z8300 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 1.84 GHz |
| Processor frequency | 1.44 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 592 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom x5 Series |
| Processor codename | Cherry Trail |
| Stepping | C0 |
| Scenario Design Power (SDP) | 2 W |
| Tjunction | 90 °C |
| Maximum number of PCI Express lanes | 1 |
| PCI Express configurations | 1x1 |
| PCI Express slots version | 2.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | LPDDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Storage media | Flash |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Maximum on-board graphics card memory | 2 GB |
| Number of execution units | 12 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 500 MHz |
| On-board graphics card dynamic frequency (max) | 500 MHz |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Micro HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
Performance
| Specification | Value |
|---|---|
| Accelerometer | Yes |
| Electronic compass | Yes |
| Gyroscope | Yes |
| Proximity sensor | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Intel 64 | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 87383 |
| Processor code | SR29Z |
| Processor package size | 17 x 17 mm |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 2 |
| Battery capacity | 30 Wh |
| Battery capacity | 8060 mAh |
| Battery life (max) | 12 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 18 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 262 mm |
| Depth | 180 mm |
| Height | 20.5 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Keyboard included | Yes |
| Manual | Yes |
| Power cord included | Yes |
