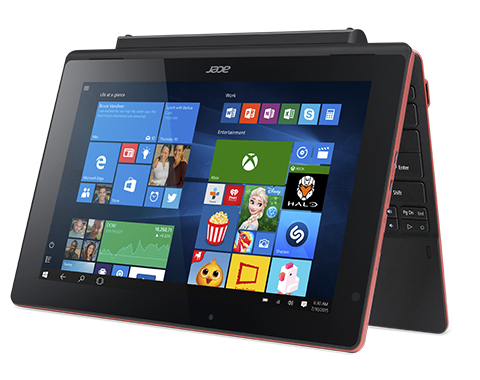

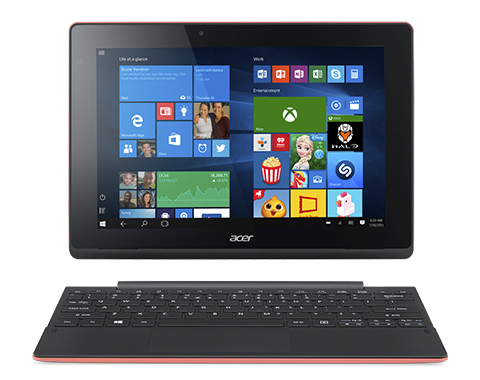

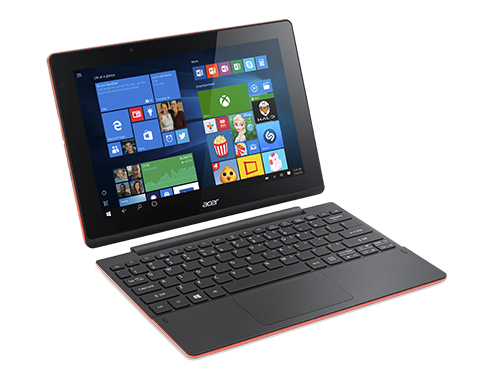

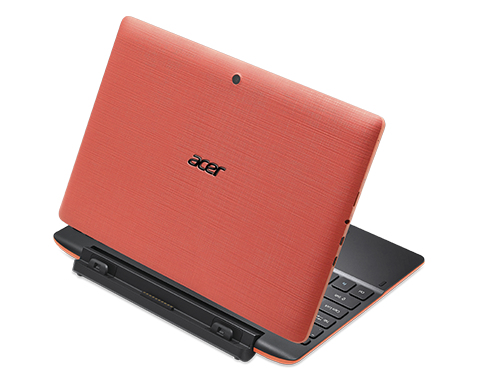

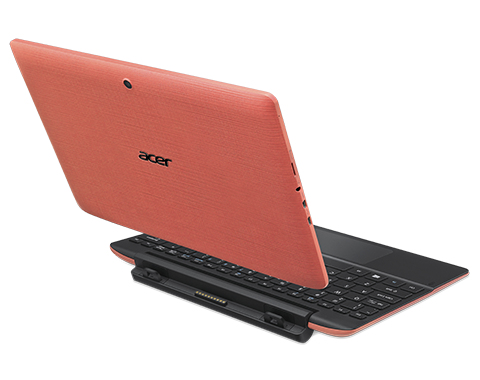

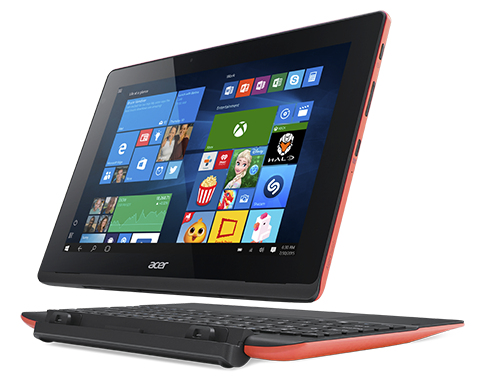

Acer Aspire Switch 10 E SW3-013-12TY Intel Atom® Z3735F Hybrid (2-in-1)

Aspire Switch 10 E SW3-013-12TY Intel Atom® Z3735F Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen WXGA 2 GB DDR3L-SDRAM 532 GB HDD+Flash Wi-Fi 4 (802.11n) Win

Model SW3-013-12TYPart no. NT.G0QSN.002

104 specifications Checked today

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage532 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 532 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: SW3-013-12TY
Part number: NT.G0QSN.002
Also known as: Acer Aspire Switch 10 E SW3-013-12TY Intel Atom® Z3735F Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen WXGA 2 GB DDR3L-SDRAM 532 GB HDD+Flash Wi-Fi 4 (802.11n) Win

Specifications

104 specifications in 18 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Red
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
HD type	WXGA
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:10
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3735F
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 592
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
Stepping	C0
Scenario Design Power (SDP)	2.2 W

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3L-SDRAM

Storage

Specification	Value
Total storage capacity	532 GB
Storage media	HDD+Flash
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
Flash memory	32 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	311 MHz
On-board graphics card burst frequency	646 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Rear camera	Yes
Rear camera resolution (numeric)	2 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	1
Combo headphone/mic port	Yes
Docking connector	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	32-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	80274
Processor code	SR1UB
Processor package size	17 x 17 mm
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2
Battery capacity	30 Wh
Battery capacity	8060 mAh
Battery life (max)	12 h

Power

Specification	Value
AC adapter power	10 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	262 mm
Depth	180 mm
Height	22.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes

Other features

Specification	Value
3D	No
