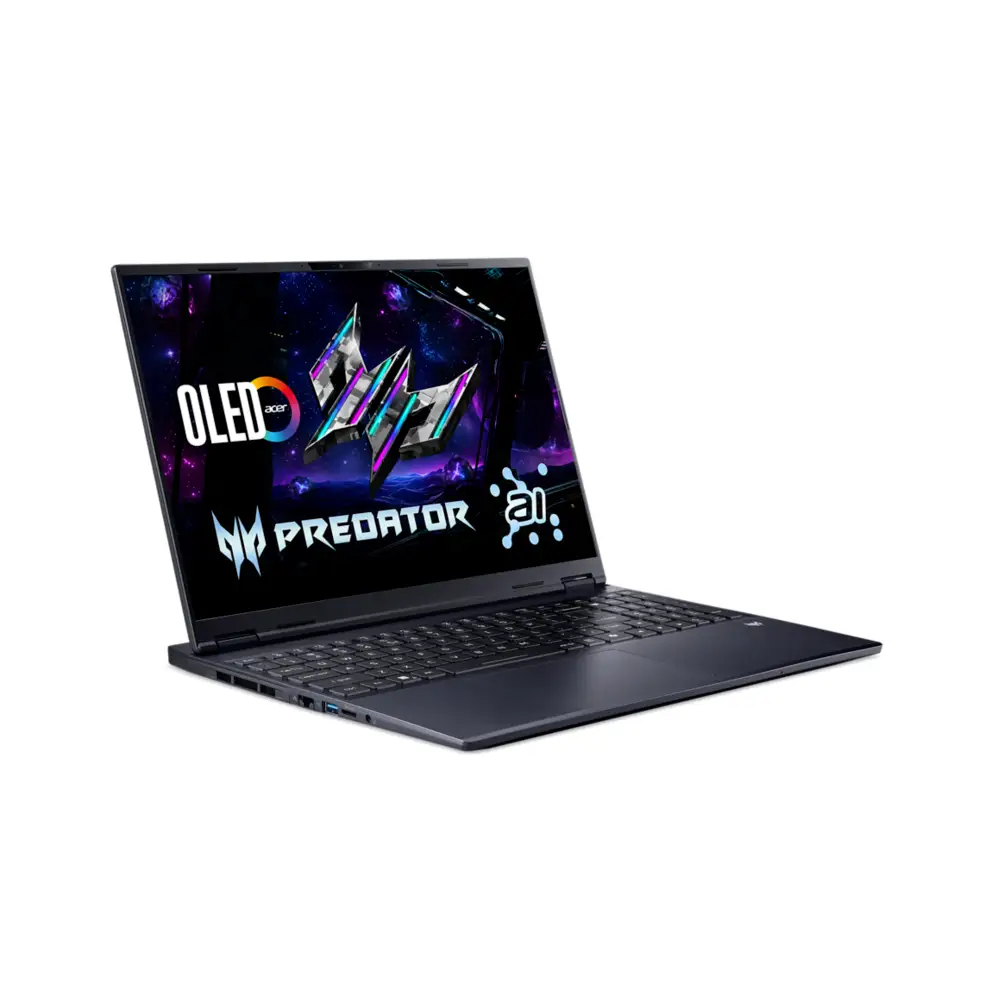

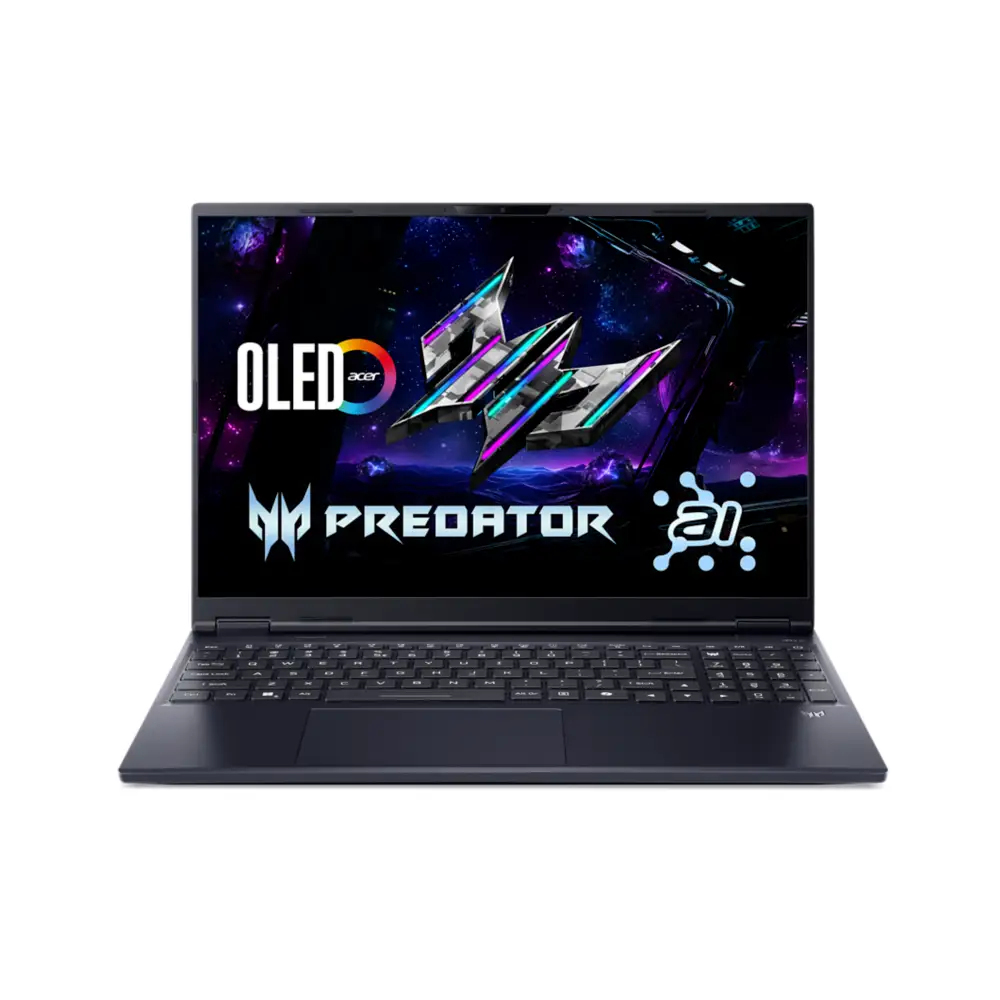

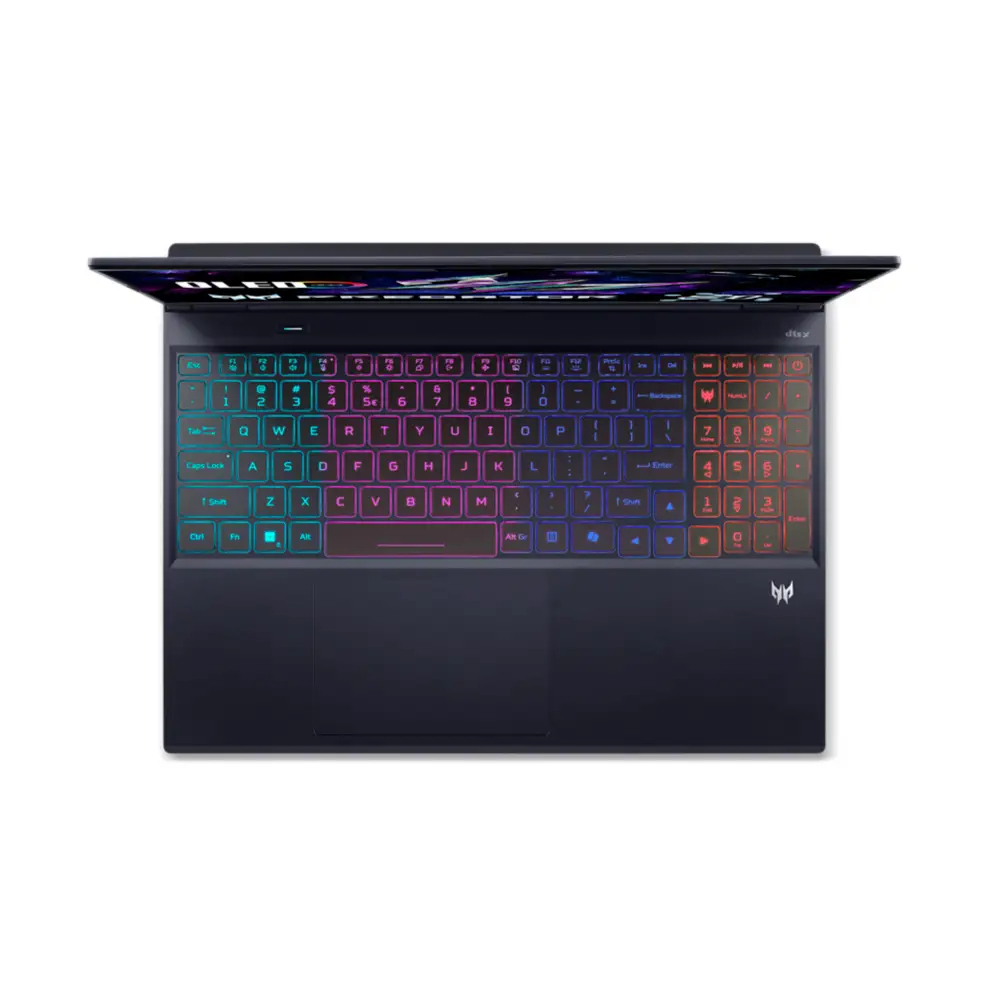

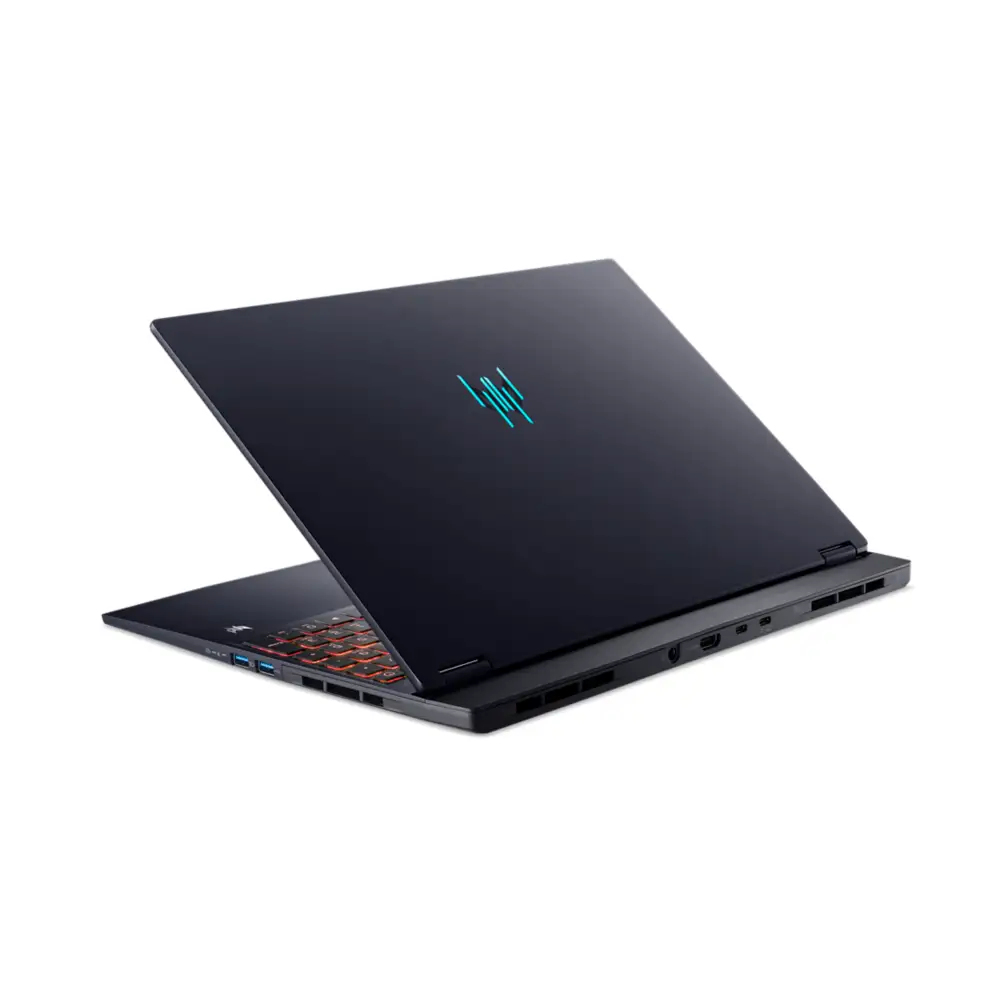

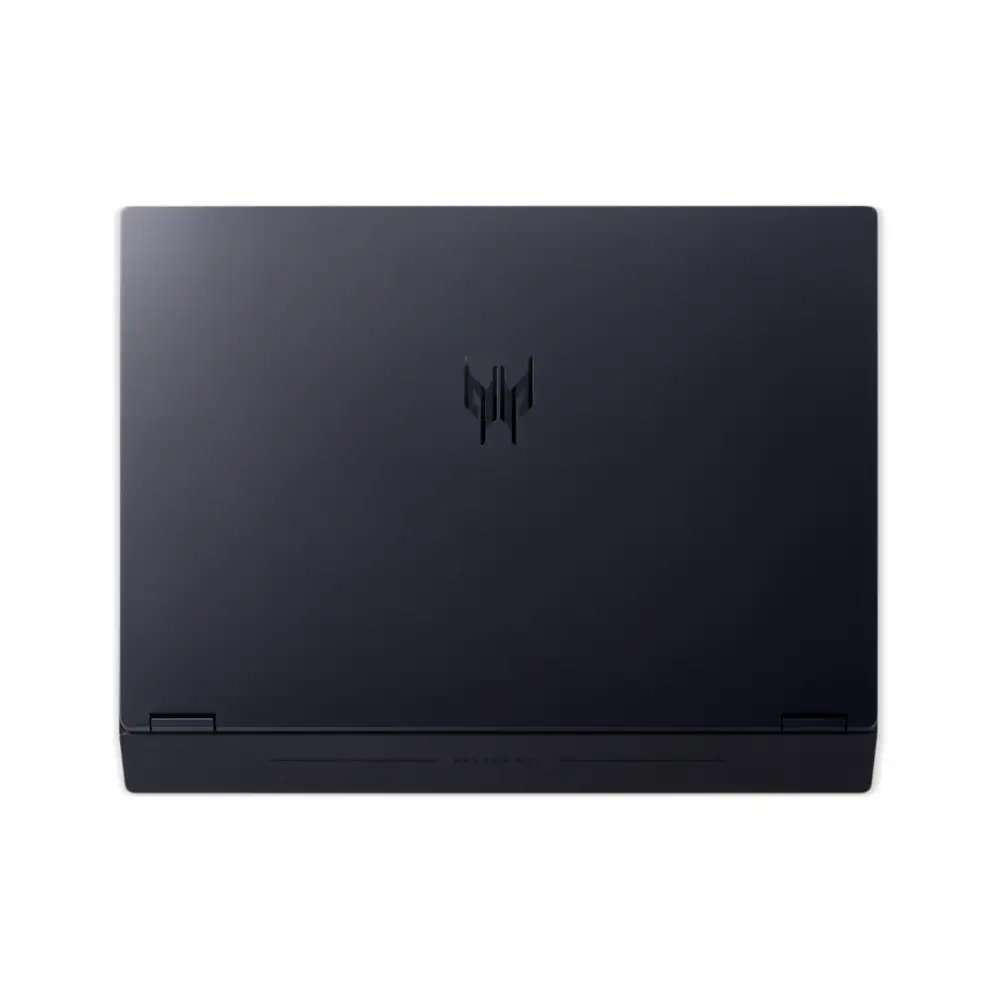

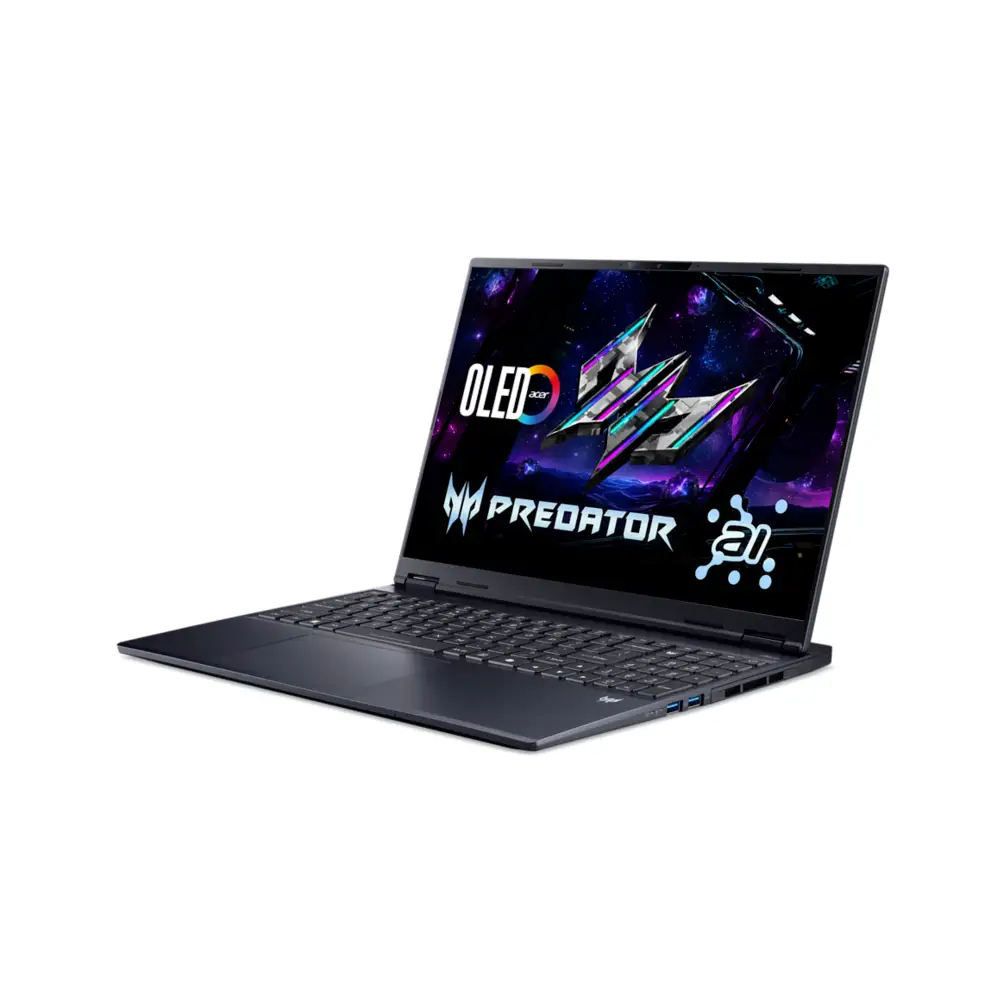

Acer Predator Helios Neo 16S AI PHN16S-71-94ZA Intel Core Ultra 9 275HX Laptop

Predator Helios Neo 16S AI PHN16S-71-94ZA Intel Core Ultra 9 275HX Laptop

40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 6E (8

Model PHN16S-71-94ZAPart no. NH.QXAEH.002EAN 4711474101785

96 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel Core Ultra 9
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 5070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel Core Ultra 9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 5070

Brand: Acer
Category: Laptop
Model: PHN16S-71-94ZA
Part number: NH.QXAEH.002
EAN / UPC: 4711474101785
Also known as: Acer Predator Helios Neo 16S AI PHN16S-71-94ZA Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 6E (8

Specifications

96 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Shale Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	OLED
Native aspect ratio	16:10
Colour gamut	100%
Display diagonal (metric)	40.6 cm
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	275HX
Processor cores	24
Processor threads	24
Processor boost frequency	5.4 GHz
Processor frequency	2.7 GHz
Processor cache	36 MB
Processor cache type	L3

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to	13 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory form factor	On-board
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express
Self-Encrypting Drive (SED)	Yes
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio system	DTS:X Ultra
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wi-Fi 6E 1675i
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	HM870

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit zone	4-zone RGB
Keyboard layout	QWERTY
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	76 Wh

Power

Specification	Value
DC-in jack	Yes
USB charging voltage	5 V
USB charging current	3 A

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	356.8 mm
Depth	275.5 mm
Height (front)	1.2 cm
Height (rear)	1.99 cm

Packaging content

Specification	Value
AC adapter included	Yes
