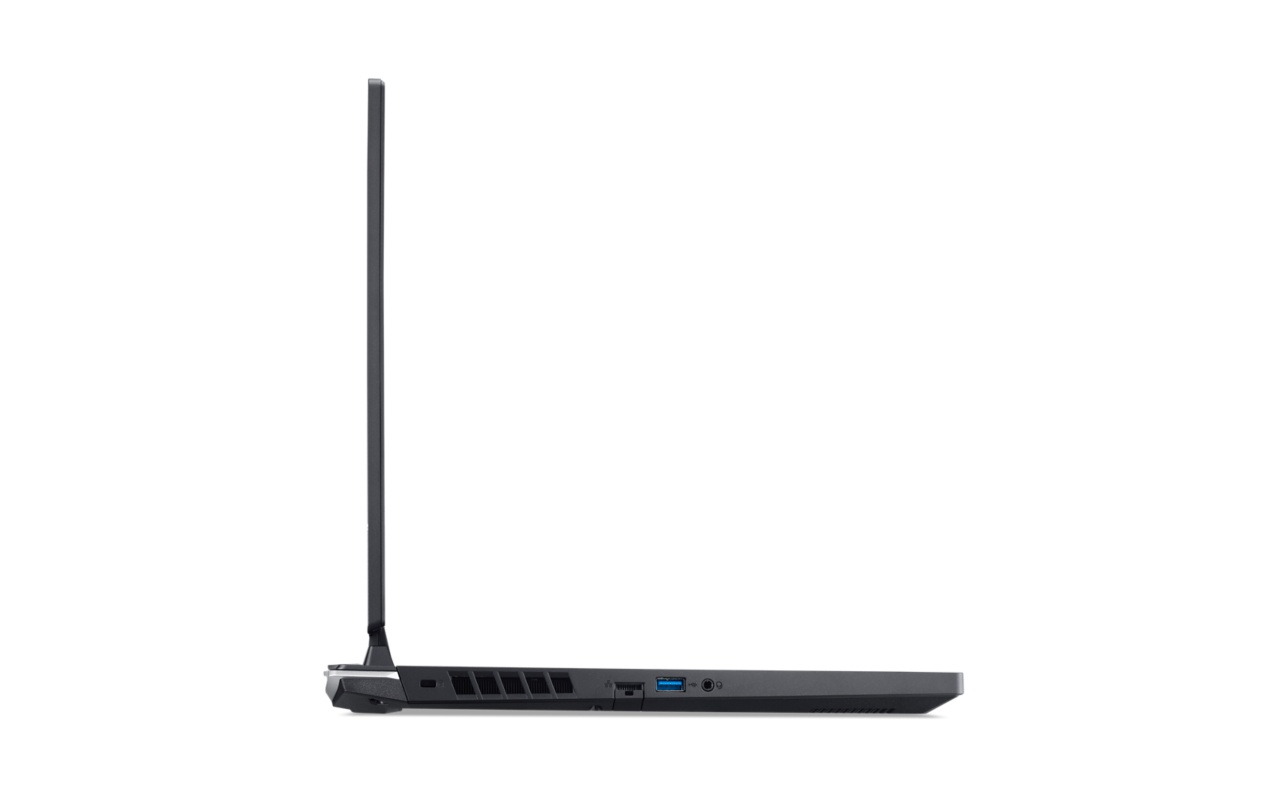

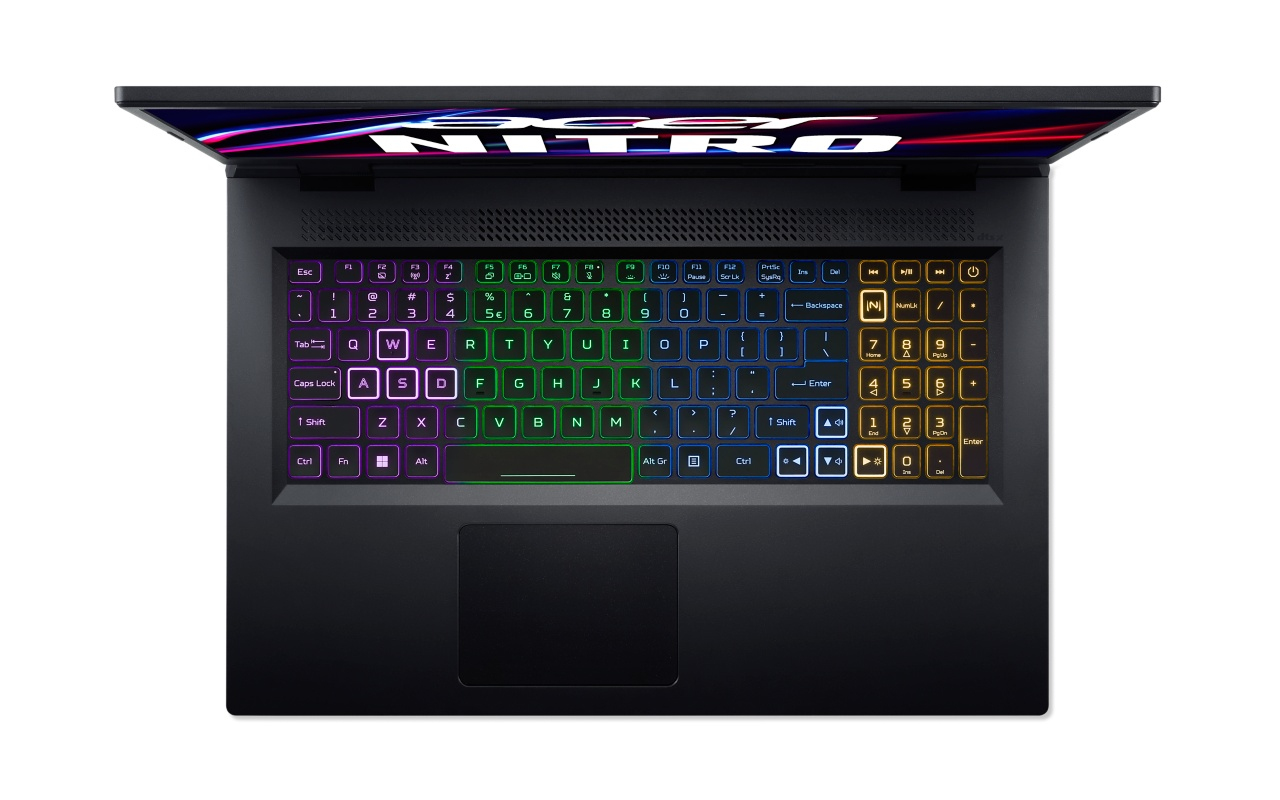

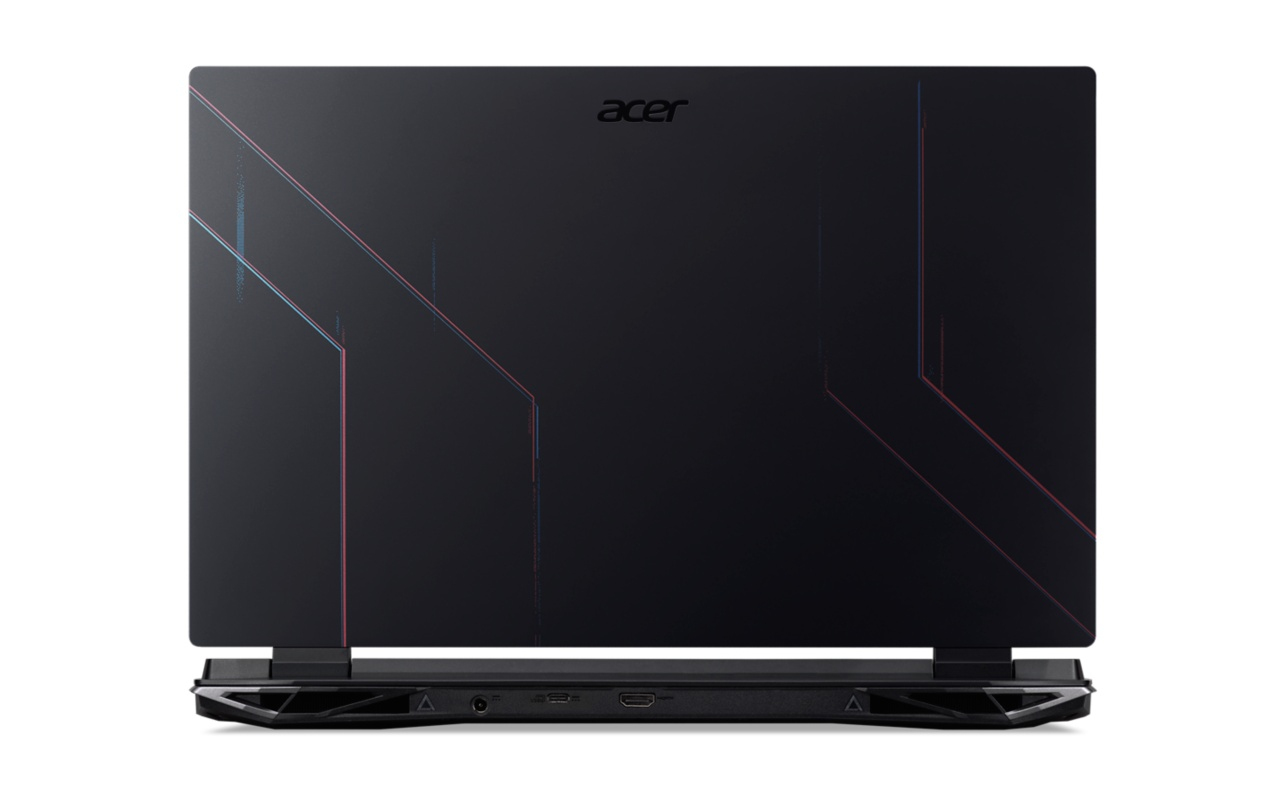

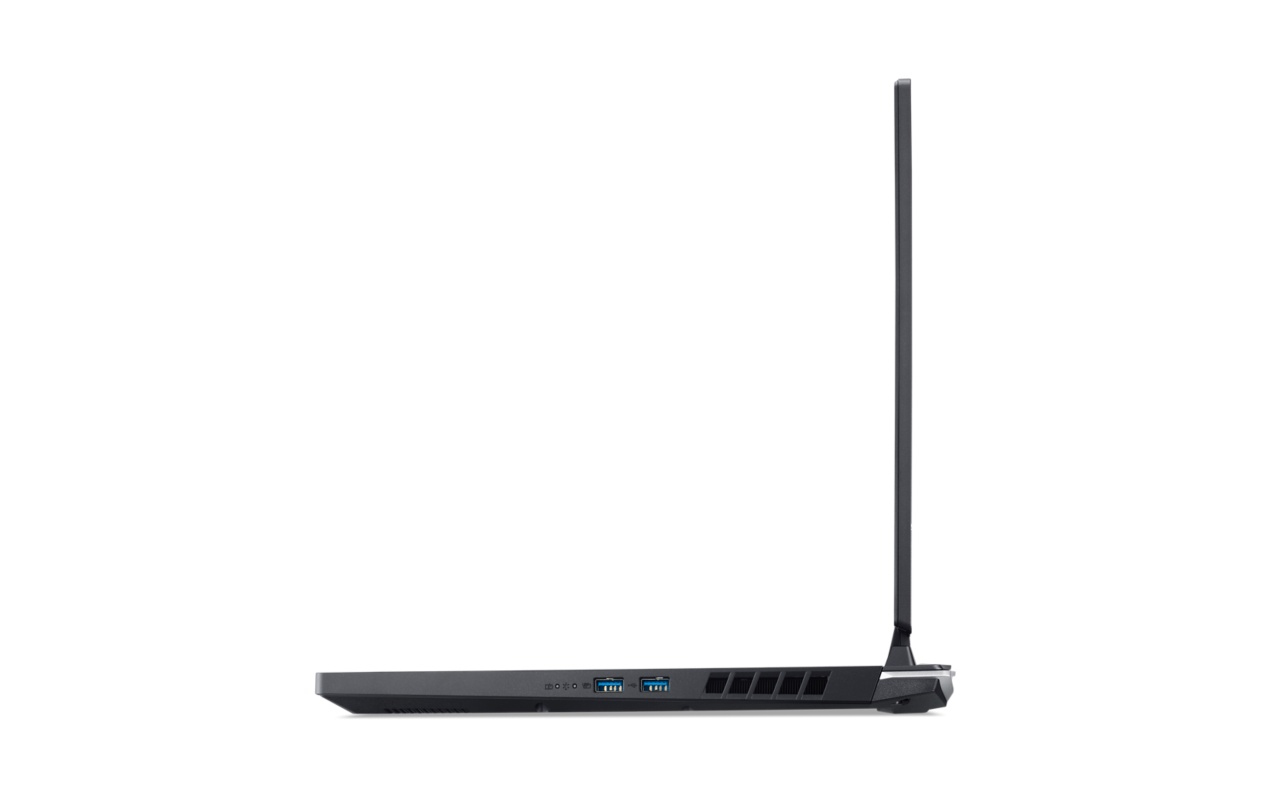

Nitro 5 AN517-42-R3AH AMD Ryzen™ 7 6800H Laptop
43.9 cm (17.3") Quad HD 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6E (802.11ax) Windows 11
Model AN517-42-R3AHPart no. NH.QGLEH.004EAN 4711121081316
80 specifications Checked today
- Display43.9 cm (17.3")
- Resolution2560 x 1440 pixels
- ProcessorAMD Ryzen™ 7
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 3070 Ti
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 2560 x 1440 pixels
- Processor
- AMD Ryzen™ 7
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 3070 Ti
- Brand
- Acer
- Category
- Laptop
- Model
- AN517-42-R3AH
- Part number
- NH.QGLEH.004
- EAN / UPC
- 4711121081316
- Also known as
- Acer Nitro 5 AN517-42-R3AH AMD Ryzen™ 7 6800H Laptop 43.9 cm (17.3") Quad HD 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6E (802.11ax) Windows 11
Specifications
80 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 2560 x 1440 pixels |
| Touchscreen | No |
| HD type | Quad HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Colour gamut | 100% |
| Display diagonal (metric) | 43.9 cm |
| RGB colour space | DCI-P3 |
| Maximum refresh rate | 165 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 6000 Series |
| Processor model | 6800H |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 16 MB |
| Processor cache type | L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express |
| Self-Encrypting Drive (SED) | Yes |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 Ti |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | AMD Radeon 680M |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS:X Ultra |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
| Keyboard layout | AZERTY |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 280 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Width | 400.5 mm |
| Depth | 294.5 mm |
| Height | 27.9 mm |
