Acer Nitro 5 AN515-42-R6AY AMD Ryzen™ 7 2700U Laptop

Nitro 5 AN515-42-R6AY AMD Ryzen™ 7 2700U Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1.25 TB HDD+SSD AMD Radeon RX 560X Wi-Fi 5 (802.11ac) Windows 10 H

Model AN515-42-R6AYPart no. NH.Q3RET.001EAN 4713883561327

100 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1.25 TB
GraphicsAMD Radeon RX 560X

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1.25 TB
Graphics: AMD Radeon RX 560X

Brand: Acer
Category: Laptop
Model: AN515-42-R6AY
Part number: NH.Q3RET.001
EAN / UPC: 4713883561327
Also known as: Acer Nitro 5 AN515-42-R6AY AMD Ryzen™ 7 2700U Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1.25 TB HDD+SSD AMD Radeon RX 560X Wi-Fi 5 (802.11ac) Windows 10 H

Specifications

100 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Red
Colour name	Shale Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 2000 Series
Processor model	2700U
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	2.2 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	Socket FP5
Processor lithography	14 nm
Processor operating modes	64-bit

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1.25 TB
Storage media	HDD+SSD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	5400 RPM
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA III
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon RX 560X
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	AMD Radeon RX Vega Graphics
On-board graphics card model	AMD Radeon RX Vega 10

Audio

Specification	Value
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

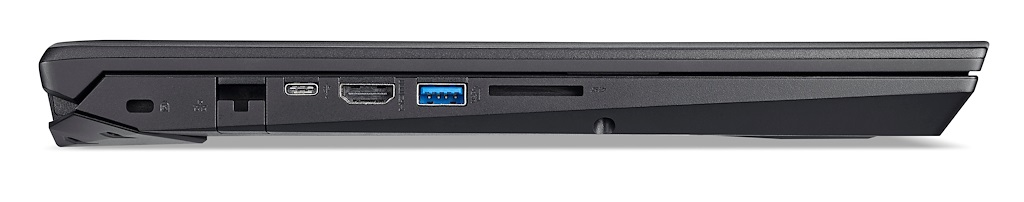

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Headphone outputs	1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Windows keys	Yes
Keyboard layout	QWERTY
Keyboard language	Italian

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	3320 mAh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	135 W
DC-in jack	Yes

Certificates

Specification	Value
Certification	ACPI 5.0

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	390 mm
Depth	266 mm
Height	26.8 mm

Packaging content

Specification	Value
AC adapter included	Yes
