Lenovo Thunderbolt 3 Dock Gen2 (Refurbished) A
Model Lenovo Thunderbolt 3 Dock Gen2 (Refurbished) APart no. 40AN0135EU-REFEAN 5713552046192
50 specifications
- ConnectivityWired
- Weight525 g
- ColourBlack, Red
- Ethernet LANYes
- Power source typeDC
- Windows operating systems supportedWindows 10, Windows 7
Overview
- Connectivity
- Wired
- Weight
- 525 g
- Colour
- Black, Red
- Ethernet LAN
- Yes
- Power source type
- DC
- Windows operating systems supported
- Windows 10, Windows 7
- Brand
- upcycle it
- Category
- Laptop Docks & Port Replicators
- Model
- Lenovo Thunderbolt 3 Dock Gen2 (Refurbished) A
- Part numbers
- 40AN0135EU-REF, 40AN0135EU-REF1
- EAN / UPC
- 5713552046192
- Also known as
- upcycle it Lenovo Thunderbolt 3 Dock Gen2 (Refurbished) A Wired Black, Red
Specifications
50 specifications in 11 groups

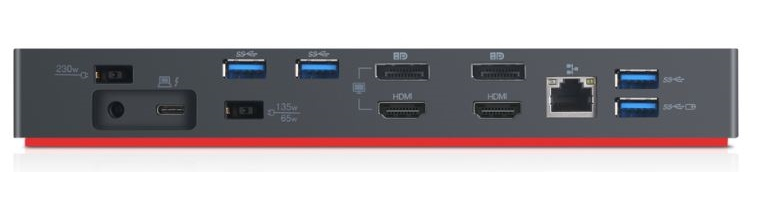

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| LED indicators | Power |
| Plug and Play | Yes |
| Refurbished | Yes |
| Refurbished grade | Grade A |
| Brand compatibility | Lenovo |
| Compatibility | ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC) |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power supply | 135 W |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 525 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 164 mm |
| Package height | 75 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|

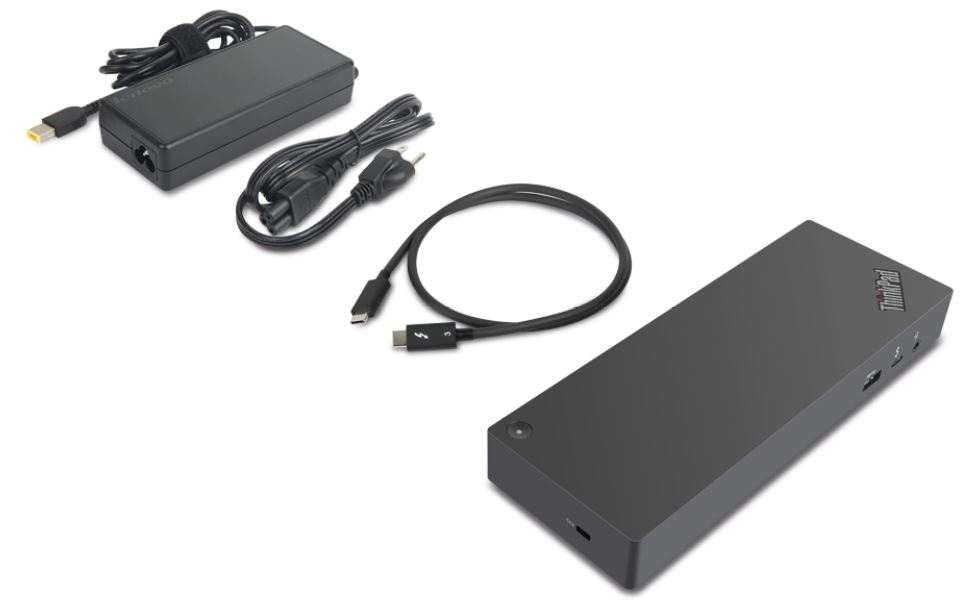

| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Manual | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 3.37 |
| Refurbishment impact (kg of CO2e) | 2.36 |
| Avoided emissions (kg of CO2e) | 24.91 |
| Avoided e-waste | 0.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
