Thunderbolt 4 Ultra 180W G6 Dock
Model Thunderbolt 4 Ultra 180W G6 DockPart no. 9X481UT#ABBEAN 198415314925
64 specifications
- ConnectivityWired
- Weight790 g
- ColourGrey
- Ethernet LANYes
- Power supply230 W
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Connectivity
- Wired
- Weight
- 790 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power supply
- 230 W
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- HP
- Category
- Laptop Docks & Port Replicators
- Model
- Thunderbolt 4 Ultra 180W G6 Dock
- Part numbers
- 9X481UT#ABB, 9X481UT#ABA, 9X481UT
- EAN / UPC
- 198415314925, 198415314918, 198415314888, 198415314895 +14 more
- Also known as
- HP Thunderbolt 4 Ultra 180W G6 Dock
Specifications
64 specifications in 14 groups

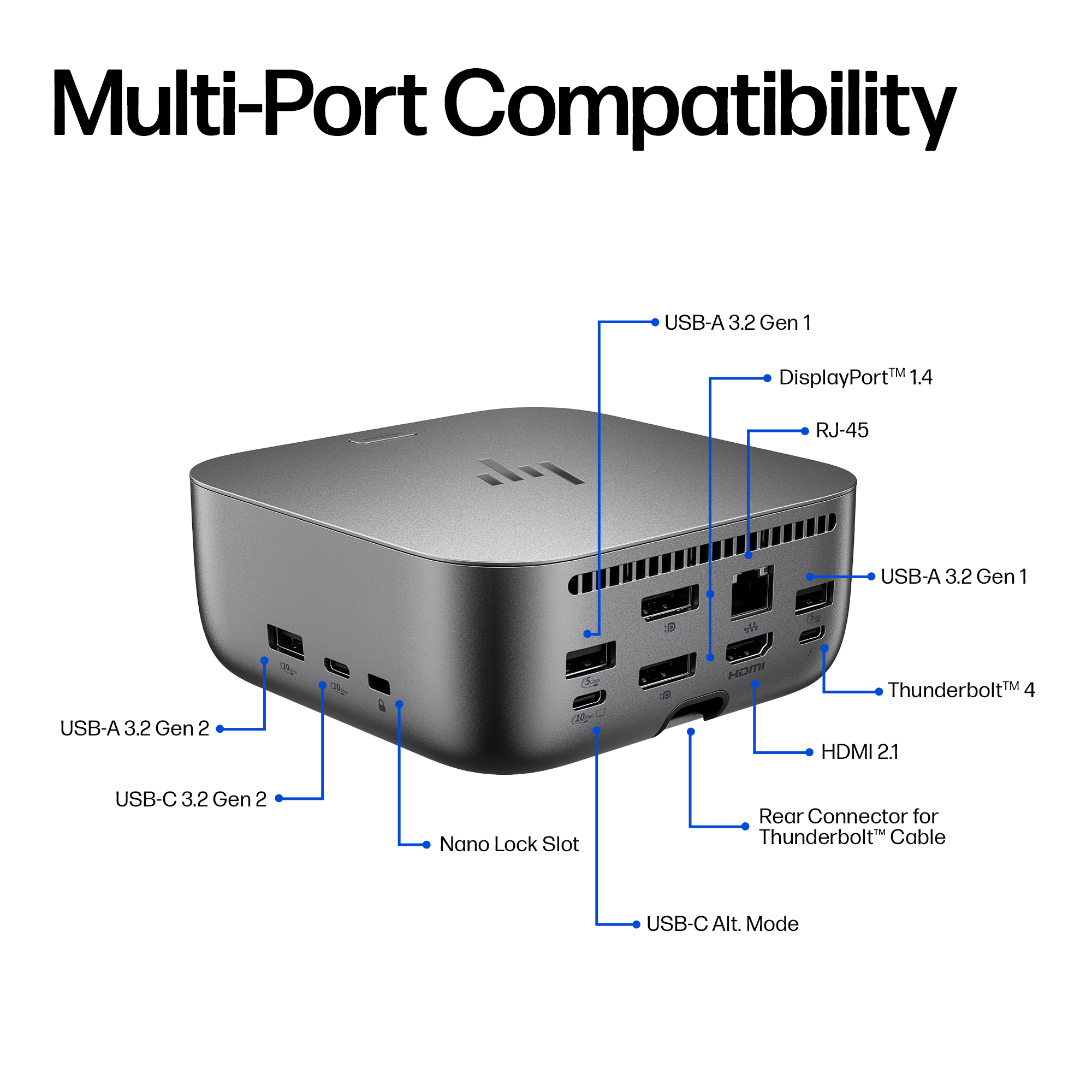

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 180 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 360 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Nano |
| LED indicators | Power |
| Country of origin | China, Thailand, Mexico |
| Compatibility | Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more. |
| HP segment | Business |
Power
| Specification | Value |
|---|---|
| Power supply | 230 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15 - 3048 m |
| Non-operating altitude | -15 - 12192 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainable technologies and materials | 35% post-consumer recycled plastic |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Depth | 121 mm |
| Height | 49.5 mm |
| Weight | 790 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 396 mm |
| Package depth | 171 mm |
| Package height | 95 mm |
| Package weight | 1.14 kg |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| Cables included | AC |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 0.1 |
| Carbon emissions, logistics (kg of CO2e) | 0.3 |
| Carbon emissions, manufacturing (kg of CO2e) | 7 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2 |
| Total carbon footprint (kg of CO2e) | 10 |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Box contents | HP Thunderbolt 4 Ultra 180W G6 Dock; 230 W power adapter; Thunderbolt 4 cable (1 m); Power cord; Product notice; Warranty card |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet layer | 28 pc(s) |
Other features
| Specification | Value |
|---|---|
| Bundled software | Poly Lens with automatic firmware updates |
| Compatible operating systems | Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS |
| Special features | Intel vPro support |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 140 mm |
| Pallet dimensions (W x D x H) (imperial) | 1199.9 x 1000 x 140 mm (47.2 x 39.4 x 5.51") |
| UNSPSC-code | 43211602 |
