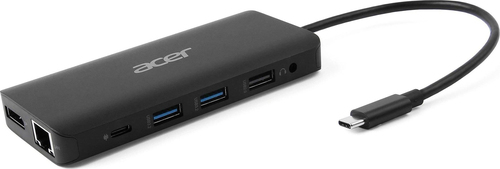

USB Type-C Dongle 12-in-1 Black
Model USB Type-C Dongle 12-in-1 BlackPart no. HP.DSCAB.017EAN 4712842946540
28 specifications
- ConnectivityWired
- Weight108 g
- ColourBlack
- Ethernet LANYes
- Operating temperature (T-T)0 - 40 °C
- Width56 mm
Overview
- Connectivity
- Wired
- Weight
- 108 g
- Colour
- Black
- Ethernet LAN
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 56 mm
- Brand
- Acer
- Category
- Laptop Docks & Port Replicators
- Model
- USB Type-C Dongle 12-in-1 Black
- Part number
- HP.DSCAB.017
- EAN / UPC
- 4712842946540
- Also known as
- Acer USB Type-C Dongle 12-in-1 Black Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Specifications
28 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 122 mm |
| Height | 16.3 mm |
| Weight | 108 g |
