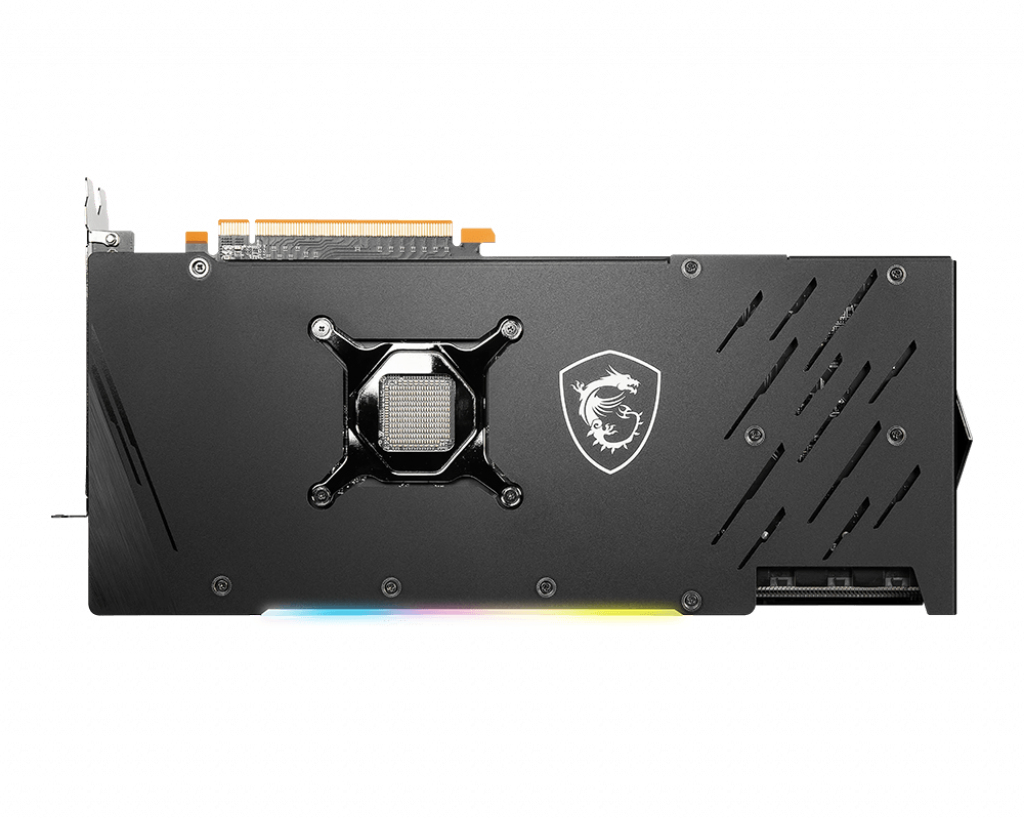

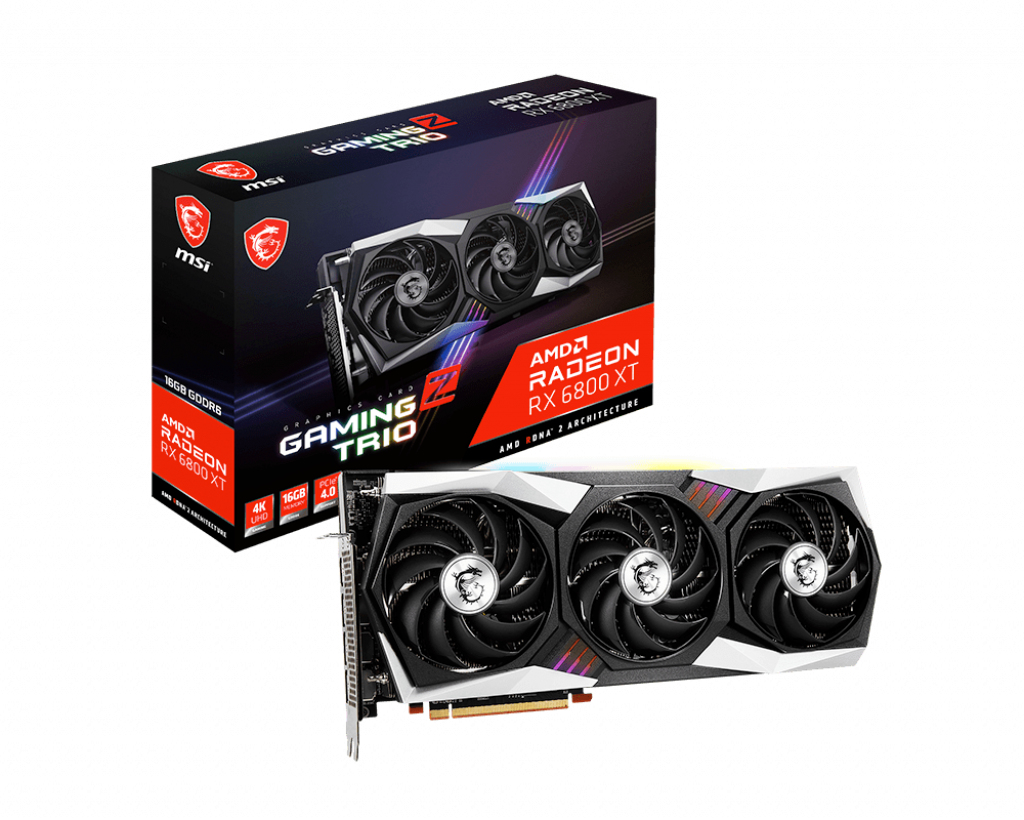

Radeon RX 6800 XT Gaming Z Trio 16G
Model Radeon RX 6800 XT Gaming Z Trio 16GPart no. RADEON RX 6800 XT GAMING Z TRIO 16GEAN 4719072816186
40 specifications Checked today
- Weight1.56 kg
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 4.0
- TV tuner integratedNo
Overview
- Weight
- 1.56 kg
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 4.0
- TV tuner integrated
- No
- Brand
- MSI
- Category
- GPU
- Model
- Radeon RX 6800 XT Gaming Z Trio 16G
- Part numbers
- RADEON RX 6800 XT GAMING Z TRIO 16G, RX6800XTGAMZTRI16G, R6800XTGZT16
- EAN / UPC
- 4719072816186, 824142248898
- Also known as
- MSI GAMING Radeon RX 6800 XT Z Trio 16G AMD 16 GB GDDR6
Specifications
40 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 6800 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4608 |
| Processor boost clock speed | 2310 MHz |
| Processor boost clock speed (Gaming mode) | 2065 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 16 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI Tri Frozr 2 |
| Number of fans | 3 fan(s) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 300 W |
| Supplementary power connectors | 3x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.56 kg |
| Length | 324 mm |
| Depth | 55 mm |
| Height | 142 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.23 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
