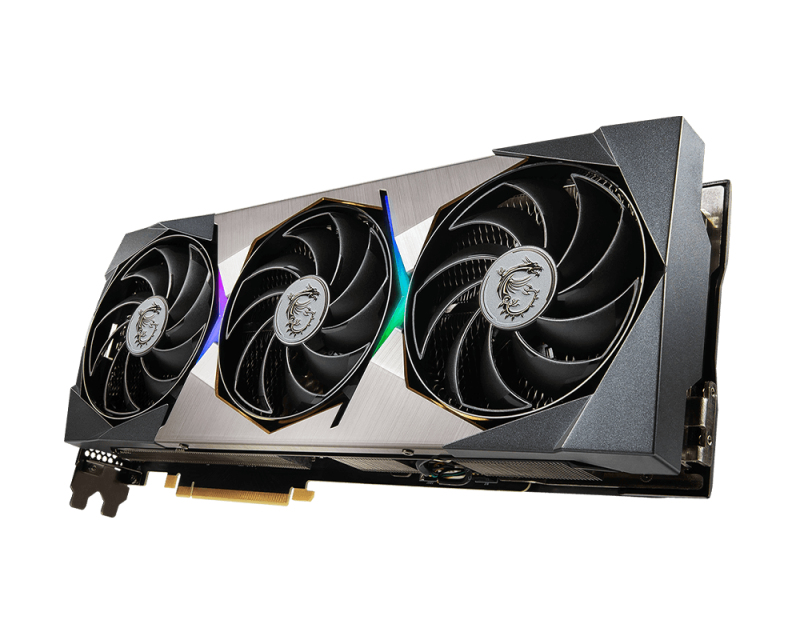

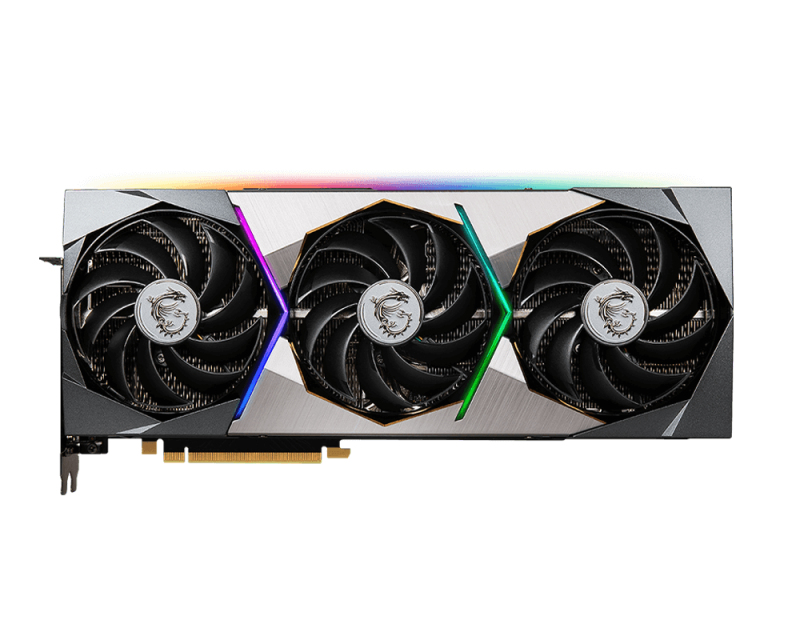

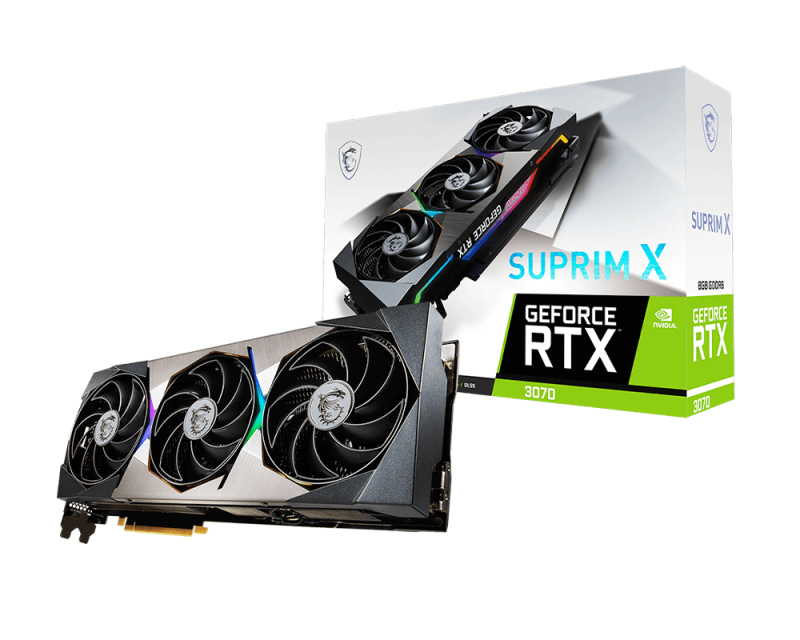

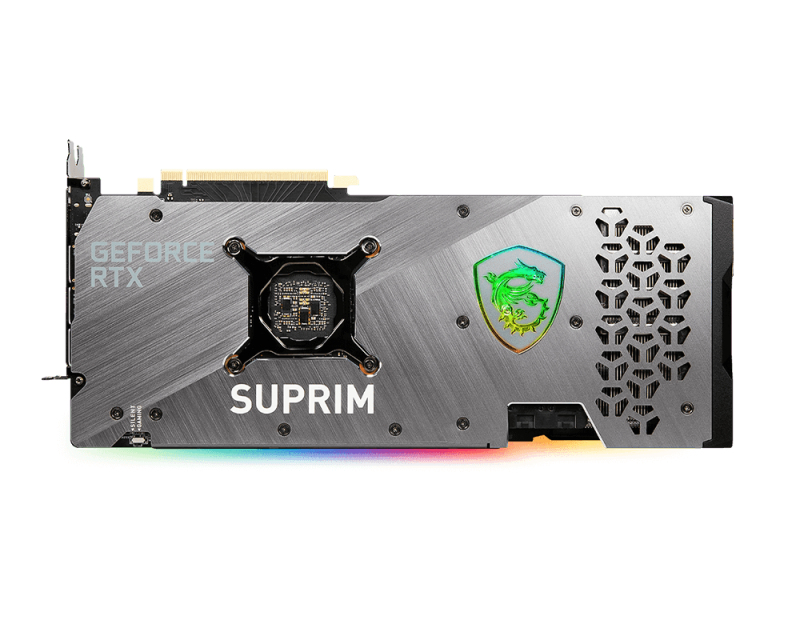

GeForce RTX™ 3070 SUPRIM X 8G
Model GeForce RTX™ 3070 SUPRIM X 8GPart no. V390-245REAN 824142253632
40 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.74 kg
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.74 kg
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX™ 3070 SUPRIM X 8G
- Part number
- V390-245R
- EAN / UPC
- 824142253632
- Also known as
- MSI SUPRIM GeForce RTX™ 3070 X 8G NVIDIA GeForce RTX 3070 8 GB GDDR6
Specifications
40 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3070 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 5888 |
| Processor boost clock speed (OC mode) | 1920 MHz |
| Processor boost clock speed (Gaming mode) | 1905 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 1905 MHz |
| Memory bandwidth (max) | 14 GB/s |

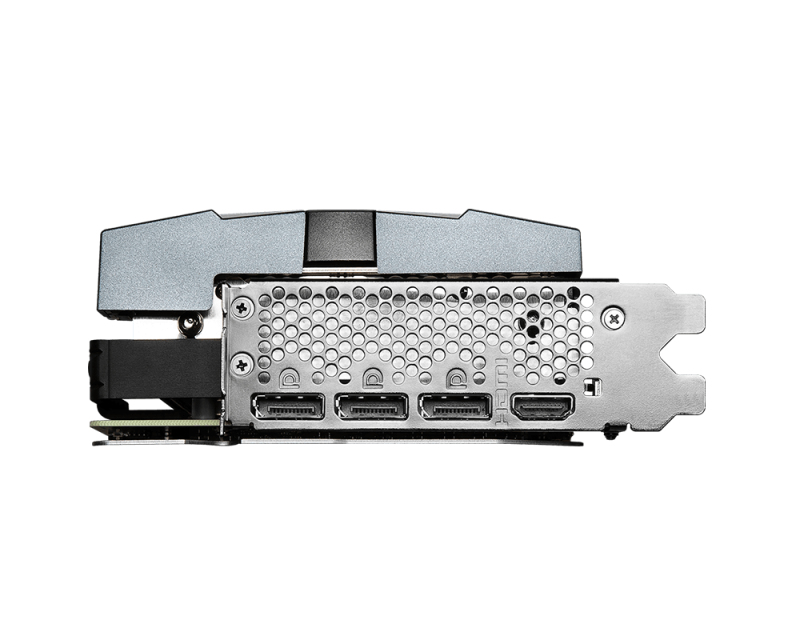

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 4.0 |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 280 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.74 kg |
| Length | 335 mm |
| Depth | 61 mm |
| Height | 140 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.03 kg |
| Package type | Box |
