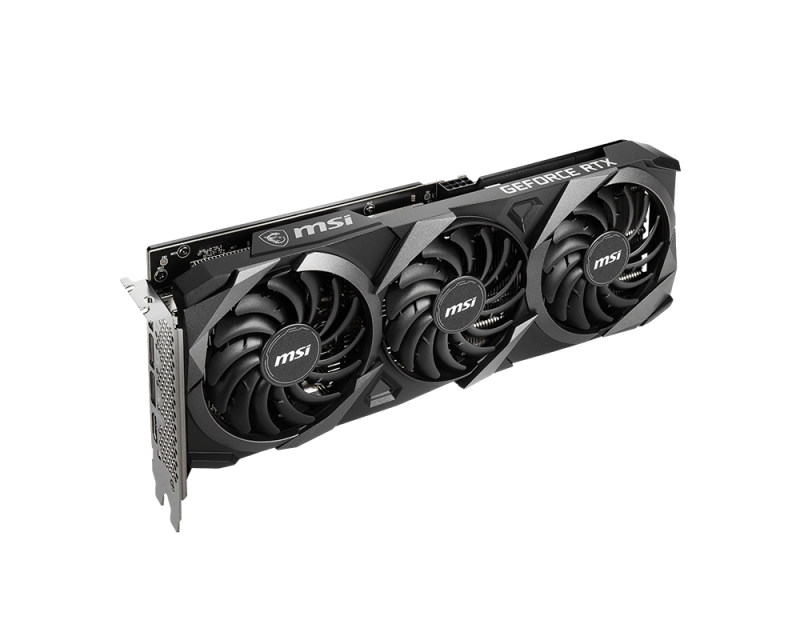

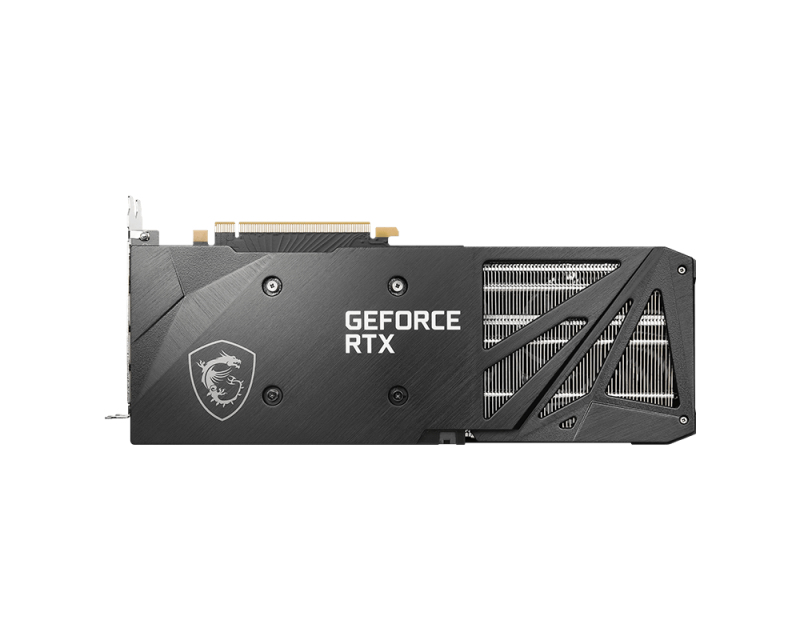

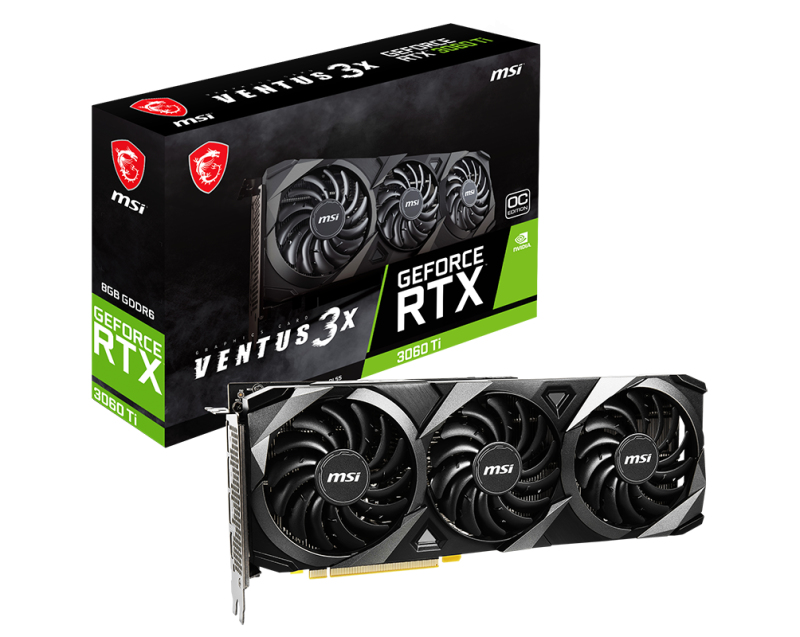

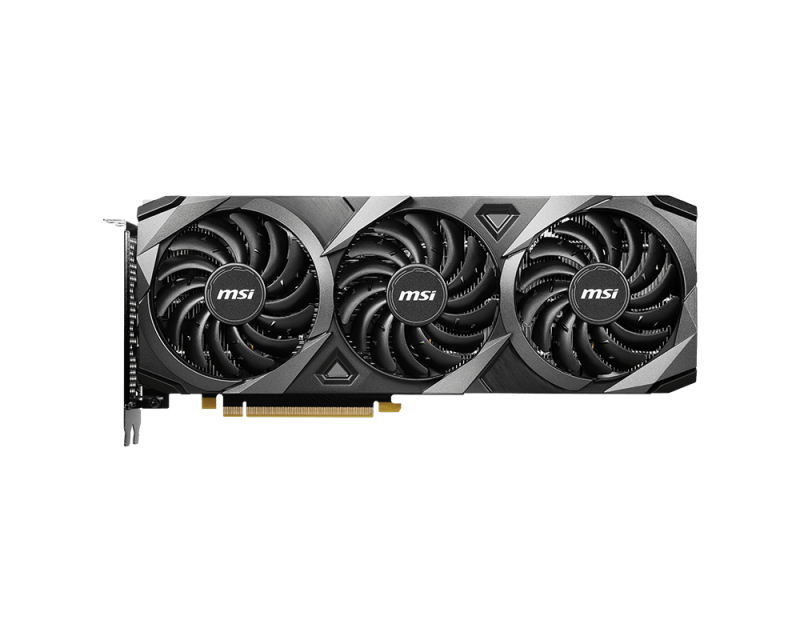

GeForce RTX™ 3060 Ti VENTUS 3X OC
Model GeForce RTX™ 3060 Ti VENTUS 3X OCPart no. 3060TIVEN3X8GD6XOC
37 specifications Checked yesterday
- TypeFull-Height/Full-Length (FH/FL)
- Weight760 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x8 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 760 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x8 4.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX™ 3060 Ti VENTUS 3X OC
- Part number
- 3060TIVEN3X8GD6XOC
- Also known as
- MSI VENTUS GeForce RTX™ 3060 Ti 3X OC NVIDIA GeForce RTX 3060 Ti 8 GB GDDR6
Specifications
37 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4864 |
| Processor frequency | 1695 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 1695 MHz |
| Data transfer rate | 14 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x8 4.0 |

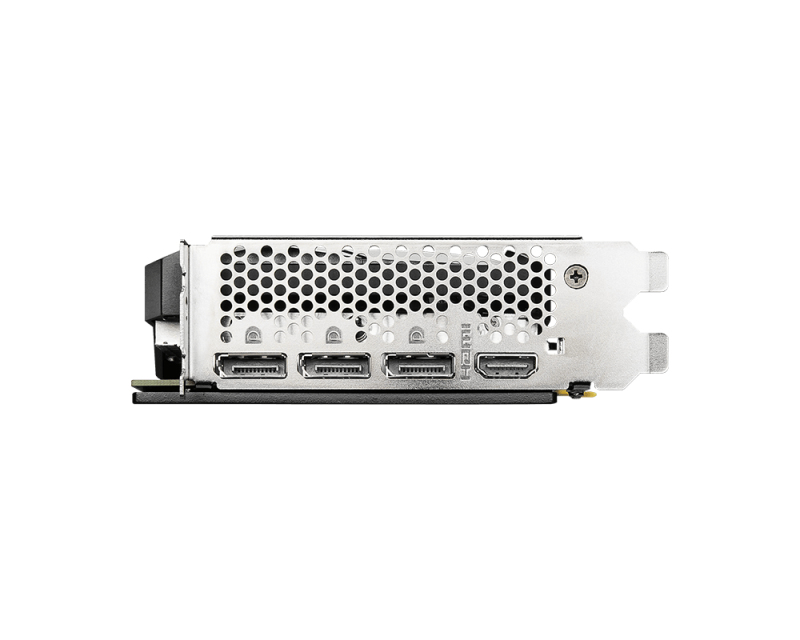

| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 3.0 |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Power consumption (typical) | 200 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 760 g |
| Length | 305 mm |
| Depth | 42 mm |
| Height | 120 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.23 kg |
| Package type | Box |
