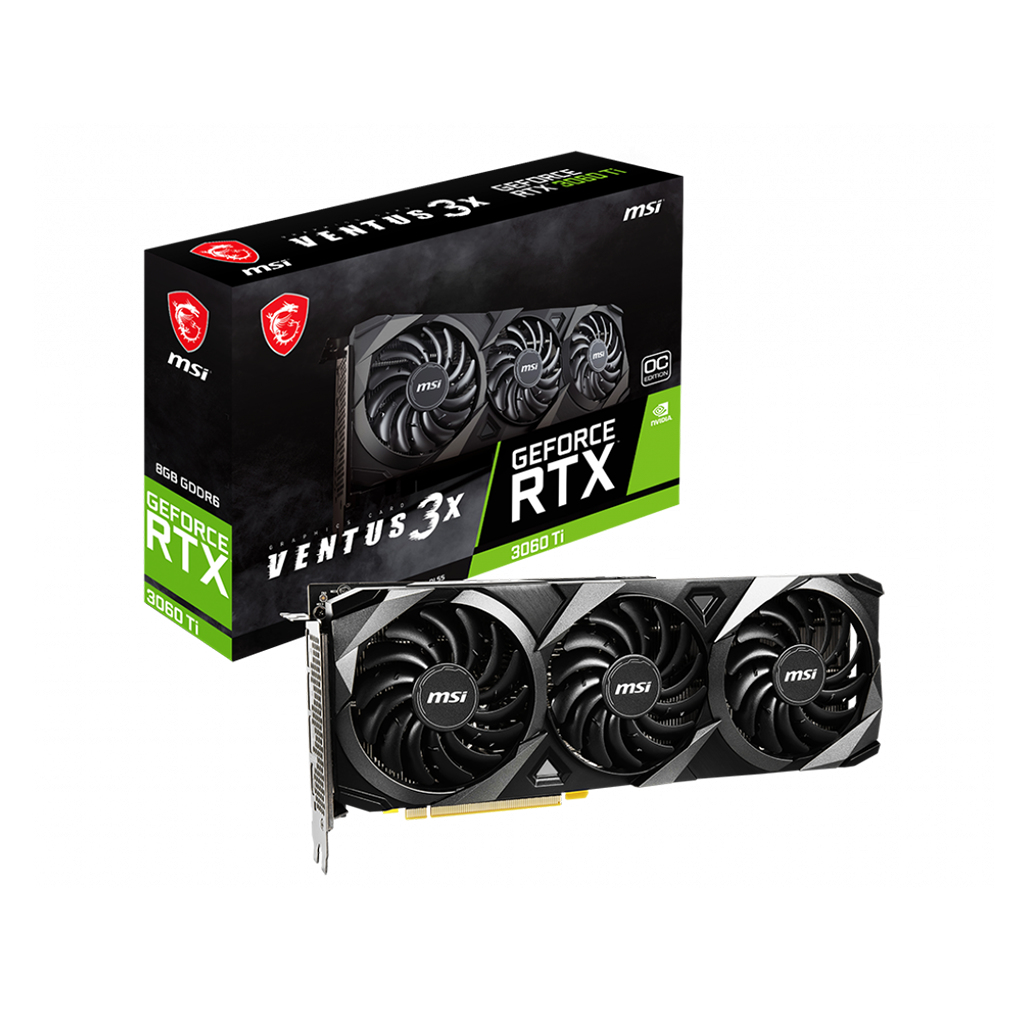

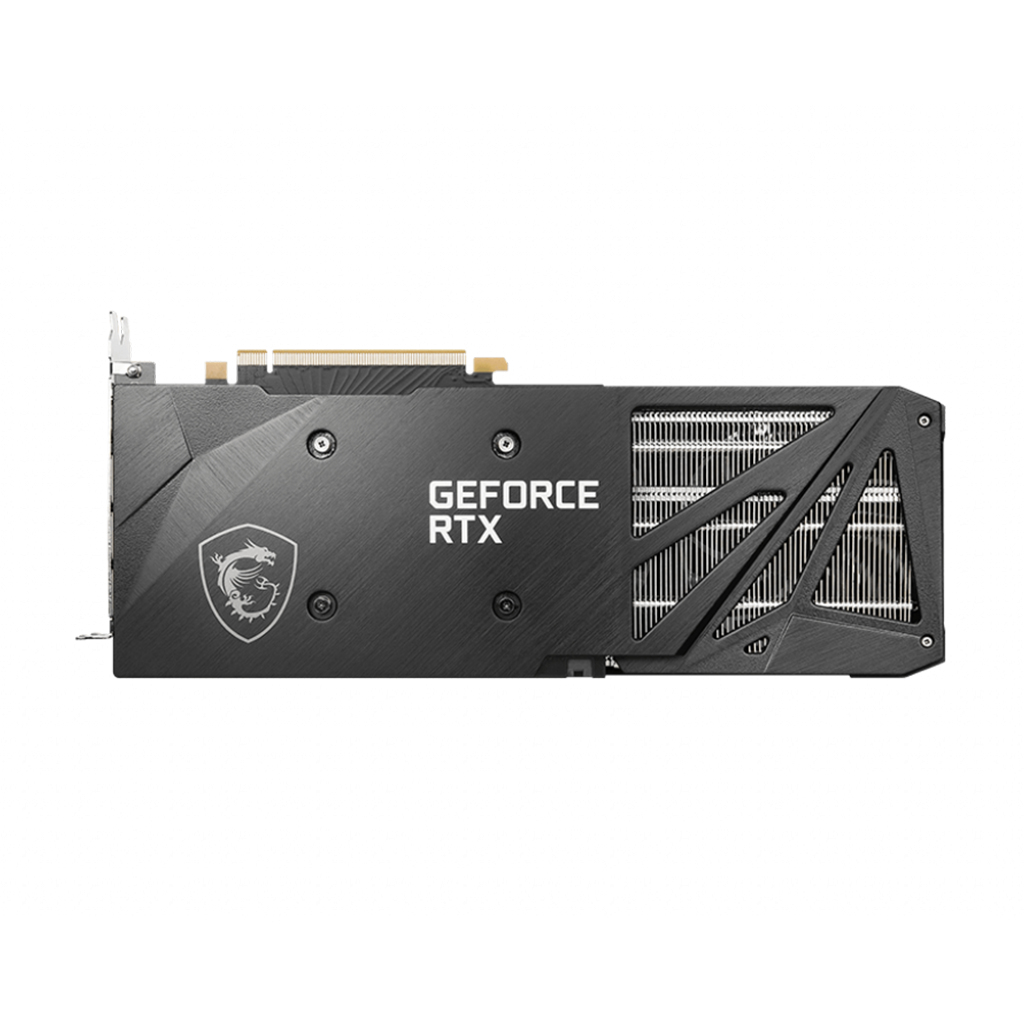

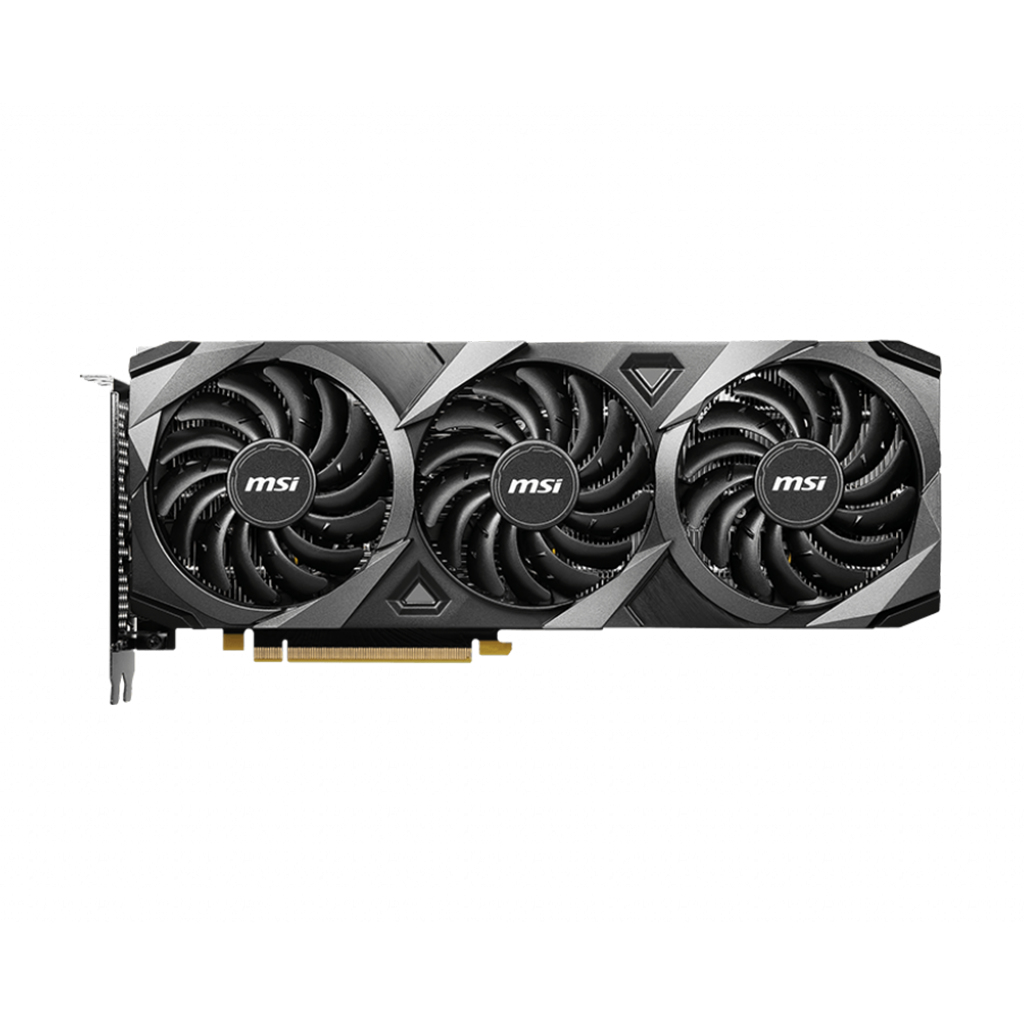

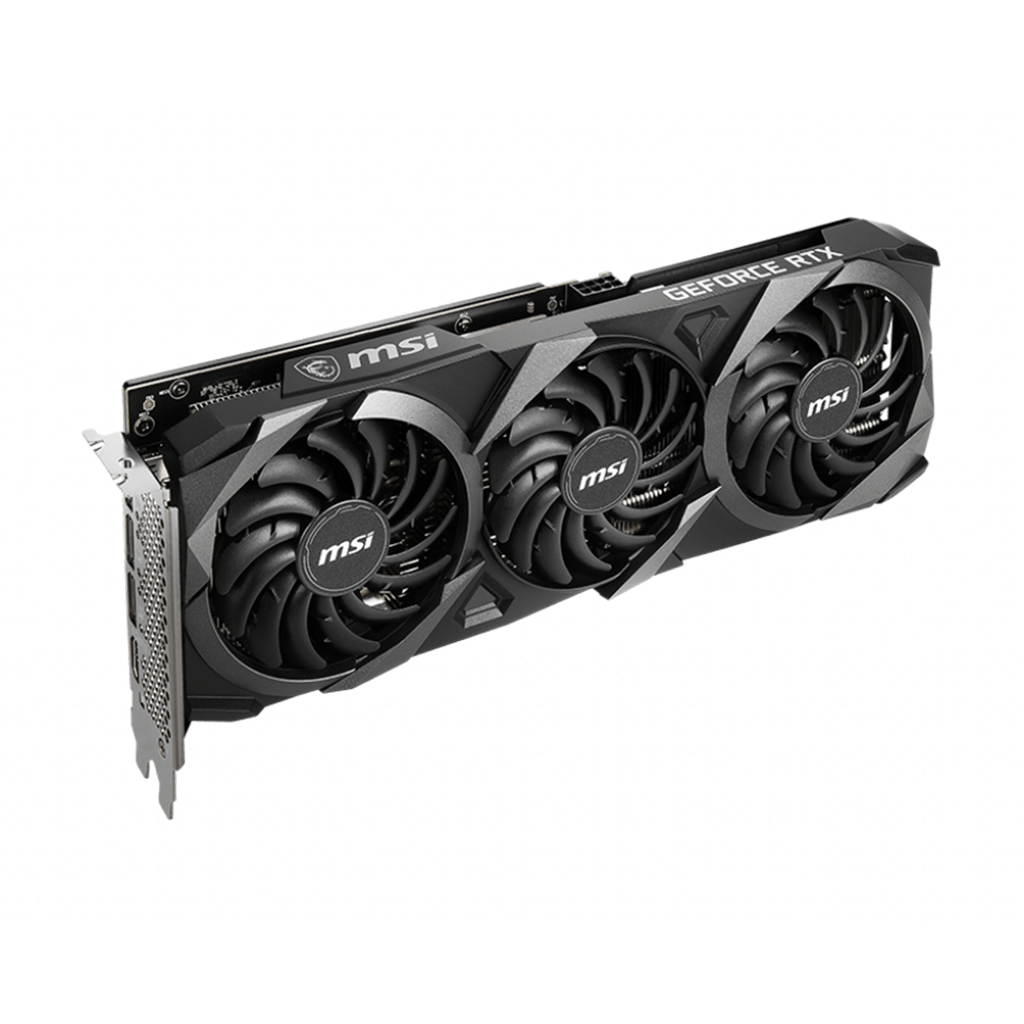

GeForce RTX 3060 Ti Ventus 3X 8G OC LHR
Model GeForce RTX 3060 Ti Ventus 3X 8G OC LHRPart no. G306TV3X8CLEAN 824142259375
29 specifications Checked yesterday
- Weight757.4993 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
- DirectX version12.0
- Cooling typeActive
Overview
- Weight
- 757.4993 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- DirectX version
- 12.0
- Cooling type
- Active
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 3060 Ti Ventus 3X 8G OC LHR
- Part numbers
- G306TV3X8CL, GEFORCE RTX 3060 TI VENTUS 3X 8G OC
- EAN / UPC
- 824142259375
- Also known as
- MSI VENTUS GeForce RTX 3060 Ti 3X 8G OC LHR NVIDIA 8 GB GDDR6
Specifications
29 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4864 |
| Processor boost clock speed | 1695 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 14 Gbit/s |

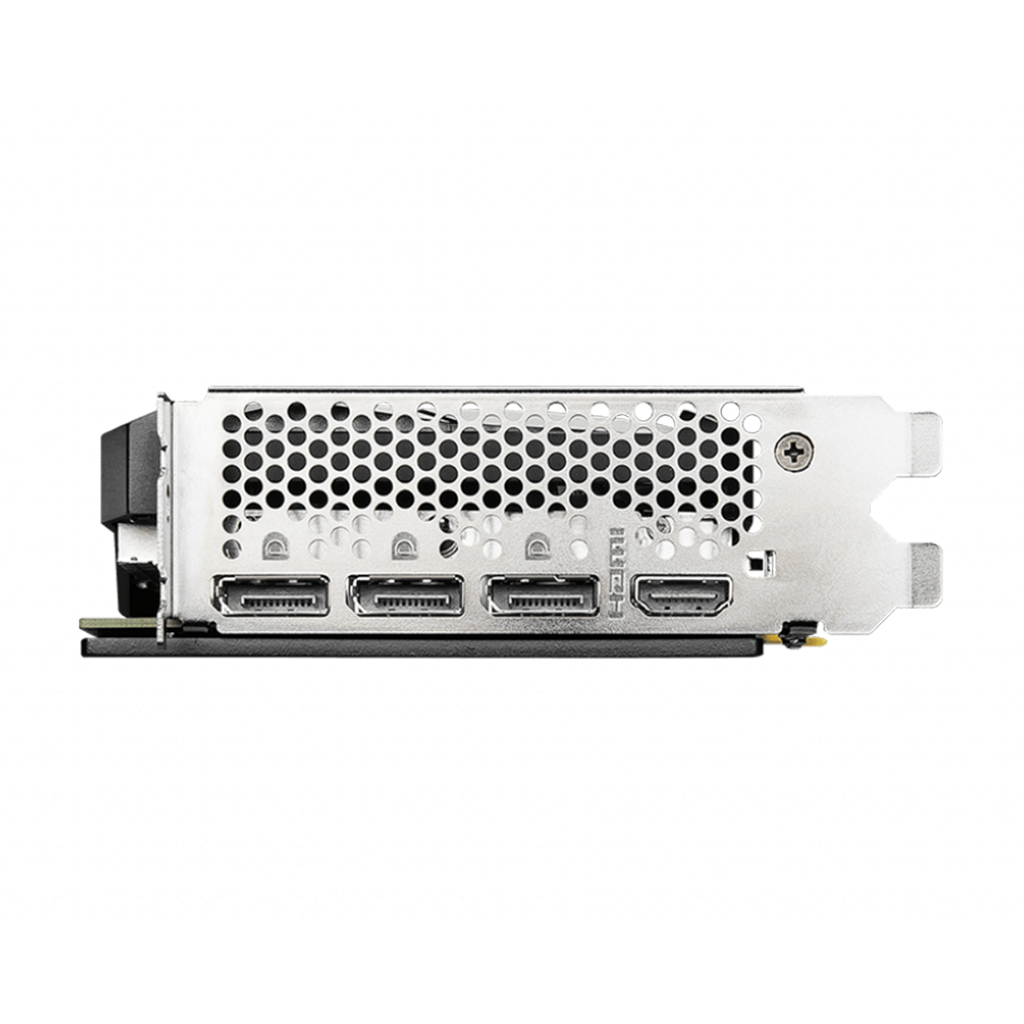

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Power consumption (typical) | 200 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 757.4993 g |
| Length | 316 mm |
| Depth | 41.9 mm |
| Height | 119.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.23 kg |
