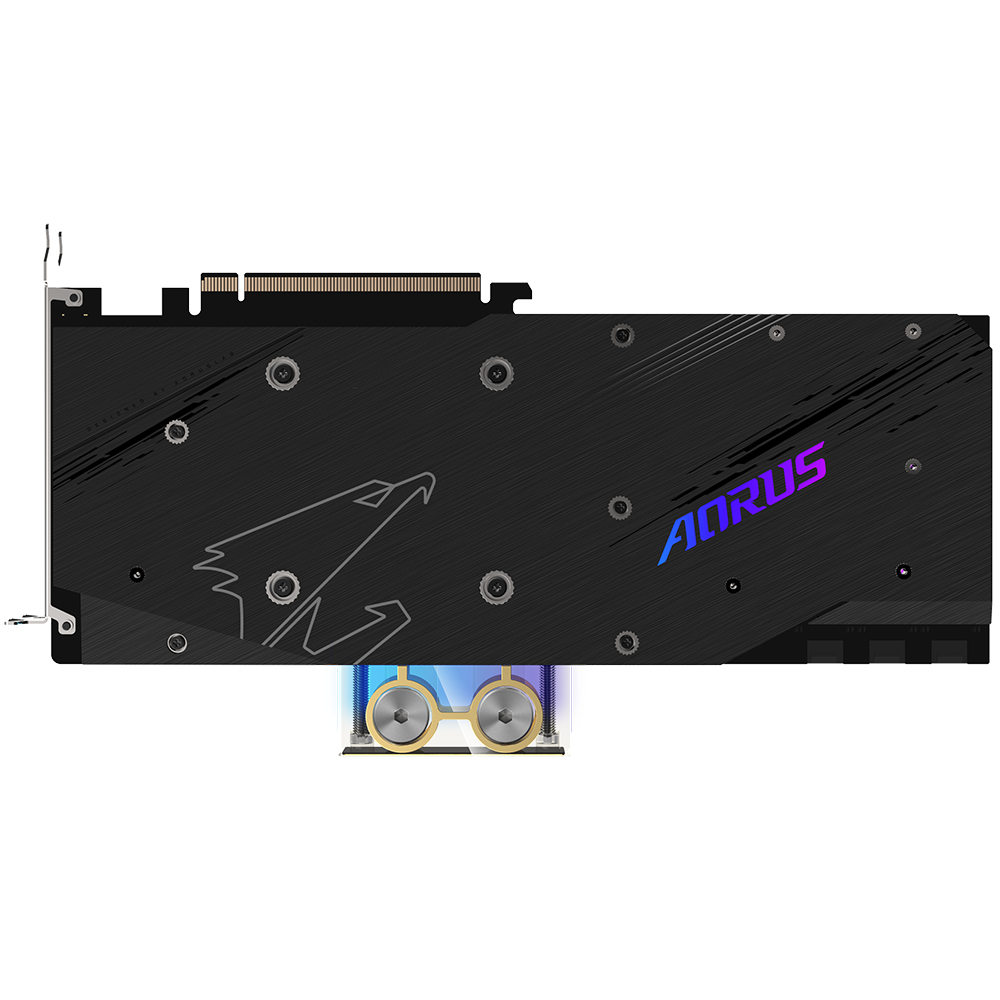

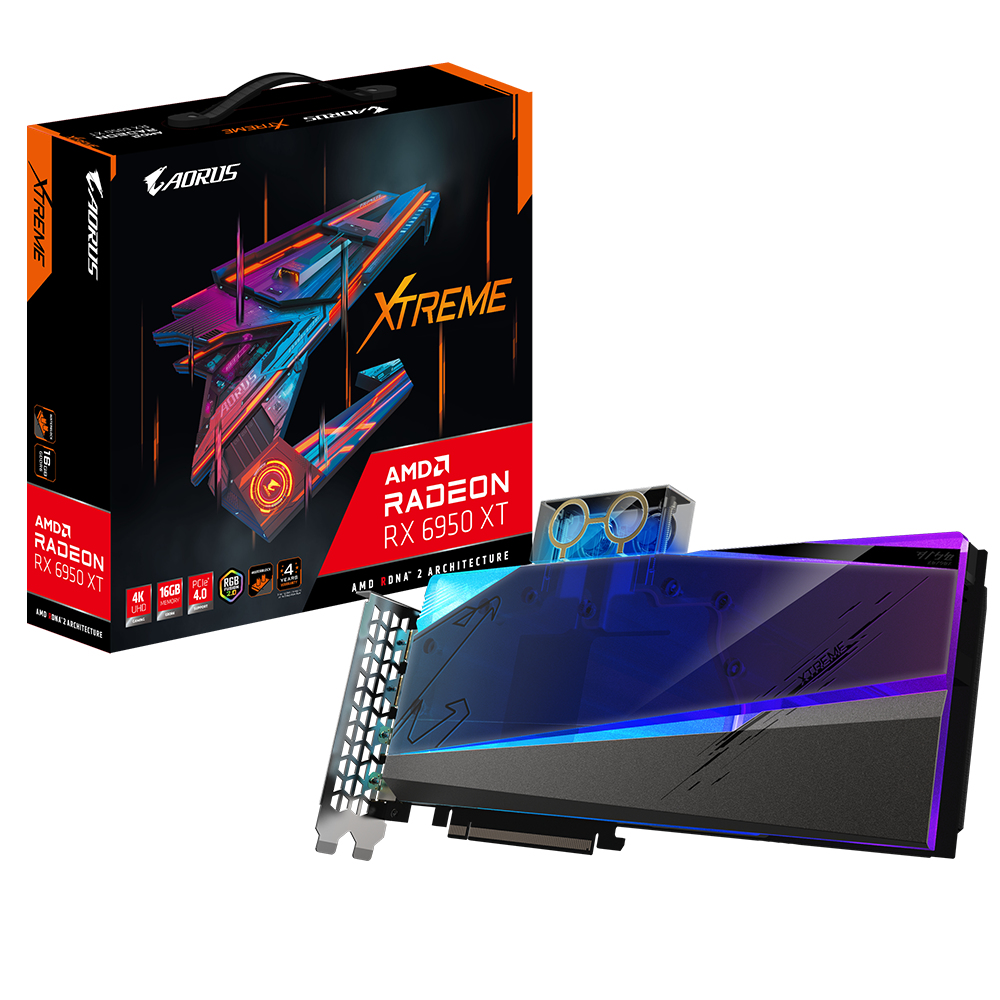

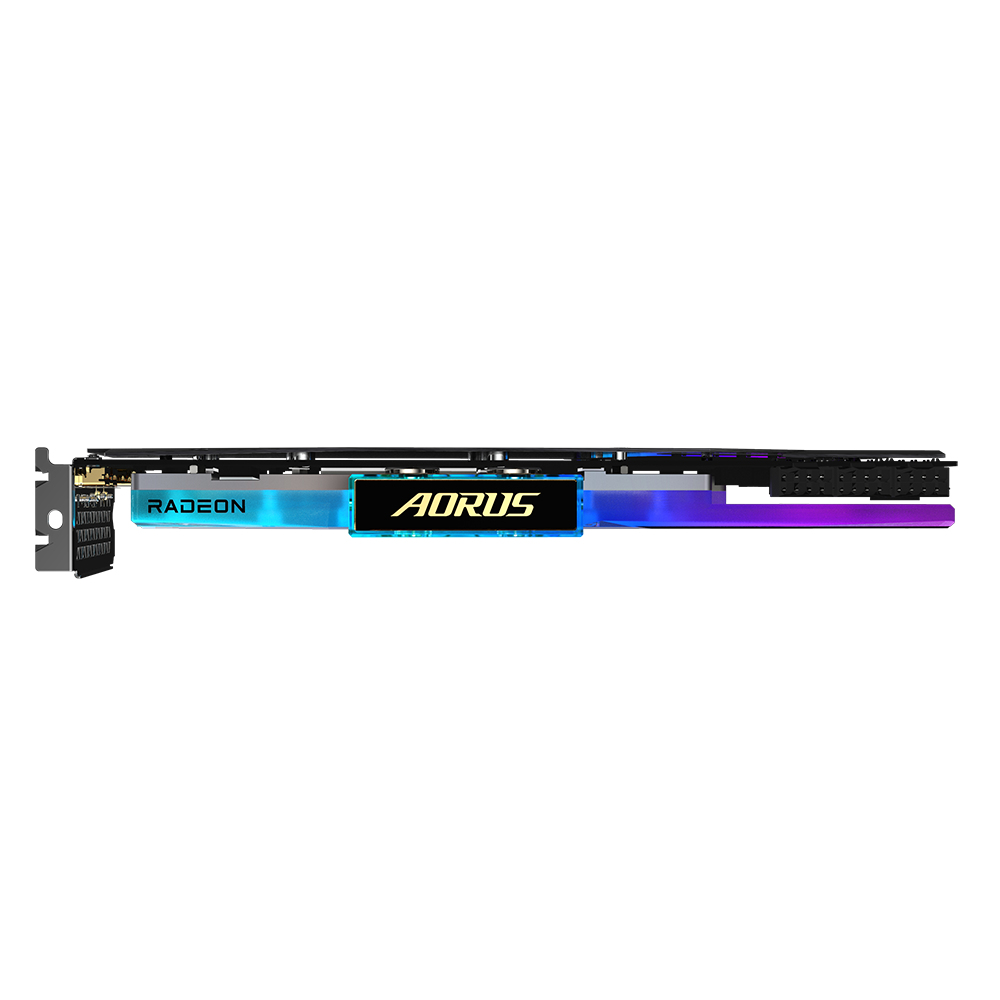

Radeon RX 6950 XT XTREME WATERFORCE WB 16G
Model Radeon RX 6950 XT XTREME WATERFORCE WB 16GPart no. GV-R695XTAORUSX WB-16GDEAN 4719331310912
31 specifications Checked today
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express 4.0
- DirectX version12 Ultimate
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 4.0
- DirectX version
- 12 Ultimate
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- Radeon RX 6950 XT XTREME WATERFORCE WB 16G
- Part number
- GV-R695XTAORUSX WB-16GD
- EAN / UPC
- 4719331310912
- Also known as
- GIGABYTE AORUS Radeon RX 6950 XT XTREME WATERFORCE WB 16G AMD Radeon RX 6950XT 16 GB GDDR6
Specifications
31 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 6950XT |
| Maximum resolution | 7680 x 4320 pixels |
| Processor boost clock speed | 2565 MHz |
| Processor boost clock speed (Gaming mode) | 2343 MHz |
| Lithography | 7 nm |
| Stream processors | 5120 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 18000 MHz |
| Memory bandwidth (max) | 576 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | Gigabyte WATERFORCE |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 900 W |
| Supplementary power connectors | 3x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 282 mm |
| Depth | 28 mm |
| Height | 146 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
