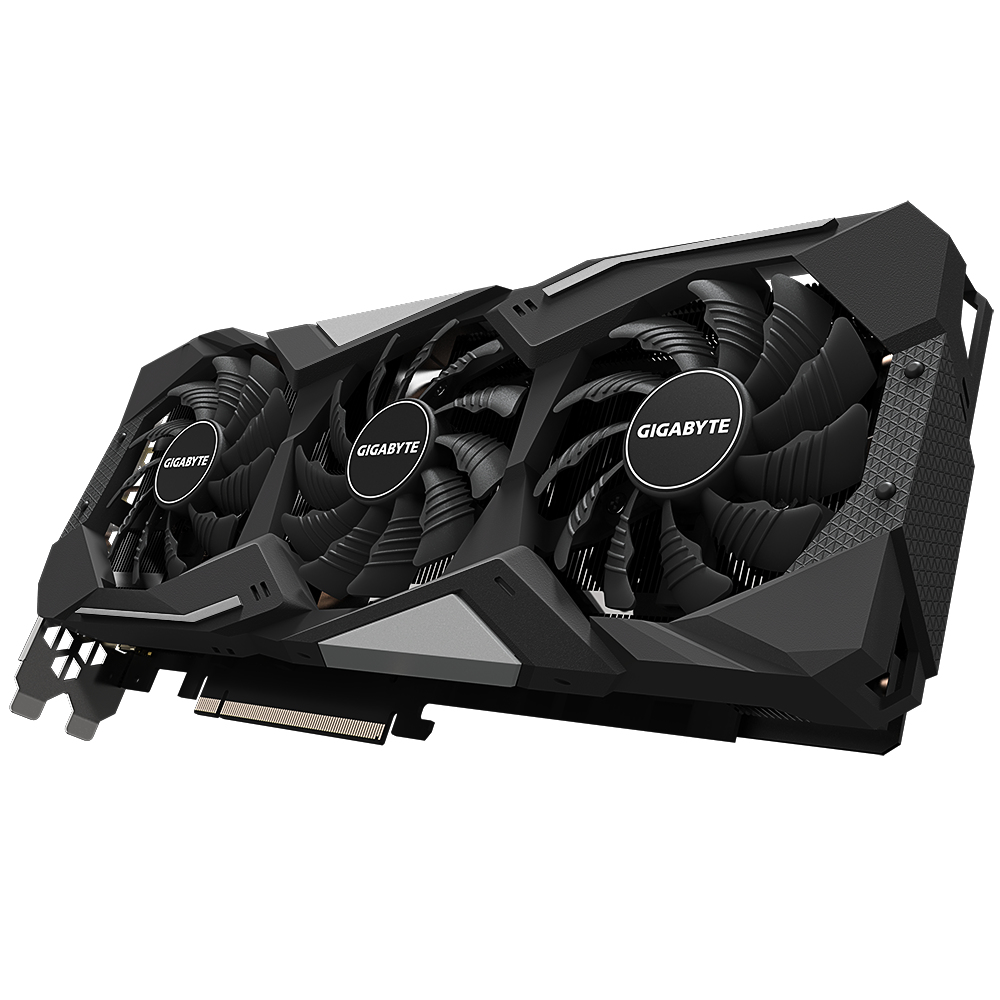

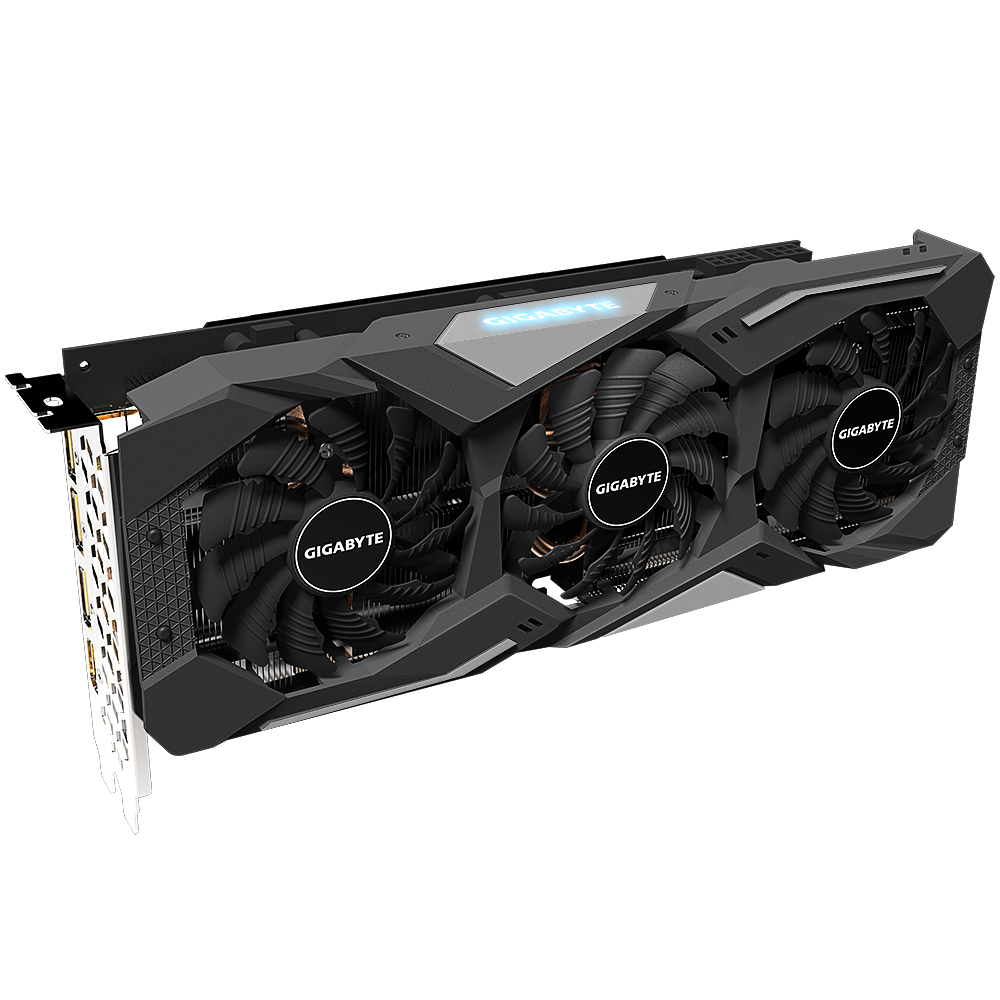

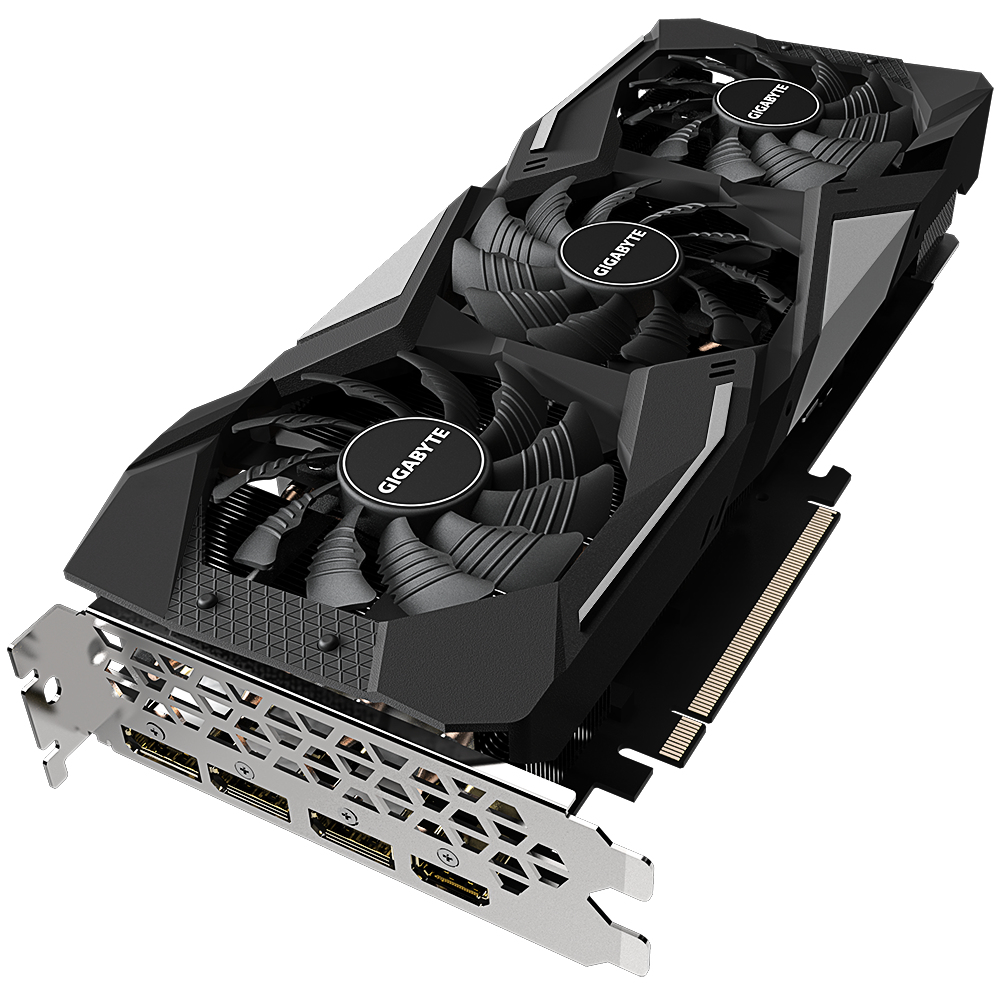

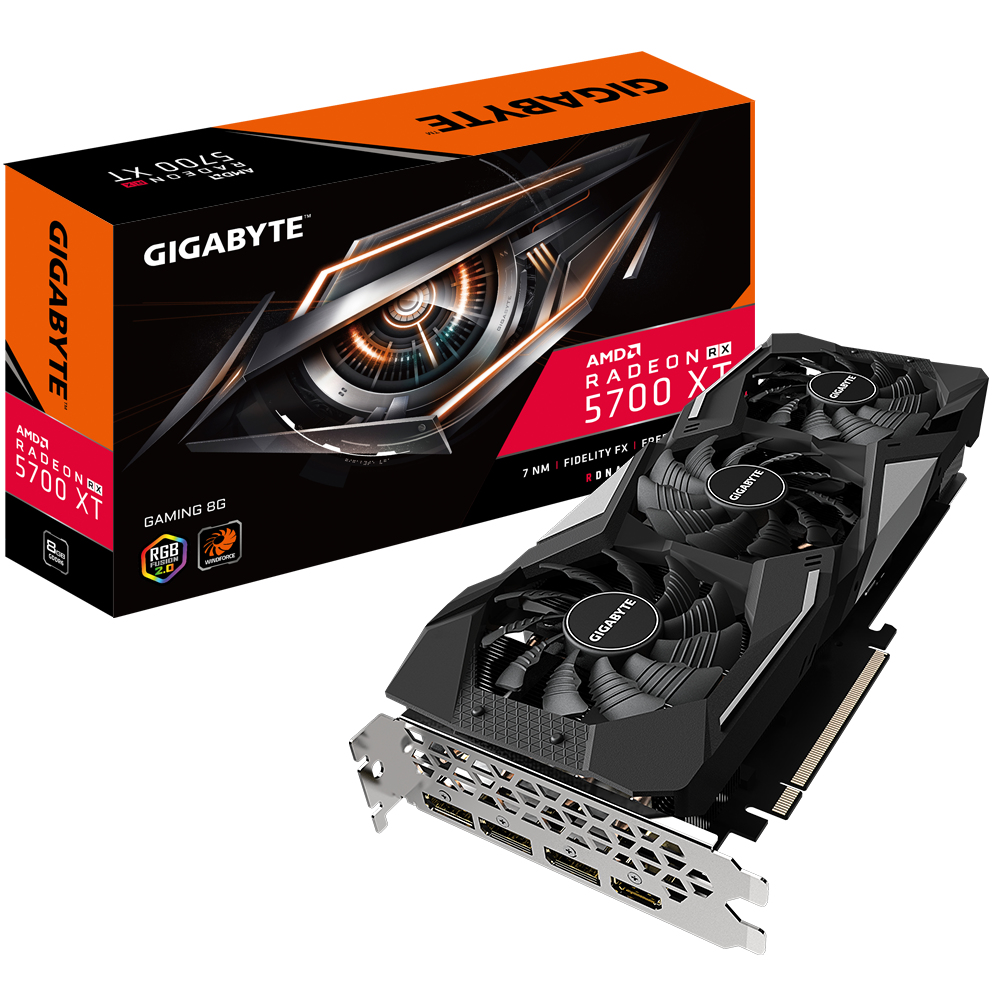

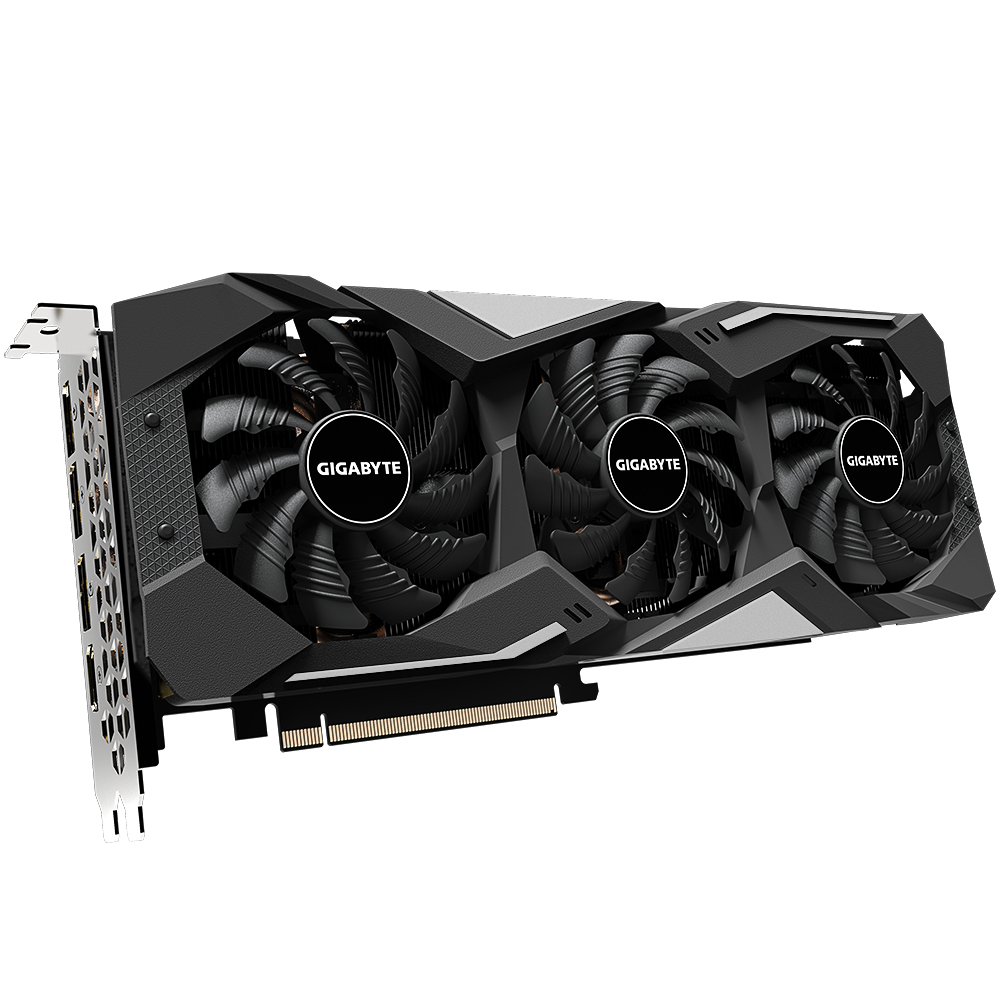

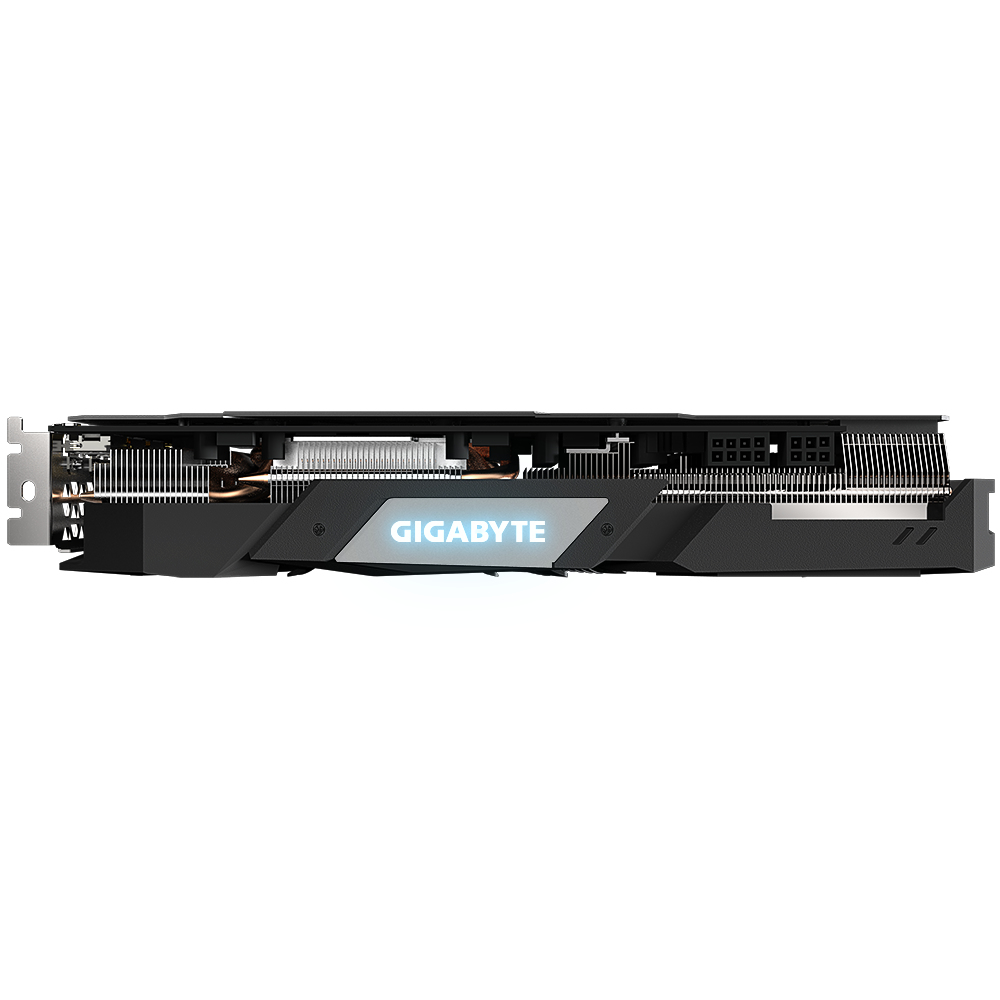

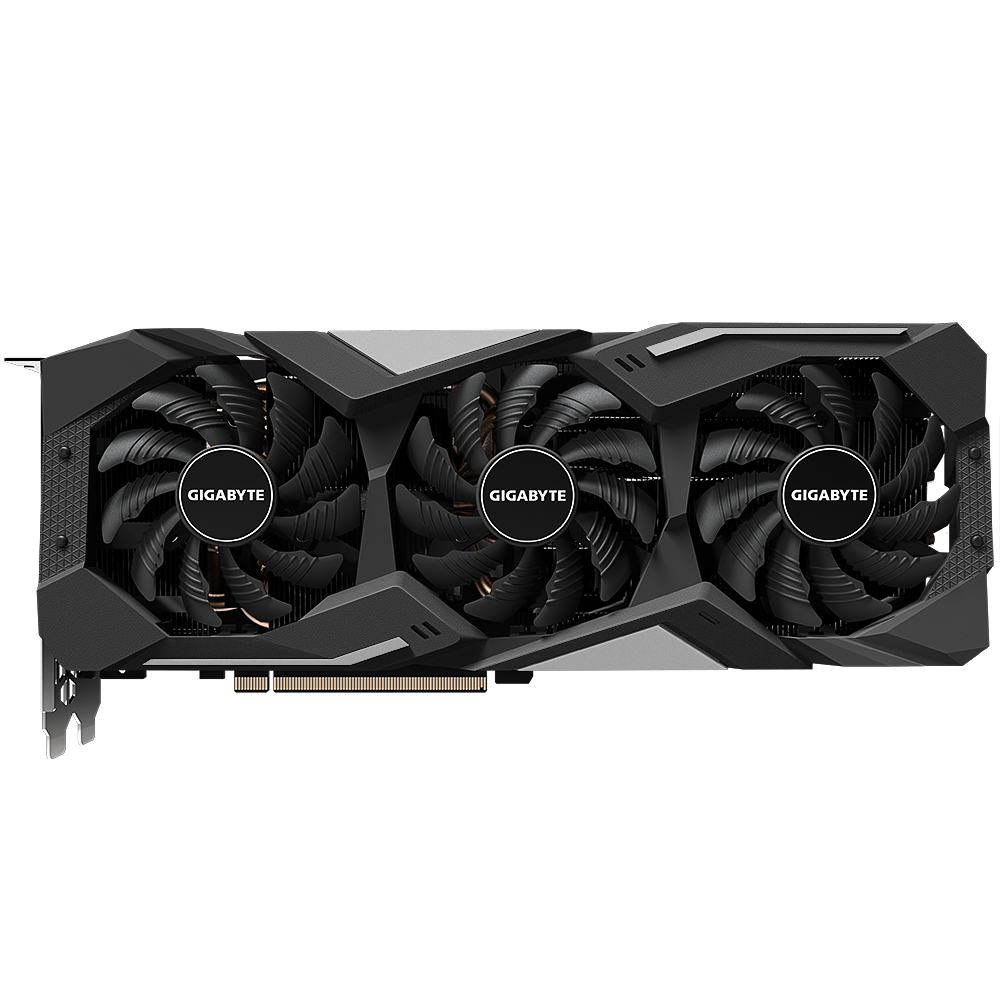

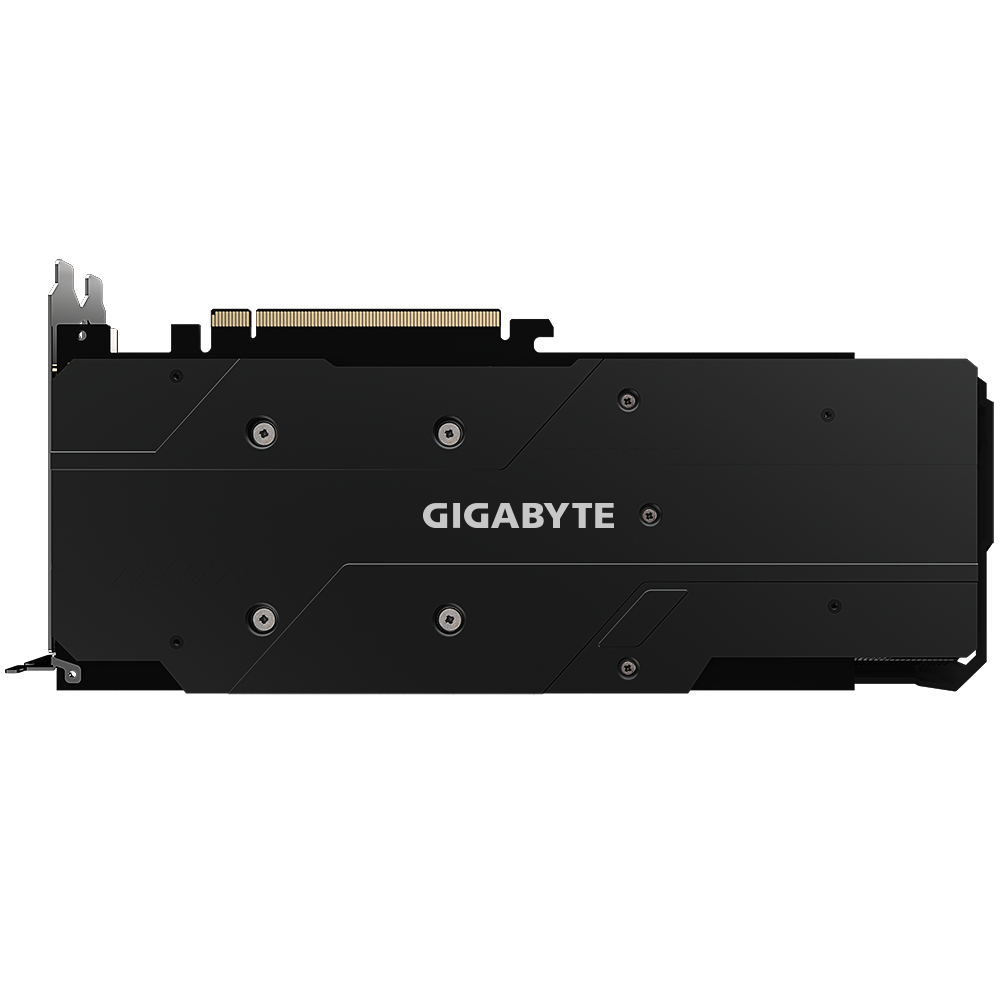

Radeon RX 5700 XT GAMING 8G (rev. 2.0)
Model Radeon RX 5700 XT GAMING 8G (rev. 2.0)Part no. GV-R57XTGAMING-8GD 2.0EAN 4719331307523
45 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 4.0
- PhysXNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 4.0
- PhysX
- No
- Brand
- GIGABYTE
- Category
- GPU
- Model
- Radeon RX 5700 XT GAMING 8G (rev. 2.0)
- Part number
- GV-R57XTGAMING-8GD 2.0
- EAN / UPC
- 4719331307523
- Also known as
- GIGABYTE GAMING Radeon RX 5700 XT 8G (rev. 2.0) AMD 8 GB GDDR6
Specifications
45 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5700 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1605 MHz |
| Processor boost clock speed | 1905 MHz |
| Lithography | 7 nm |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Stream processors | 2560 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 14000 MHz |
| Memory bandwidth (max) | 448 GB/s |

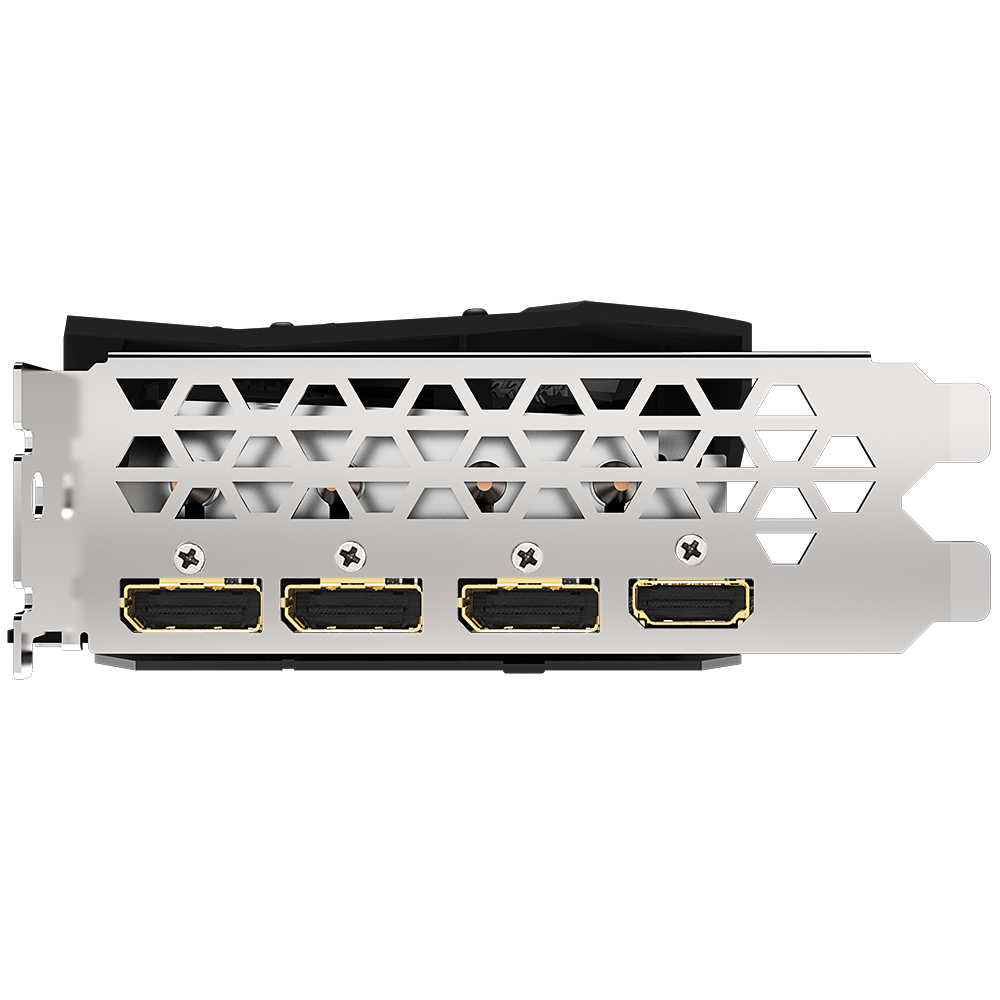

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 7 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 279.9 mm |
| Depth | 49.5 mm |
| Height | 114.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
