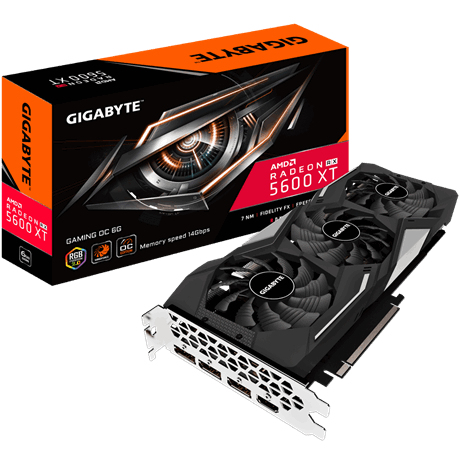

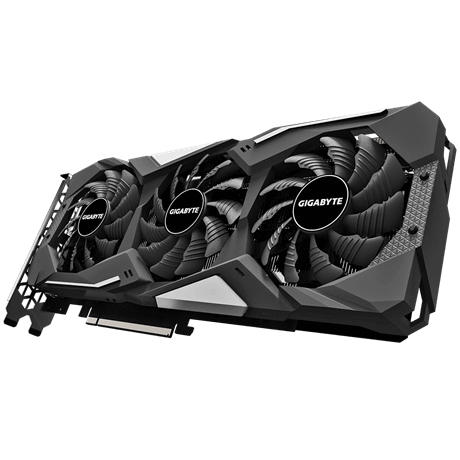

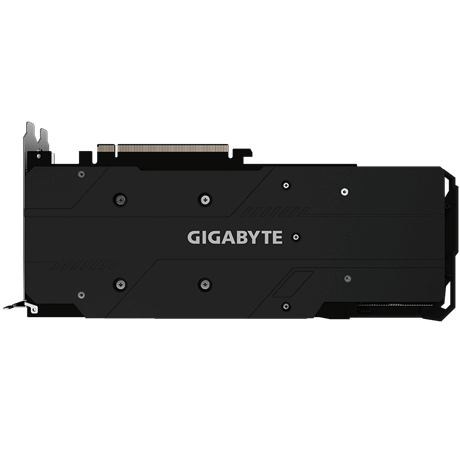

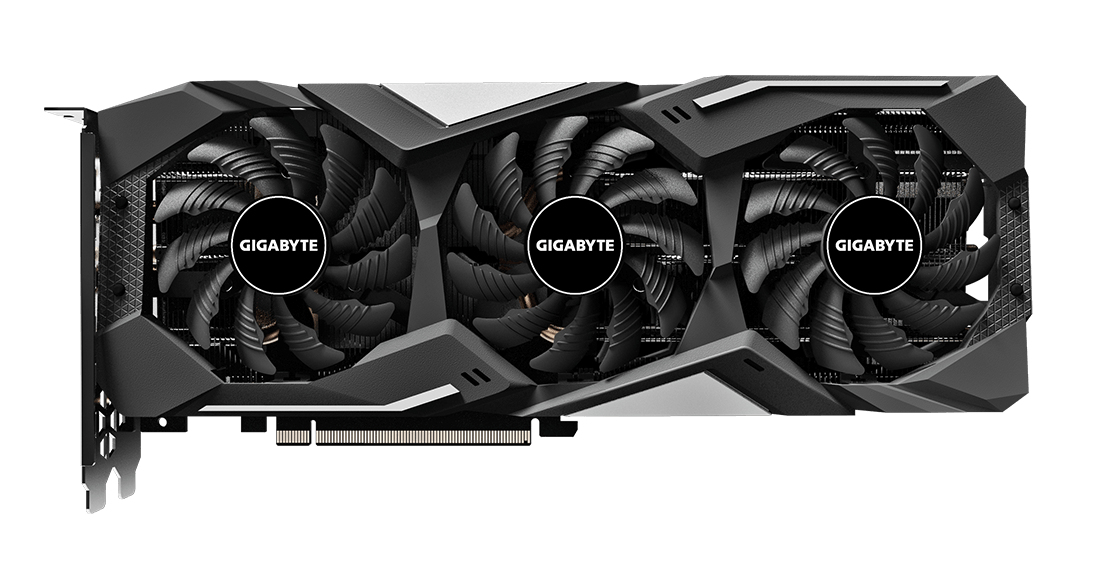

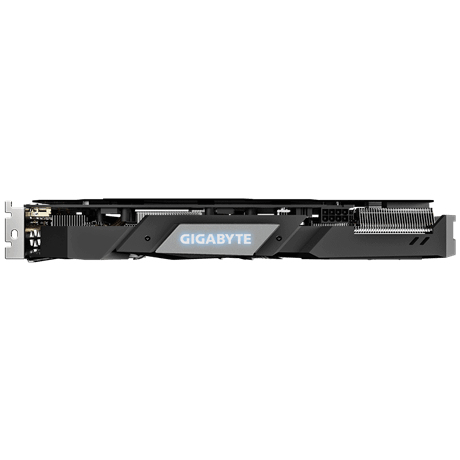

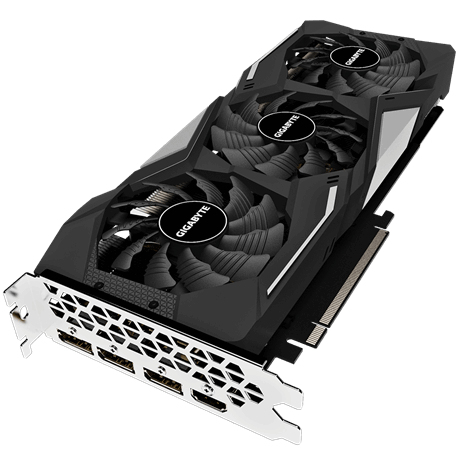

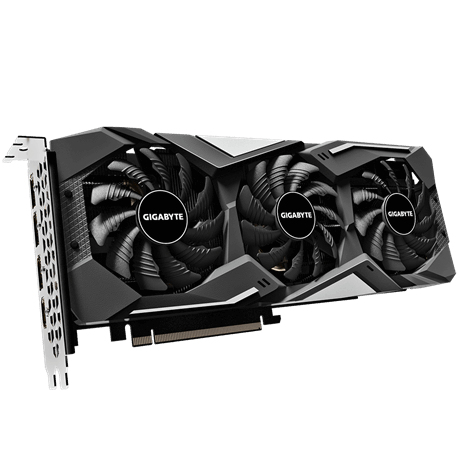

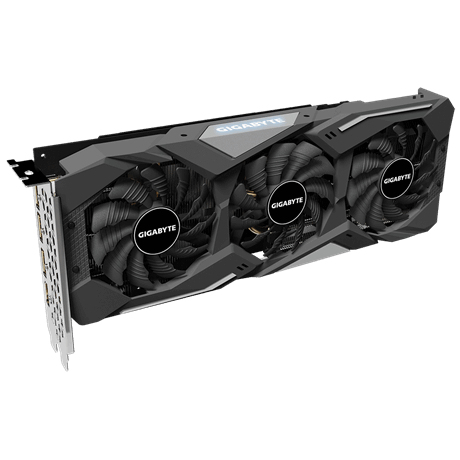

GIGABYTE Radeon RX 5600 XT GAMING OC 6G (rev. 2.0)

Radeon RX 5600 XT GAMING OC 6G (rev. 2.0)

Model Radeon RX 5600 XT GAMING OC 6G (rev. 2.0)Part no. GV-R56XTGAMING-OC-6GD REV2.0

40 specifications Checked today

ColourBlack
Graphics processor familyAMD
Discrete graphics card memory6 GB
Interface typePCI Express 4.0
PhysXNo
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: AMD
Discrete graphics card memory: 6 GB
Interface type: PCI Express 4.0
PhysX: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: Radeon RX 5600 XT GAMING OC 6G (rev. 2.0)
Part number: GV-R56XTGAMING-OC-6GD REV2.0
Also known as: GIGABYTE GAMING Radeon RX 5600 XT OC 6G (rev. 2.0) AMD 6 GB GDDR6

Specifications

40 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	AMD
Graphics processor	Radeon RX 5600 XT
Maximum resolution	7680 x 4320 pixels
CUDA	No
Processor frequency	1670 MHz
Processor boost clock speed	1750 MHz
Stream processors	2304

Memory

Specification	Value
Discrete graphics card memory	6 GB
Graphics card memory type	GDDR6
Memory bus	192 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	336 GB/s

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
PhysX	No
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
AMD FreeSync	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Fan diameter	8 cm
Number of slots	2
Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	450 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Length	279.8 mm
Depth	40.4 mm
Height	116 mm

Packaging content

Specification	Value
User guide	Yes
