GeForce RTX 3060 Ti GAMING OC PRO 8G (rev. 2.0)
Model GeForce RTX 3060 Ti GAMING OC PRO 8G (rev. 2.0)Part no. GV-N306TGAMINGOC PRO-8GD 2.0EAN 4719331308551
43 specifications Checked yesterday
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack, Stainless steel
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 4.0
- TV tuner integratedNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black, Stainless steel
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 4.0
- TV tuner integrated
- No
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 3060 Ti GAMING OC PRO 8G (rev. 2.0)
- Part number
- GV-N306TGAMINGOC PRO-8GD 2.0
- EAN / UPC
- 4719331308551
- Also known as
- GIGABYTE GAMING GeForce RTX 3060 Ti OC PRO 8G (rev. 2.0) NVIDIA 8 GB GDDR6
Specifications
43 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4864 |
| Processor frequency (OC mode) | 1770 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 14000 MHz |
| Memory bandwidth (max) | 448 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |

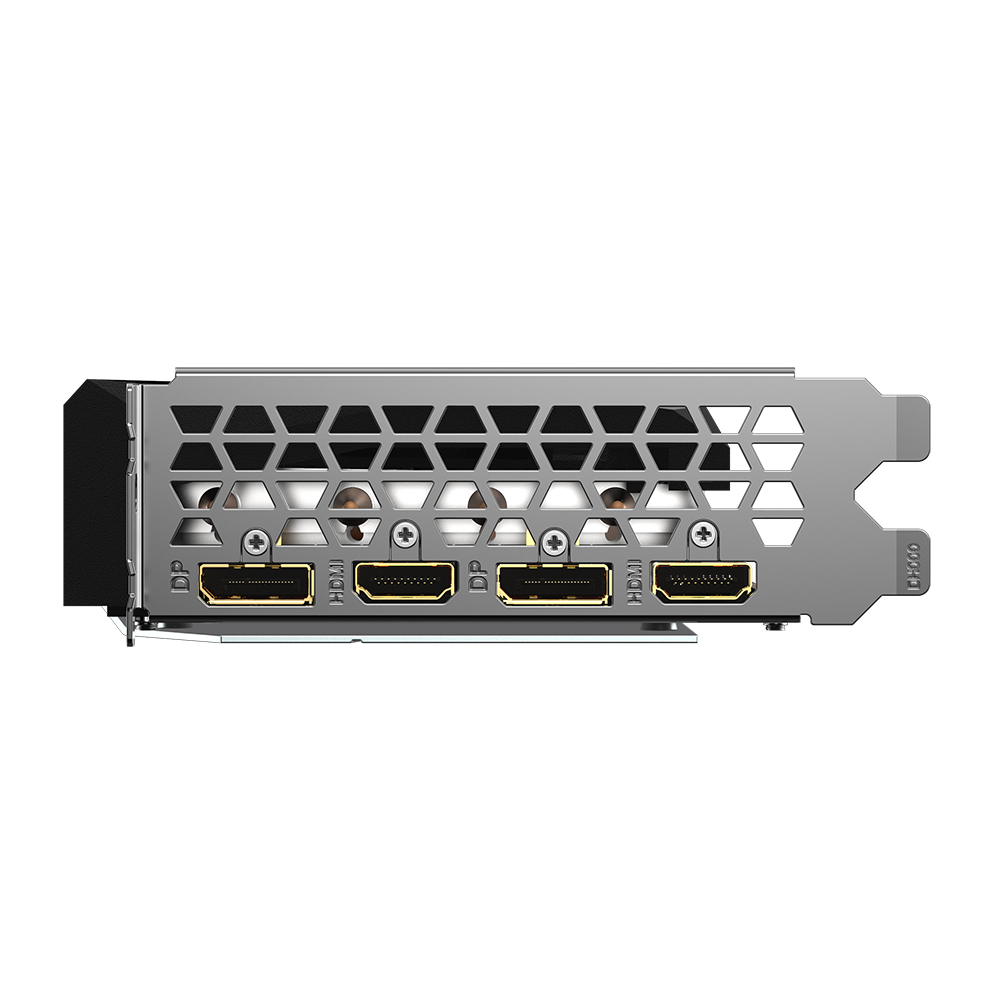

| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black, Stainless steel |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 281 mm |
| Depth | 40 mm |
| Height | 117 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
