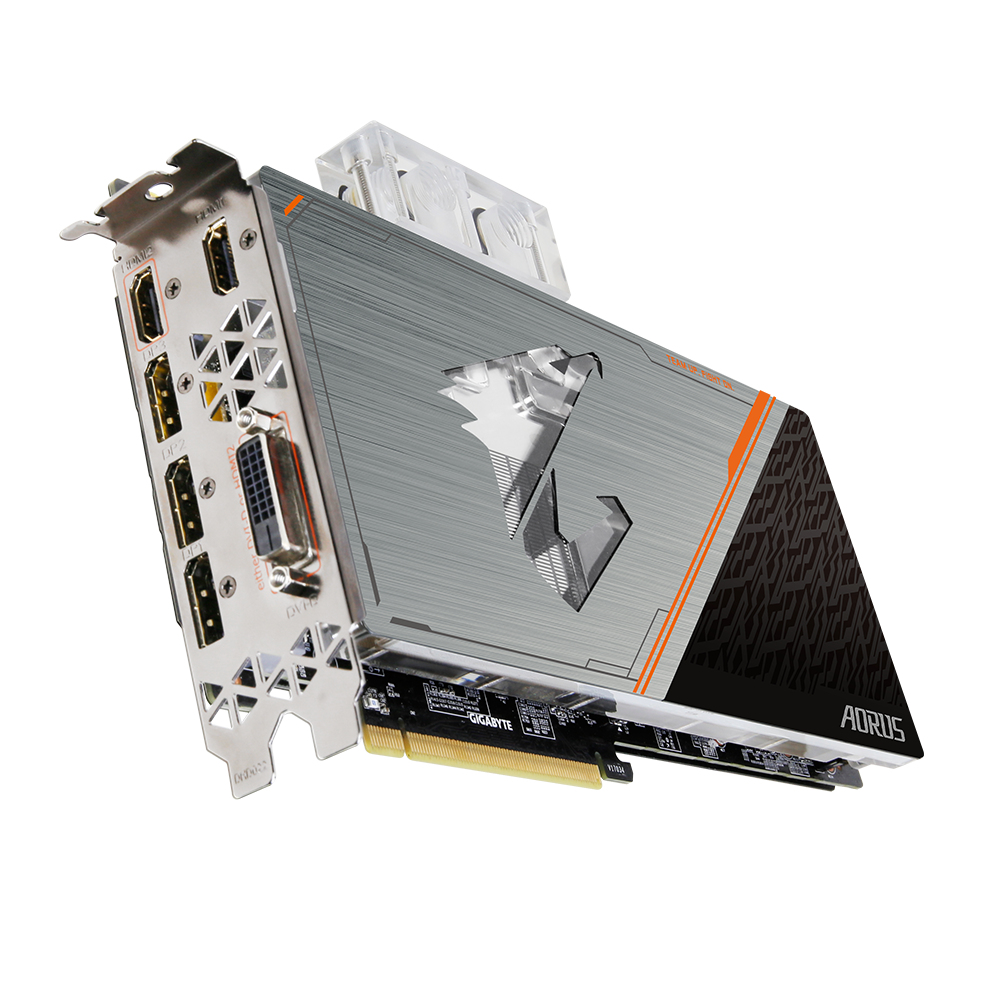

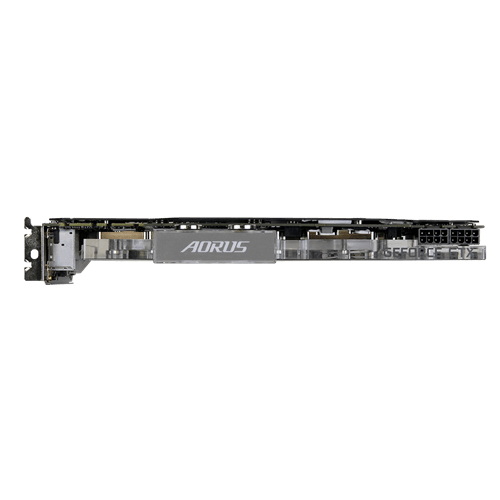

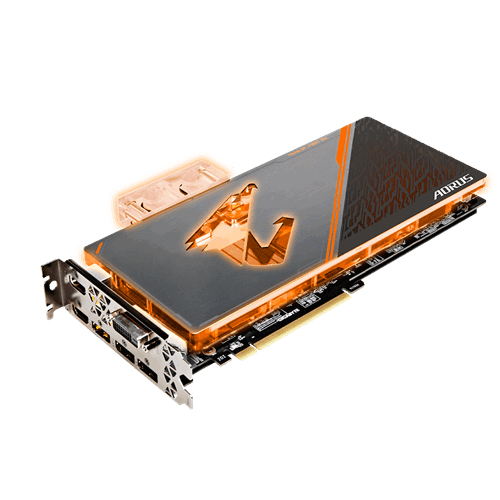

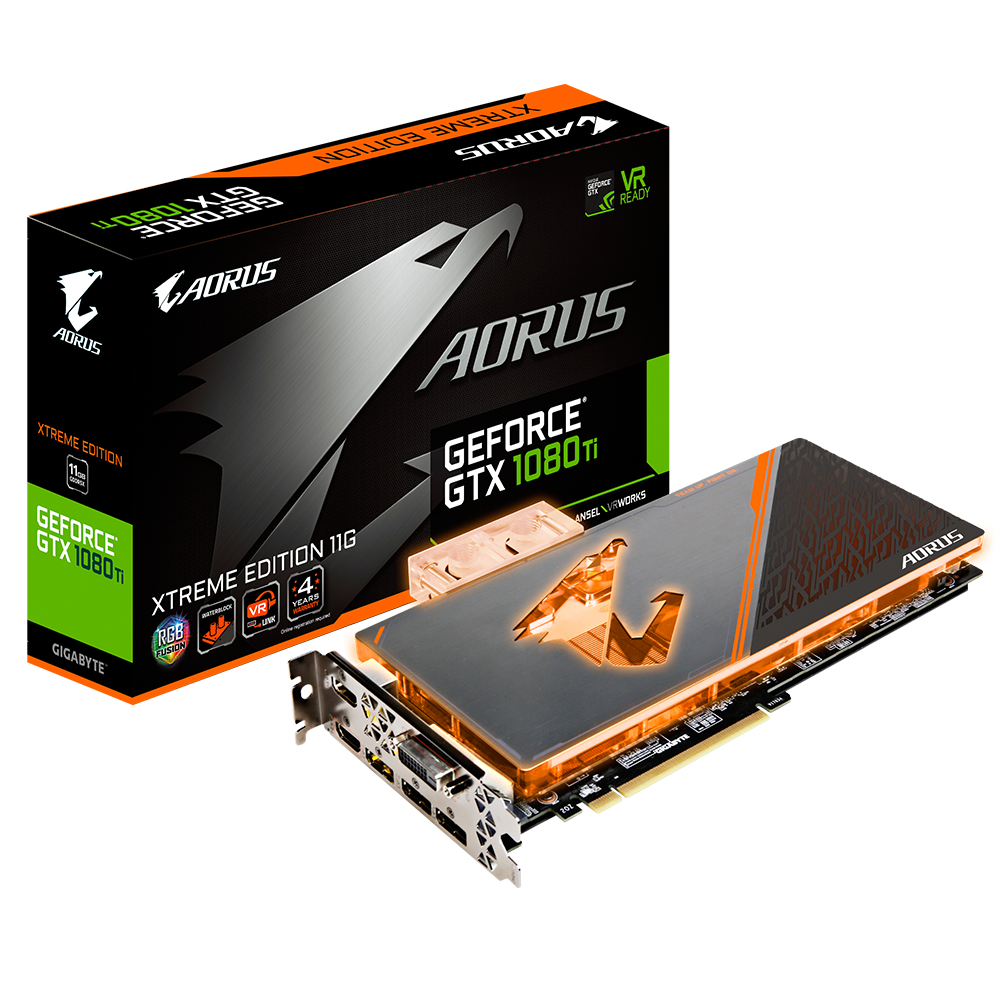

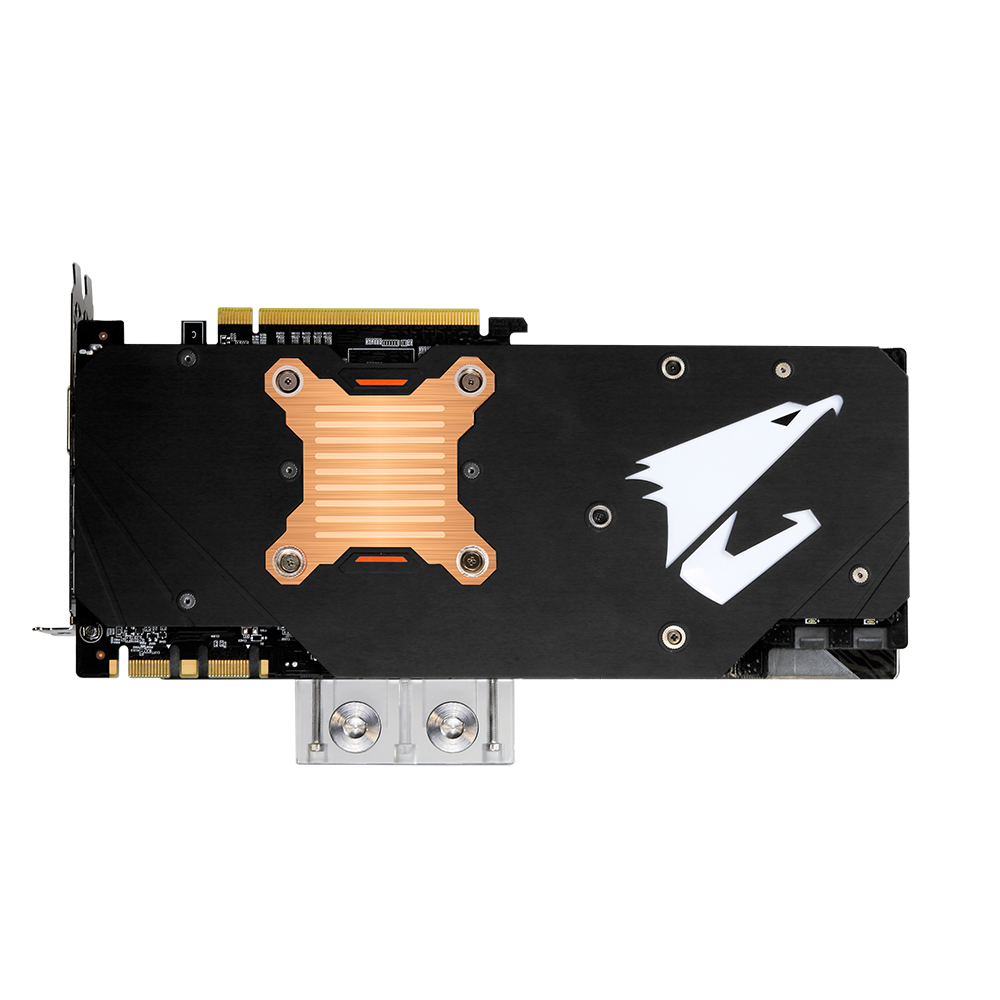

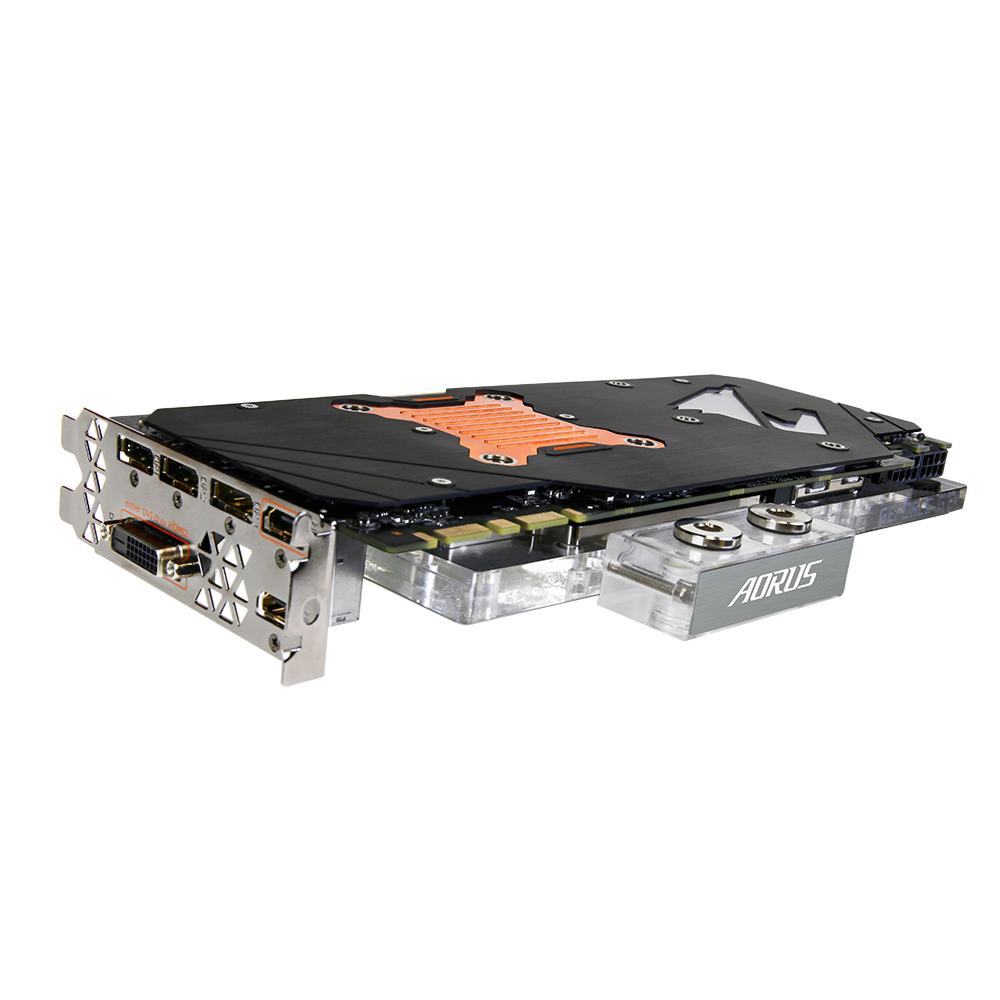

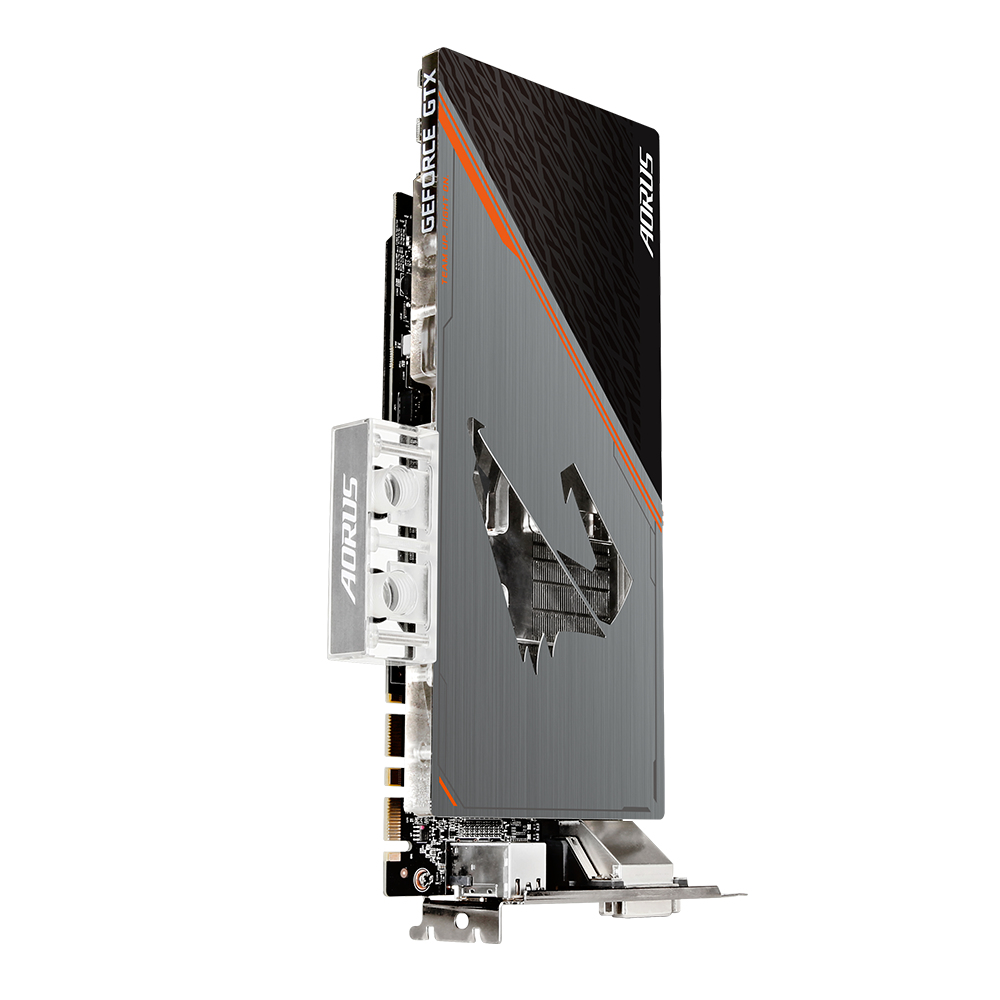

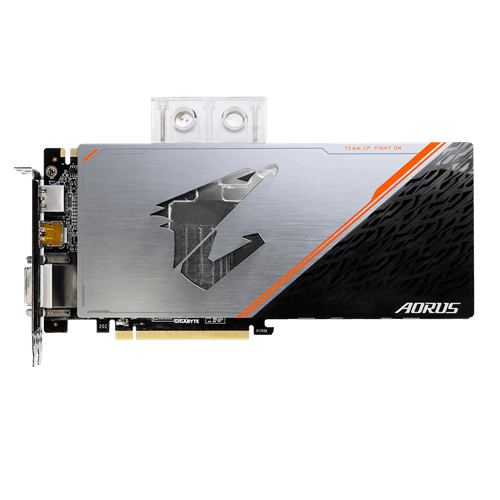

GeForce GTX 1080 Ti Waterforce WB Xtreme Edition 11G
Model GeForce GTX 1080 Ti Waterforce WB Xtreme Edition 11GPart no. GVN108TAORUSXW11GD
28 specifications Checked yesterday
- Graphics processor familyNVIDIA
- Discrete graphics card memory11 GB
- Interface typePCI Express x16 3.0
- DirectX version12.0
- Minimum system power supply600 W
- Length266.7 mm
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 11 GB
- Interface type
- PCI Express x16 3.0
- DirectX version
- 12.0
- Minimum system power supply
- 600 W
- Length
- 266.7 mm
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce GTX 1080 Ti Waterforce WB Xtreme Edition 11G
- Part number
- GVN108TAORUSXW11GD
- Also known as
- GIGABYTE AORUS GeForce GTX 1080 Ti Waterforce WB Xtreme Edition 11G NVIDIA 11 GB GDDR5X
Specifications
28 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 1080 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3584 |
| Processor frequency | 1480 MHz |
| Processor boost clock speed | 1582 MHz |
| Processor frequency (OC mode) | 1632 MHz |
| Processor boost clock speed (OC mode) | 1746 MHz |
| Processor boost clock speed (Gaming mode) | 1721 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 11 GB |
| Graphics card memory type | GDDR5X |
| Memory bus | 352 bit |

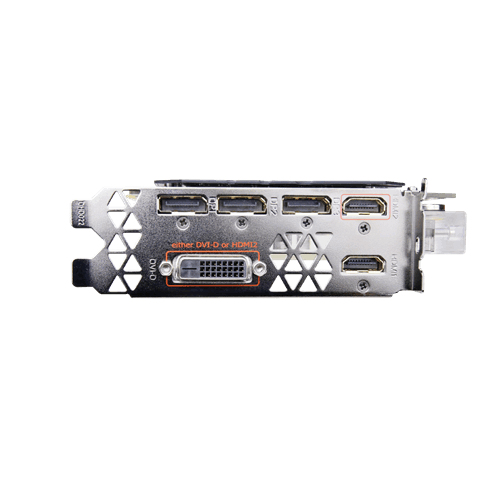

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 266.7 mm |
| Depth | 28.2 mm |
| Height | 149.3 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | PCIe |
