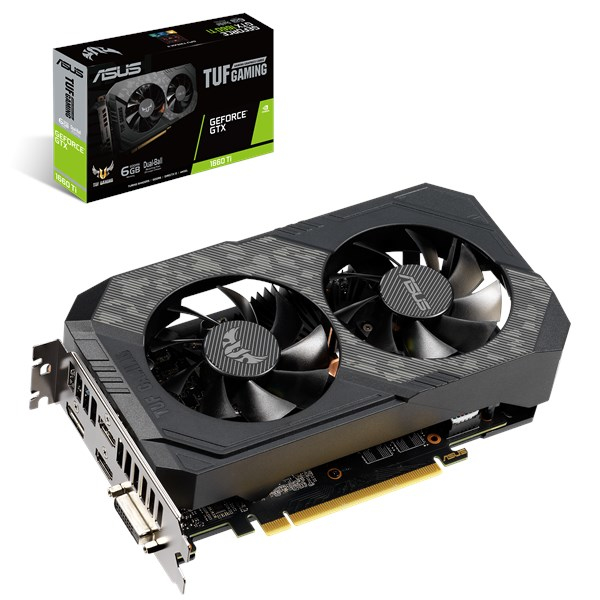

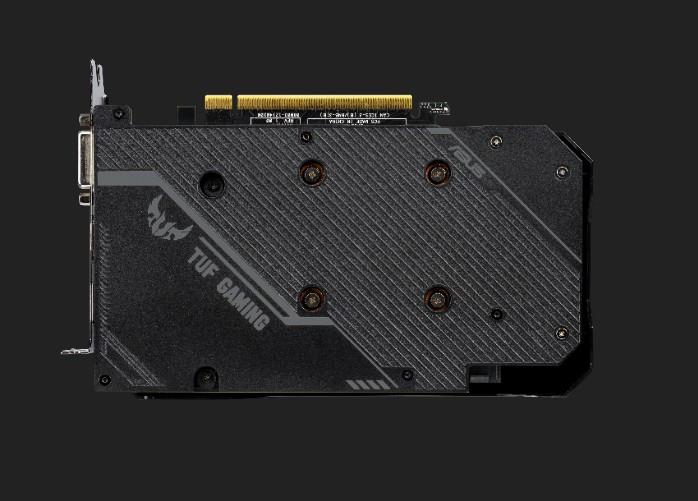

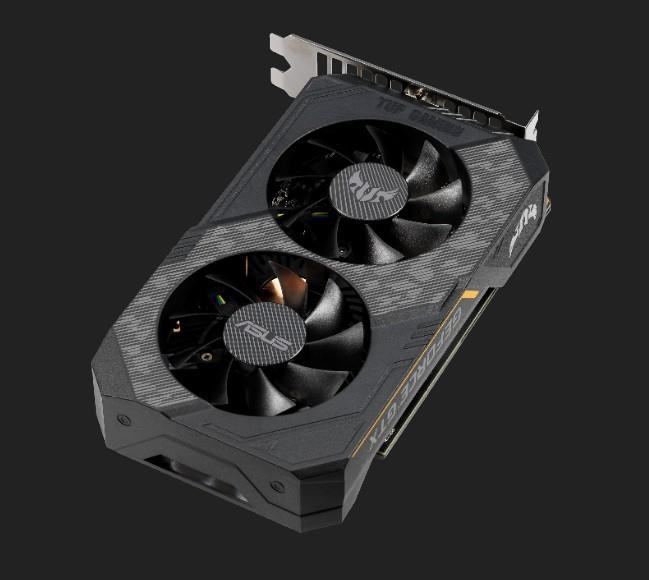

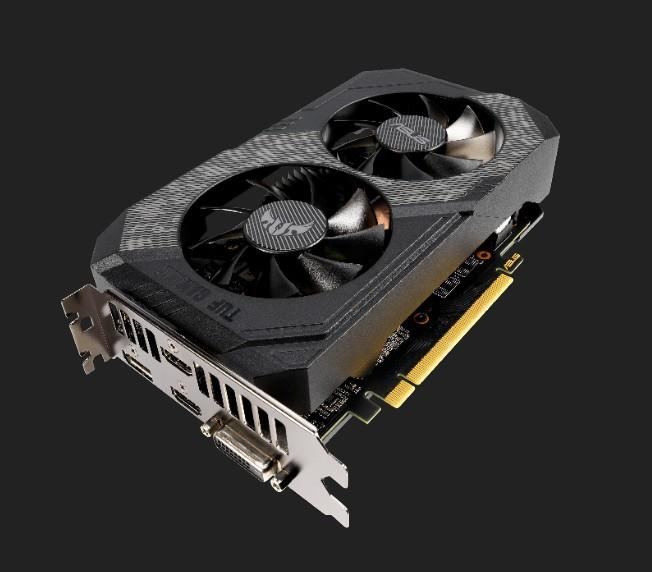

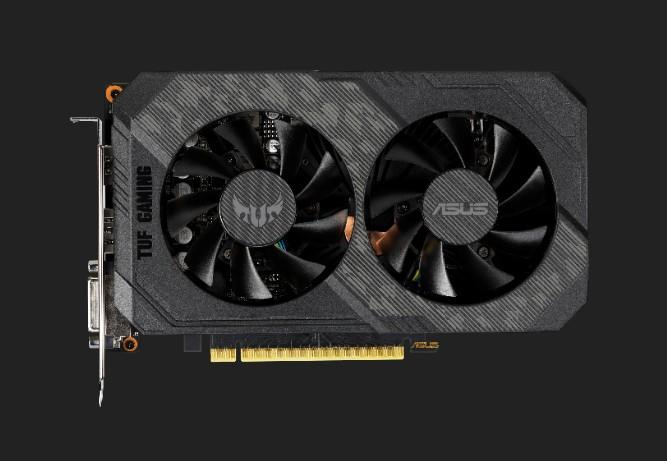

TUF-GTX1660TI-6G-GAMING NVIDIA GeForce GTX 1660 Ti
6 GB GDDR6
Model TUF-GTX1660TI-6G-GAMINGPart no. 90YV0CT4-M0NA00EAN 4718017279963
35 specifications Checked today
- Graphics processor familyNVIDIA
- Discrete graphics card memory6 GB
- Interface typePCI Express 3.0
- OpenGL version4.5
- Cooling typeActive
- Minimum system power supply450 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 6 GB
- Interface type
- PCI Express 3.0
- OpenGL version
- 4.5
- Cooling type
- Active
- Minimum system power supply
- 450 W
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-GTX1660TI-6G-GAMING
- Part numbers
- 90YV0CT4-M0NA00, TUF-GTX1660TI-6G-GAMING
- EAN / UPC
- 4718017279963, 192876279960
- Also known as
- ASUS TUF-GTX1660TI-6G-GAMING NVIDIA GeForce GTX 1660 Ti 6 GB GDDR6
Specifications
35 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 1660 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 1536 |
| Processor frequency | 1500 MHz |
| Processor boost clock speed | 1770 MHz |
| Processor frequency (OC mode) | 1530 MHz |
| Processor boost clock speed (OC mode) | 1800 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 6 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory clock speed | 12002 MHz |

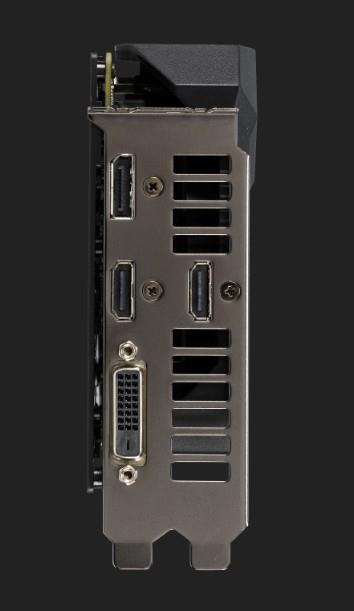

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| OpenGL version | 4.5 |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 205 mm |
| Depth | 46 mm |
| Height | 123 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
| Bundled software | ASUS GPU Tweak II & Driver |
