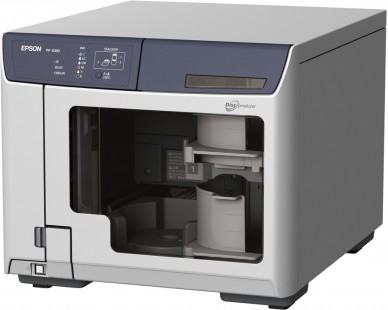

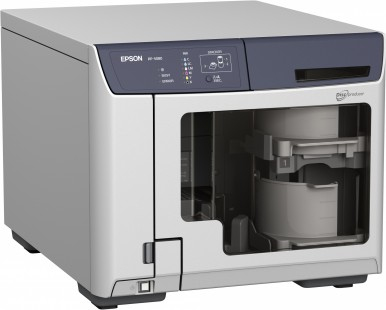

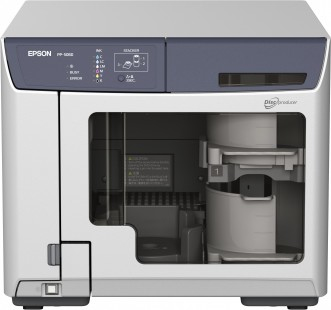

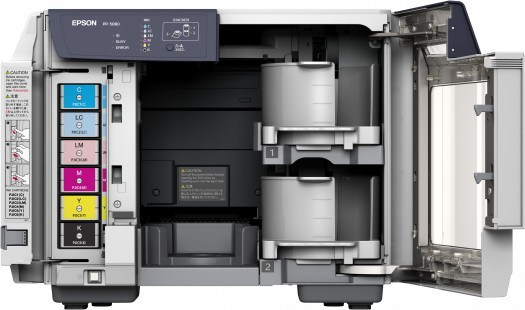

PP- 50BD
Model PP- 50BDPart no. C11CB72321CUEAN 8715946502175
54 specifications
- Capacity50 discs
- ConnectivityUSB 2.0
- Noise45 dB
- Weight21 kg
- Print speed (speed mode)65 discs/hour
- Print resolution (quality mode)1440 x 1440 DPI
Overview
- Capacity
- 50 discs
- Connectivity
- USB 2.0
- Noise
- 45 dB
- Weight
- 21 kg
- Print speed (speed mode)
- 65 discs/hour
- Print resolution (quality mode)
- 1440 x 1440 DPI
- Brand
- Epson
- Category
- Disc Publisher
- Model
- PP- 50BD
- Part number
- C11CB72321CU
- EAN / UPC
- 8715946502175
- Also known as
- Epson DiscproducerTM PP-50BD
Specifications
54 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Capacity | 50 discs |
| Capacity (batch mode) | 50 discs |
| Output capacity | 20 discs |
| Interface | USB 2.0 |
| Ink type | Dye Ink |
| Optical disc diameter | 120 mm |
| Inner diameter | 1.5 cm |
| Media types supported | CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL, BD-R, BD-R DL |
| Publishing speed (CD) | 15 discs/hour |
| Publishing speed (DVD) | 8 discs/hour |
| Publishing speed (Blu-ray) | 3 discs/hour |
| Printing colours | Light Cyan, Light magenta, Yellow, Magenta, Cyan, Black |
| Country of origin | China |
| Number of CD/DVD drives | 1 |
| Number of colours | 6 colours |
| Print direction | Bidirectional |
| Print head | Micro Piezo |
| Noise level | 45 dB |
| Noise level (standby) | 38 dB |
| Quantity per pack | 1 pc(s) |
| Box contents | Individual Ink Cartridges, Main unit, Power cable, Setup guide, Software (CD), USB cable, Warranty document |
| Power consumption | 40 Watt (economy), 28 Watt (standby) |
| Print head nozzles | 180 Nozzles Black, 180 Nozzles per Color |
| Print speed | 65 Discs/h (fast mode), 50 Discs/h (quality mode) |
Printing
| Specification | Value |
|---|---|
| Print speed (speed mode) | 65 discs/hour |
| Print speed (quality mode) | 50 discs/hour |
| Outside diameter print | 11.6 cm |
| Inside diameter print | 4.5 cm |
Print quality
| Specification | Value |
|---|---|
| Print resolution (quality mode) | 1440 x 1440 DPI |
| Print resolution (speed mode) | 1440 x 720 DPI |
Writing speed
| Specification | Value |
|---|---|
| CD write speed | 40x |
| DVD-R write speed | 12x |
| BD-R write speed | 6x |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
Software
| Specification | Value |
|---|---|
| Bundled software | Epson Total Disc Maker |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 28 W |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows 8, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 377 x 465 x 324 mm |
| Weight | 21 kg |
| Package width | 523 mm |
| Package depth | 720 mm |
| Package height | 520 mm |
| Package weight | 25.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 171 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 171 cm |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Products per pallet | 6 pc(s) |
| Products per pallet (UK) | 6 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
