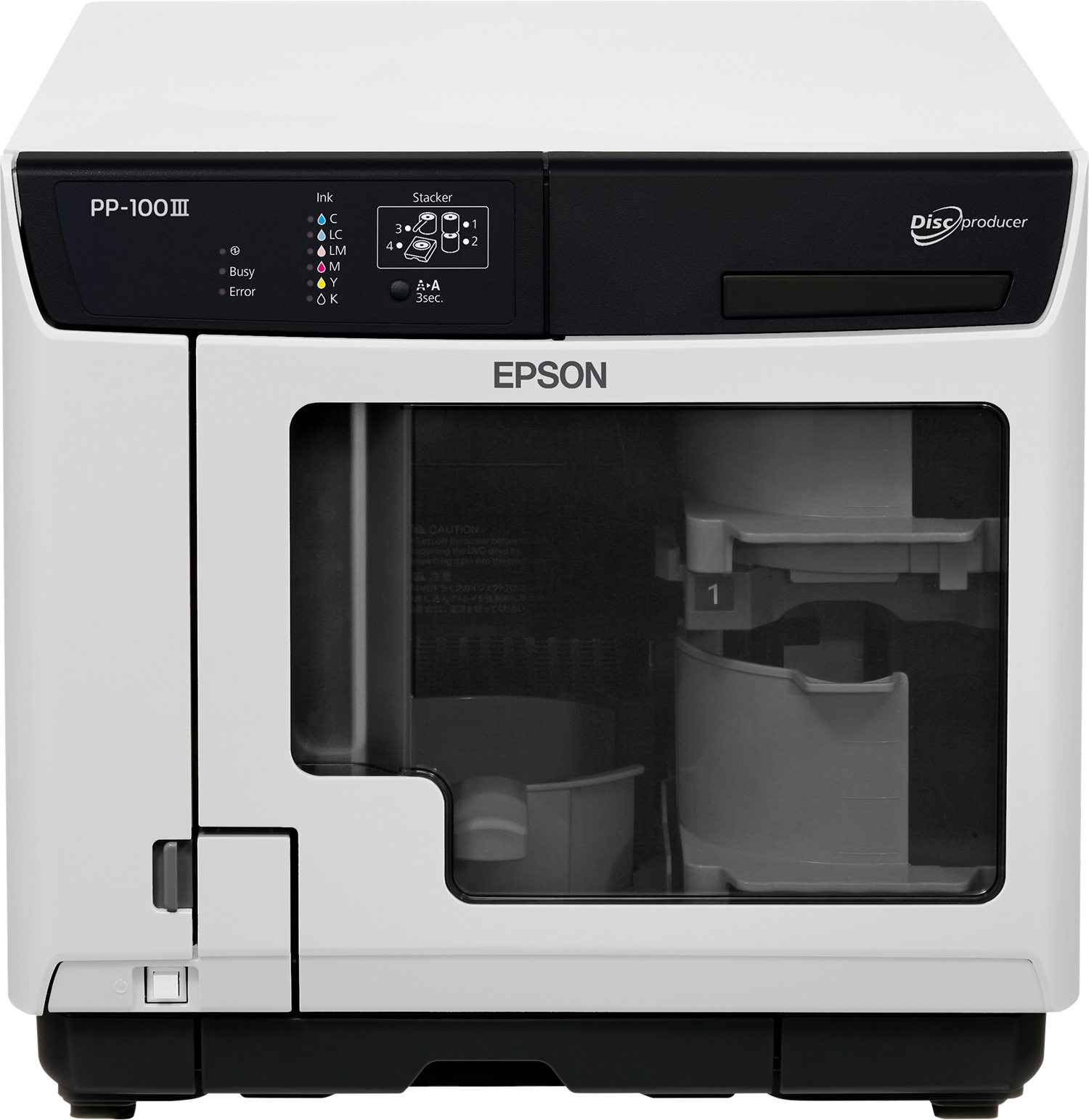

Discproducer PP-100II
Model Discproducer PP-100IIPart no. C11CH40021EAN 8715946669885
51 specifications
- Capacity50 discs
- ConnectivityUSB 3.2 Gen 1 (3.1 Gen 1)
- Noise45 dB
- Weight24 kg
- ColourBlack, White
- Outside diameter print11.6 cm
Overview
- Capacity
- 50 discs
- Connectivity
- USB 3.2 Gen 1 (3.1 Gen 1)
- Noise
- 45 dB
- Weight
- 24 kg
- Colour
- Black, White
- Outside diameter print
- 11.6 cm
- Brand
- Epson
- Category
- Disc Publisher
- Model
- Discproducer PP-100II
- Part number
- C11CH40021
- EAN / UPC
- 8715946669885
- Also known as
- Epson Discproducer PP-100III
Specifications
51 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Capacity | 50 discs |
| Capacity (batch mode) | 100 discs |
| Output capacity | 5 discs |
| Interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Ink type | Dye Ink |
| Optical disc diameter | 120 mm |
| Inner diameter | 1.5 cm |
| Thickness | 1 mm |
| Media types supported | CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL, BD-R, BD-R DL |
| Publishing speed (CD) | 30 discs/hour |
| Publishing speed (DVD) | 15 discs/hour |
| Publishing speed (Blu-ray) | 9 discs/hour |
| Printing colours | Light Cyan, Light magenta, Yellow, Magenta, Cyan, Black |
| Number of printing colours | 6 |
| Country of origin | China |
| Number of CD/DVD drives | 2 |
| Number of colours | 6 colours |
| Print direction | Bidirectional |
| Print head | Micro Piezo |
| Product colour | Black, White |
| Safety warning | Contains 1,2-benzisothiazol-3(2H)-one. May produce an allergic reaction.<br>Contains 2,4,7,9-tetramethyldec-5-yne-4,7-diol. May produce an allergic reaction.<br>Always follow the information on the product label. |
| Noise level | 45 dB |
| Quantity per pack | 1 pc(s) |
| Box contents | Individual Ink Cartridges, Main unit, Setup guide, Software (CD), USB cable, User manual (CD), Warranty Documents |
| Power consumption | 52 Watt, 27 Watt (standby) |
| Print head nozzles | 180 Nozzles Black, 180 Nozzles per Color |
| Print speed | 65 Discs/h (fast mode), 45 Discs/h (quality mode) |
Printing
| Specification | Value |
|---|---|
| Outside diameter print | 11.6 cm |
| Outside diameter print range | 70 - 119 mm |
| Inside diameter print | 4.5 cm |
| Inside diameter print range | 18 - 50 mm |
Print quality
| Specification | Value |
|---|---|
| Print resolution (speed mode) | 1440 x 720 DPI |
Writing speed
| Specification | Value |
|---|---|
| CD write speed | 40x |
| DVD-R write speed | 8x |
| BD-R write speed | 8x |
Software
| Specification | Value |
|---|---|
| Bundled software | Epson Total Disc Maker |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 52 W |
| Power consumption (standby) | 27 W |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Windows 7, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 377 x 493 x 348 mm |
| Weight | 24 kg |
| Package width | 528 mm |
| Package depth | 720 mm |
| Package height | 620 mm |
| Package weight | 30.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 6 pc(s) |
| Products per pallet (UK) | 6 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
