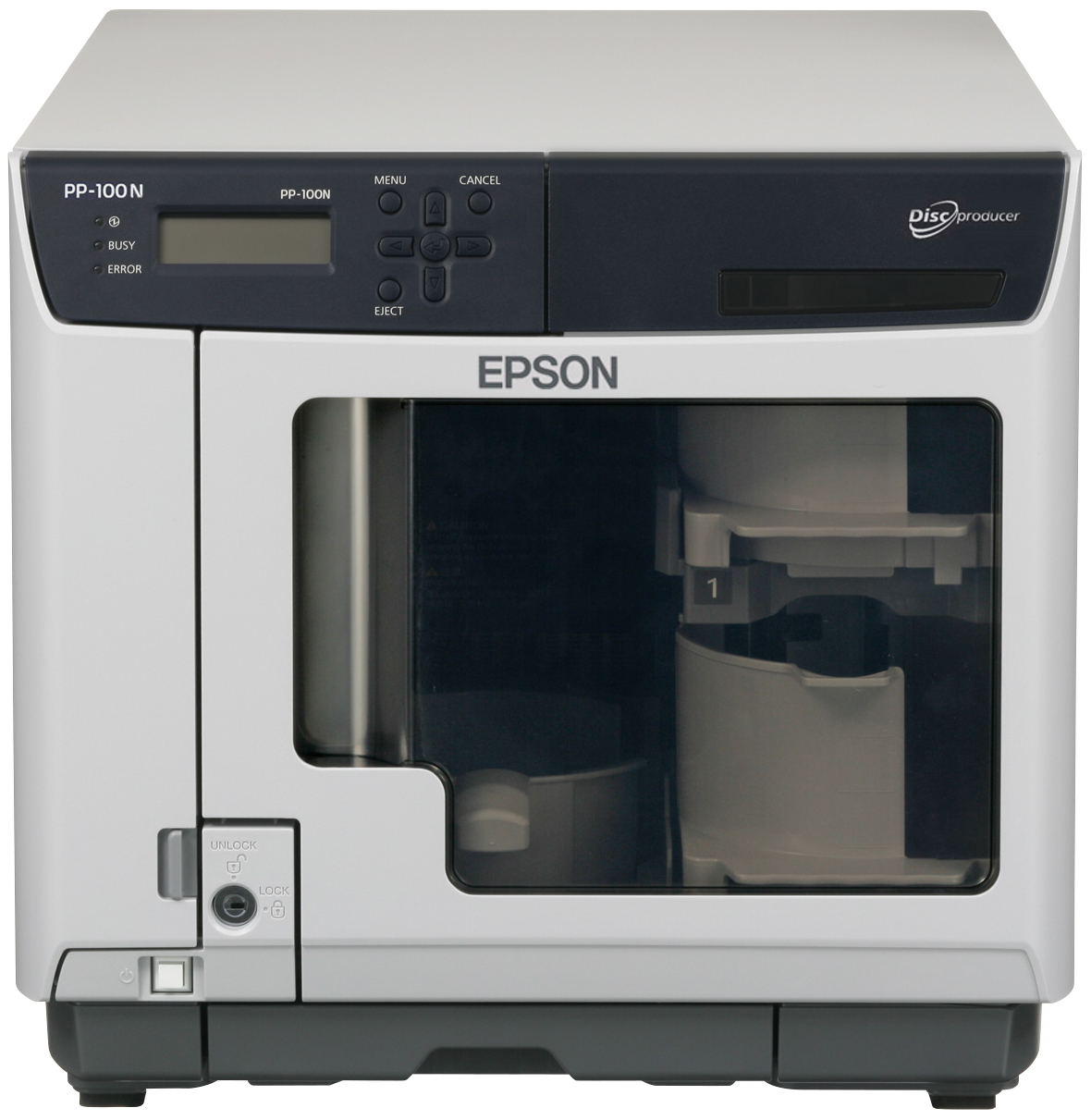

Discproducer PP-100N
Model Discproducer PP-100NPart no. C11CA31121NUEAN 8715946546018
56 specifications
- Capacity50 discs
- ConnectivityEthernet
- Noise45 dB
- Weight25 kg
- ColourBlack, Grey
- Print speed (speed mode)60 discs/hour
Overview
- Capacity
- 50 discs
- Connectivity
- Ethernet
- Noise
- 45 dB
- Weight
- 25 kg
- Colour
- Black, Grey
- Print speed (speed mode)
- 60 discs/hour
- Brand
- Epson
- Category
- Disc Publisher
- Model
- Discproducer PP-100N
- Part number
- C11CA31121NU
- EAN / UPC
- 8715946546018
- Also known as
- Epson DiscproducerTM PP-100N (UK cable)
Specifications
56 specifications in 11 groups
Technical details
| Specification | Value |
|---|---|
| Capacity | 50 discs |
| Capacity (batch mode) | 100 discs |
| Output capacity | 5 discs |
| Interface | Ethernet |
| Ink type | Dye Ink |
| Optical disc diameter | 120 mm |
| Inner diameter | 1.5 cm |
| Media types supported | CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL |
| Publishing speed (CD) | 30 discs/hour |
| Publishing speed (DVD) | 17 discs/hour |
| Printing colours | Light Cyan, Light magenta, Yellow, Magenta, Cyan, Black |
| Country of origin | China |
| Number of CD/DVD drives | 2 |
| Number of colours | 6 colours |
| Print direction | Bidirectional |
| Print head | Micro Piezo |
| Product colour | Black, Grey |
| Noise level | 45 dB |
| Noise level (standby) | 38 dB |
| Quantity per pack | 1 pc(s) |
| Box contents | Individual Ink Cartridges, Main unit, Power cable, Setup guide, Software (CD), User manual (CD), Warranty document |
| Power consumption | 85 Watt (economy), 55 Watt (standby) |
| Print head nozzles | 180 Nozzles Black, 180 Nozzles per Color |
| Print speed | 60 Discs/h (fast mode), 42 Discs/h (quality mode) |

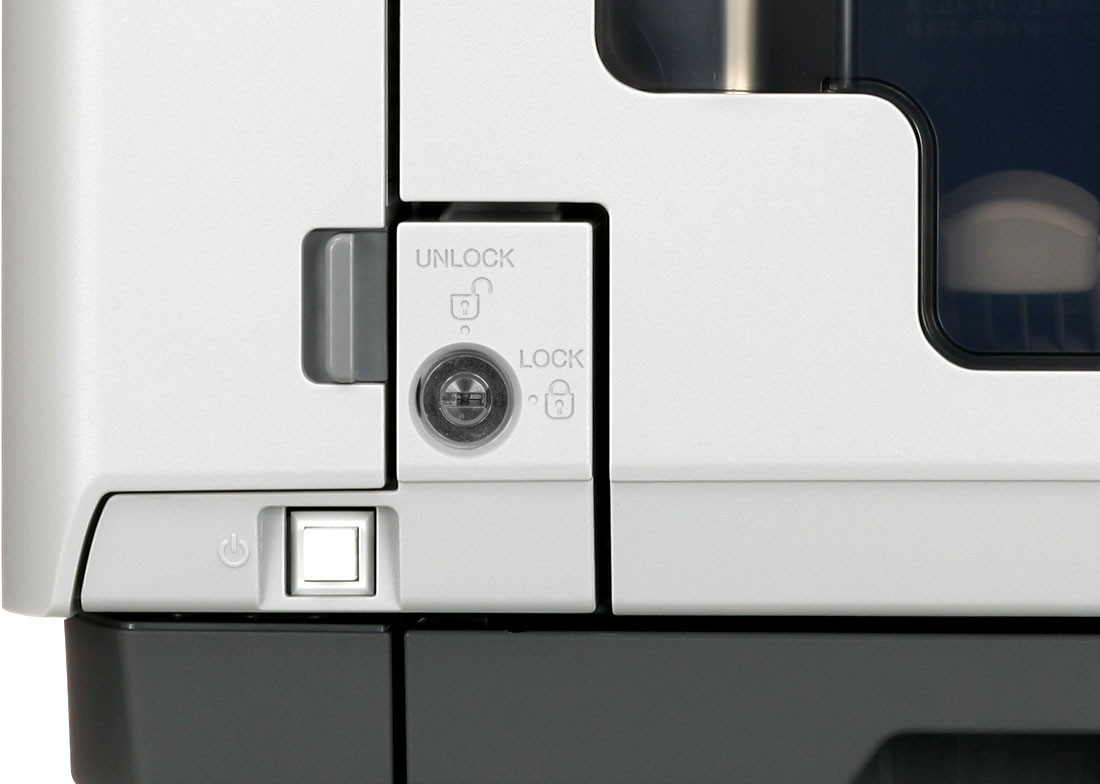

| Security lock | Yes |
Printing
| Specification | Value |
|---|---|
| Print speed (speed mode) | 60 discs/hour |
| Print speed (quality mode) | 42 discs/hour |
| Outside diameter print | 11.6 cm |
| Inside diameter print | 4.5 cm |
Print quality
| Specification | Value |
|---|---|
| Print resolution (quality mode) | 1440 x 720 DPI |
| Print resolution (speed mode) | 1440 x 720 DPI |
Writing speed
| Specification | Value |
|---|---|
| CD write speed | 40x |
| DVD+R write speed | 12x |
| DVD-R write speed | 12x |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Software
| Specification | Value |
|---|---|
| Bundled software | Epson Total Disc Maker |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 730 x 530 x 522 mm |
| Weight | 25 kg |
| Package width | 525 mm |
| Package depth | 725 mm |
| Package height | 525 mm |
| Package weight | 29.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 101.1 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 101.1 cm |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Products per pallet | 6 pc(s) |
| Products per pallet (UK) | 6 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
