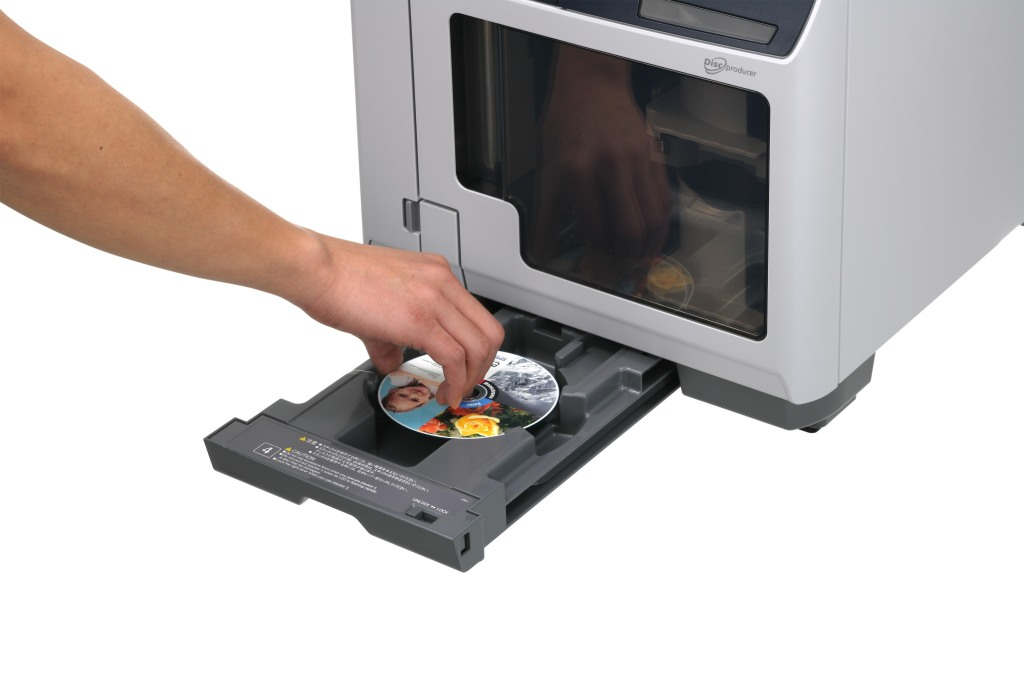

Discproducer™ PP-100AP
Model PP-100APPart no. C11CA93021EAN 8715946464572
46 specifications
- Capacity50 discs
- ConnectivityUSB 2.0
- Weight22 kg
- ColourBlack, Grey
- Print speed (speed mode)95 discs/hour
- Print resolution (quality mode)1440 x 1440 DPI
Overview
- Capacity
- 50 discs
- Connectivity
- USB 2.0
- Weight
- 22 kg
- Colour
- Black, Grey
- Print speed (speed mode)
- 95 discs/hour
- Print resolution (quality mode)
- 1440 x 1440 DPI
- Brand
- Epson
- Category
- Disc Publisher
- Model
- PP-100AP
- Part number
- C11CA93021
- EAN / UPC
- 8715946464572
- Also known as
- Epson Discproducer™ PP-100AP
Specifications
46 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Capacity | 50 discs |
| Interface | USB 2.0 |
| Optical disc diameter | 120 mm |
| Inner diameter | 5 cm |
| Thickness | 1.2 mm |
| Media types supported | CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL, BluRay |
| Printing colours | Cyan, Magenta, Yellow, Light Cyan, Light magenta, Black |
| Country of origin | China |
| Number of colours | 6 colours |
| Print direction | Bidirectional |
| Print head | Micro Piezo |
| Product colour | Black, Grey |
| Quantity per pack | 1 pc(s) |
| Printable area | 4.5 cm |
Printing
| Specification | Value |
|---|---|
| Print speed (speed mode) | 95 discs/hour |
| Print speed (quality mode) | 50 discs/hour |
Print quality
| Specification | Value |
|---|---|
| Print resolution (quality mode) | 1440 x 1440 DPI |
| Print resolution (speed mode) | 720 x 720 DPI |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 85% |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 28 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Marking, EMC: 2004/108/EC, EN55022 class B, EN60950, TÜV; GOST-R |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Windows 7, Windows 8, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP |
| Minimum processor | Pentium 4, 1.4 GHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 377 x 465 x 348 mm |
| Weight | 22 kg |
| Package width | 520 mm |
| Package depth | 720 mm |
| Package height | 525 mm |
| Package weight | 26.8 g |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 171 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 171 cm |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Products per pallet | 6 pc(s) |
| Products per pallet (UK) | 6 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
