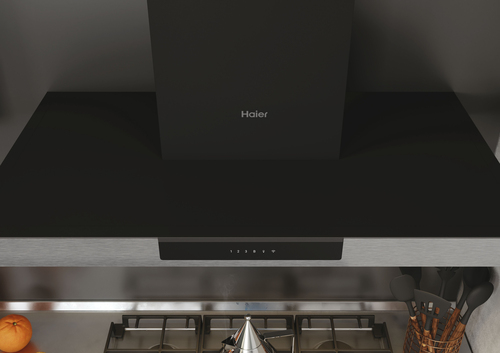

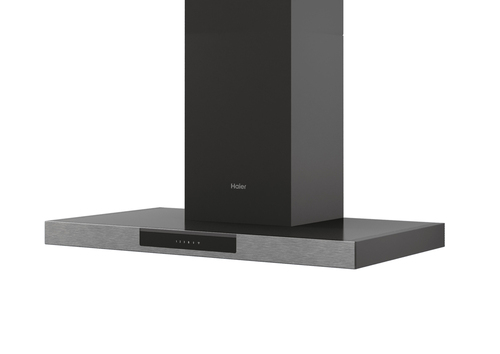

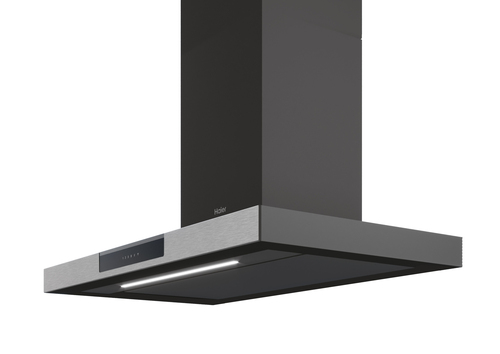

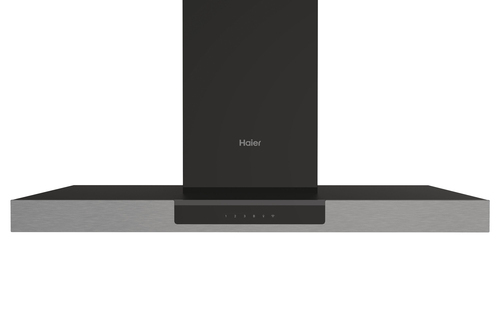

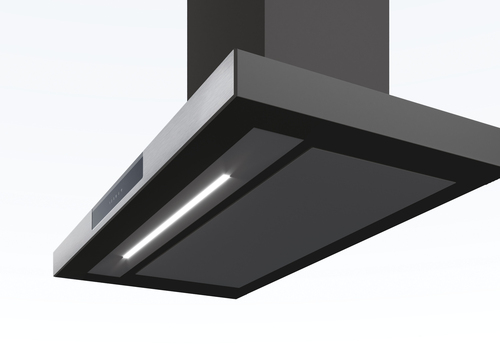

I-Link HATS9DS2XWIFI Wall-mounted Black 746 m³/h
Model HATS9DS2XWIFIPart no. 36901714EAN 8059019040868
49 specifications
- Energy classA+
- Noise64 dB
- TypeWall-mounted
- Weight12 kg
- ColourBlack
- Maximum extraction power746 m³/h
Overview
- Energy class
- A+
- Noise
- 64 dB
- Type
- Wall-mounted
- Weight
- 12 kg
- Colour
- Black
- Maximum extraction power
- 746 m³/h
- Brand
- Haier
- Category
- Cooker Hood
- Model
- HATS9DS2XWIFI
- Part numbers
- 36901714, TD0038354
- EAN / UPC
- 8059019040868
- Also known as
- Haier I-Link HATS9DS2XWIFI Wall-mounted Black 746 m³/h
Specifications
49 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 746 m³/h |
| Type of extraction | Ducted |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | D |
| Grease filtering efficiency class | D |
| Boost position air extraction power | 746 m³/h |
| Number of speeds | 4 |
| Intensive speed | Yes |
| Noise level | 64 dB |
| Noise level (high speed) | 64 dB |
| Noise level (low speed) | 60 dB |
| Noise level (intensive speed) | 70 dB |
| Airflow (low speed) | 426 m³/h |
| Pressure (Pa) | 107 |
Design
| Specification | Value |
|---|---|
| Type | Wall-mounted |
| Product colour | Black |
| Built-in display | Yes |
| Control type | Touch |
| Exhaust location | Top |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
| Motor included | Yes |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 2 pc(s) |
| Removable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 1 bulb(s) |
| Bulb type | LED |
| Lighting position | Front |
| Lighting efficiency (LE) | 12.1 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A+ |
| Energy efficiency scale | A+++ to D |
| Connected load | 1000 W |
| Power consumption (standby) | 0.82 W |
| Annual energy consumption | 33.3 kWh |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 230 V |
| Energy efficiency class (legacy scale) | A+ |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 900 mm |
| Depth | 504 mm |
| Height | 1027 mm |
| Height (max) | 100 cm |
| Height without chimney | 52 cm |
| Weight | 12 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 945 mm |
| Package depth | 380 mm |
| Package height | 560 mm |
| Package weight | 18.6 kg |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 36.2 |
| Grease filtering efficiency (GFE) | 73.2% |
