ECN92SS extractor
Model ECN92SS extractorPart no. ECN92SS EXTRACTOREAN 5060143318368
74 specifications
- Energy classD
- Noise60 dB
- TypeWall-mounted
- Weight14.3 g
- ColourStainless steel
- Maximum extraction power391 m³/h
Overview
- Energy class
- D
- Noise
- 60 dB
- Type
- Wall-mounted
- Weight
- 14.3 g
- Colour
- Stainless steel
- Maximum extraction power
- 391 m³/h
- Brand
- CDA
- Category
- Cooker Hood
- Model
- ECN92SS extractor
- Part number
- ECN92SS EXTRACTOR
- EAN / UPC
- 5060143318368
- Also known as
- CDA ECN92SS extractor Wall-mounted Stainless steel 391 m³/h
Specifications
74 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 391 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | E |
| Lighting efficiency class | A |
| Grease filtering efficiency class | D |
| Maximum recirculating power | 391 m³/h |
| Number of speeds | 3 |
| Intensive speed | No |
| Boost function | No |
| Noise level | 60 dB |
| Noise level (high speed) | 60 dB |
| Noise level (low speed) | 50 dB |
| Noise level (medium speed) | 58 dB |
| Noise level (intensive speed) | 60 dB |
| Noise level (recirculation mode) | 60 dB |
| Minimum distance from electric hob | 60 cm |
| Minimum distance from gas hob | 70 cm |
| Minimal distance from hob | 700 cm |
Design
| Specification | Value |
|---|---|
| Type | Wall-mounted |
| Colour name | Stainless Steel |
| Product colour | Stainless steel |
| Timer | No |
| Hob²Hood function | No |
| Breeze function | No |
| Built-in display | No |
| Control type | Buttons |
| Cord length | 1 m |
| Two-side control | No |
| Exhaust connection diameter | 12 cm |
| Motor included | Yes |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 1 pc(s) |
| Number of filter layers | 4 pc(s) |
| Filter cleaning indicator | No |
| Anti-odor filter | No |
| Dishwasher proof filter | Yes |
| Removable filter | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Illuminance | 540 lx |
| Dimmable lighting | No |
| Lighting position | Front |
Power
| Specification | Value |
|---|---|
| Energy efficiency scale | A+ to D |
| Connected load | 104 W |
| Annual energy consumption | 60 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 230 - 240 V |
| Energy efficiency class (legacy scale) | D |

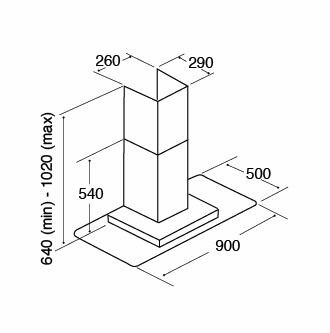

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 900 mm |
| Depth | 500 mm |
| Height | 1020 mm |
| Height (min) | 64 cm |
| Height (max) | 102 cm |
| Weight | 14.3 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 950 x 370 x 600 mm |
| Package width | 950 mm |
| Package depth | 370 mm |
| Package height | 600 mm |
| Package weight | 17.4 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Ducting hose included | No |
Other features
| Specification | Value |
|---|---|
| Adjustable shelves | No |
| Airflow | 391 m³/h |
| Dimensions (WxDxH) | 900 x 500 x 1020 mm |
| Display | No |
| Light source | LED Lights |
| Power requirements | 3A |
| Touch control | No |
| Country of origin | China |
| Control panel | Buttons |
| Filter | CHA12 |
| Net weight | 1.43 kg |
| Noise level (max) | 60 dB |
