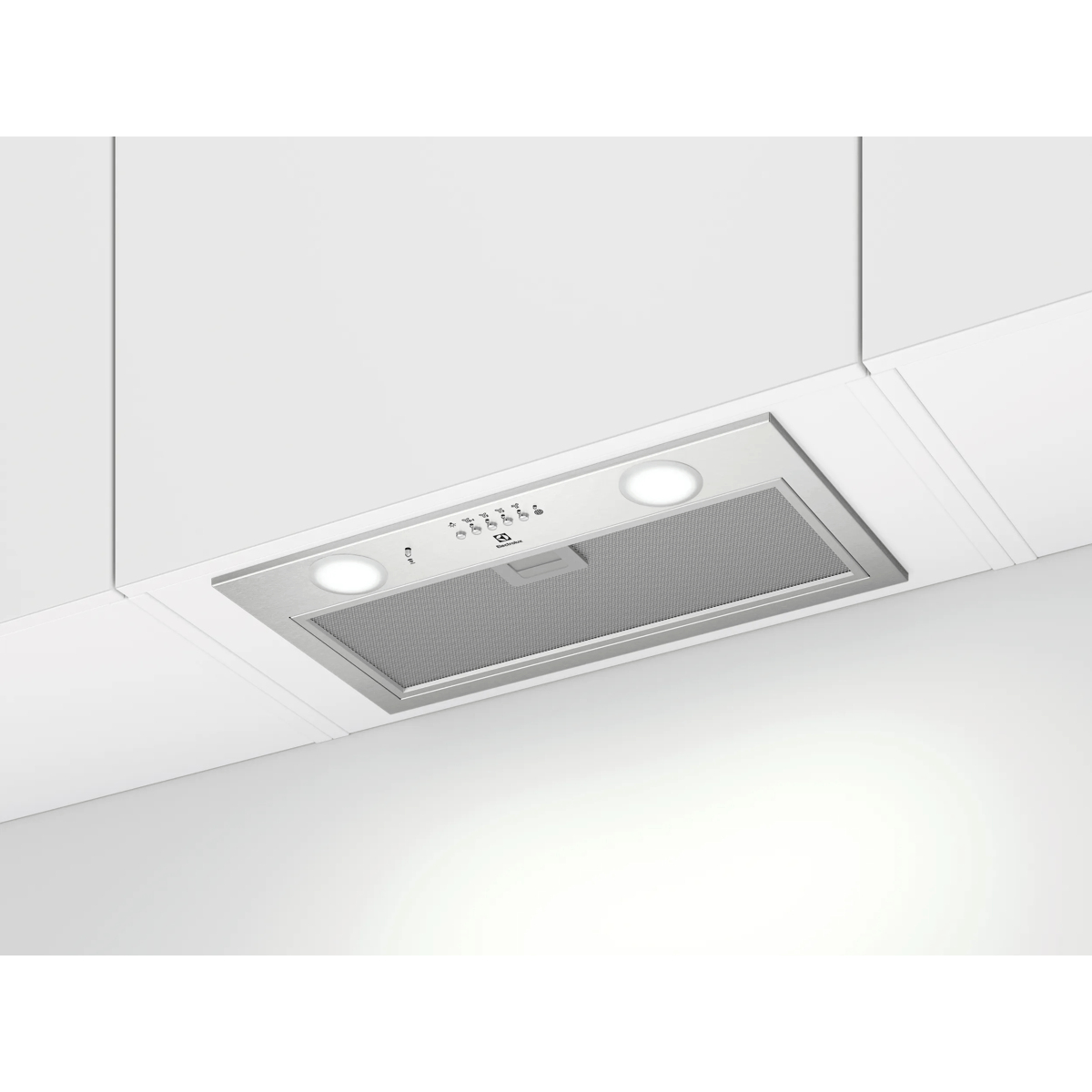

EFG516X Built-in Stainless steel 450 m³/h
Model EFG516XPart no. 942 022 583EAN 7332543773619
64 specifications
- Energy classC
- Noise60 dB
- TypeBuilt-in
- Weight7.35 kg
- ColourStainless steel
- Maximum extraction power450 m³/h
Overview
- Energy class
- C
- Noise
- 60 dB
- Type
- Built-in
- Weight
- 7.35 kg
- Colour
- Stainless steel
- Maximum extraction power
- 450 m³/h
- Brand
- Electrolux
- Category
- Cooker Hood
- Model
- EFG516X
- Part number
- 942 022 583
- EAN / UPC
- 7332543773619, 7332543793983
- Also known as
- Electrolux EFG516X Built-in Stainless steel 450 m³/h
Specifications
64 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 450 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | D |
| Lighting efficiency class | A |
| Grease filtering efficiency class | D |
| Maximum recirculating power | 330 m³/h |
| Boost position air extraction power | 600 m³/h |
| Boost position output recirculating power | 380 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 60 dB |
| Noise level (high speed) | 60 dB |
| Noise level (low speed) | 50 dB |
| Noise level (medium speed) | 60 dB |
| Noise level (intensive speed) | 66 dB |
| Noise level (recirculation mode) | 68 dB |
| Airflow (low speed) | 285 m³/h |
| Pressure (Pa) | 450 |
| Minimum distance from electric hob | 50 cm |
| Minimum distance from gas hob | 57 cm |
Design
| Specification | Value |
|---|---|
| Type | Built-in |
| Colour name | Acciaio INOX |
| Product colour | Stainless steel |
| Hob²Hood function | Yes |
| Breeze function | No |
| Built-in display | No |

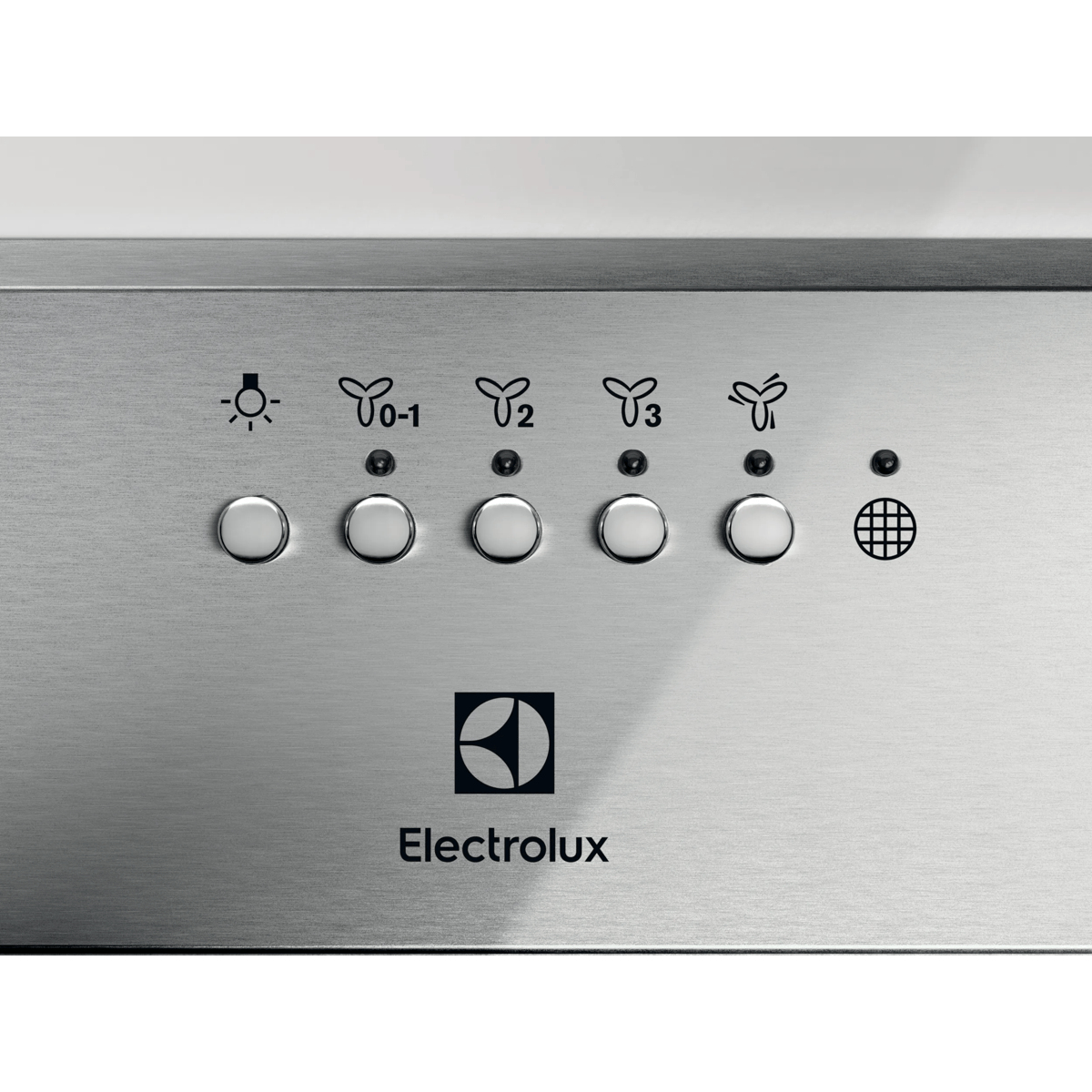

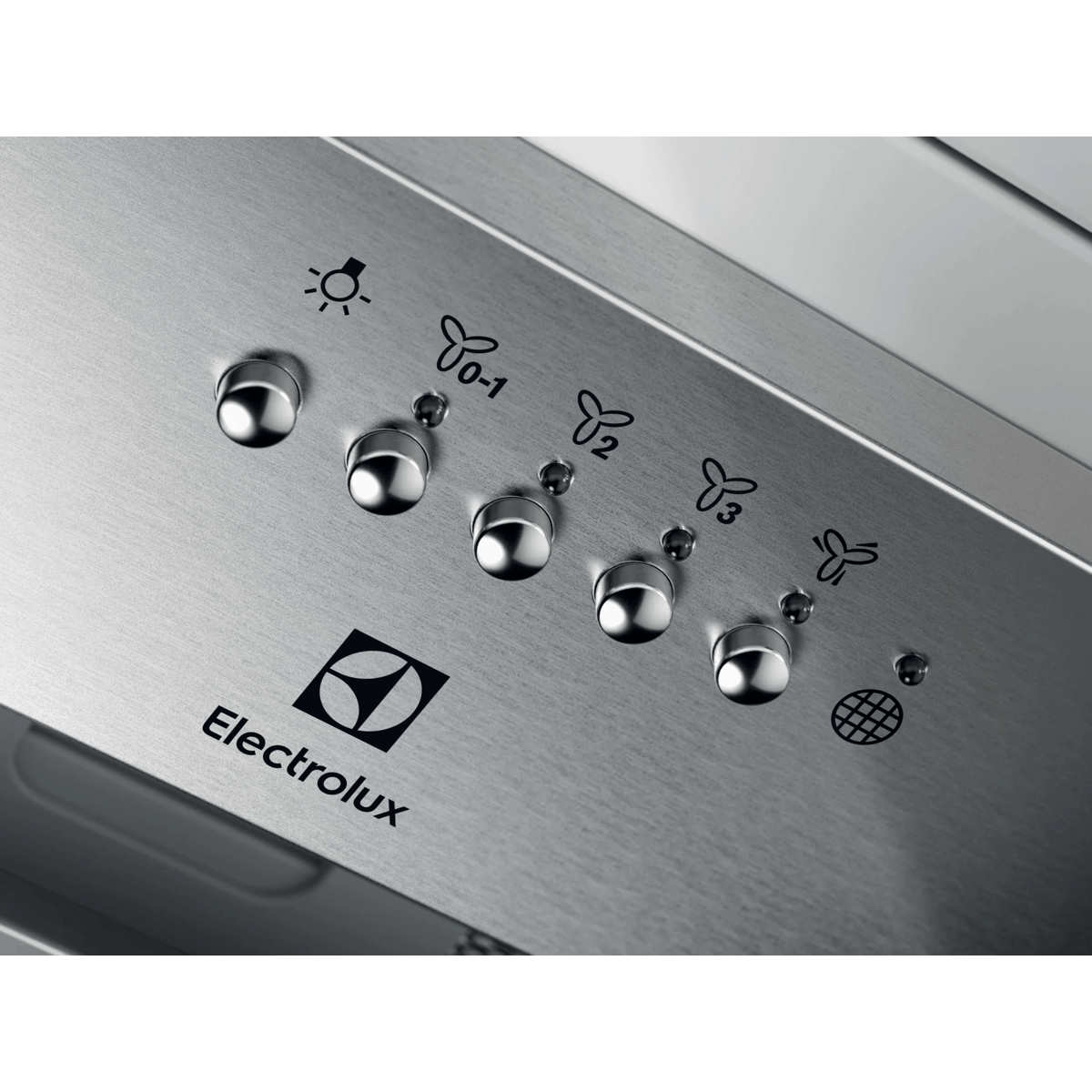

| Control type | Buttons |
| Cord length | 1.5 m |
| Exhaust connection diameter | 15 cm |
Filtering
| Specification | Value |
|---|---|

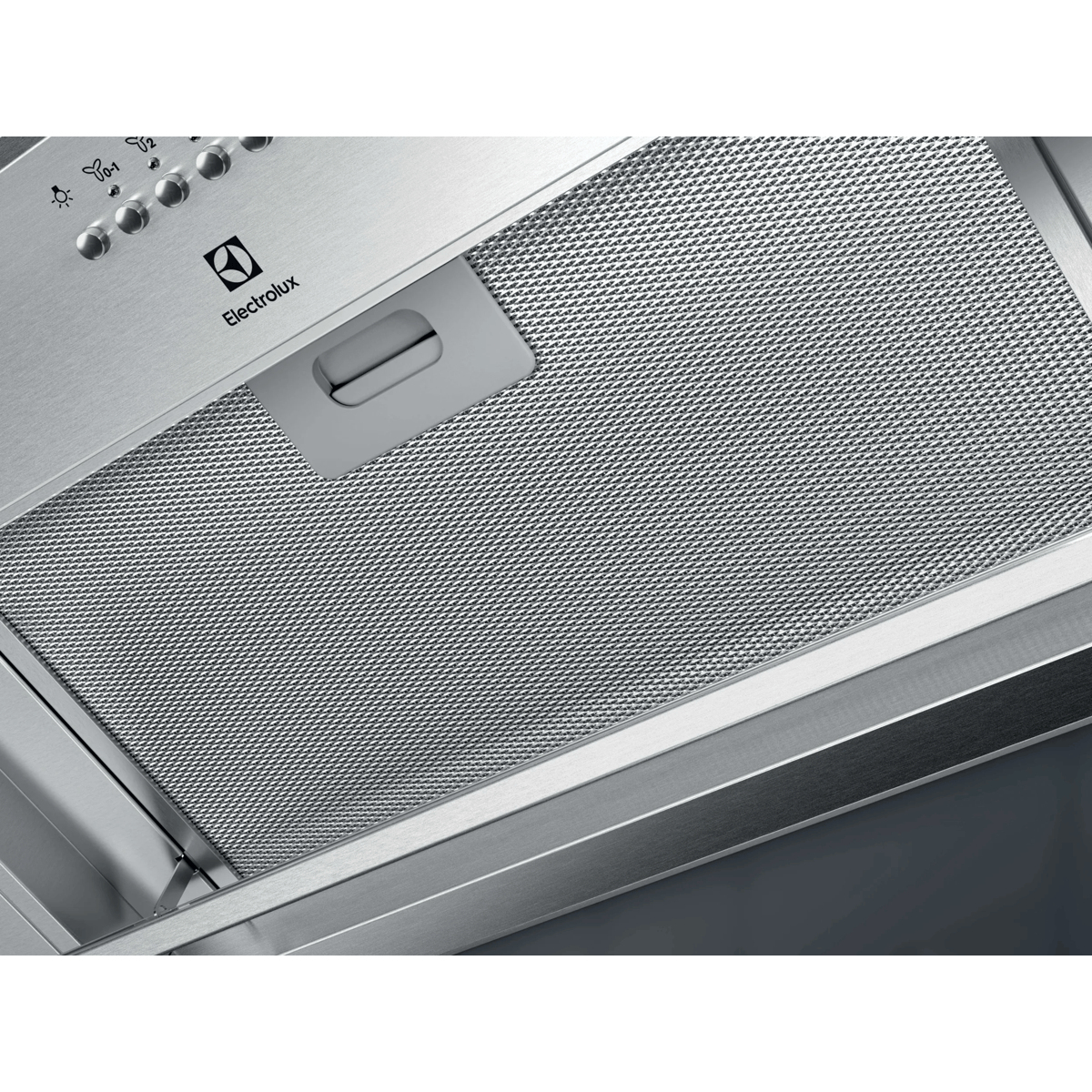

| Grease filter type | Aluminium |
| Number of filters | 1 pc(s) |
| Filter cleaning indicator | Yes |

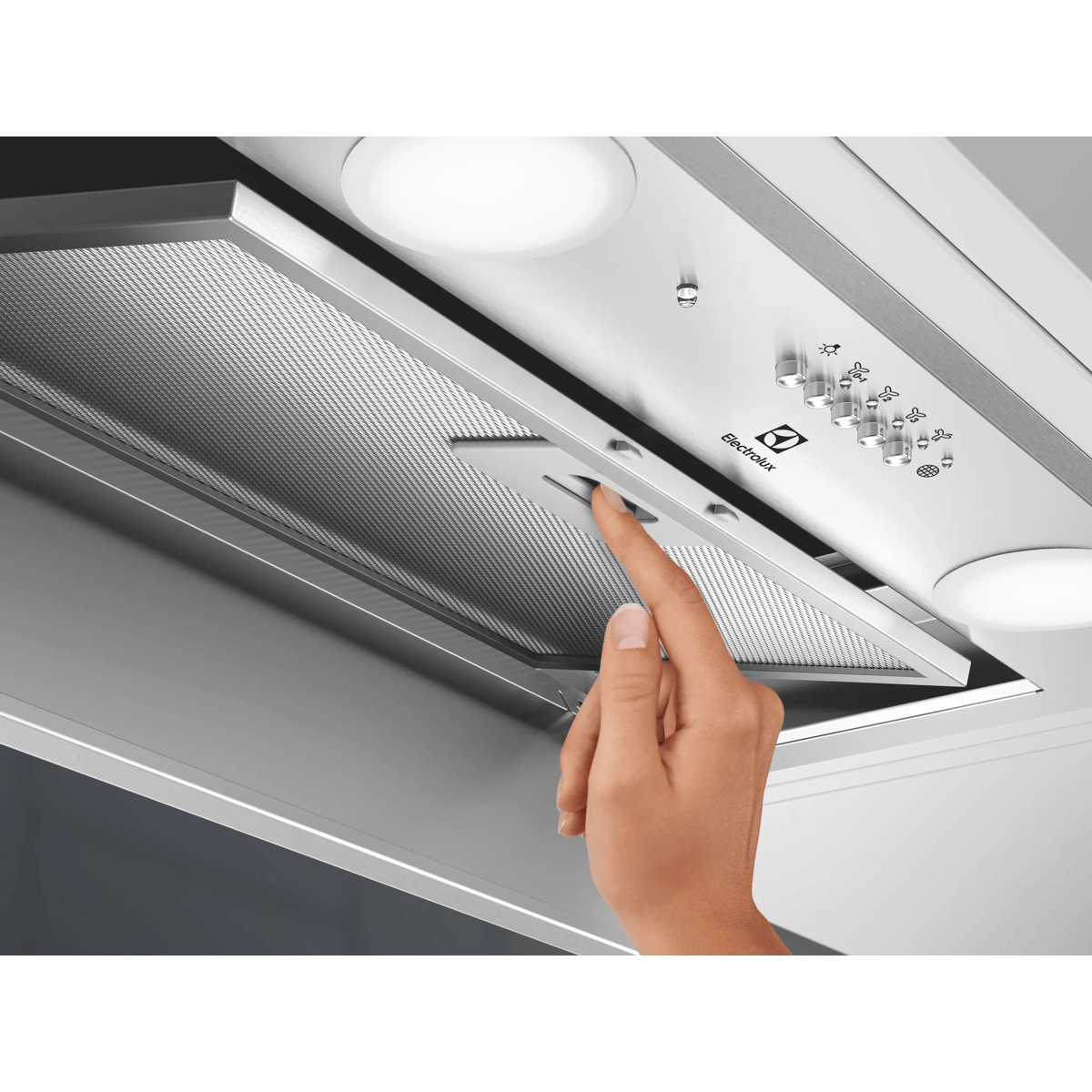

| Removable filter | Yes |
| Washable filter | Yes |

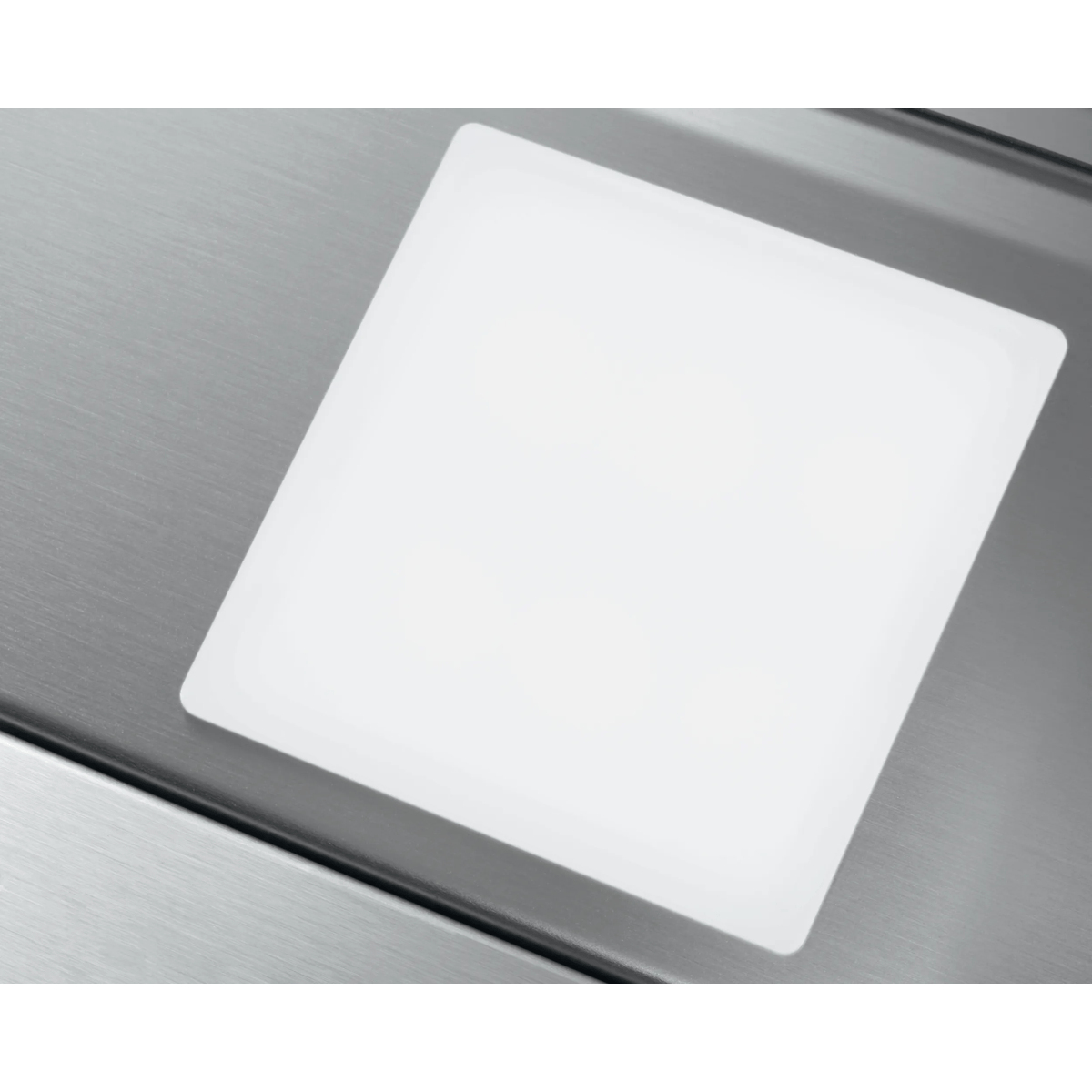

Lighting
| Specification | Value |
|---|---|

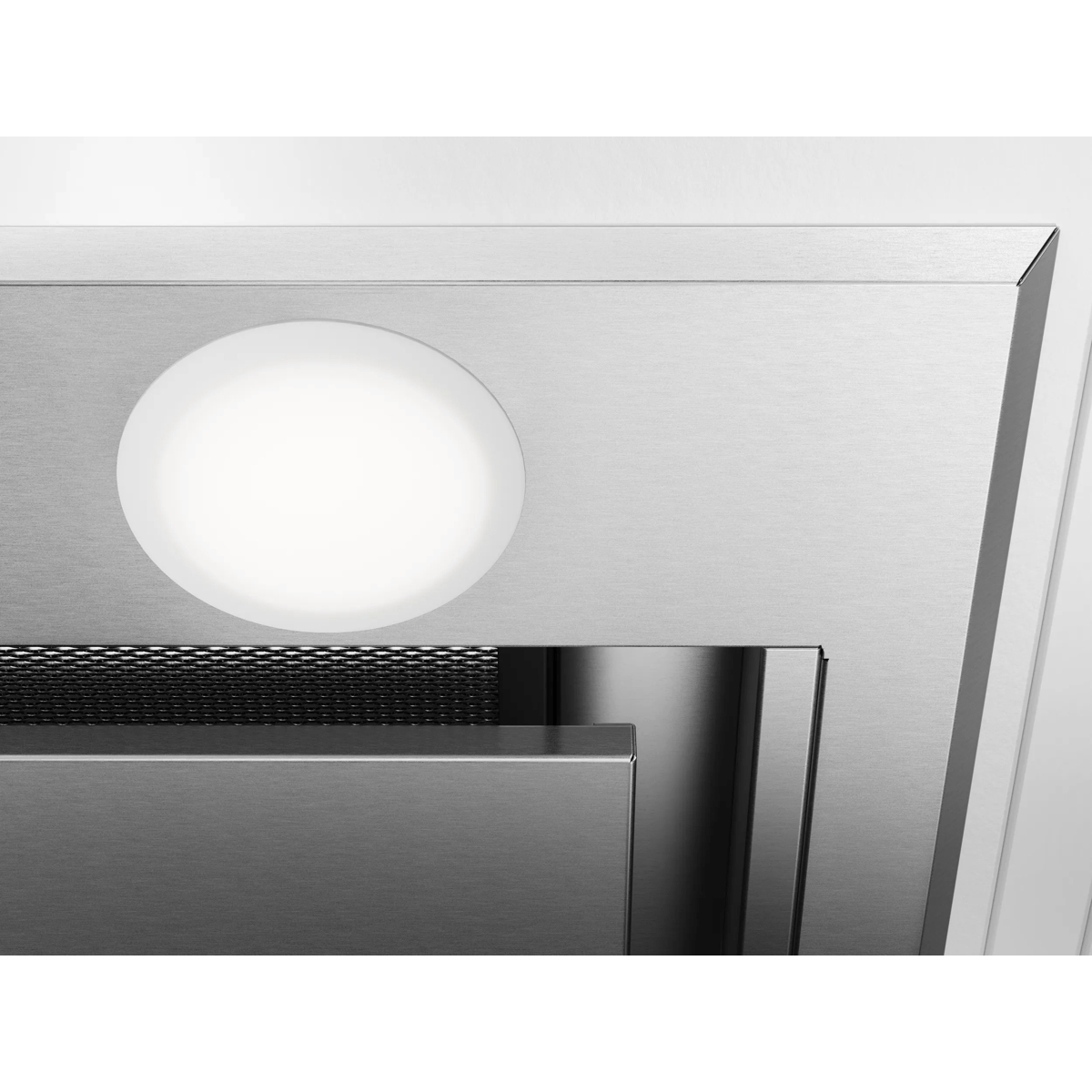

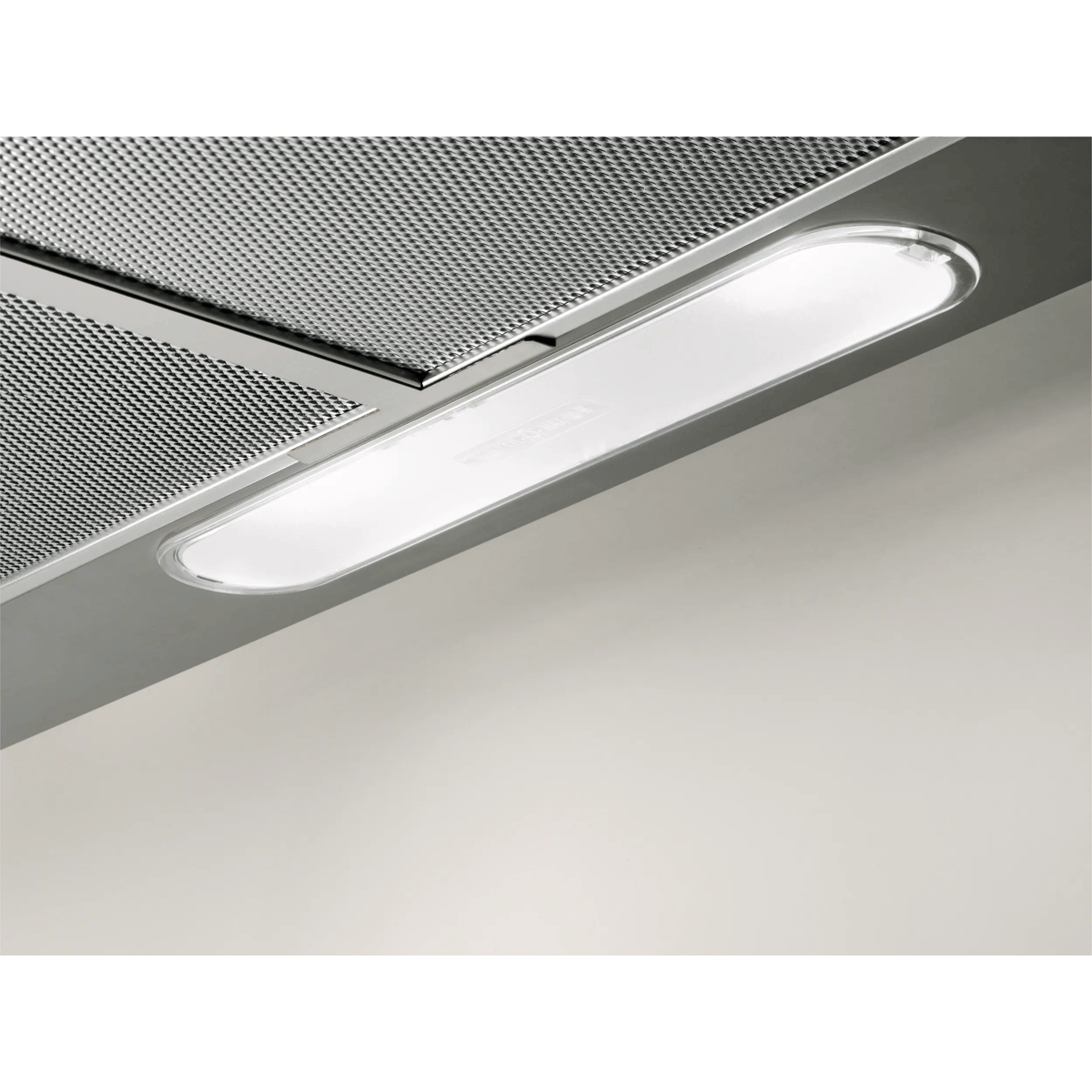

| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Colour temperature | 3000 K |
| Lighting position | Front |
| Lighting efficiency (LE) | 38 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | C |
| Energy efficiency scale | A+++ to D |
| Motor power | 210 W |
| Power consumption (standby) | 0.49 W |
| Annual energy consumption | 96.1 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 220-240 V |
| Energy efficiency class (legacy scale) | C |

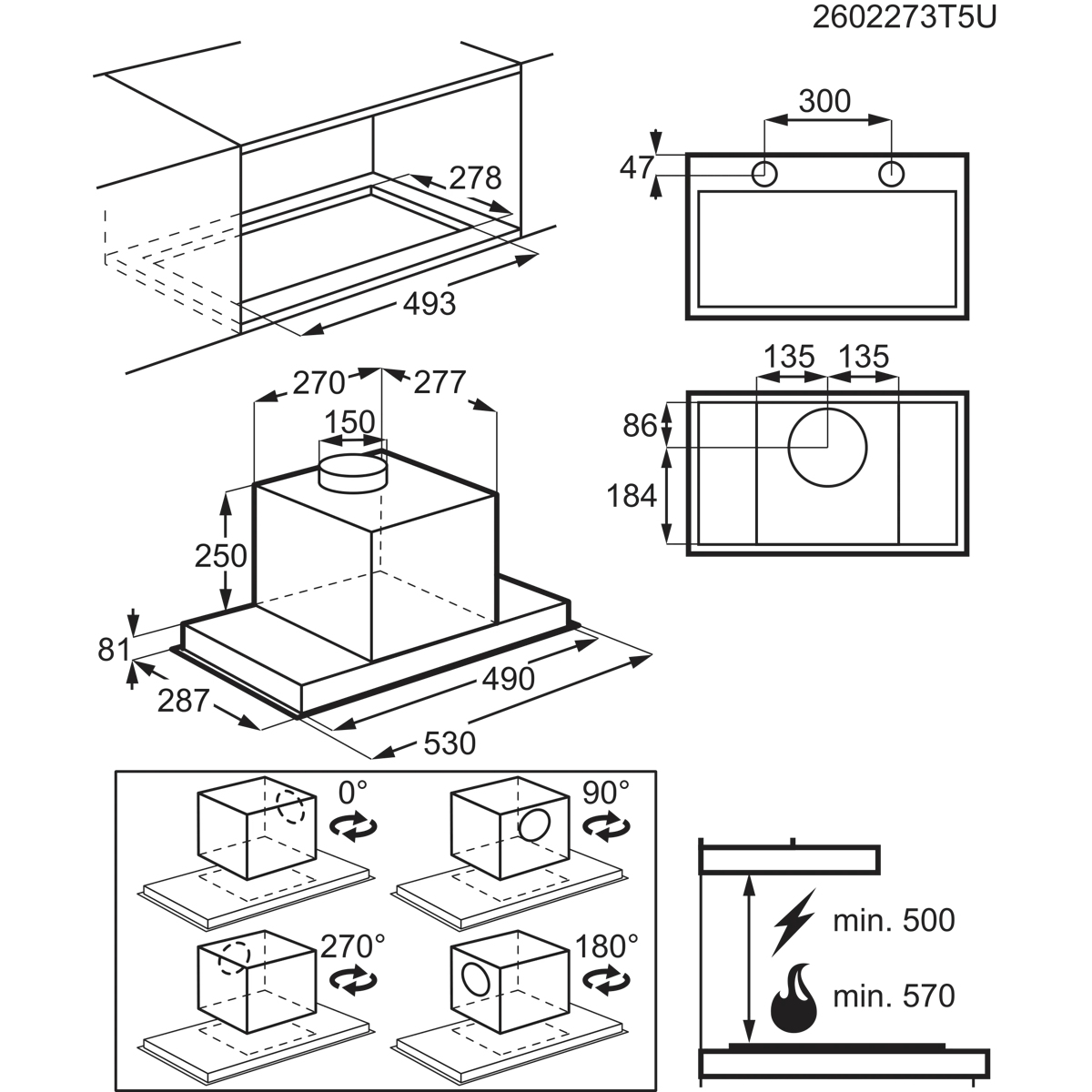

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 530 mm |
| Depth | 287 mm |
| Height | 331 mm |
| Height (min) | 25 cm |
| Height without chimney | 33.1 cm |
| Weight | 7.35 kg |
| Installation compartment width | 49.3 cm |
| Installation compartment depth | 27.3 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 610 mm |
| Package depth | 450 mm |
| Package height | 390 mm |
| Package weight | 9.4 kg |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 16.5 |
| Grease filtering efficiency (GFE) | 65.1% |
| Measured air pressure at best efficiency point | 306 Pa |
| Country of origin | Poland |
| Filter | ECFB01ST | ECFBPL02 |
