DCE5960HM Ceiling built-in Chrome, Stainless steel 590 m³/h
Model DCE5960HMPart no. 942 051 321EAN 7332543712090
70 specifications
- Energy classA
- Noise63 dB
- TypeCeiling built-in
- Weight25 kg
- ColourChrome, Stainless steel
- Maximum extraction power590 m³/h
Overview
- Energy class
- A
- Noise
- 63 dB
- Type
- Ceiling built-in
- Weight
- 25 kg
- Colour
- Chrome, Stainless steel
- Maximum extraction power
- 590 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- DCE5960HM
- Part numbers
- 942 051 321, 942 051 436
- EAN / UPC
- 7332543712090, 7332543813742
- Also known as
- AEG DCE5960HM Ceiling built-in Chrome, Stainless steel 590 m³/h
Specifications
70 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 590 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | D |
| Maximum recirculating power | 315 m³/h |
| Boost position air extraction power | 710 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 63 dB |
| Noise level (high speed) | 63 dB |
| Noise level (low speed) | 54 dB |
| Noise level (medium speed) | 63 dB |
| Noise level (intensive speed) | 67 dB |
| Noise level (recirculation mode) | 56 dB |
| Airflow (low speed) | 315 m³/h |
| Pressure (Pa) | 550 |
| Minimum distance from electric hob | 75 cm |
| Minimum distance from gas hob | 75 cm |
Design
| Specification | Value |
|---|---|
| Type | Ceiling built-in |
| Product colour | Chrome, Stainless steel |
| Housing material | Stainless steel |
| Control type | Buttons |
| Cord length | 1.1 m |
| Exhaust location | Top |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
| Motor included | Yes |
| Certification | CE |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 6 pc(s) |
| Filter cleaning indicator | Yes |
| Anti-odor filter | Yes |
| Removable filter | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Bulb power | 8 W |
| Number of bulbs | 3 bulb(s) |
| Bulb type | LED |
| Colour temperature | 3000 K |
| Lighting efficiency (LE) | 47.2 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Energy efficiency scale | A+++ to D |
| Motor power | 265 W |
| Power consumption (standby) | 0.49 W |
| Annual energy consumption | 55 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 230-240 V |
| Energy efficiency class (legacy scale) | A |

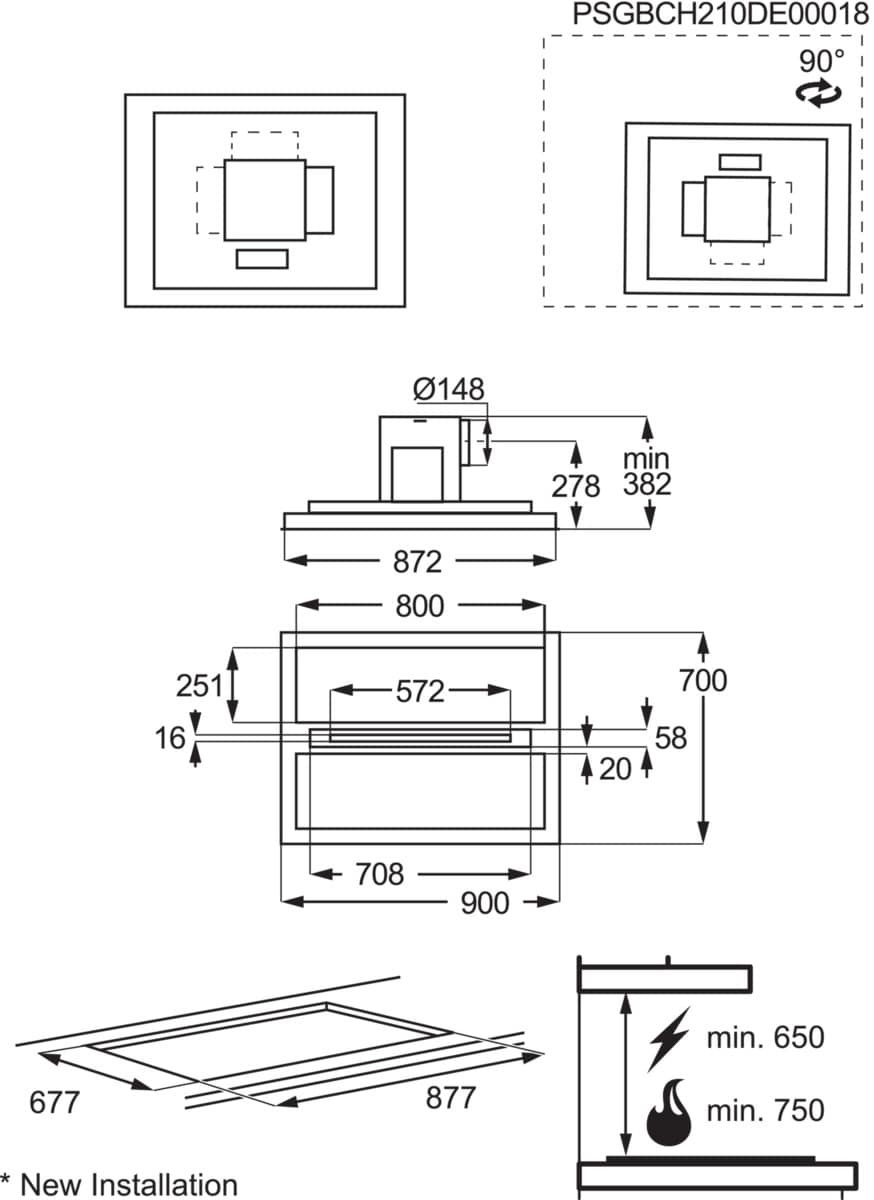

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 900 mm |
| Depth | 700 mm |
| Height | 582 mm |
| Height (min) | 38.2 cm |
| Height (max) | 58.2 cm |
| Height without chimney | 3 mm |
| Weight | 25 kg |
| Installation compartment width | 87.7 cm |
| Installation compartment depth | 67.7 cm |
| Installation compartment height | 58.3 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1020 mm |
| Package depth | 830 mm |
| Package height | 460 mm |
| Package weight | 35.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 32.6 |
| Grease filtering efficiency (GFE) | 65.1% |
| Measured air pressure at best efficiency point | 447 Pa |
| Country of origin | Italy |
| Filter | - | ECFB60PL |
