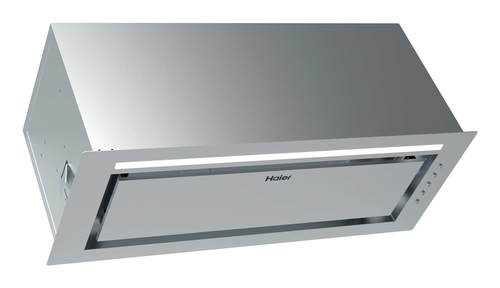

I-Design HAPY72ES6XGG Built-in Stainless steel 577 m³/h
Model HAPY72ES6XGGPart no. 36901992EAN 8059019106182
44 specifications
- Energy classB
- Noise68 dB
- TypeBuilt-in
- Weight9.5 kg
- ColourStainless steel
- Maximum extraction power577 m³/h
Overview
- Energy class
- B
- Noise
- 68 dB
- Type
- Built-in
- Weight
- 9.5 kg
- Colour
- Stainless steel
- Maximum extraction power
- 577 m³/h
- Brand
- Haier
- Category
- Cooker Hood
- Model
- HAPY72ES6XGG
- Part number
- 36901992
- EAN / UPC
- 8059019106182
- Also known as
- Haier I-Design HAPY72ES6XGG Built-in Stainless steel 577 m³/h
Specifications
44 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 577 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | F |
| Lighting efficiency class | B |
| Grease filtering efficiency class | B |
| Boost position air extraction power | 660 m³/h |
| Number of speeds | 4 |
| Noise level | 68 dB |
| Noise level (intensive speed) | 72 dB |
Design
| Specification | Value |
|---|---|
| Type | Built-in |
| Product colour | Stainless steel |
| Housing material | Stainless steel |
| Built-in display | No |
| Control type | Buttons |
| Wi-Fi | No |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium/Charcoal |
| Number of filters | 1 pc(s) |
| Anti-odor filter | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Bulb power | 5 W |
| Number of bulbs | 1 bulb(s) |
| Bulb type | LED |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | B |
| Energy efficiency scale | A+++ to D |
| Annual energy consumption | 65 kWh |
| AC input frequency | 50-60 Hz |
| AC input voltage | 220-240 V |

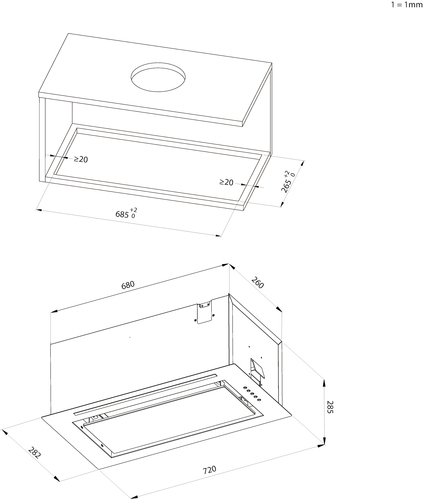

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 729 mm |
| Depth | 290 mm |
| Height | 302 mm |
| Height (min) | 30.2 cm |
| Height (max) | 38.5 cm |
| Weight | 9.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 780 mm |
| Package depth | 365 mm |
| Package height | 380 mm |
| Package weight | 11.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Remote control included | No |
Brand-specific features
| Specification | Value |
|---|---|
| Haier technologies (air extraction) | Boost Function, Carbon filter, Grease filter |
Other features
| Specification | Value |
|---|---|
| Power requirements | Requires Plug/Cable Attaching By An Electrician |
| Country of origin | China |
