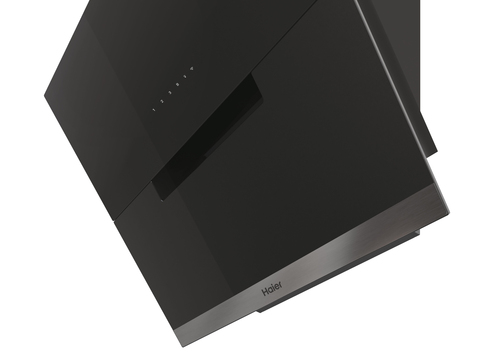

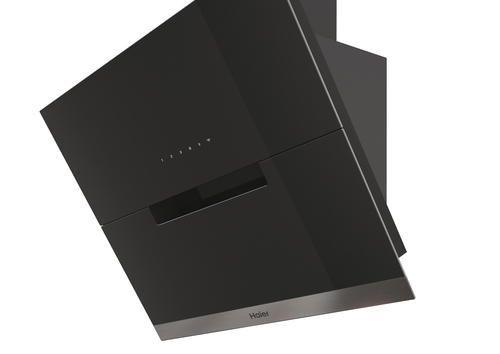

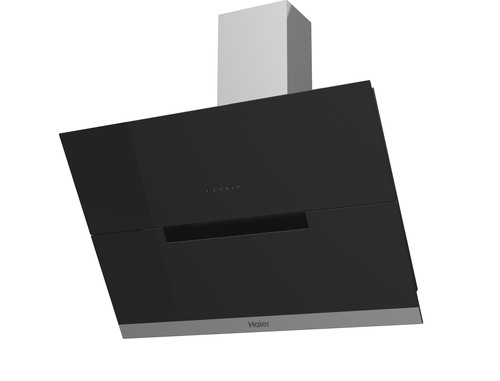

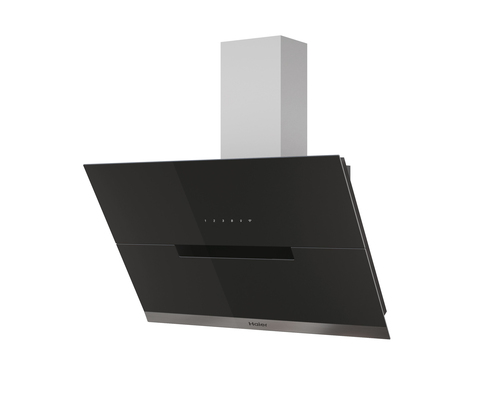

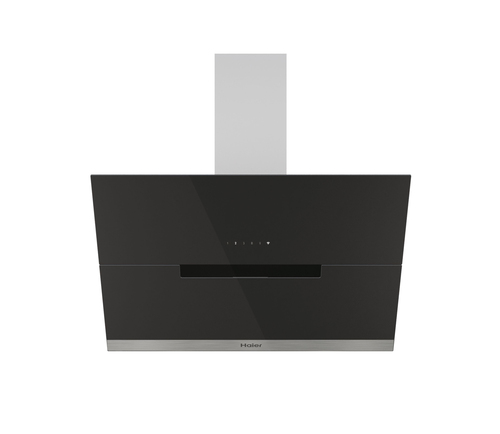

I-Link HADG9DS2XWIFI Wall-mounted Black 789 m³/h
Model HADG9DS2XWIFIPart no. 36901749EAN 8059019046815
48 specifications
- Energy classA++
- Noise71 dB
- TypeWall-mounted
- Weight19.4 kg
- ColourBlack
- Maximum extraction power789 m³/h
Overview
- Energy class
- A++
- Noise
- 71 dB
- Type
- Wall-mounted
- Weight
- 19.4 kg
- Colour
- Black
- Maximum extraction power
- 789 m³/h
- Brand
- Haier
- Category
- Cooker Hood
- Model
- HADG9DS2XWIFI
- Part numbers
- 36901749, TD0039574
- EAN / UPC
- 8059019046815
- Also known as
- Haier I-Link HADG9DS2XWIFI Wall-mounted Black 789 m³/h
Specifications
48 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 789 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | C |
| Grease filtering efficiency class | D |
| Boost position air extraction power | 789 m³/h |
| Number of speeds | 4 |
| Intensive speed | Yes |
| Noise level | 71 dB |
| Noise level (high speed) | 64 dB |
| Noise level (low speed) | 60 dB |
| Noise level (intensive speed) | 70 dB |
| Airflow (low speed) | 437 m³/h |
| Minimum distance from electric hob | 65 cm |
| Minimum distance from gas hob | 72 cm |
Design
| Specification | Value |
|---|---|
| Type | Wall-mounted |
| Product colour | Black |
| Built-in display | Yes |
| Control type | Touch |
| Display type | LED |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Dishwasher proof filter | Yes |
| Removable filter | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Bulb power | 3 W |
| Bulb type | LED |
| Lighting efficiency (LE) | 18.7 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A++ |
| Energy efficiency scale | A+++ to D |
| Connected load | 1000 W |
| Power consumption (standby) | 0.82 W |
| Annual energy consumption | 30.3 kWh |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 230 V |
| Energy efficiency class (legacy scale) | A++ |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 900 mm |
| Depth | 450 mm |
| Height | 1250 mm |
| Height without chimney | 52 cm |
| Weight | 19.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 955 mm |
| Package depth | 605 mm |
| Package height | 520 mm |
| Package weight | 21.9 kg |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 39.8 |
| Grease filtering efficiency (GFE) | 70.5% |
