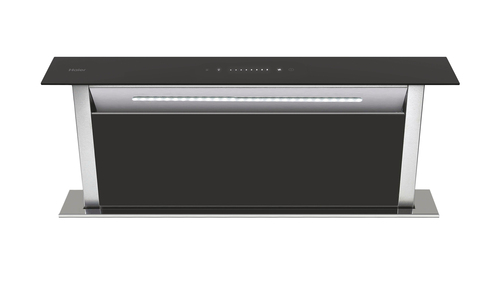

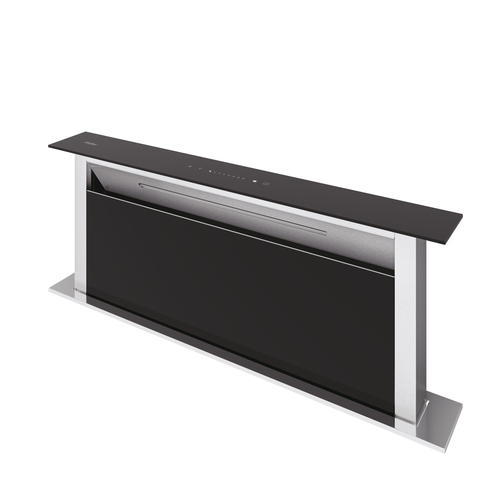

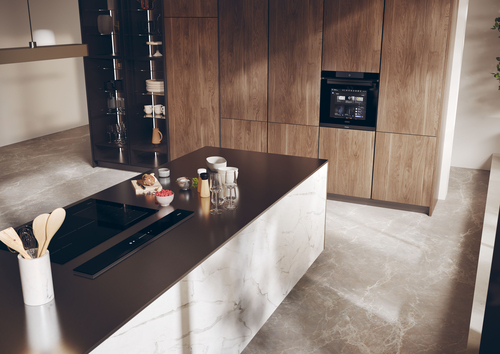

I-Design HADD9SS6B Downdraft Black 605 m³/h
Model HADD9SS6BPart no. 36901697EAN 8059019037226
46 specifications
- Energy classB
- Noise74 dB
- TypeDowndraft
- Weight27.8 kg
- ColourBlack
- Maximum extraction power605 m³/h
Overview
- Energy class
- B
- Noise
- 74 dB
- Type
- Downdraft
- Weight
- 27.8 kg
- Colour
- Black
- Maximum extraction power
- 605 m³/h
- Brand
- Haier
- Category
- Cooker Hood
- Model
- HADD9SS6B
- Part numbers
- 36901697, TD0038360
- EAN / UPC
- 8059019037226
- Also known as
- Haier I-Design HADD9SS6B Downdraft Black 605 m³/h
Specifications
46 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 605 m³/h |
| Type of extraction | Ducted |
| Fluid dynamic efficiency class | B |
| Lighting efficiency class | A |
| Grease filtering efficiency class | F |
| Number of speeds | 4 |
| Intensive speed | No |
| Noise level | 74 dB |
| Noise level (high speed) | 74 dB |
| Noise level (low speed) | 53 dB |
| Airflow (low speed) | 234 m³/h |
Design
| Specification | Value |
|---|---|
| Type | Downdraft |
| Product colour | Black |
| Housing material | Stainless steel |
| Built-in display | Yes |
| Control type | Touch |
| Display type | LED |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
| Motor included | Yes |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Removable filter | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Bulb type | LED |
| Lighting efficiency (LE) | 30.3 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | B |
| Energy efficiency scale | A+++ to D |
| Connected load | 1000 W |
| Power consumption (off) | 0.36 W |
| Annual energy consumption | 50.4 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 220 - 240 V |
| Energy efficiency class (legacy scale) | B |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 880 mm |
| Depth | 115 mm |
| Height | 1053 mm |
| Height (max) | 105.3 cm |
| Height without chimney | 33.5 cm |
| Weight | 27.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 965 mm |
| Package depth | 490 mm |
| Package height | 805 mm |
| Package weight | 34.7 kg |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 28 |
| Grease filtering efficiency (GFE) | 51.8% |
| Country of origin | Italy |
