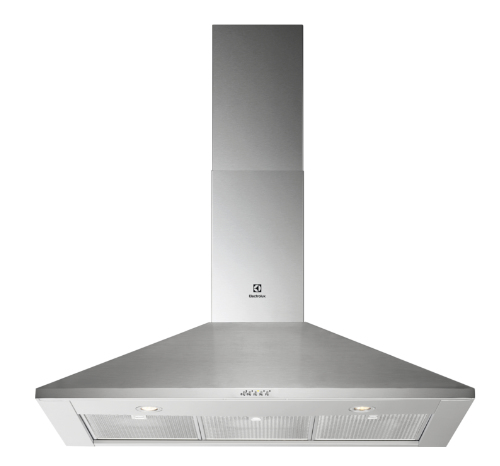

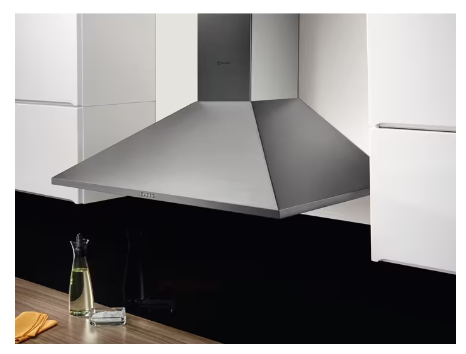

WHL9038CN Built-under Chrome 600 m³/h
Model WHL9038CNPart no. 942 490 756EAN 7332543985777
40 specifications
- Energy classA
- Noise63 dB
- TypeBuilt-under
- Weight11.9 kg
- ColourChrome
- Maximum extraction power600 m³/h
Overview
- Energy class
- A
- Noise
- 63 dB
- Type
- Built-under
- Weight
- 11.9 kg
- Colour
- Chrome
- Maximum extraction power
- 600 m³/h
- Brand
- Electrolux
- Category
- Cooker Hood
- Model
- WHL9038CN
- Part number
- 942 490 756
- EAN / UPC
- 7332543985777
- Also known as
- Electrolux WHL9038CN Built-under Chrome 600 m³/h
Specifications
40 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 600 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| Maximum recirculating power | 430 m³/h |
| Boost position air extraction power | 760 m³/h |
| Boost position output recirculating power | 450 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 63 dB |
| Noise level (high speed) | 63 dB |
| Noise level (low speed) | 47 dB |
| Noise level (medium speed) | 48 dB |
| Noise level (intensive speed) | 66 dB |
| Noise level (recirculation mode) | 77 dB |
| Pressure (Pa) | 560 |
Design
| Specification | Value |
|---|---|
| Type | Built-under |
| Product colour | Chrome |
| Built-in display | No |

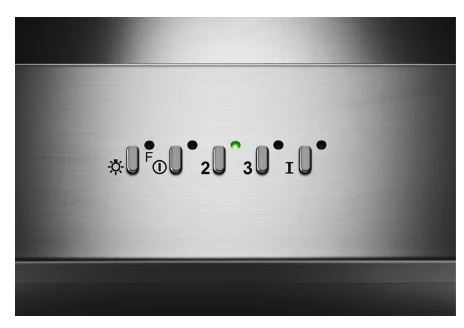

| Control type | Buttons |
| Number of motors | 1 |
| Motor included | Yes |
Filtering
| Specification | Value |
|---|---|

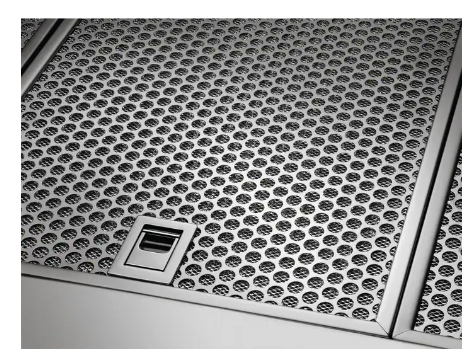

| Grease filter type | Metal |
| Number of filters | 3 pc(s) |
| Removable filter | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Illuminance | 150 lx |
Power
| Specification | Value |
|---|---|
| Energy efficiency scale | A+++ to D |
| Annual energy consumption | 52 kWh |
| AC input voltage | 230 V |
| Energy efficiency class (legacy scale) | A |
| Energy efficiency index (EEI) | 46.6 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 898 mm |
| Depth | 490 mm |
| Height without chimney | 24 cm |
| Weight | 11.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 16 kg |
