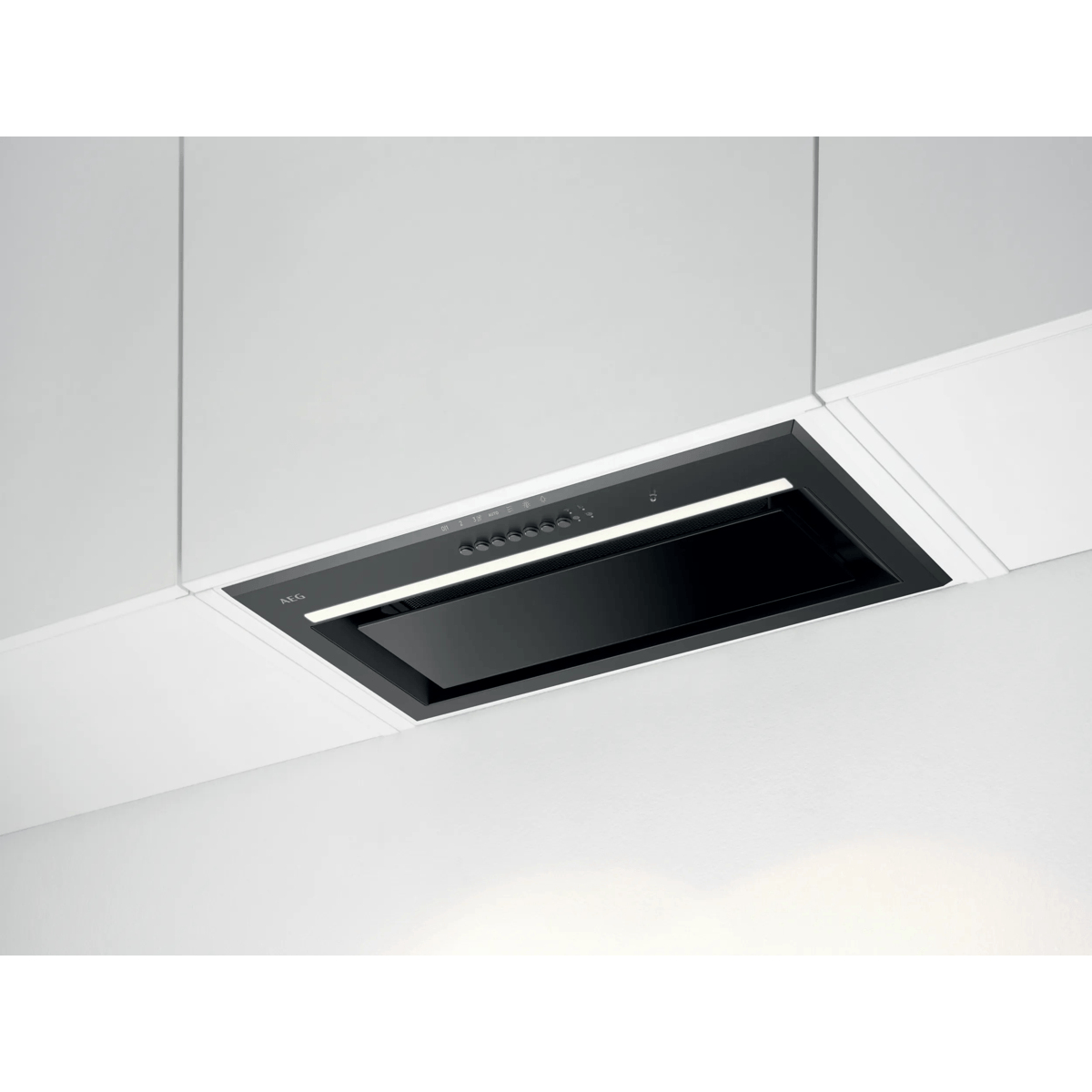

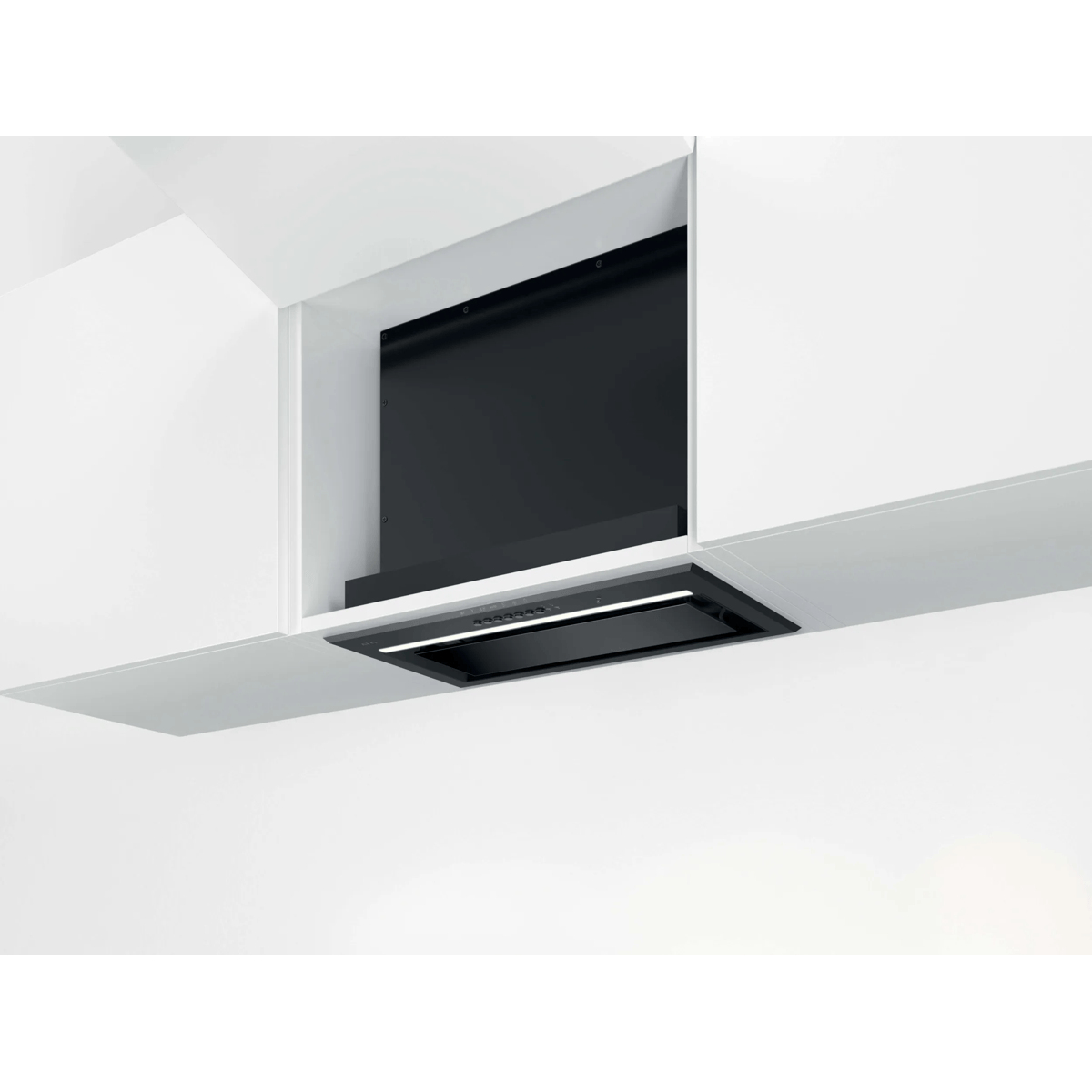

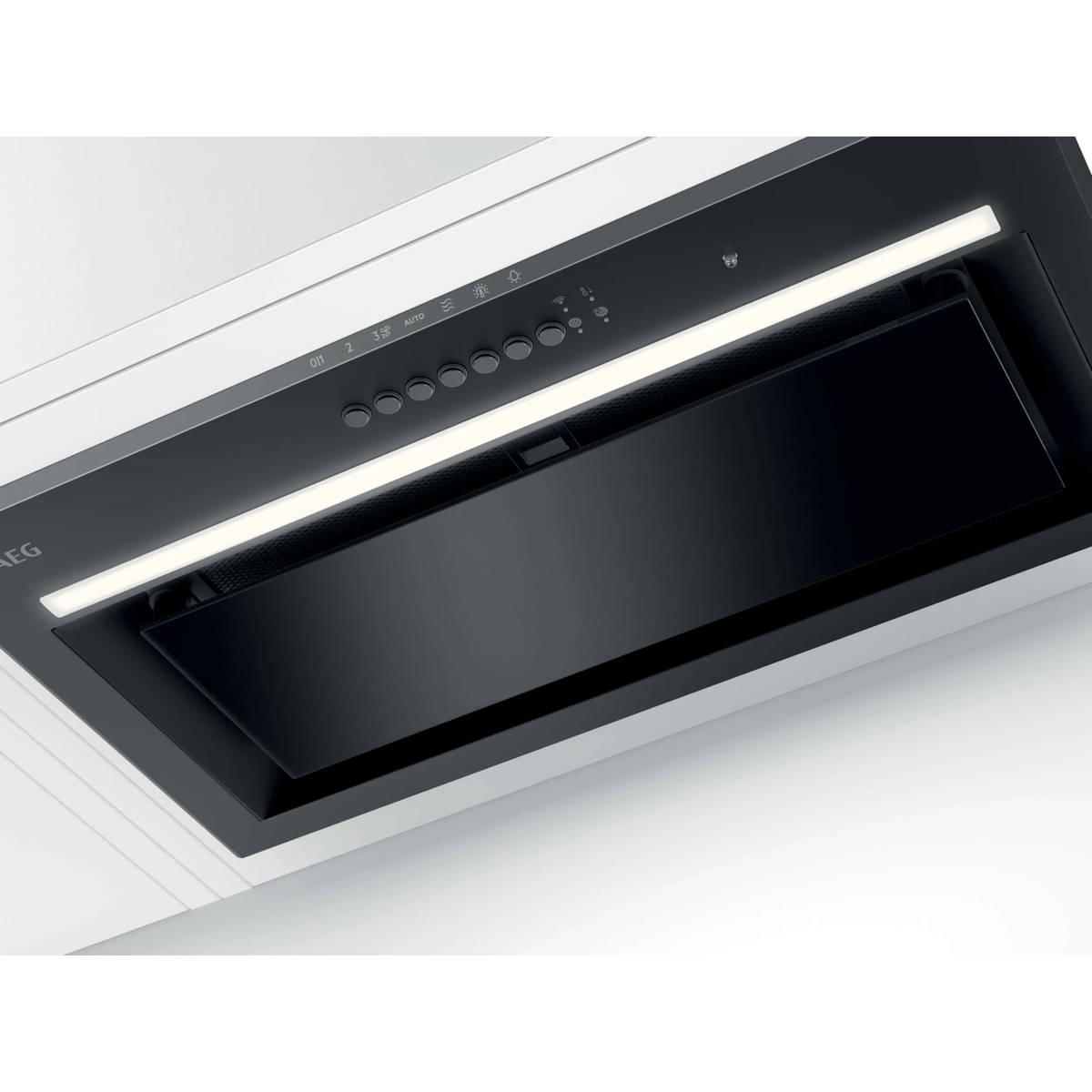

NDG966AB Built-in Black 400 m³/h
Model NDG966ABPart no. 942 022 729EAN 7333394018553
63 specifications
- Energy classA++
- Noise54 dB
- TypeBuilt-in
- Weight11.8 kg
- ColourBlack
- Maximum extraction power400 m³/h
Overview
- Energy class
- A++
- Noise
- 54 dB
- Type
- Built-in
- Weight
- 11.8 kg
- Colour
- Black
- Maximum extraction power
- 400 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- NDG966AB
- Part number
- 942 022 729
- EAN / UPC
- 7333394018553
- Also known as
- AEG NDG966AB Built-in Black 400 m³/h
Specifications
63 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 400 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| Maximum recirculating power | 280 m³/h |
| Boost position air extraction power | 680 m³/h |
| Boost position output recirculating power | 385 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 54 dB |
| Noise level (high speed) | 54 dB |
| Noise level (low speed) | 40 dB |
| Noise level (medium speed) | 54 dB |
| Noise level (intensive speed) | 66 dB |
| Noise level (recirculation mode) | 67 dB |
| Airflow (low speed) | 200 m³/h |
| Pressure (Pa) | 560 |
| Minimum distance from electric hob | 50 cm |
| Minimum distance from gas hob | 65 cm |
Design
| Specification | Value |
|---|---|
| Type | Built-in |
| Colour name | Nero |
| Product colour | Black |
| Hob²Hood function | Yes |
| Breeze function | Yes |
| Built-in display | No |

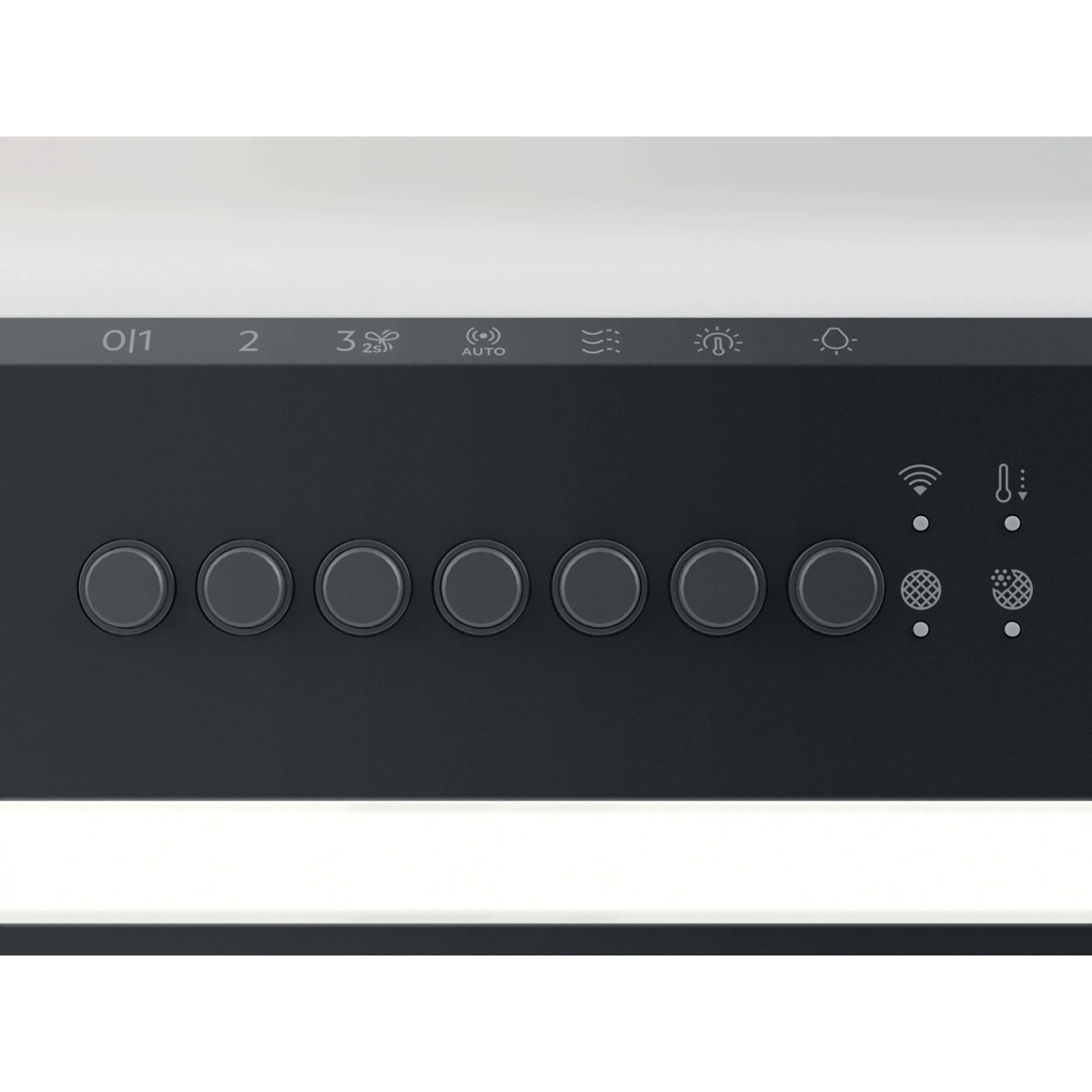

| Control type | Buttons |
| Cord length | 1.4 m |
| Exhaust location | Top |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
Filtering
| Specification | Value |
|---|---|

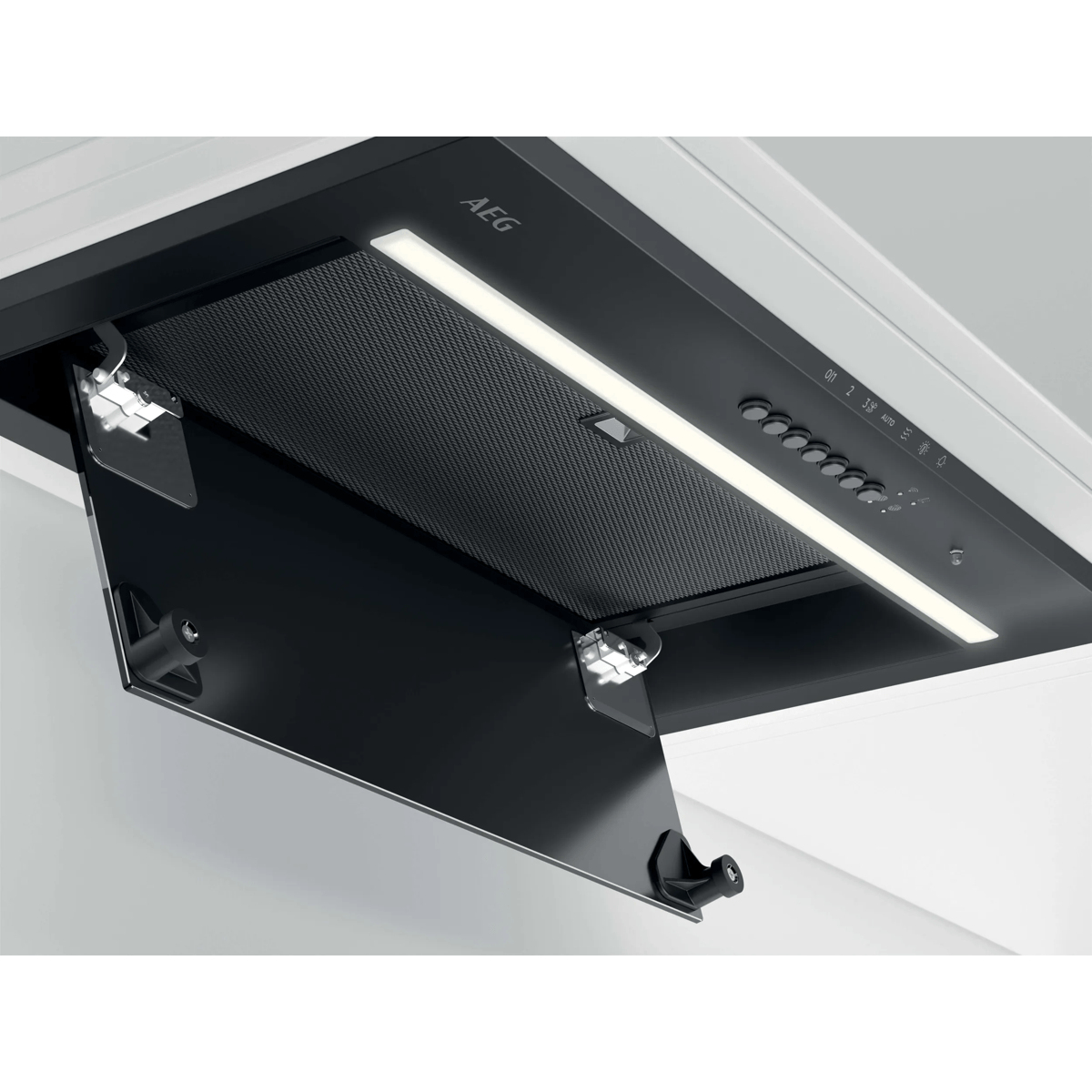

| Grease filter type | Aluminium |
| Number of filters | 1 pc(s) |
| Filter cleaning indicator | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 1 bulb(s) |
| Bulb type | LED |
| Colour temperature | 5000 K |
| Dimmable lighting | Yes |
| Lighting efficiency (LE) | 63.8 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A++ |
| Energy efficiency scale | A+++ to D |
| Motor power | 180 W |
| Power consumption (off) | 0.49 W |
| Annual energy consumption | 26.1 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 220-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 542 mm |
| Depth | 300 mm |
| Height | 436 mm |
| Height (max) | 43.6 cm |
| Height without chimney | 43.6 cm |
| Weight | 11.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 735 mm |
| Package depth | 535 mm |
| Package height | 420 mm |
| Package weight | 15.6 kg |
Brand-specific features
| Specification | Value |
|---|---|
| AEG technologies (air extraction) | Breeze Function, Hob2Hood, SilenceTech, Washable Grease Filter |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 40.3 |
| Grease filtering efficiency (GFE) | 85.1% |
| Measured air pressure at best efficiency point | 459 Pa |
| Country of origin | Poland |
| Filter | MCFB84ST | ECFB85PL |
