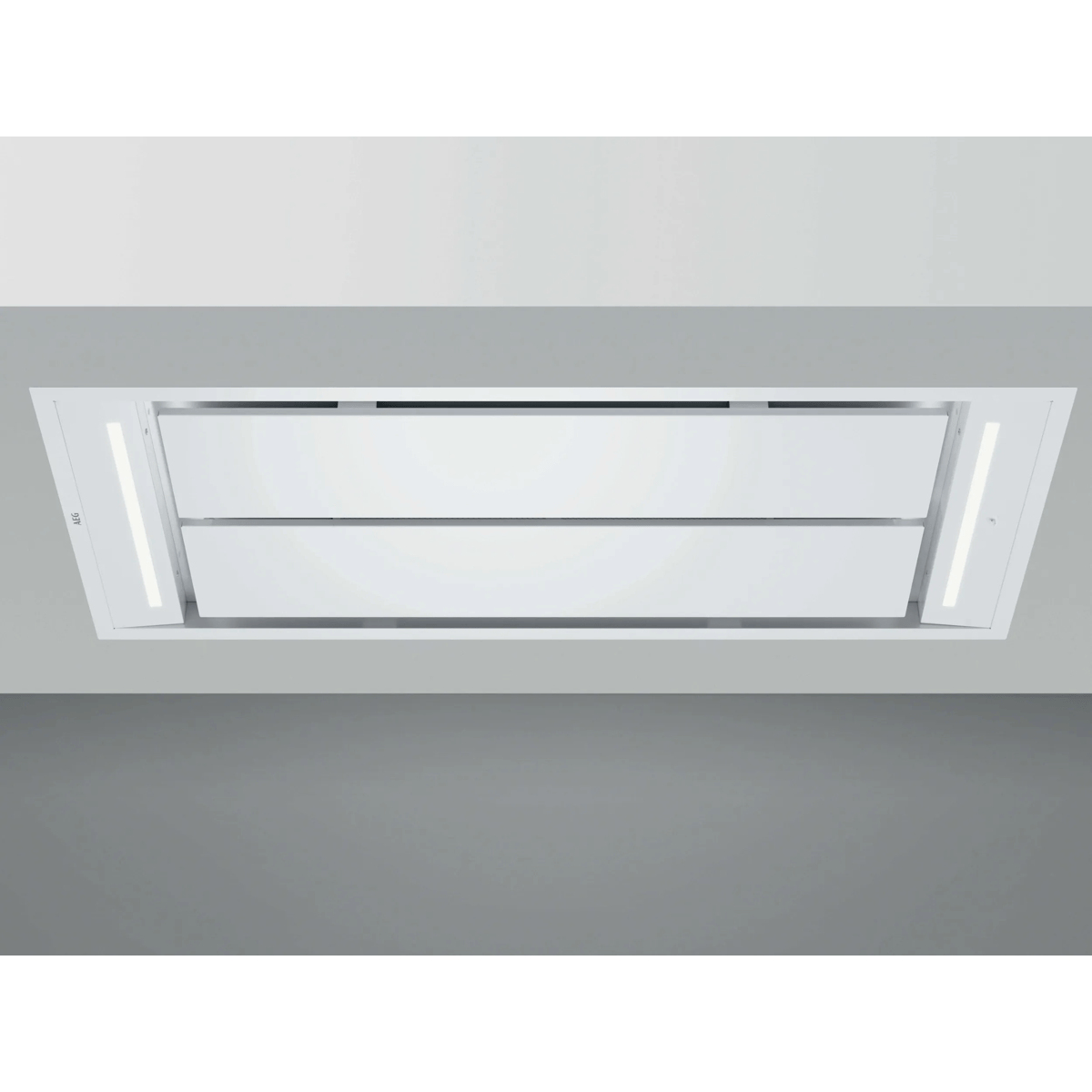

NDC7722SW Ceiling built-in White 610 m³/h
Model NDC7722SWPart no. 942 051 541EAN 7333394070353
61 specifications
- Energy classA+
- Noise71 dB
- TypeCeiling built-in
- Weight23.5 kg
- ColourWhite
- Maximum extraction power610 m³/h
Overview
- Energy class
- A+
- Noise
- 71 dB
- Type
- Ceiling built-in
- Weight
- 23.5 kg
- Colour
- White
- Maximum extraction power
- 610 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- NDC7722SW
- Part number
- 942 051 541
- EAN / UPC
- 7333394070353
- Also known as
- AEG NDC7722SW Ceiling built-in White 610 m³/h
Specifications
61 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 610 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | D |
| Maximum recirculating power | 580 m³/h |
| Boost position air extraction power | 730 m³/h |
| Boost position output recirculating power | 680 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 71 dB |
| Noise level (high speed) | 71 dB |
| Noise level (low speed) | 57 dB |
| Noise level (medium speed) | 71 dB |
| Noise level (intensive speed) | 75 dB |
| Noise level (recirculation mode) | 73 dB |
| Airflow (low speed) | 330 m³/h |
| Pressure (Pa) | 540 |
| Minimum distance from electric hob | 80 cm |
| Minimum distance from gas hob | 80 cm |
Design
| Specification | Value |
|---|---|
| Type | Ceiling built-in |
| Colour name | Bianco |
| Product colour | White |
| Hob²Hood function | Yes |
| Breeze function | Yes |
| Built-in display | No |
| Control type | Remote |
| Cord length | 1.1 m |
| Exhaust location | Top |
| Number of motors | 1 |
| Motor type | Silentech |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 3 pc(s) |
| Filter cleaning indicator | Yes |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Colour temperature | 5000 K |
| Lighting efficiency (LE) | 30.2 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A+ |
| Energy efficiency scale | A+++ to D |
| Motor power | 210 W |
| Power consumption (off) | 0.49 W |
| Power consumption (standby) | 0.49 W |
| Annual energy consumption | 34.8 kWh |
| AC input frequency | 50 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1200 mm |
| Depth | 500 mm |
| Height | 211 mm |
| Height (max) | 21.1 cm |
| Height without chimney | 10.1 cm |
| Weight | 23.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1320 mm |
| Package depth | 610 mm |
| Package height | 450 mm |
| Package weight | 33.3 kg |
Brand-specific features
| Specification | Value |
|---|---|
| AEG technologies (air extraction) | Breeze Function, Hob2Hood, SilenceTech |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 38.1 |
| Grease filtering efficiency (GFE) | 65.1% |
| Measured air pressure at best efficiency point | 484 Pa |
| Country of origin | Italy |
| Filter | - | MCFB95 |
