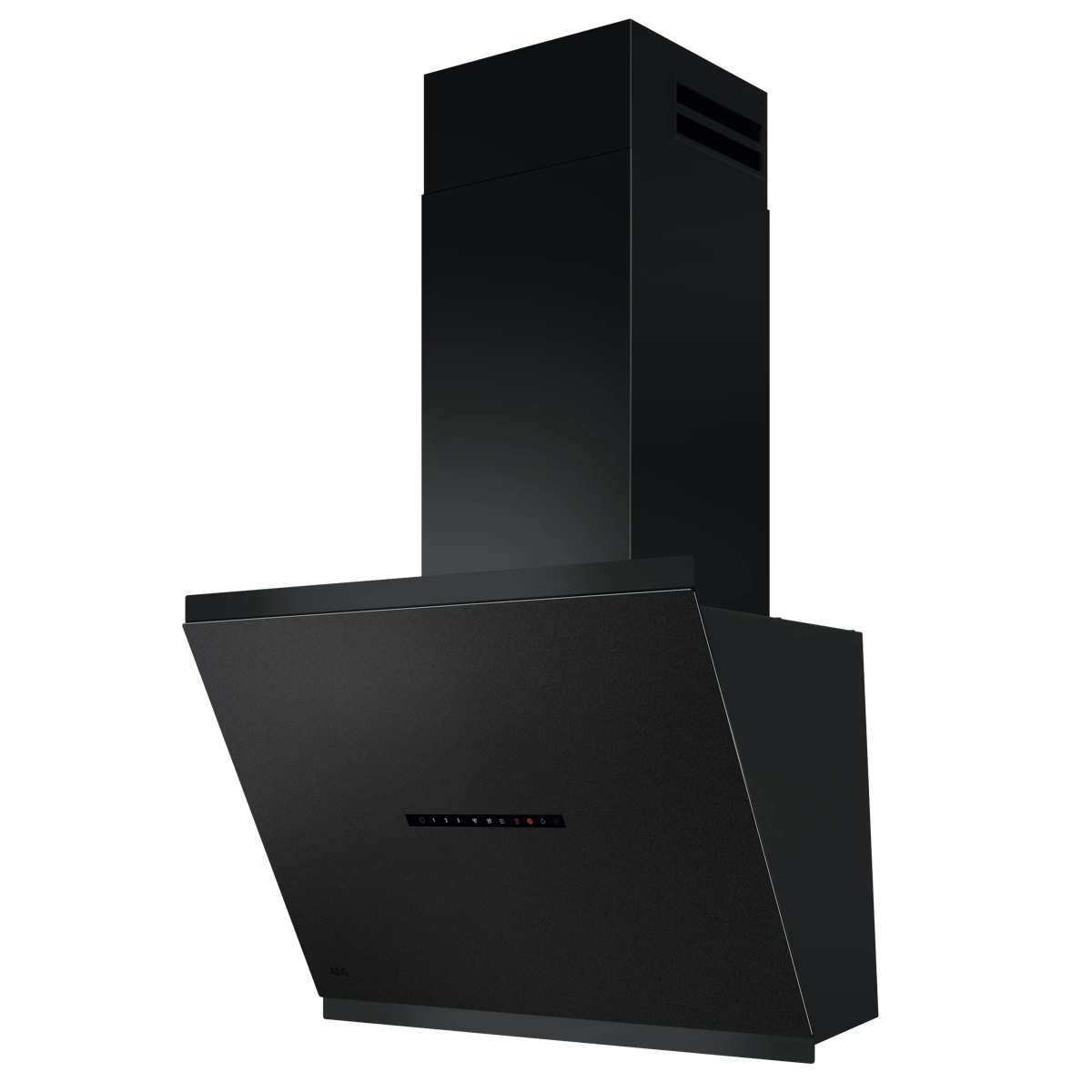

GV77D61SZ Wall-mounted Black 445 m³/h
Model GV77D61SZPart no. 942 051 586EAN 7333394131948
60 specifications
- Energy classA+
- Noise55 dB
- TypeWall-mounted
- Weight16.2 kg
- ColourBlack
- Maximum extraction power445 m³/h
Overview
- Energy class
- A+
- Noise
- 55 dB
- Type
- Wall-mounted
- Weight
- 16.2 kg
- Colour
- Black
- Maximum extraction power
- 445 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- GV77D61SZ
- Part number
- 942 051 586
- EAN / UPC
- 7333394131948
- Also known as
- AEG GV77D61SZ Wall-mounted Black 445 m³/h
Specifications
60 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 445 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| Maximum recirculating power | 440 m³/h |
| Boost position air extraction power | 760 m³/h |
| Boost position output recirculating power | 725 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 55 dB |
| Noise level (high speed) | 55 dB |
| Noise level (low speed) | 43 dB |
| Noise level (medium speed) | 55 dB |
| Noise level (intensive speed) | 67 dB |
| Noise level (recirculation mode) | 71 dB |
| Airflow (low speed) | 260 m³/h |
| Pressure (Pa) | 590 |
| Minimum distance from electric hob | 50 cm |
| Minimum distance from gas hob | 65 cm |
Design
| Specification | Value |
|---|---|
| Type | Wall-mounted |
| Colour name | Nero Matt |
| Product colour | Black |
| Hob²Hood function | Yes |
| Breeze function | Yes |
| Built-in display | No |

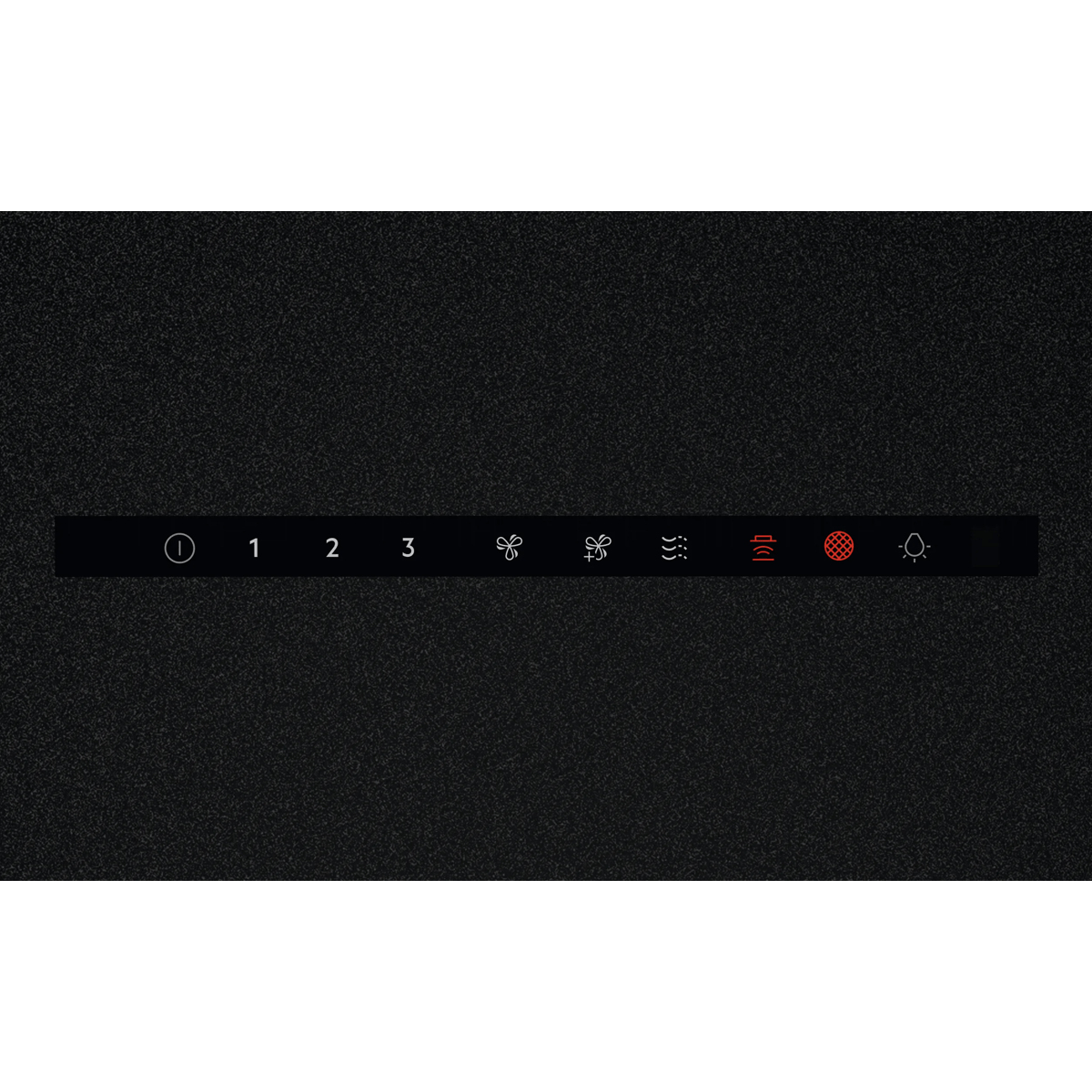

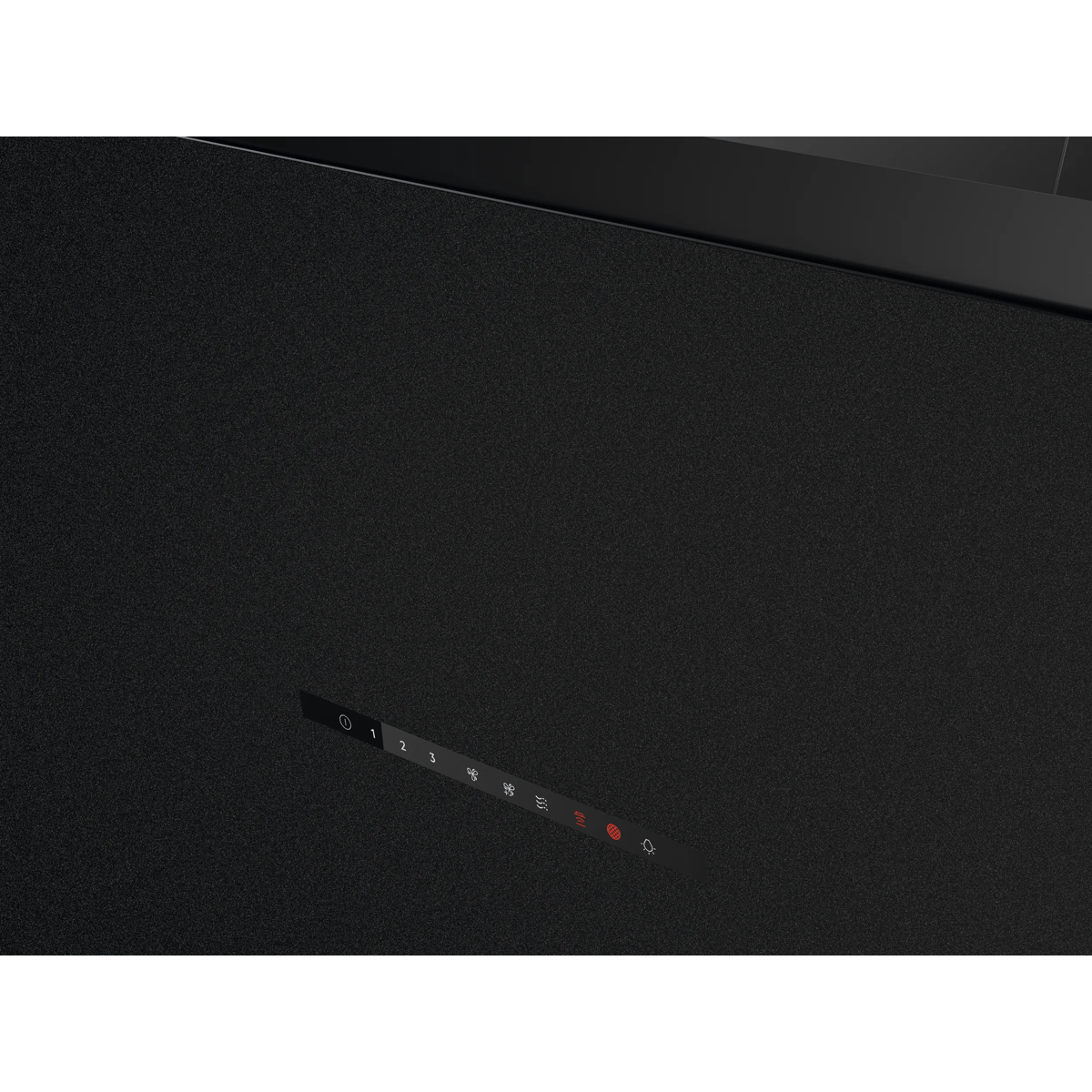

| Control type | Touch |
| Cord length | 1.1 m |
| Exhaust connection diameter | 15 cm |
| Check valve | Yes |
| Motor type | Silentech |
Filtering
| Specification | Value |
|---|---|

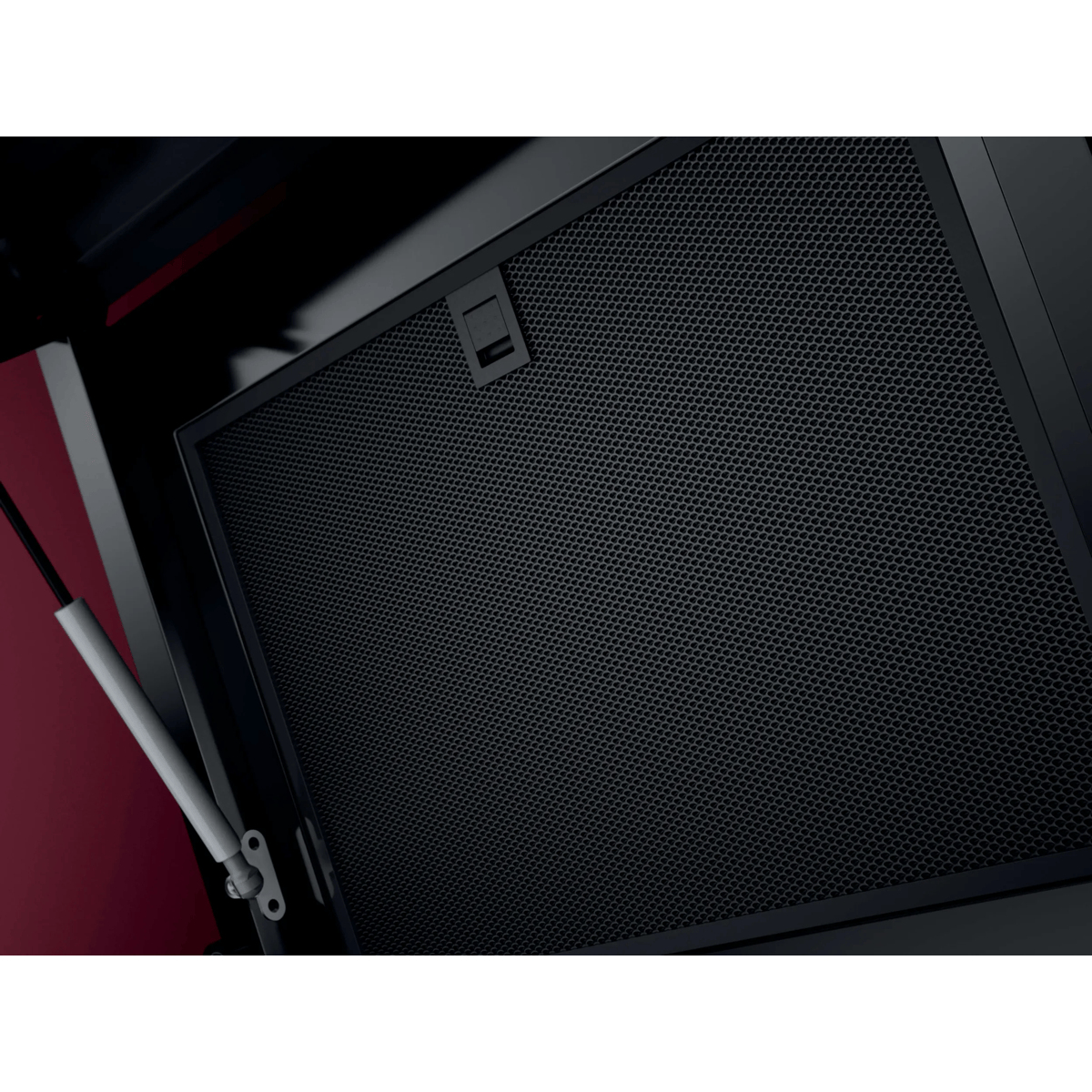

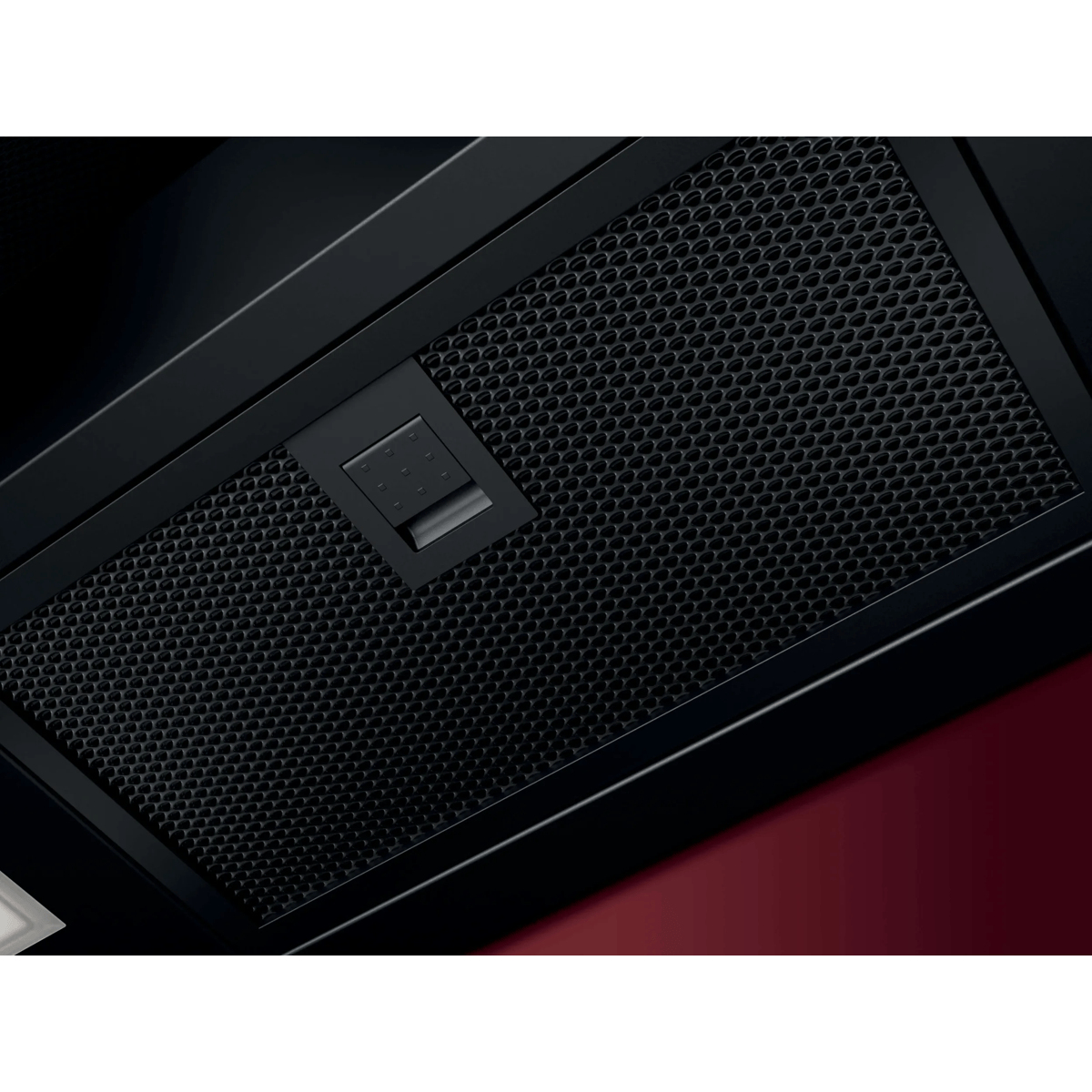

| Grease filter type | Aluminium |
| Number of filters | 2 pc(s) |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Colour temperature | 3000 K |
| Lighting efficiency (LE) | 42.8 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A+ |
| Energy efficiency scale | A+++ to D |
| Motor power | 260 W |
| Power consumption (off) | 0.49 W |
| Annual energy consumption | 40.7 kWh |
| AC input frequency | 50 Hz |

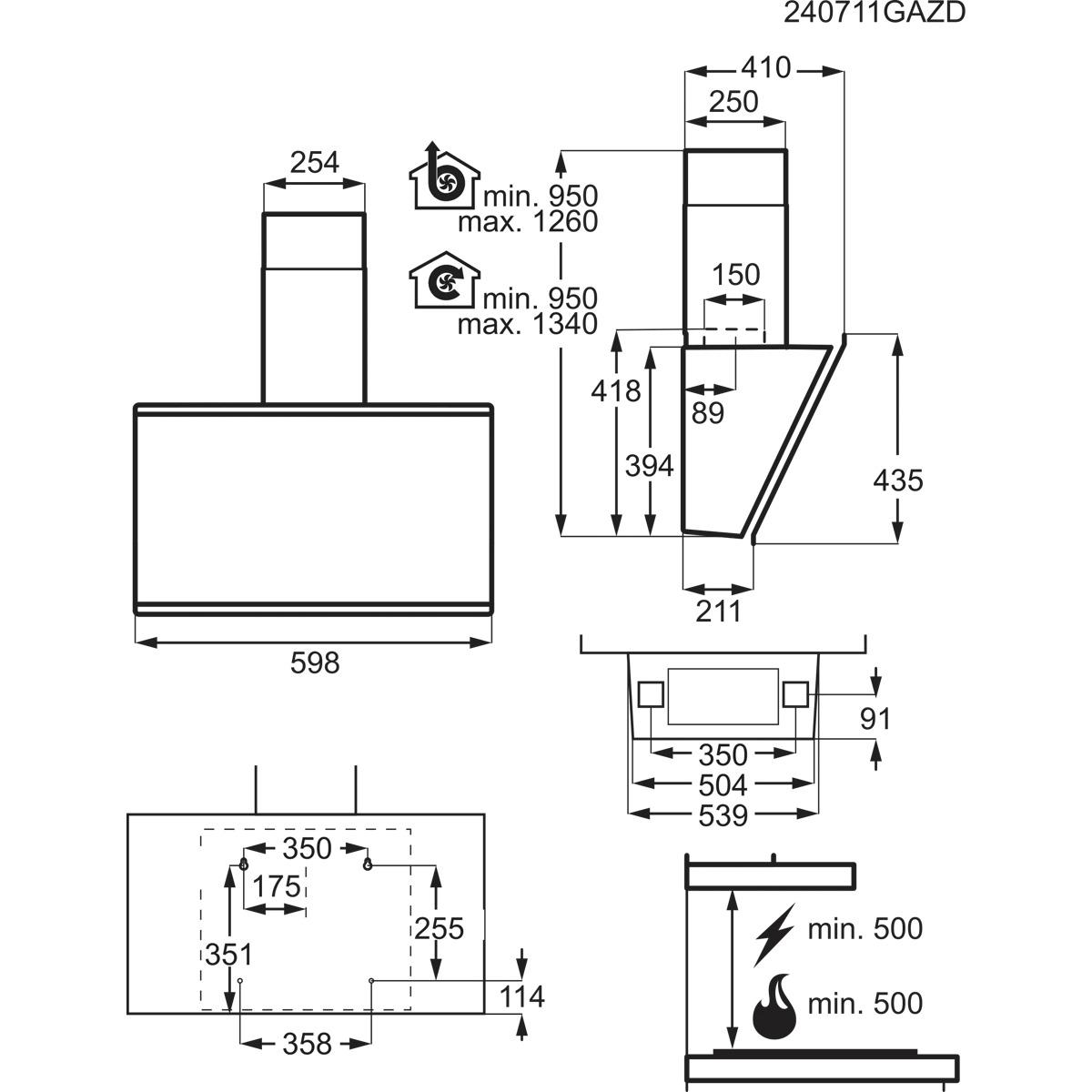

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 598 mm |
| Depth | 410 mm |
| Height | 1260 mm |
| Height (min) | 95 cm |
| Height (max) | 126 cm |
| Height without chimney | 39.4 cm |
| Weight | 16.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 722 mm |
| Package depth | 522 mm |
| Package height | 532 mm |
| Package weight | 21.3 kg |
Brand-specific features
| Specification | Value |
|---|---|
| AEG technologies (air extraction) | Breeze Function, SilenceTech, Hob2Hood |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 34.8 |
| Grease filtering efficiency (GFE) | 85.1% |
| Measured air pressure at best efficiency point | 466 Pa |
| Country of origin | Italy |
| Filter | MCFB91 | MCFB92 |
