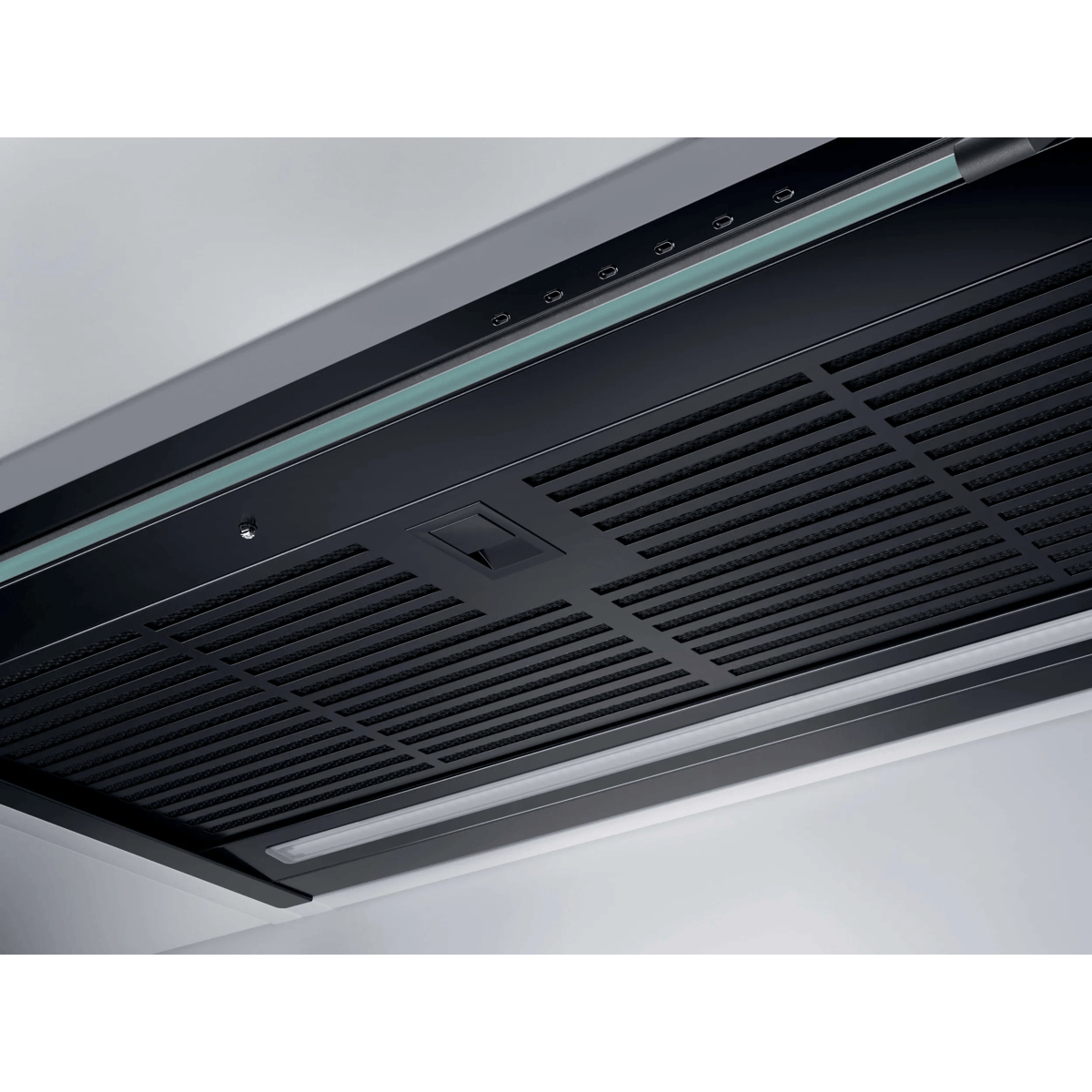

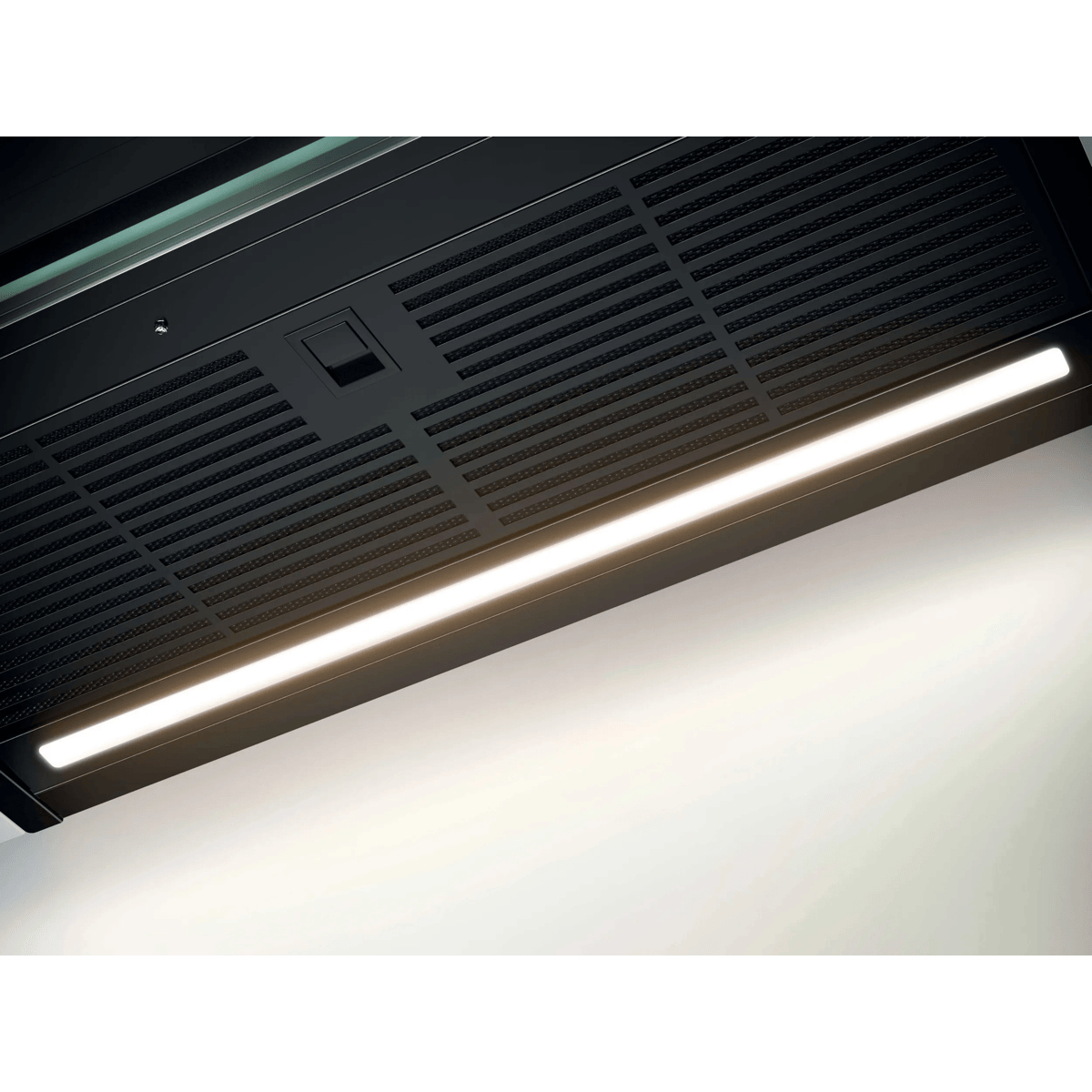

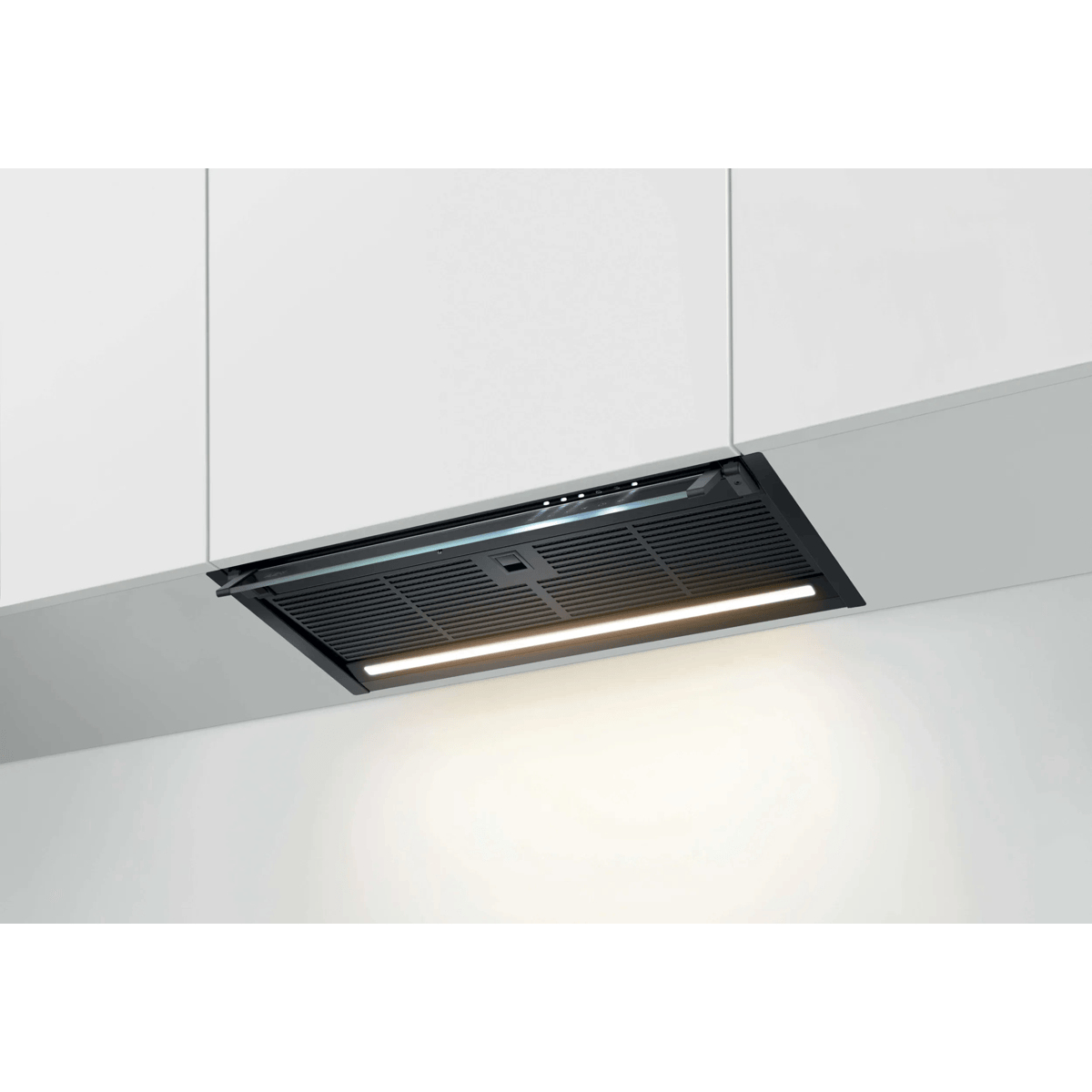

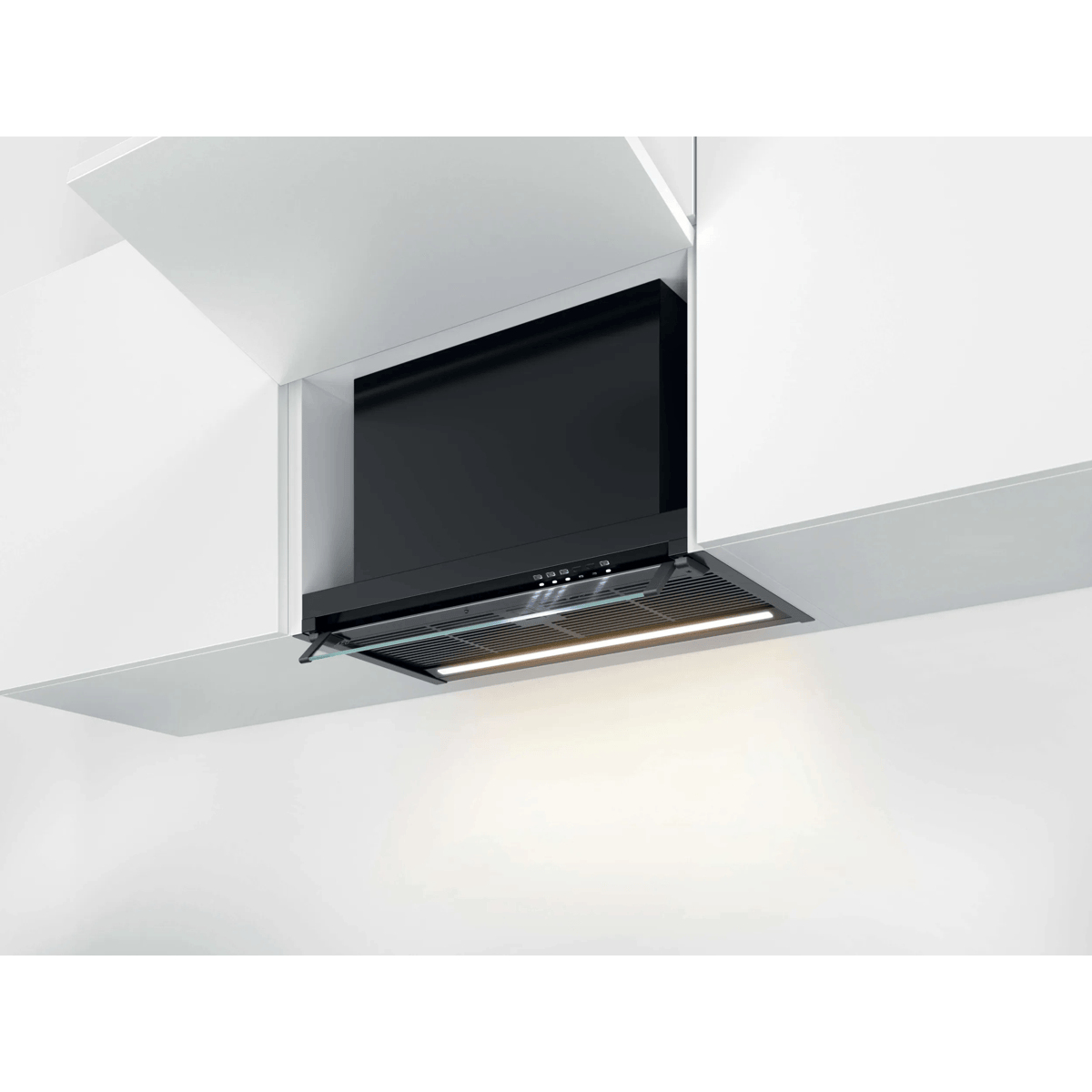

GDE686HB Built-in Black 445 m³/h
Model GDE686HBPart no. 942 022 866EAN 7333394121826
62 specifications
- Energy classA
- Noise57 dB
- TypeBuilt-in
- Weight10.5 kg
- ColourBlack
- Maximum extraction power445 m³/h
Overview
- Energy class
- A
- Noise
- 57 dB
- Type
- Built-in
- Weight
- 10.5 kg
- Colour
- Black
- Maximum extraction power
- 445 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- GDE686HB
- Part numbers
- 942 022 866, 942 051 483
- EAN / UPC
- 7333394121826, 7333394019734
- Also known as
- AEG GDE686HB Built-in Black 445 m³/h
Specifications
62 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 445 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| Maximum recirculating power | 440 m³/h |
| Boost position air extraction power | 750 m³/h |
| Boost position output recirculating power | 590 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 57 dB |
| Noise level (high speed) | 57 dB |
| Noise level (low speed) | 45 dB |
| Noise level (medium speed) | 57 dB |
| Noise level (intensive speed) | 70 dB |
| Noise level (recirculation mode) | 69 dB |
| Airflow (low speed) | 260 m³/h |
| Pressure (Pa) | 580 |
| Minimum distance from electric hob | 50 cm |
| Minimum distance from gas hob | 65 cm |
Design
| Specification | Value |
|---|---|
| Type | Built-in |
| Colour name | Nero |
| Product colour | Black |
| Hob²Hood function | Yes |
| Breeze function | No |
| Built-in display | No |
| Control type | Touch |
| Cord length | 1.4 m |
| Exhaust location | Top |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Charcoal |
| Number of filters | 1 pc(s) |
| Filter cleaning indicator | Yes |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 1 bulb(s) |
| Bulb type | LED |
| Colour temperature | 3000 K |
| Lighting efficiency (LE) | 37.6 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Energy efficiency scale | A+++ to D |
| Motor power | 270 W |
| Power consumption (off) | 0.49 W |
| Annual energy consumption | 45 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 230 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 308 mm |
| Height | 330 mm |
| Height (max) | 33 cm |
| Height without chimney | 33 cm |
| Weight | 10.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1020 mm |
| Package depth | 480 mm |
| Package height | 395 mm |
| Package weight | 14.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| AEG technologies (air extraction) | Hob2Hood, Washable Grease Filter |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 32.7 |
| Grease filtering efficiency (GFE) | 85.1% |
| Measured air pressure at best efficiency point | 460 Pa |
| Country of origin | Poland |
| Filter | - | MCFB86PL |
