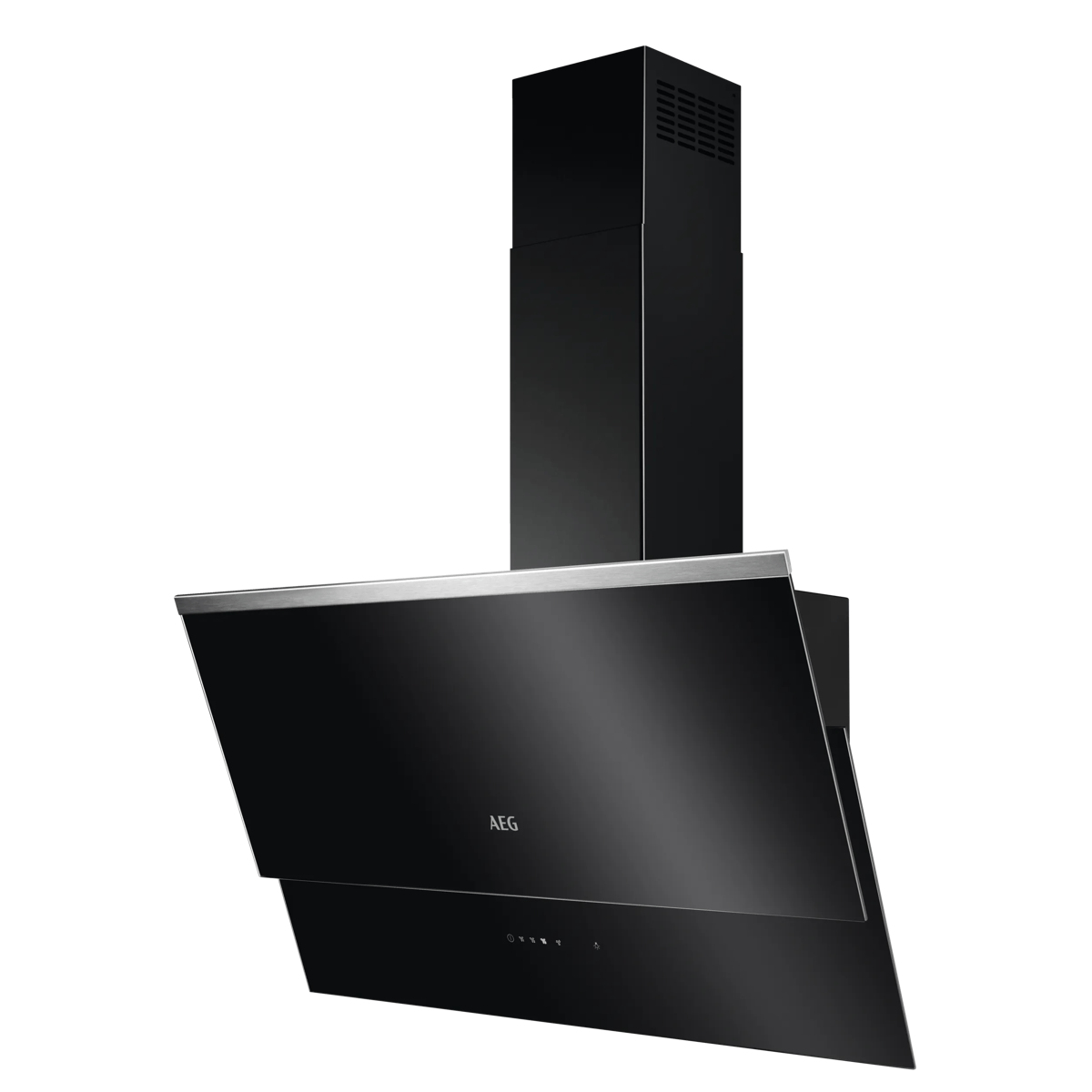

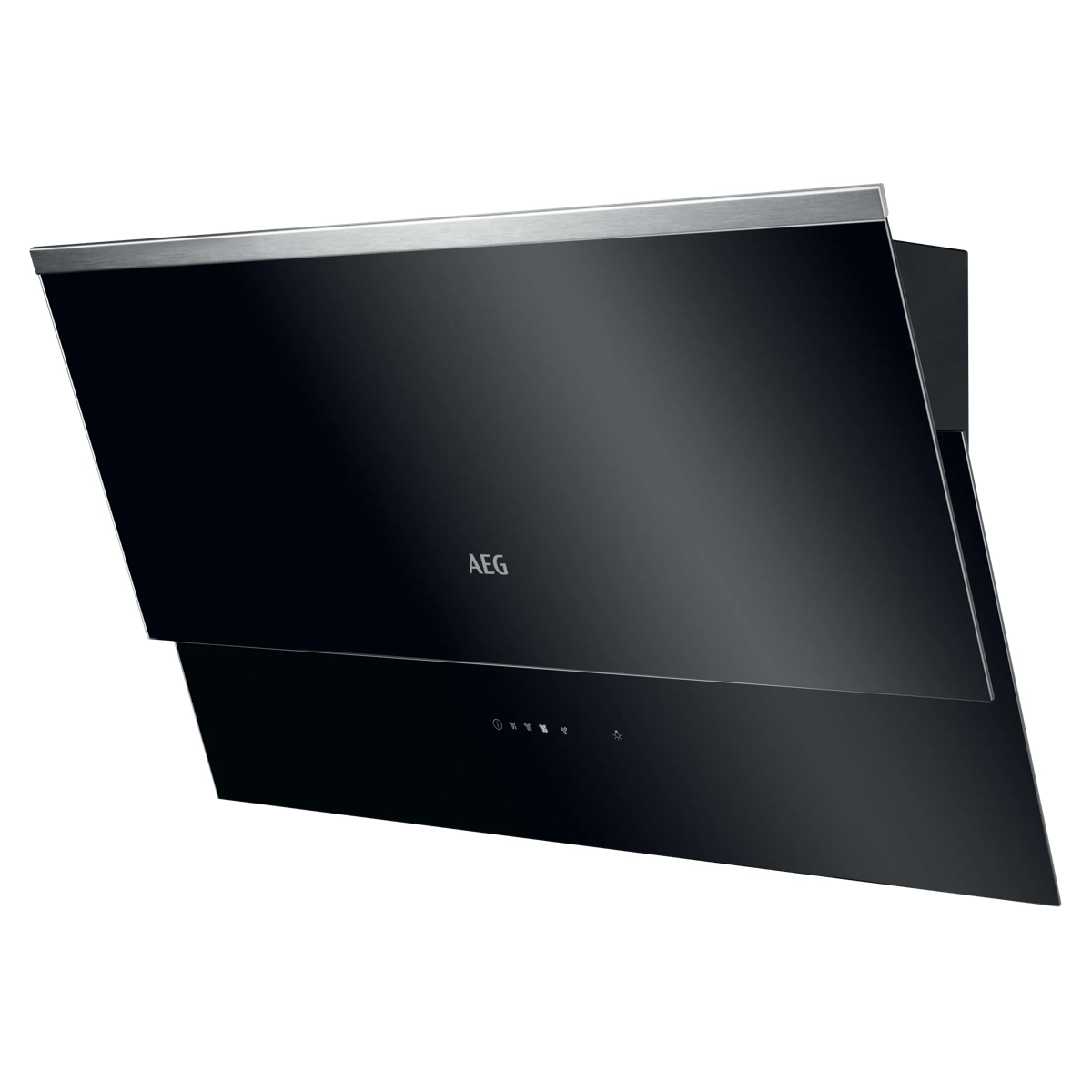

DVB5860B Black 570 m³/h
Model DVB5860BPart no. 942 051 360EAN 7332543718047
59 specifications
- Energy classA
- Noise66 dB
- Weight17.7 kg
- ColourBlack
- Maximum extraction power570 m³/h
- Colour nameNero
Overview
- Energy class
- A
- Noise
- 66 dB
- Weight
- 17.7 kg
- Colour
- Black
- Maximum extraction power
- 570 m³/h
- Colour name
- Nero
- Brand
- AEG
- Category
- Cooker Hood
- Model
- DVB5860B
- Part number
- 942 051 360
- EAN / UPC
- 7332543718047, 7332543731145
- Also known as
- AEG DVB5860B Black 570 m³/h
Specifications
59 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 570 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | E |
| Maximum recirculating power | 350 m³/h |
| Boost position air extraction power | 700 m³/h |
| Boost position output recirculating power | 360 m³/h |
| Number of speeds | 3 |
| Intensive speed | Yes |
| Noise level | 66 dB |
| Noise level (high speed) | 66 dB |
| Noise level (low speed) | 52 dB |
| Noise level (medium speed) | 66 dB |
| Noise level (intensive speed) | 70 dB |
| Noise level (recirculation mode) | 73 dB |
| Airflow (low speed) | 280 m³/h |
| Pressure (Pa) | 555 |
| Minimum distance from electric hob | 50 cm |
| Minimum distance from gas hob | 60 cm |
Design
| Specification | Value |
|---|---|
| Colour name | Nero |
| Product colour | Black |
| Hob²Hood function | No |
| Breeze function | No |

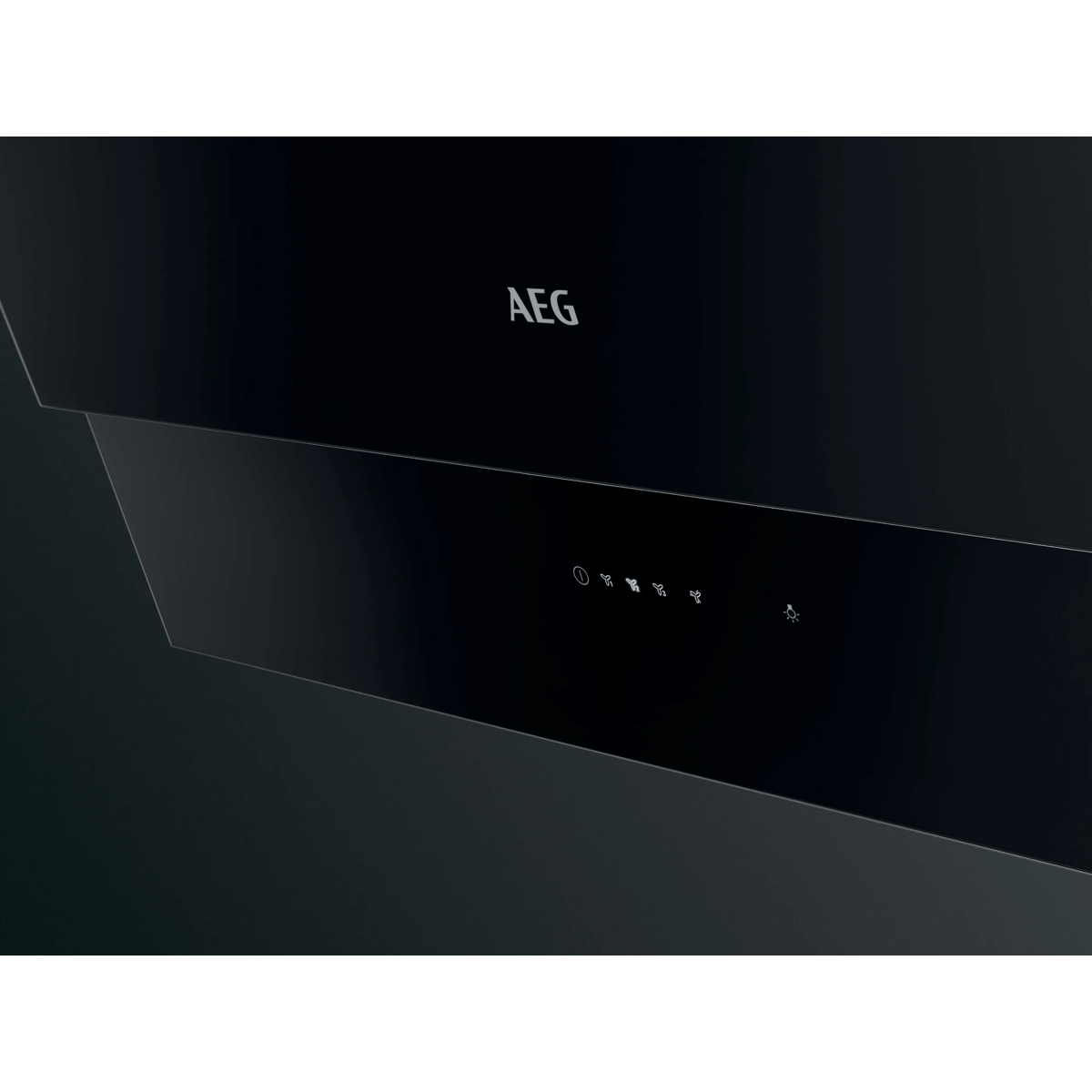

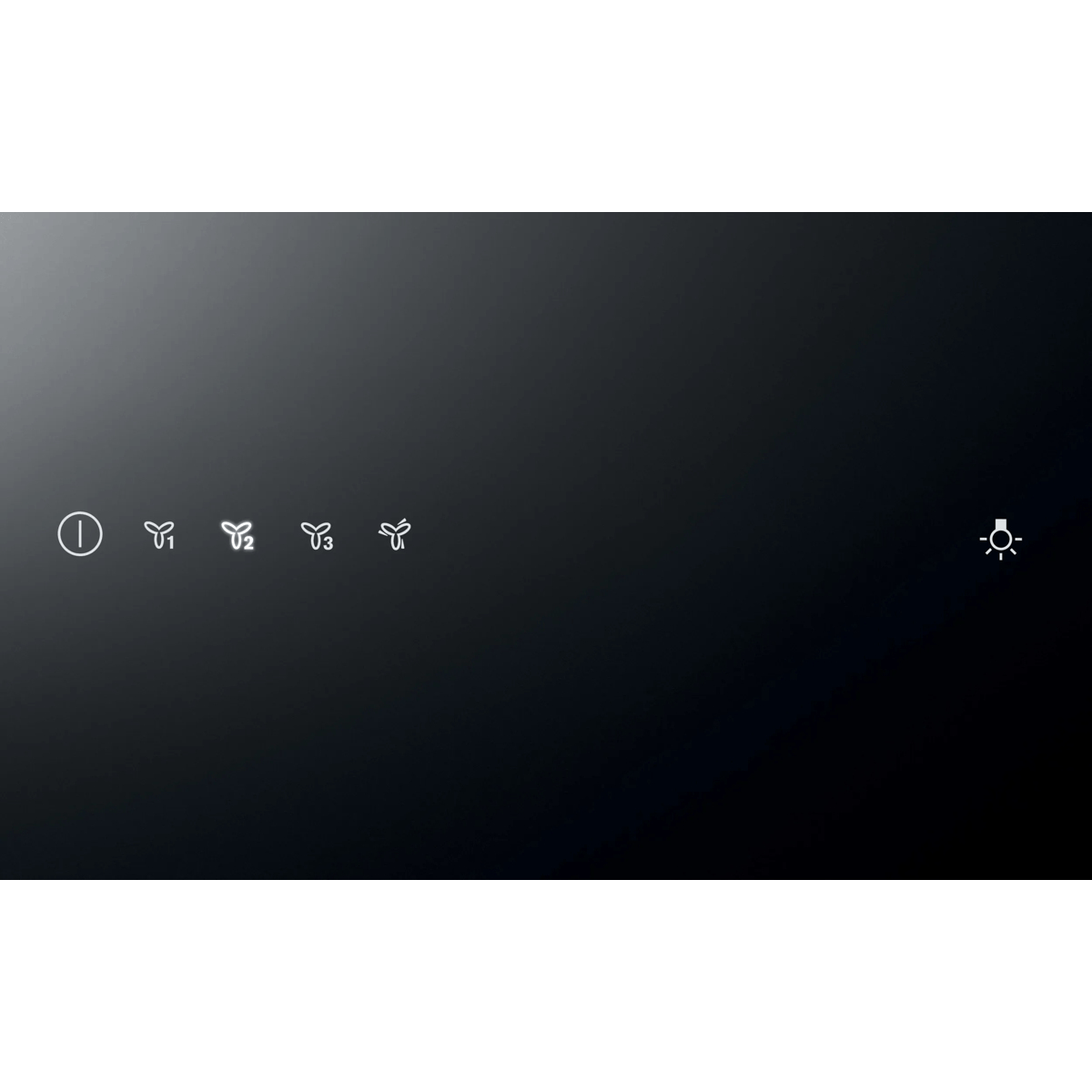

| Control type | Touch |
| Cord length | 1.1 m |
| Exhaust connection diameter | 15 cm |

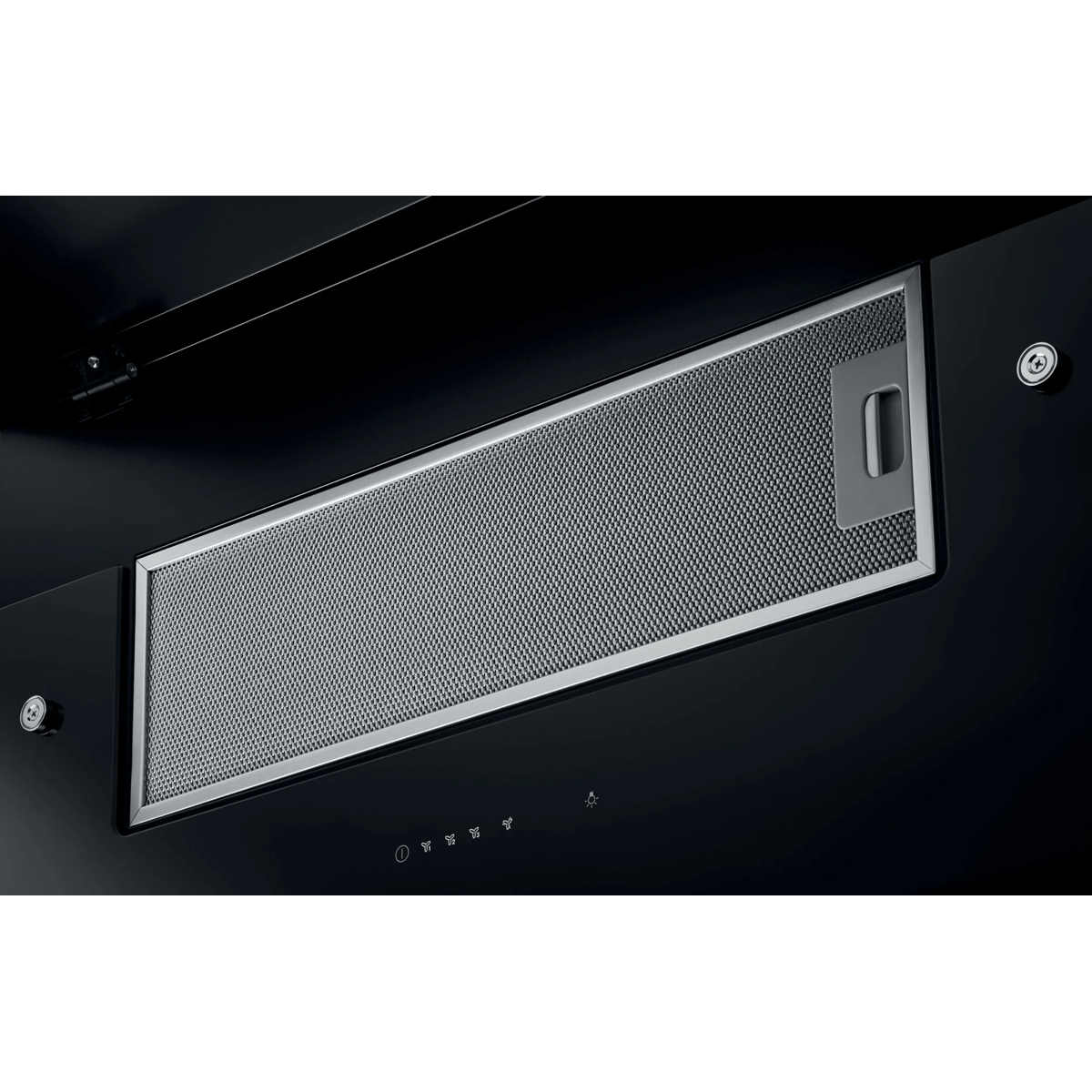

Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 1 pc(s) |
| Removable filter | Yes |
| Washable filter | Yes |

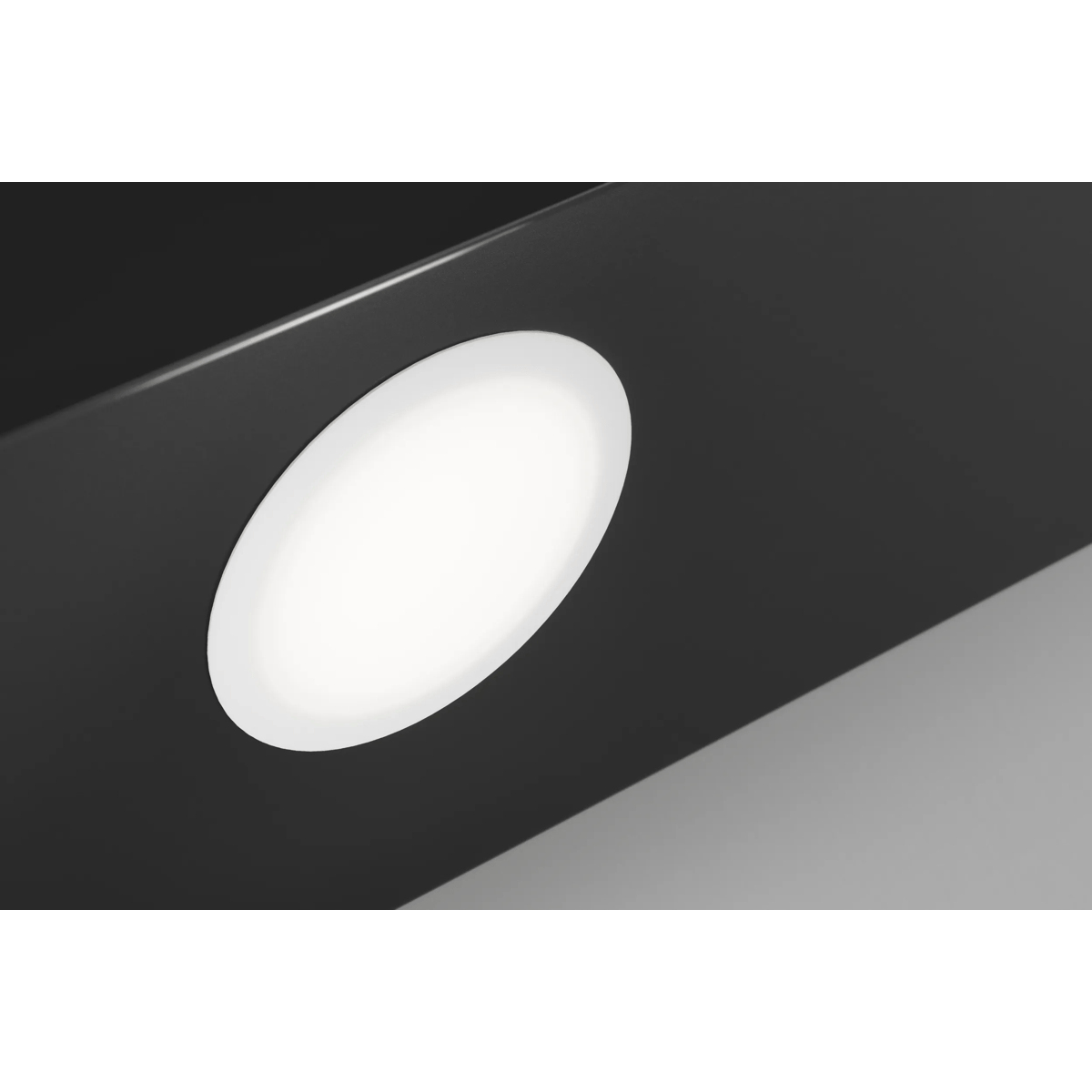

Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Colour temperature | 3000 K |
| Lighting efficiency (LE) | 43.8 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Energy efficiency scale | A+++ to D |
| Motor power | 250 W |
| Power consumption (off) | 0.49 W |
| Annual energy consumption | 53.3 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 220-240 V |
| Energy efficiency class (legacy scale) | A |

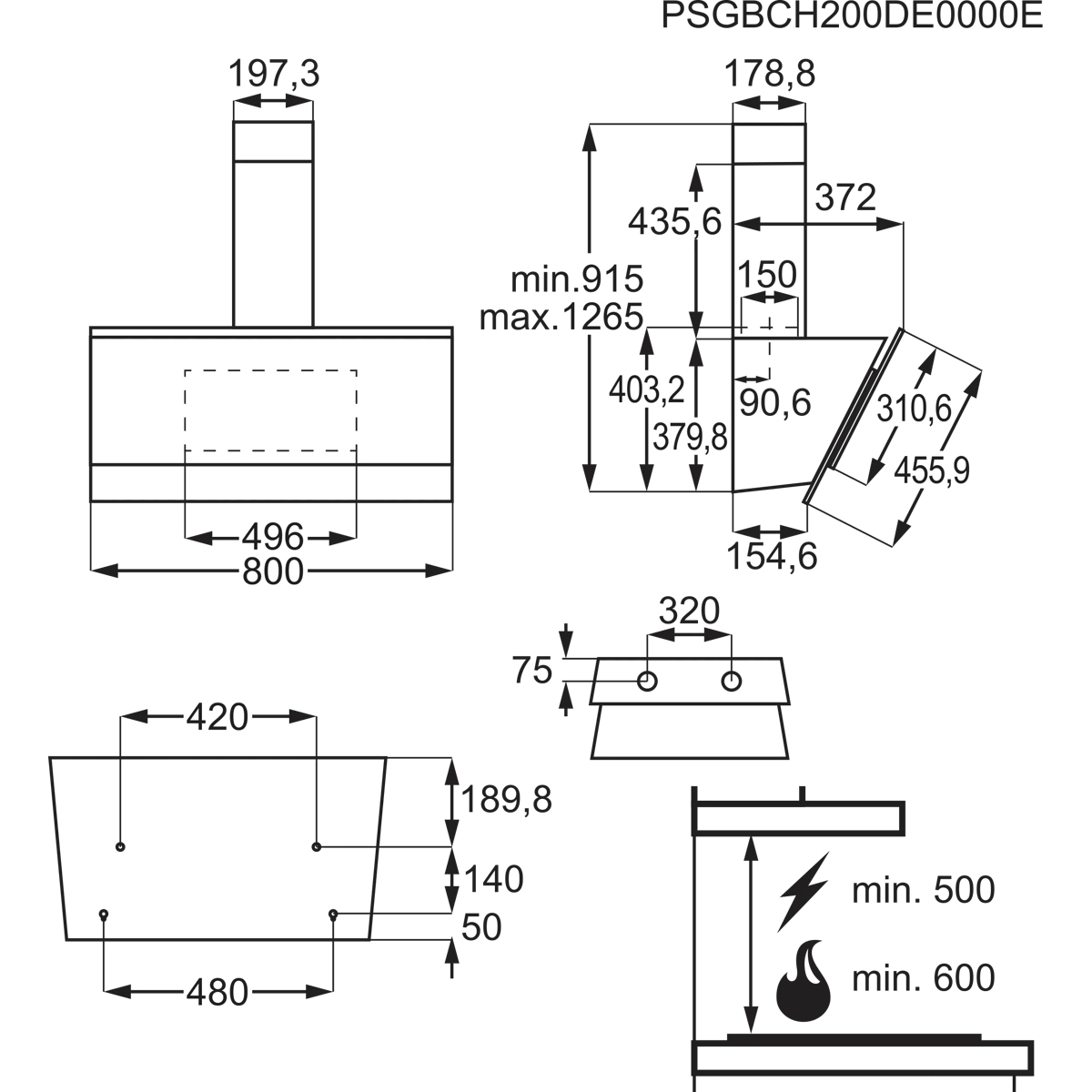

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 800 mm |
| Depth | 372 mm |
| Height | 1265 mm |
| Height (min) | 95 cm |
| Height (max) | 126.5 cm |
| Height without chimney | 38 cm |
| Weight | 17.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 920 mm |
| Package depth | 515 mm |
| Package height | 530 mm |
| Package weight | 21.4 kg |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 29.6 |
| Grease filtering efficiency (GFE) | 55.1% |
| Measured air pressure at best efficiency point | 447 Pa |
| Country of origin | Italy |
| Filter | ECFB02ST | ECFB52PL |
