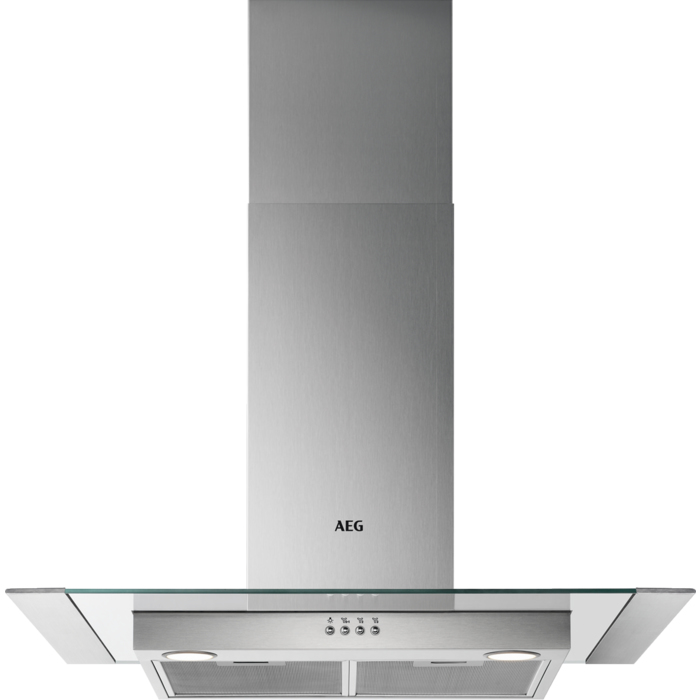

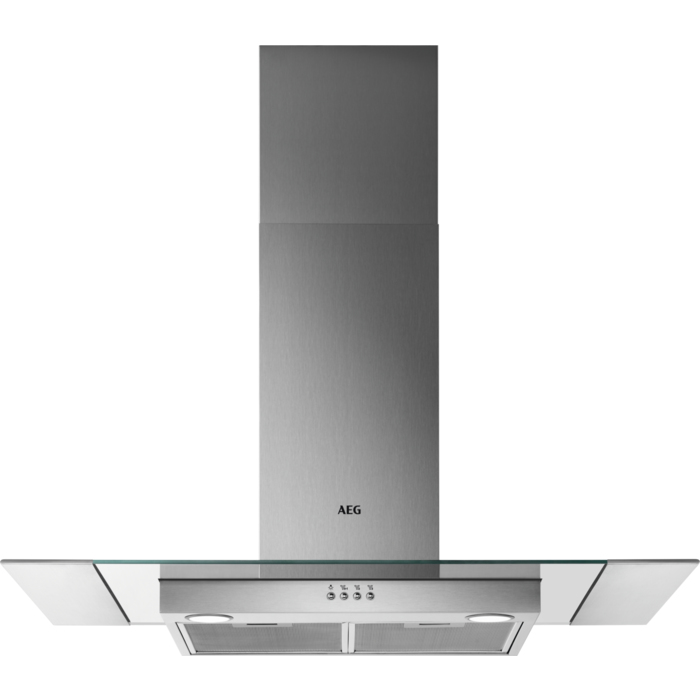

DTB3652M Wall-mounted Stainless steel 600 m³/h
Model DTB3652MPart no. 942 022 081EAN 7332543671304
53 specifications
- Energy classC
- Noise69 dB
- TypeWall-mounted
- ColourStainless steel
- Maximum extraction power600 m³/h
- Grease filter typeAluminium
Overview
- Energy class
- C
- Noise
- 69 dB
- Type
- Wall-mounted
- Colour
- Stainless steel
- Maximum extraction power
- 600 m³/h
- Grease filter type
- Aluminium
- Brand
- AEG
- Category
- Cooker Hood
- Model
- DTB3652M
- Part number
- 942 022 081
- EAN / UPC
- 7332543671304, 7332543740079
- Also known as
- AEG DTB3652M Wall-mounted Stainless steel 600 m³/h
Specifications
53 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 600 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | D |
| Lighting efficiency class | A |
| Grease filtering efficiency class | D |
| Maximum recirculating power | 415 m³/h |
| Number of speeds | 3 |
| Intensive speed | No |
| Noise level | 69 dB |
| Noise level (high speed) | 69 dB |
| Noise level (low speed) | 52 dB |
| Noise level (medium speed) | 62 dB |
| Noise level (recirculation mode) | 73 dB |
| Airflow (low speed) | 295 m³/h |
| Minimum distance from electric hob | 50 cm |
| Minimum distance from gas hob | 65 cm |
Design
| Specification | Value |
|---|---|
| Type | Wall-mounted |
| Product colour | Stainless steel |
| Housing material | Aluminium, Stainless steel |
| Control type | Buttons |
| Cord length | 1.32 m |
| Exhaust location | Top |
| Exhaust connection diameter | 15 cm |
| Number of motors | 1 |
| Motor included | Yes |
| Certification | CE |
Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 2 pc(s) |
| Filter cleaning indicator | Yes |
| Anti-odor filter | Yes |
| Removable filter | Yes |
| Washable filter | Yes |
Lighting
| Specification | Value |
|---|---|
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Lighting efficiency (LE) | 52 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | C |
| Energy efficiency scale | A+++ to D |
| Power consumption (off) | 0.01 W |
| Annual energy consumption | 100.2 kWh |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220 - 240 V |
| Energy efficiency class (legacy scale) | C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 500 mm |
| Height (min) | 60.5 cm |
| Height (max) | 102 cm |
| Installation compartment width | 60 cm |
| Installation compartment depth | 50 cm |
| Installation compartment height | 109.7 cm |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 15.4 |
| Grease filtering efficiency (GFE) | 65.1% |
