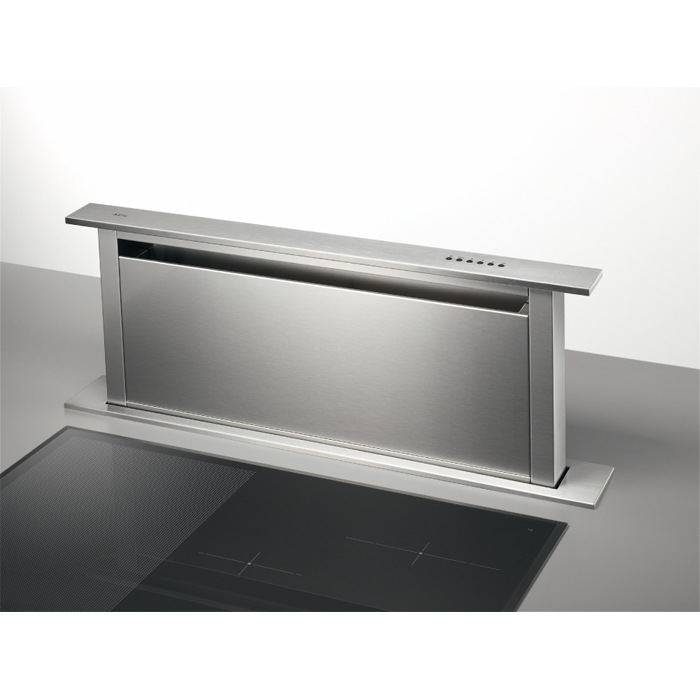

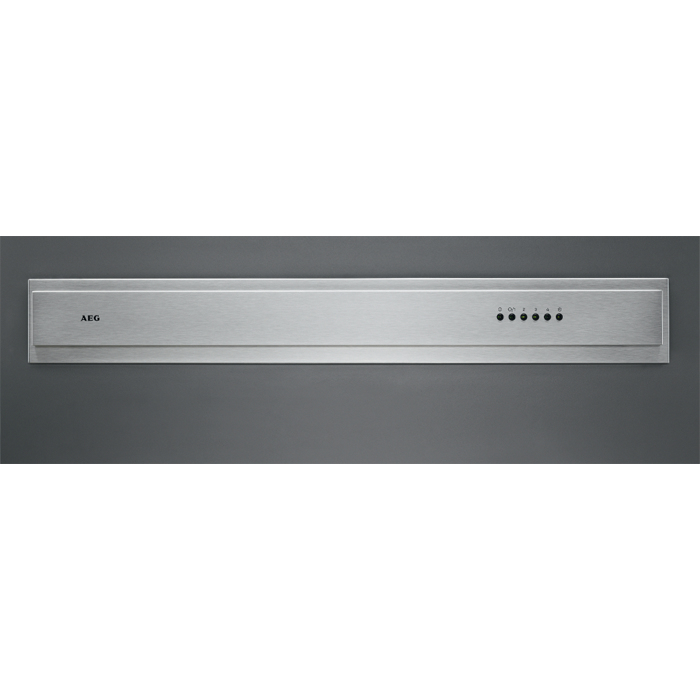

AEG DH1690-M Downdraft Stainless steel 669 m³/h
Model DH1690-MPart no. 942 122 517EAN 7332543108947
34 specifications
- Energy classC
- Noise70 dB
- TypeDowndraft
- ColourStainless steel
- Maximum extraction power669 m³/h
- Grease filter typeAluminium/Charcoal
Overview
- Energy class
- C
- Noise
- 70 dB
- Type
- Downdraft
- Colour
- Stainless steel
- Maximum extraction power
- 669 m³/h
- Grease filter type
- Aluminium/Charcoal
- Brand
- AEG
- Category
- Cooker Hood
- Model
- DH1690-M
- Part number
- 942 122 517
- EAN / UPC
- 7332543108947
- Also known as
- AEG DH1690-M Downdraft Stainless steel 669 m³/h
Specifications
34 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 669 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | C |
| Lighting efficiency class | No |
| Grease filtering efficiency class | G |
| Maximum recirculating power | 780 m³/h |
| Boost position air extraction power | 669 m³/h |
| Number of speeds | 4 |
| Intensive speed | Yes |
| Noise level | 70 dB |
| Noise level (high speed) | 66 dB |
| Noise level (low speed) | 49 dB |
| Noise level (intensive speed) | 70 dB |
| Airflow (low speed) | 304 m³/h |
Design
| Specification | Value |
|---|---|
| Type | Downdraft |
| Product colour | Stainless steel |
| Built-in display | No |

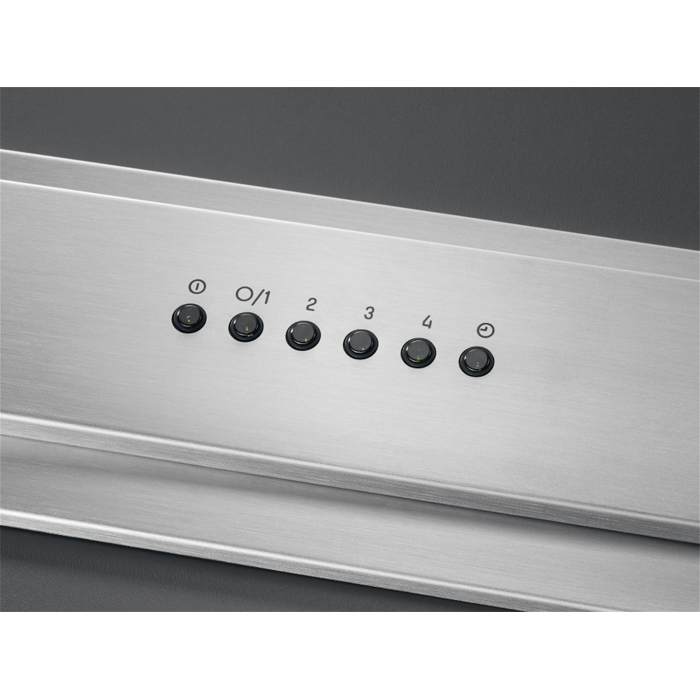

| Control type | Buttons |
| Number of motors | 1 |
Filtering
| Specification | Value |
|---|---|

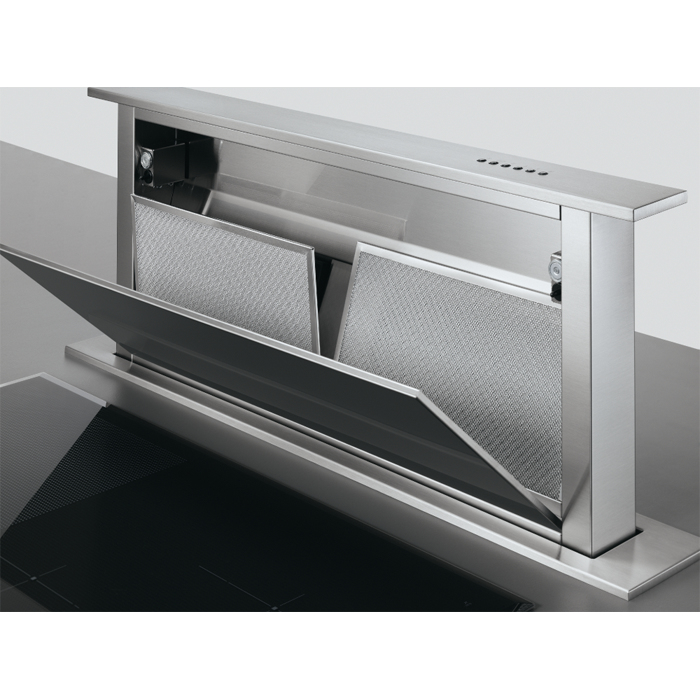

| Grease filter type | Aluminium/Charcoal |
| Number of filters | 2 pc(s) |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | C |
| Motor power | 250 W |
| Power consumption (off) | 0.99 W |
| Annual energy consumption | 92.3 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Energy efficiency class (legacy scale) | C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 880 mm |
| Depth | 116 mm |
| Height | 0 mm |
| Height (max) | 30 cm |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 20.6 |
| Grease filtering efficiency (GFE) | 41% |
