DGX3523S Built-in Grey 330 m³/h
Model DGX3523SPart no. 942 022 780EAN 7333394053097
52 specifications
- Energy classC
- Noise70 dB
- TypeBuilt-in
- Weight4.3 kg
- ColourGrey
- Maximum extraction power330 m³/h
Overview
- Energy class
- C
- Noise
- 70 dB
- Type
- Built-in
- Weight
- 4.3 kg
- Colour
- Grey
- Maximum extraction power
- 330 m³/h
- Brand
- AEG
- Category
- Cooker Hood
- Model
- DGX3523S
- Part number
- 942 022 780
- EAN / UPC
- 7333394053097
- Also known as
- AEG DGX3523S Built-in Grey 330 m³/h
Specifications
52 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum extraction power | 330 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | D |
| Lighting efficiency class | E |
| Grease filtering efficiency class | D |
| Maximum recirculating power | 220 m³/h |
| Number of speeds | 3 |
| Noise level | 70 dB |
| Noise level (high speed) | 63 dB |
| Noise level (low speed) | 45 dB |
| Airflow (low speed) | 145 m³/h |
| Pressure (Pa) | 265 |
| Minimum distance from electric hob | 42 cm |
| Minimum distance from gas hob | 65 cm |
Design
| Specification | Value |
|---|---|
| Type | Built-in |
| Product colour | Grey |

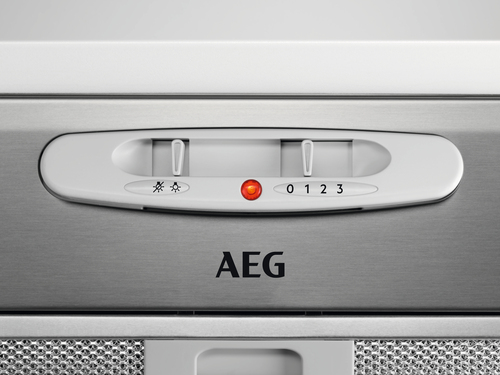

| Control type | Slider |
| Cord length | 1.8 m |
| Warranty period | 2 year(s) |

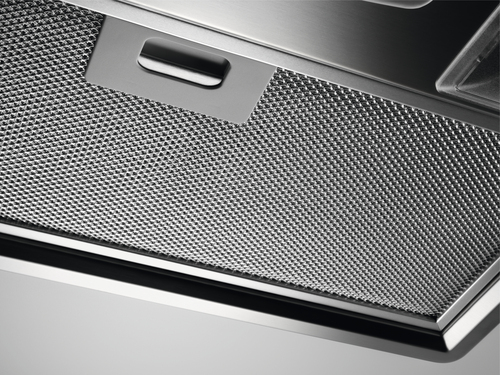

Filtering
| Specification | Value |
|---|---|
| Grease filter type | Aluminium |
| Number of filters | 1 pc(s) |

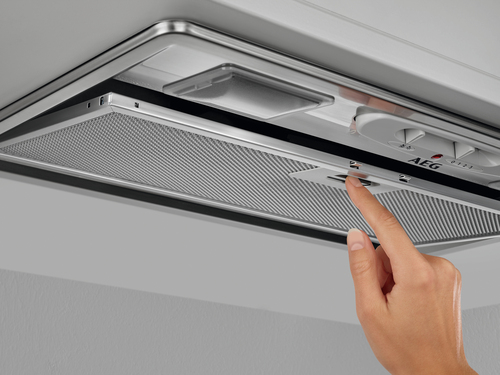

| Removable filter | Yes |

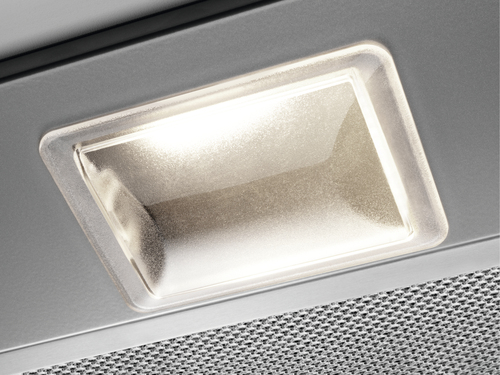

Lighting
| Specification | Value |
|---|---|
| Bulb power | 8 W |
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Illuminance | 78 lx |
| Lighting position | Center |
| Lighting efficiency (LE) | 9.7 lux/W |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | C |
| Energy efficiency scale | A+++ to D |
| Power consumption (off) | 0.01 W |
| Annual energy consumption | 51.9 kWh |
| AC input frequency | 50 Hz |
| AC input voltage | 220 - 240 V |
| Energy efficiency class (legacy scale) | C |

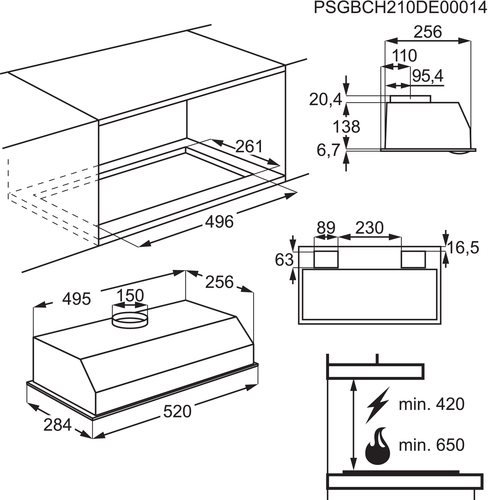

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 520 mm |
| Depth | 284 mm |
| Height | 158.4 mm |
| Height without chimney | 13.8 cm |
| Chimney height | 2.04 cm |
| Weight | 4.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 600 mm |
| Package depth | 220 mm |
| Package height | 350 mm |
| Package weight | 5.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Cardboard packaging weight | 610 g |
| Intrastat code | 84146000 |
| Polyethylene (PE) packaging weight | 20 g |
| Polystyrene (EPS/EPP) packaging weight | 120 g |
Other features
| Specification | Value |
|---|---|
| Fluid dynamic efficiency (FDE) | 14.3 |
| Grease filtering efficiency (GFE) | 65.1% |
| Country of origin | Poland |
